Apus CSP 24V IP20 1300lm/m 940 5m
Apus CSP 24V LED-light rail 72W 14.4W/m wh 4000K IP20; Protection cl. III; L70B50 50000h; LED not exchangeable; CRI>90; Ending; 2x0.3mm²

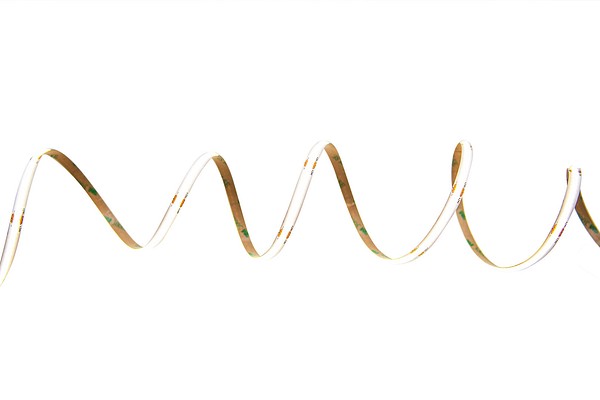

The high-quality Apus CSP led strip is an excellent lighting solution for spaces that require uniform and indirect lighting. CSP strips do not have visible dots, but give a completely flat, clean and uniform line of light. Thanks to the even light, the LED strip is also suitable for locations where the strip and profile are directly visible. The series has excellent colour rendering and three colour temperature options. The strip is to be installed in an aluminum profile. A separate dimmer unit offers two control options: push button (Push dim) and Dali dimming control. By special request, the luminaire is available with the Casambi control system, cut to measure and installed inside a profile, when necessary. Easy-to-install connectors are available as accessories.
LED strip 24V, cut every 50 mm.
Protection class III.
Length 5 m.
The maximum length of the continuous line of light 8 m.
3 m supply cable at both ends.
Mounting on an aluminium profile.
Colour temperatures 2700 K, 3000 K and 4000 K.
CRI > 90 / Ra > 90.
MacAdam 3 SDCM.
IP20.
10 W/m 1000 lm/m and 14,4 W/m 1300 lm/m.
On/off, Push dim, Dali.
Ambient temperature range 0 … 25 °C.
Rated life time L70 50 000 h (Ta25°C).
Also available with the Casambi control system on a project-specific basis. Can also be cut to measure and installed in a profile, when necessary.
- Code
- 4146924
Technical info
Structure
- Model
- Tape
- Lamp type
- LED not exchangeable
- Number of LEDs per metre
- 480
- Number of nodes per foot
- 146
- Type of power supply
- Mains power supply
- Exchangeable control gear
- Yes
- Energy efficiency class of light source according to EU regulation 2019/2015
- F
- Length of particular segments (mm)
- 50 mm
- With end piece
- No
- With connection set
- No
- With protective cover
- No
- Self-adhesive
- Yes
Mounting
- Mounting method
- Surface mounted
- Degree of protection (IP)
- IP20
- Lowest bending radius (mm)
- 20 mm
- Type of wiring
- Ending
- Number of poles
- 2
- Conductor cross section (mm²)
- 0.3 mm²
- Connectable conductor cross section (min) (mm²)
- 1.5 mm²
- Connectable conductor cross section (max) (mm²)
- 2.5 mm²
- Connection type
- Soldering connection
Electrotechnical data
- Lamp power per meter (W)
- 14.4 W
- Lamp power per foot (W)
- 4.39 W
- Luminaire efficacy (lm/W)
- 90 lm/W
- Voltage type
- DC
- Lamp voltage (min) (V)
- 24 V
- Lamp voltage (max) (V)
- 24 V
- Type of control gear
- LED operating device voltage-controlled
- Protection class according to IEC 61140
- III
- Maximum system power (W)
- 72 W
- Power factor
- 1

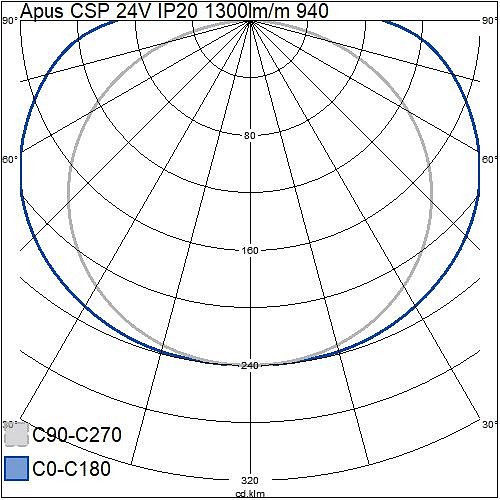

Photometric data
- Luminous flux per meter (lm)
- 1300 lm
- Radiation angle (°)
- 150 °
- Colour of light (alphanumeric)
- White
- Colour temperature (min) (K)
- 4000 K
- Colour temperature (max) (K)
- 4000 K
- Colour rendering index (CRI/Ra)
- 90-100
- Colour temperature switchable
- No
- Lumen setting adjustable
- No
- Beam angle adjustable
- No
ETIM
- Suitable for dimmer
- No
Lifetime and capacity
- Rated life time L70/B50 at 25 °C (h)
- 50000 h
- Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 95 %
- Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 10 %
Dimming and control
- Constant luminous flux control
- No
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- IFTTT support available
- No
Measurements
- Width (mm)
- 8 mm
- Height/depth (mm)
- 2 mm
- Length (mm)
- 5000 mm
- Total length (m)
- 5 m
| Item description | Code | Electrical number (FIN) | Colour temperature | Luminous flux | Power | Dimensions | ||
|---|---|---|---|---|---|---|---|---|
|
Apus CSP 24V IP20 1000lm/m 927 5m | 4146919 |
4146919 |
2700K |
5000lm |
50W |
5000x8x2mm |
|
|
Apus CSP 24V IP20 1000lm/m 930 5m | 4146920 |
4146920 |
3000K |
5000lm |
50W |
5000x8x2mm |
|
|
Apus CSP 24V IP20 1000lm/m 940 5m | 4146921 |
4146921 |
4000K |
5000lm |
50W |
5000x8x2mm |
|
|
Apus CSP 24V IP20 1300lm/m 927 5m | 4146922 |
4146922 |
2700K |
6500lm |
72W |
5000x8x2mm |
|
|
Apus CSP 24V IP20 1300lm/m 930 5m | 4146923 |
4146923 |
3000K |
6500lm |
72W |
5000x8x2mm |
|
|
Apus CSP 24V IP20 1300lm/m 940 5m | 4146924 |
4146924 |
4000K |
6500lm |
72W |
5000x8x2mm |
- Electrical number (FIN)
- 4146924
- Electrical number (SWE)
- 7509948
- GTIN
- 6435200304506
- Airam code
- A1COBH
- Code
- 4146924
