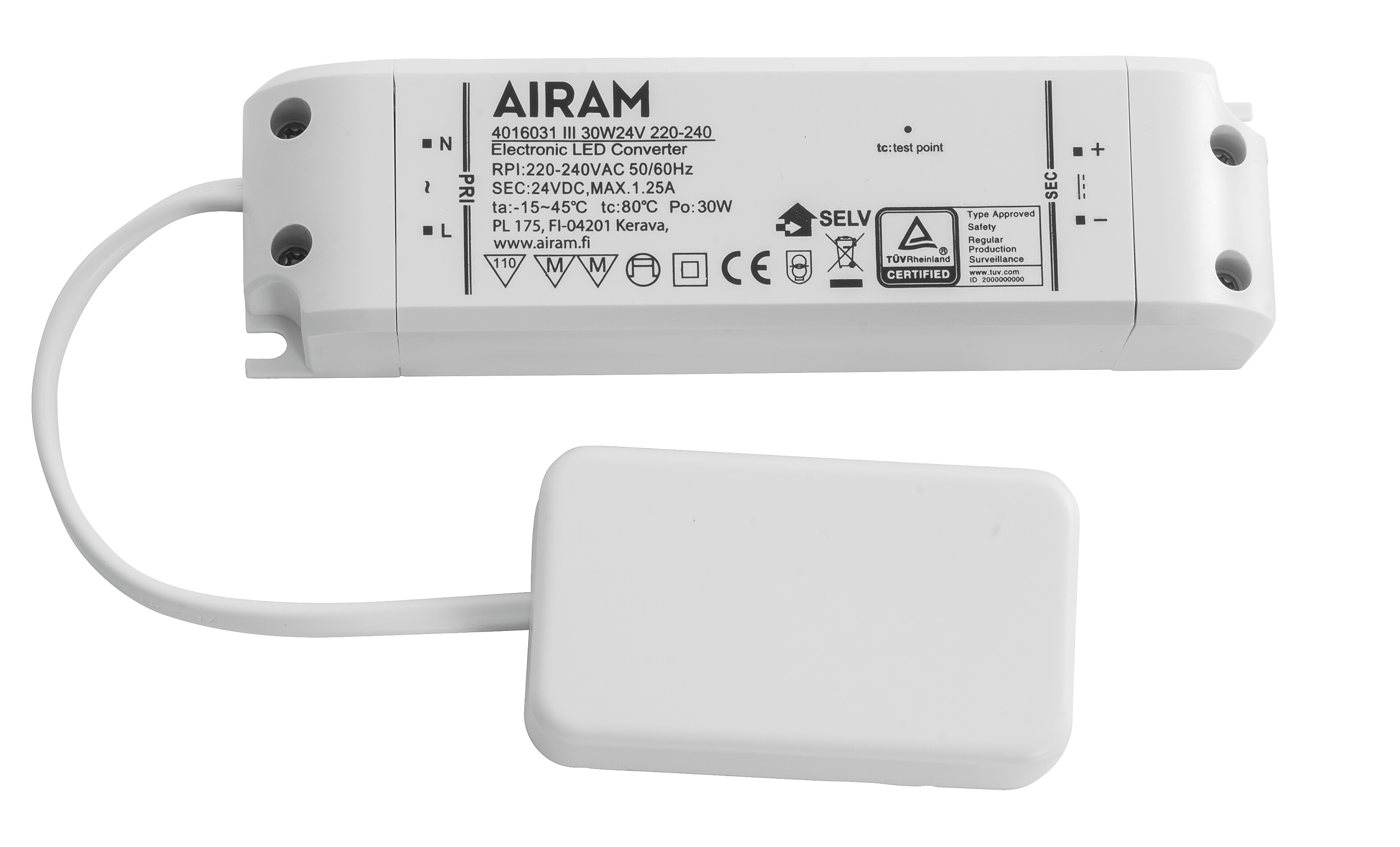

CV-DRIVER 24V 30W IP20
30W 24V IP20 A power source for Coloris and Ambiance LED strips. The power source is equipped with an integrated connection box to enable easy installation and linking.
Power sources for 24 V LED strips for indoor and outdoor use.
- Code
- 4016031
Technical info
- Electrical number (FIN)
- 4016031
- GTIN
- 6435200271778
- Airam code
- A1LEAA
- Code
- 4016031

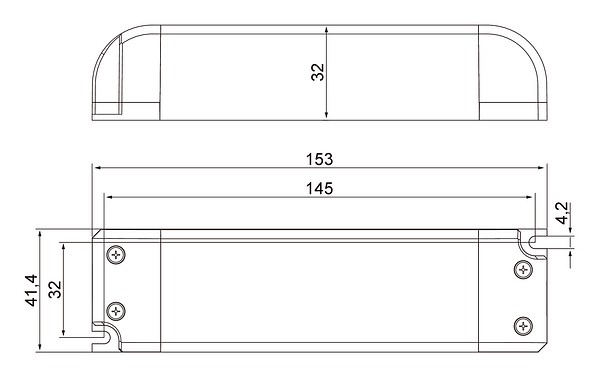

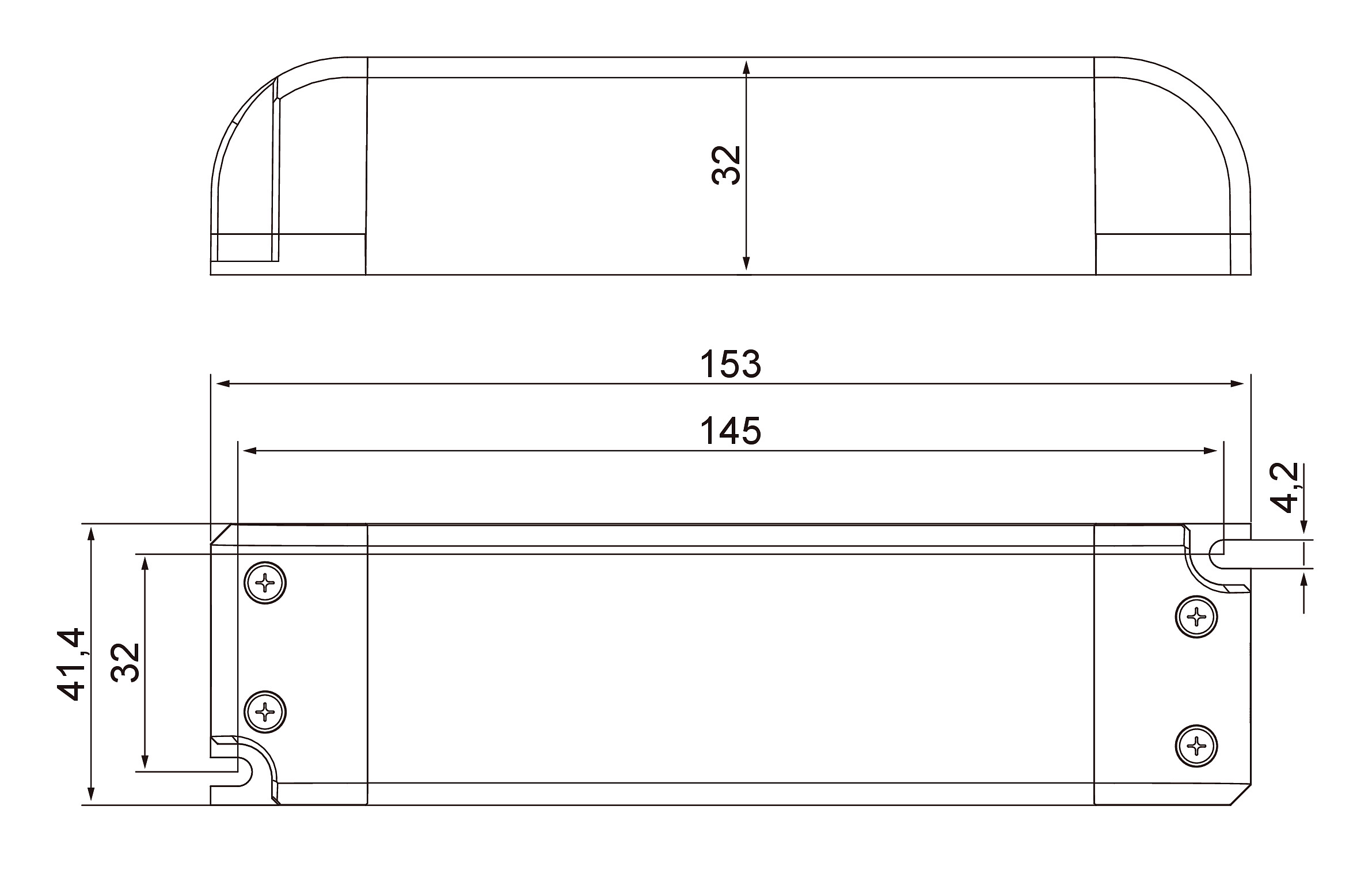

- Length (mm)
- 153
- Height (mm)
- 32
- Ambient temperature (max) (°C)
- 25
- Dimming Zigbee
- No
- Dimming leading edge
- No
- Input voltage (min) (V)
- 220
- Output power (max) (W)
- 30
- Housing
- Plastic housing
- Compatible with Google Assistant
- No
- Dimming DMX
- No
- Output voltage (min) (V)
- 24
- Emergency power supply system
- None
- Dimmable
- No
- Dimming Sine Wave Reduction
- No
- Suitable for constant current
- No
- Dimming programmable
- No
- Compatible with Casambi
- No
- Suitable for constant voltage
- Yes
- Frequency input voltage (max) (Hz)
- 60
- Dimming D4i
- No
- Dimming RF
- No
- IFTTT support available
- No
- Dimming potentiometer (integrated)
- No
- Width (mm)
- 41
- Dimming with push-button
- No
- Output voltage (max) (V)
- 24
- Dimming 1-10 V
- No
- Dimming DSI
- No
- No dimming function
- Yes
- Bluetooth operated
- No
- Output current (max) (mA)
- 1025
- Frequency input voltage (min) (Hz)
- 50
- Ambient temperature (min) (°C)
- 0
- Dimming 0-10 V
- No
- Suitable for DC-voltage (primary side)
- No
- Driver lifetime (h)
- 50000
- Dimming DALI-2
- No
- Dimming manufacturer's proprietary system
- No
- Degree of protection (IP)
- IP20
- Output current (min) (mA)
- 1025
- Dimming Touch and Dim
- No
- Input voltage (max) (V)
- 240
- Dimming DALI
- No
- Output power (min) (W)
- 1
- Compatible with Apple HomeKit
- No
- Dimming LineSwitch
- No
- Model
- Static
- Constant luminous flux control
- No
- Compatible with Amazon Alexa
- No
- Suitable for outdoor use
- No
- Dimming trailing edge
- No
- Protection class according to IEC 61140
- II
- Dimming mains voltage modulation
- No
Product versions
| Item description | Code | |
|---|---|---|
| CV-DRIVER 24V 30W IP20 | 4016031 |
|
| CV-DRIVER 24V 60W IP20 | 4016034 |
|
| CV-DRIVER 24V 120W IP20 | 4016035 |
|
| CV-DRIVER 24V 150W IP67 | 4016036 |
