Norma 24V

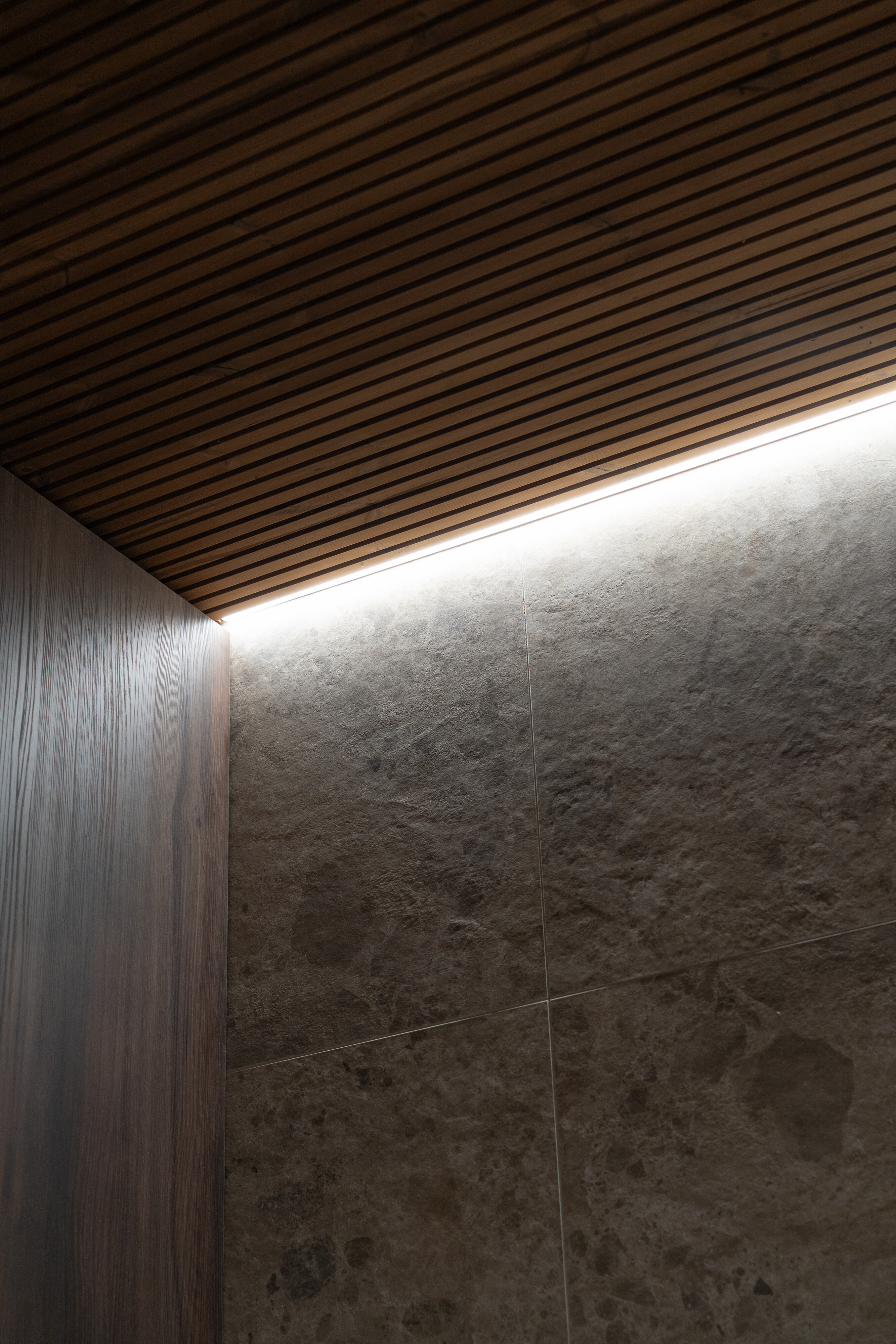

Norma 24V is a high-quality and energy-efficient LED strip for damp areas, with excellent color rendering. The strip creates a uniform line of light and offers numerous options for implementing indirect lighting. Applications include bathrooms and other damp areas, as well as terraces and balconies. There are two color temperature options available. By selecting the appropriate power supply, you can adjust the dimming of the LED strip as desired. It is also available with Casambi control, cut to length, and installed in a profile if necessary – customization is smoothly carried out at our factory in Lahti. The series includes accessories that make it easy to connect the strips.
LED strip 24V, cut every 62,5 mm.
Protection class III.
Length 5 m.
3 m supply cable at both ends.
Two end caps are included in the package. For attaching end caps, use an adhesive or sealant suitable for silicone (for outdoor use if necessary), such as Würth All-weather sealant.
Mounting on an aluminium profile.
Colour temperatures 3000 K and 4000 K. CRI > 90 / Ra > 90.
MacAdam 3 SDCM.
IP20.
1100 lm/m 9,6 W/m.
On/off, Push dim, Dali.
Accessories: 4147021 Norma 24V Accessory bag.
Ambient temperature range -25 … 25 °C.
Rated life time L70 50 000 h (Ta25°C).
Also available with the Casambi control system on a project-specific basis. Can also be cut to measure and installed in a profile, when necessary.
Technical info
| Item description | Code | Electrical number (FIN) | Colour temperature | Luminous flux | Power | Dimensions | ||
|---|---|---|---|---|---|---|---|---|
|
Norma 24V IP66 1100lm/m 930 5m | 4147019 |
4147019 |
3000K |
5650lm |
48W |
5000x5x10mm |
|
|
Norma 24V IP66 1100lm/m 940 5m | 4147020 |
4147020 |
4000K |
6000lm |
48W |
5000x5x10mm |
