Drivers 24V

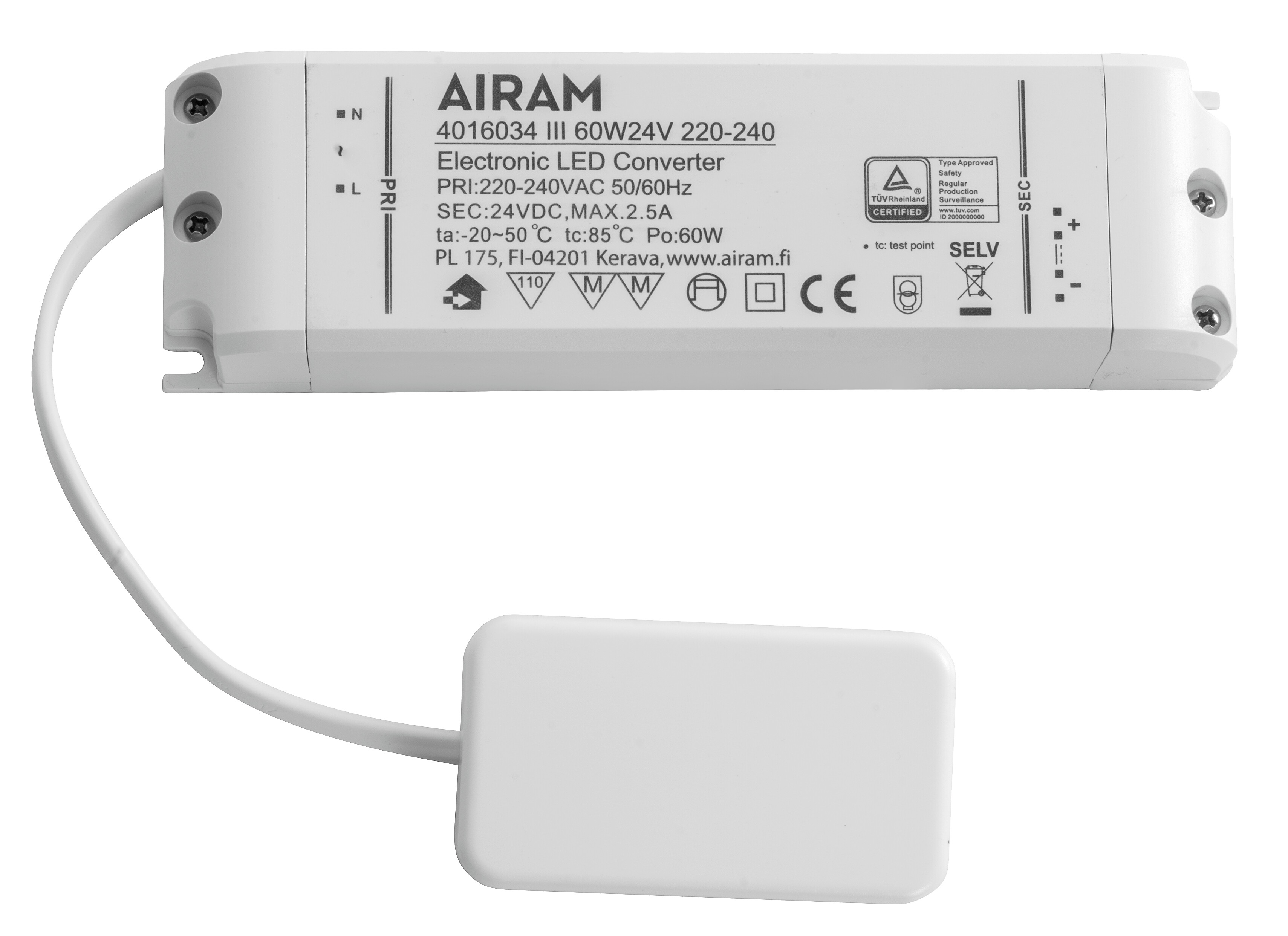

CV-DRIVER 24V 60W IP20

60W 24V IP20 The power source is equipped with an integrated connection box to enable easy installation and linking. Suitable for use with the 5 m Coloris and Ambiance LED strips.

See product details
Code
4016034

Technical info

Structure

Model
Static
Housing
Plastic housing
Emergency power supply system
None

Dimming and control

Dimmable
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming D4i
No
Dimming DALI
No
Dimming DALI-2
No
Dimming DMX
No
Dimming DSI
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming manufacturer's proprietary system
No
Dimming trailing edge
No
Dimming leading edge
No
Dimming potentiometer (integrated)
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming with push-button
No
Dimming Zigbee
No
No dimming function
Yes
Constant luminous flux control
No
Bluetooth operated
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Compatible with Casambi
No
IFTTT support available
No

Mounting

Suitable for outdoor use
No
Degree of protection (IP)
IP20

Electrotechnical data

Suitable for constant current
No
Suitable for constant voltage
Yes
Output voltage (min) (V)
24 V
Output voltage (max) (V)
24 V
Output current (min) (mA)
2500 mA
Output current (max) (mA)
2500 mA
Suitable for DC-voltage (primary side)
No
Output power (min) (W)
1 W
Output power (max) (W)
60 W
Input voltage (min) (V)
220 V
Input voltage (max) (V)
240 V
Frequency input voltage (min) (Hz)
50 Hz
Frequency input voltage (max) (Hz)
60 Hz
Protection class according to IEC 61140
II

Lifetime and capacity

Ambient temperature (min) (°C)
0 °C
Ambient temperature (max) (°C)
25 °C
Driver lifetime (h)
50000 Hz

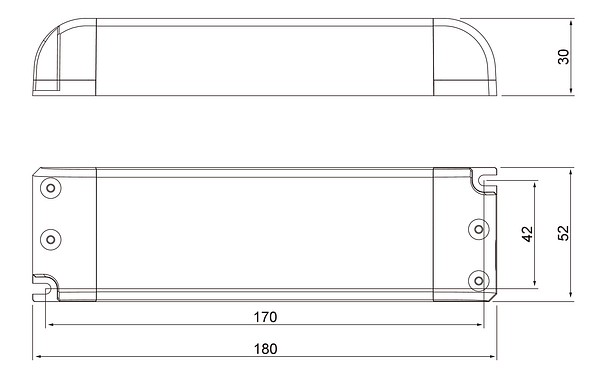

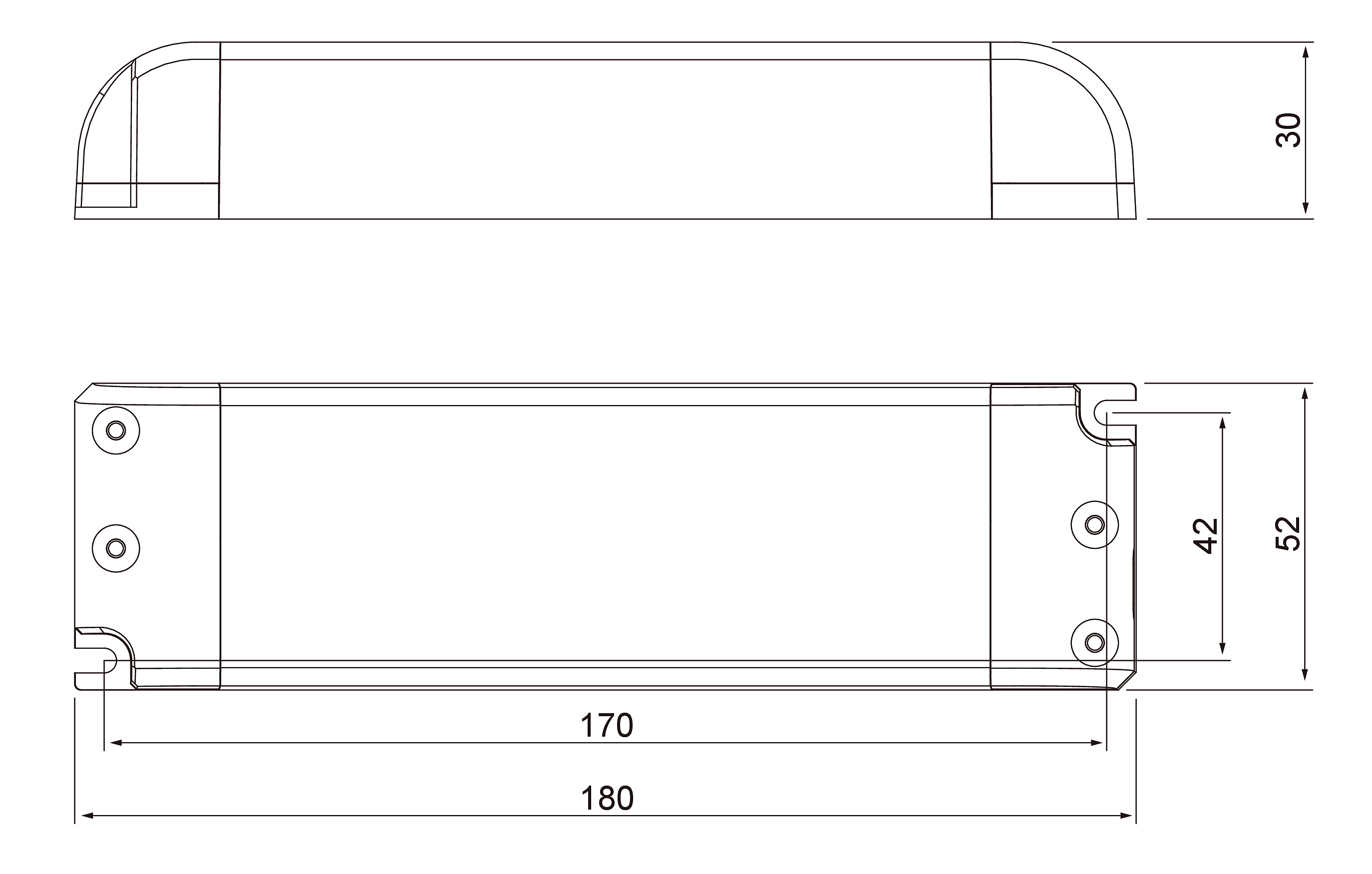

Measurements

Length (mm)
180 mm
Width (mm)
52 mm
Height (mm)
30 mm
