Apus CSP 24V

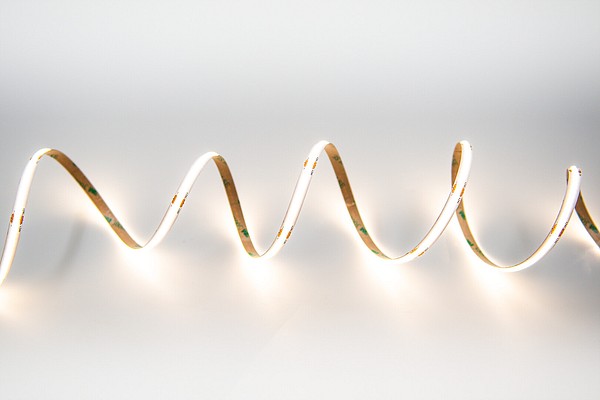

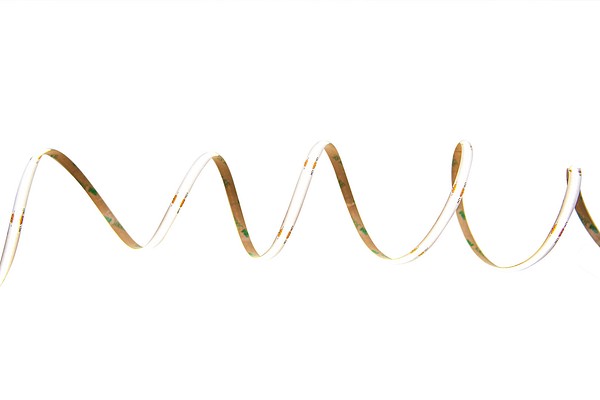

The high-quality Apus CSP led strip is an excellent lighting solution for spaces that require uniform and indirect lighting. CSP strips do not have visible dots, but give a completely flat, clean and uniform line of light. Thanks to the even light, the LED strip is also suitable for locations where the strip and profile are directly visible. The series has excellent colour rendering and three colour temperature options. The strip is to be installed in an aluminum profile. A separate dimmer unit offers two control options: push button (Push dim) and Dali dimming control. By special request, the luminaire is available with the Casambi control system, cut to measure and installed inside a profile, when necessary. Easy-to-install connectors are available as accessories.
LED strip 24V, cut every 50 mm.
Protection class III.

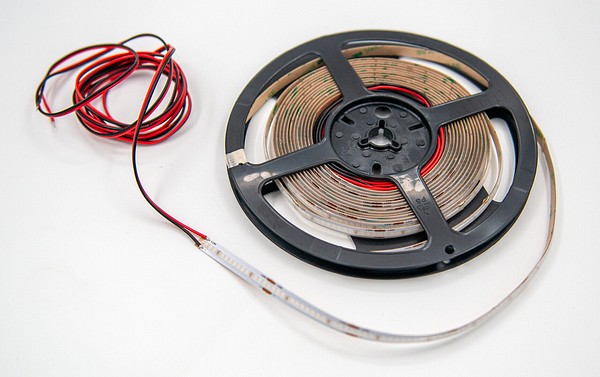

Length 5 m.
The maximum length of the continuous line of light 8 m.
3 m supply cable at both ends.
Mounting on an aluminium profile.
Colour temperatures 2700 K, 3000 K and 4000 K.
CRI > 90 / Ra > 90.
MacAdam 3 SDCM.
IP20.
10 W/m 1000 lm/m and 14,4 W/m 1300 lm/m.
On/off, Push dim, Dali.
Ambient temperature range 0 … 25 °C.
Rated life time L70 50 000 h (Ta25°C).
Also available with the Casambi control system on a project-specific basis. Can also be cut to measure and installed in a profile, when necessary.
Technical info
| Item description | Code | Electrical number (FIN) | Colour temperature | Luminous flux | Power | Dimensions | ||
|---|---|---|---|---|---|---|---|---|
|
Apus CSP 24V IP20 1000lm/m 927 5m | 4146919 |
4146919 |
2700K |
5000lm |
50W |
5000x8x2mm |
|
|
Apus CSP 24V IP20 1000lm/m 930 5m | 4146920 |
4146920 |
3000K |
5000lm |
50W |
5000x8x2mm |
|
|
Apus CSP 24V IP20 1000lm/m 940 5m | 4146921 |
4146921 |
4000K |
5000lm |
50W |
5000x8x2mm |
|
|
Apus CSP 24V IP20 1300lm/m 927 5m | 4146922 |
4146922 |
2700K |
6500lm |
72W |
5000x8x2mm |
|
|
Apus CSP 24V IP20 1300lm/m 930 5m | 4146923 |
4146923 |
3000K |
6500lm |
72W |
5000x8x2mm |
|
|
Apus CSP 24V IP20 1300lm/m 940 5m | 4146924 |
4146924 |
4000K |
6500lm |
72W |
5000x8x2mm |
