Apus CSP 24V IP20 1300lm/m 927 5m
Apus CSP 24V LED-light rail 72W 14.4W/m wh 2700K IP20; Protection cl. III; L70B50 50000h; LED not exchangeable; CRI>90; Ending; 2x0.3mm²

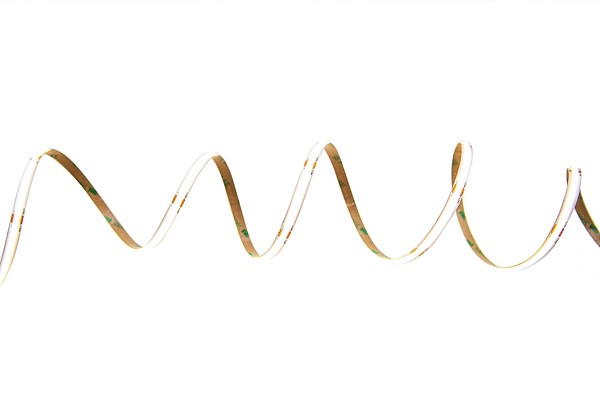

The high-quality Apus CSP led strip is an excellent lighting solution for spaces that require uniform and indirect lighting. CSP strips do not have visible dots, but give a completely flat, clean and uniform line of light. Thanks to the even light, the LED strip is also suitable for locations where the strip and profile are directly visible. The series has excellent colour rendering and three colour temperature options. The strip is to be installed in an aluminum profile. A separate dimmer unit offers two control options: push button (Push dim) and Dali dimming control. By special request, the luminaire is available with the Casambi control system, cut to measure and installed inside a profile, when necessary. Easy-to-install connectors are available as accessories.
LED strip 24V, cut every 50 mm.
Protection class III.
Length 5 m.
The maximum length of the continuous line of light 8 m.
3 m supply cable at both ends.
Mounting on an aluminium profile.
Colour temperatures 2700 K, 3000 K and 4000 K.
CRI > 90 / Ra > 90.
MacAdam 3 SDCM.
IP20.
10 W/m 1000 lm/m and 14,4 W/m 1300 lm/m.
On/off, Push dim, Dali.
Ambient temperature range 0 … 25 °C.
Rated life time L70 50 000 h (Ta25°C).
Also available with the Casambi control system on a project-specific basis. Can also be cut to measure and installed in a profile, when necessary.
- Code
- 4146922
Downloads
Technical info
- Electrical number (FIN)
- 4146922
- Electrical number (SWE)
- 7509946
- GTIN
- 6435200304483
- Airam code
- A1COBF
- Code
- 4146922
- Lamp power per meter (W)
- 14.4

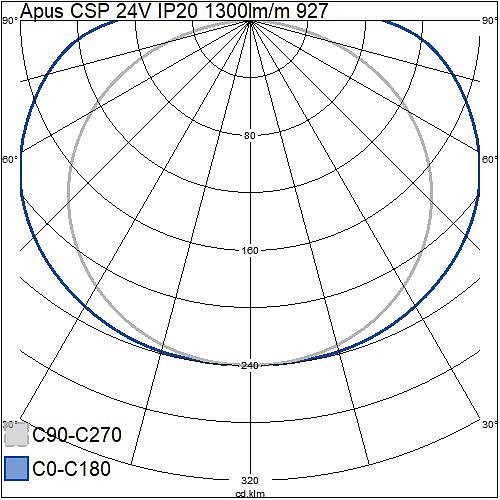

- Radiation angle (°)
- 150
- Length (mm)
- 5000
- Colour of light (alphanumeric)
- White
- Lowest bending radius (mm)
- 20
- Length of particular segments (mm)
- 50
- Colour temperature (max) (K)
- 2700
- Number of poles
- 2
- Connectable conductor cross section (min) (mm²)
- 1.5
- Compatible with Google Assistant
- No
- Connectable conductor cross section (max) (mm²)
- 2.5
- Conductor cross section (mm²)
- 0.3
- Rated life time L70/B50 at 25 °C (h)
- 50000
- Lamp power per foot (W)
- 4.39
- Maximum system power (W)
- 72
- Exchangeable control gear
- Yes
- Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 95
- Mounting method
- Surface mounted
- Beam angle adjustable
- No
- With connection set
- No
- IFTTT support available
- No
- Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 10
- Self-adhesive
- Yes
- Total length (m)
- 5
- Width (mm)
- 8
- Luminaire efficacy (lm/W)
- 90
- Energy efficiency class of light source according to EU regulation 2019/2015
- G
- With protective cover
- No
- Type of wiring
- Ending
- Colour rendering index (CRI/Ra)
- 90-100
- Number of LEDs per metre
- 480
- Lamp voltage (max) (V)
- 24
- Luminous flux per meter (lm)
- 1300
- With end piece
- No
- Connection type
- Soldering connection
- Lamp type
- LED not exchangeable
- Type of control gear
- LED operating device voltage-controlled
- Colour temperature (min) (K)
- 2700
- Degree of protection (IP)
- IP20
- Suitable for dimmer
- No
- Power factor
- 1
- Lumen setting adjustable
- No
- Type of power supply
- Mains power supply
- Protection class according to IEC 61140
- III
- Voltage type
- DC
- Colour temperature switchable
- No
- Compatible with Apple HomeKit
- No
- Lamp voltage (min) (V)
- 24
- Model
- Tape
- Constant luminous flux control
- No
- Compatible with Amazon Alexa
- No
- Height/depth (mm)
- 2
- Number of nodes per foot
- 146
Product versions
| Item description | Code | |
|---|---|---|
| Apus CSP 24V IP20 1000lm/m 927 5m | 4146919 |
|
| Apus CSP 24V IP20 1000lm/m 930 5m | 4146920 |
|
| Apus CSP 24V IP20 1000lm/m 940 5m | 4146921 |
|
| Apus CSP 24V IP20 1300lm/m 927 5m | 4146922 |
|
| Apus CSP 24V IP20 1300lm/m 930 5m | 4146923 |
|
| Apus CSP 24V IP20 1300lm/m 940 5m | 4146924 |
