Apus CSP 24V IP20 1000lm/m 930 5m
Apus CSP 24V LED-light rail 50W 10W/m wh 3000K IP20; Protection cl. III; L70B50 50000h; LED not exchangeable; CRI>90; Ending; 2x0.3mm²

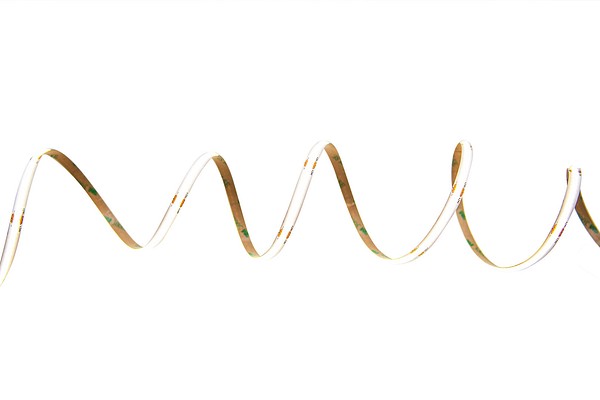

The high-quality Apus CSP led strip is an excellent lighting solution for spaces that require uniform and indirect lighting. CSP strips do not have visible dots, but give a completely flat, clean and uniform line of light. Thanks to the even light, the LED strip is also suitable for locations where the strip and profile are directly visible. The series has excellent colour rendering and three colour temperature options. The strip is to be installed in an aluminum profile. A separate dimmer unit offers two control options: push button (Push dim) and Dali dimming control. By special request, the luminaire is available with the Casambi control system, cut to measure and installed inside a profile, when necessary. Easy-to-install connectors are available as accessories.
LED strip 24V, cut every 50 mm.
Protection class III.
Length 5 m.
The maximum length of the continuous line of light 8 m.
3 m supply cable at both ends.
Mounting on an aluminium profile.
Colour temperatures 2700 K, 3000 K and 4000 K.
CRI > 90 / Ra > 90.
MacAdam 3 SDCM.
IP20.
10 W/m 1000 lm/m and 14,4 W/m 1300 lm/m.
On/off, Push dim, Dali.
Ambient temperature range 0 … 25 °C.
Rated life time L70 50 000 h (Ta25°C).
Also available with the Casambi control system on a project-specific basis. Can also be cut to measure and installed in a profile, when necessary.
- Code
- 4146920
Downloads
Technical info
- Electrical number (FIN)
- 4146920
- Electrical number (SWE)
- 7509944
- GTIN
- 6435200304469
- Airam code
- A1COBD
- Code
- 4146920
- Connection type
- Soldering connection
- Height/depth (mm)
- 2
- Colour rendering index (CRI/Ra)
- 90-100
- Colour of light (alphanumeric)
- White
- Lamp power per foot (W)
- 3.05
- Number of poles
- 2
- Number of nodes per foot
- 98
- Power factor
- 1
- Width (mm)
- 8
- Colour temperature (min) (K)
- 3000
- Lamp voltage (max) (V)
- 24
- Length (mm)
- 5000
- Lamp type
- LED not exchangeable
- Exchangeable control gear
- Yes
- Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 95
- Type of power supply
- Mains power supply
- Luminous flux per meter (lm)
- 1000
- Mounting method
- Surface mounted
- Lamp power per meter (W)
- 10
- Beam angle adjustable
- No
- Lowest bending radius (mm)
- 20
- Lamp voltage (min) (V)
- 24
- Degree of protection (IP)
- IP20
- Colour temperature (max) (K)
- 3000
- Colour temperature switchable
- No
- With end piece
- No
- Type of wiring
- Ending
- Compatible with Amazon Alexa
- No
- Number of LEDs per metre
- 320
- Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 10
- Protection class according to IEC 61140
- III
- Compatible with Apple HomeKit
- No
- Radiation angle (°)
- 150
- Rated life time L70/B50 at 25 °C (h)
- 50000
- Suitable for dimmer
- No
- Constant luminous flux control
- No
- Connectable conductor cross section (min) (mm²)
- 1.5
- IFTTT support available
- No
- Maximum system power (W)
- 50
- Conductor cross section (mm²)
- 0.3
- Length of particular segments (mm)
- 50
- Voltage type
- DC
- Luminaire efficacy (lm/W)
- 100
- Connectable conductor cross section (max) (mm²)
- 2.5
- Total length (m)
- 5
- Self-adhesive
- Yes
- Energy efficiency class of light source according to EU regulation 2019/2015
- F
- With connection set
- No
- With protective cover
- No
- Compatible with Google Assistant
- No
- Lumen setting adjustable
- No
- Type of control gear
- LED operating device voltage-controlled
- Model
- Tape
Product versions
| Item description | Code | |
|---|---|---|
| Apus CSP 24V IP20 1000lm/m 927 5m | 4146919 |
|
| Apus CSP 24V IP20 1000lm/m 930 5m | 4146920 |
|
| Apus CSP 24V IP20 1000lm/m 940 5m | 4146921 |
|
| Apus CSP 24V IP20 1300lm/m 927 5m | 4146922 |
|
| Apus CSP 24V IP20 1300lm/m 930 5m | 4146923 |
|
| Apus CSP 24V IP20 1300lm/m 940 5m | 4146924 |
