DALI drivers 24V

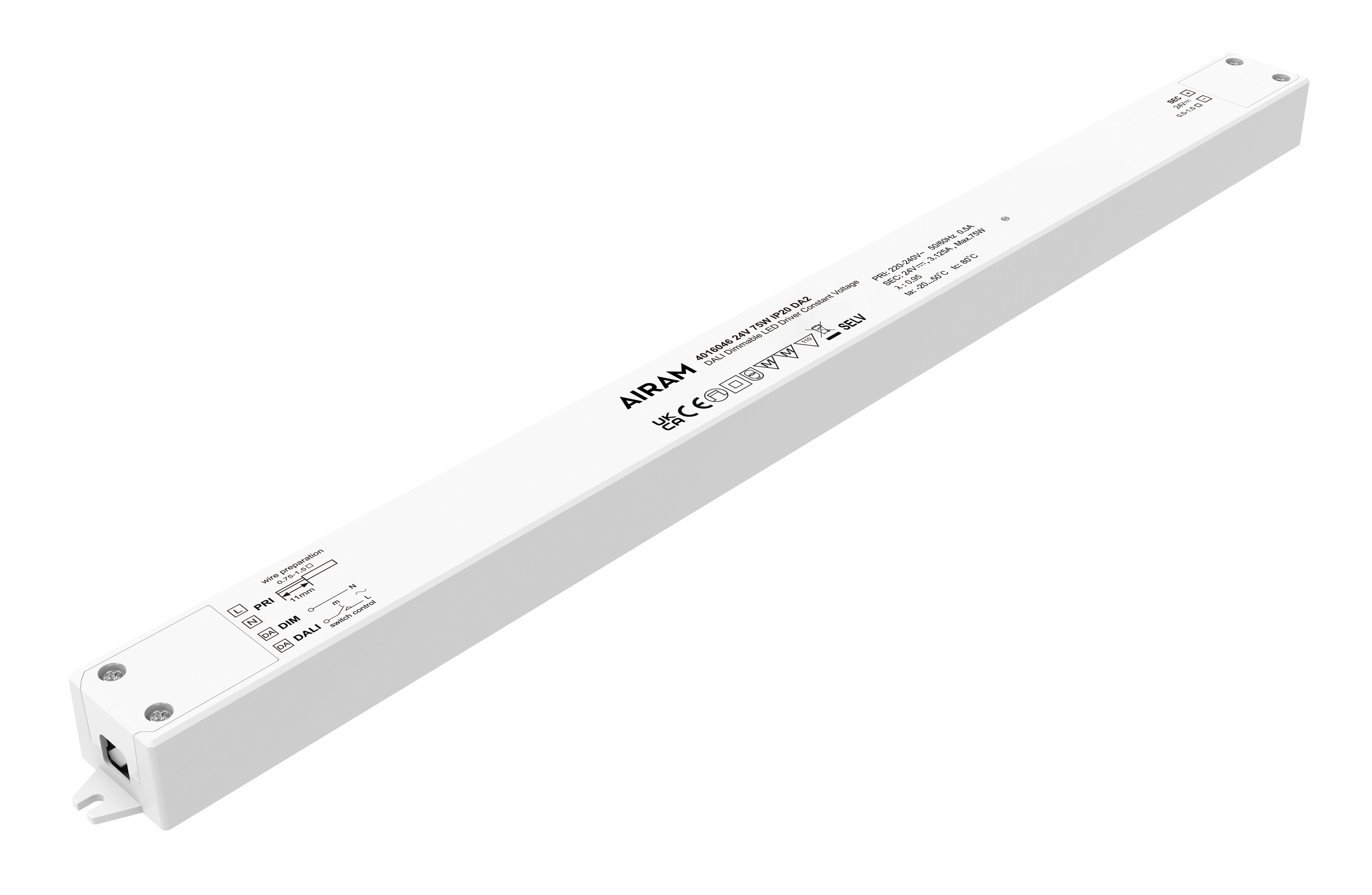

CV-Driver 24V 75W IP20 DA2

75W 24V IP20 Dali dimmable driver for 24V led strips for indoor use. Combatible with led strips: Apus 24V, Apus CSP 24V, Norma 24V, Norma CSP 24V.

See product details
Code
4016046

Technical info

Structure

Model
Static
Housing
Plastic housing
Independently operating
Yes
Emergency power supply system
None

Dimming and control

Dimmable
Yes
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming D4i
No
Dimming DALI
Yes
Dimming DALI-2
Yes
Dimming DMX
No
Dimming DSI
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming manufacturer's proprietary system
No
Dimming trailing edge
No
Dimming leading edge
No
Dimming potentiometer (integrated)
No
Dimming programmable
Yes
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming with push-button
Yes
Dimming Zigbee
No
No dimming function
No
Constant luminous flux control
No
PWM modulation
Yes
Bluetooth operated
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Compatible with Casambi
No
IFTTT support available
No

Mounting

Suitable for outdoor use
No
Max. number of luminaires per miniature circuit breaker B16
10
Max. number of luminaires per miniature circuit breaker C16
22
Degree of protection (IP)
IP20

Electrotechnical data

Suitable for constant current
No
Suitable for constant voltage
Yes
Output voltage (min) (V)
24 V
Output voltage (max) (V)
24 V
Output current (max) (mA)
3125 mA
Suitable for DC-voltage (primary side)
Yes
Output power (min) (W)
75 W
Output power (max) (W)
75 W
Input voltage (min) (V)
220 V
Input voltage (max) (V)
240 V
Frequency input voltage (min) (Hz)
50 Hz
Frequency input voltage (max) (Hz)
60 Hz
Efficiency (%)
95 Hz
Mains surge immunity (common mode, L/N-Ground) (kV)
2 kV
Mains surge immunity (differential mode, L-N) (kV)
1 kV
Overload protection
Yes
Over temperature protection
Yes
Short-circuit protected
Yes
Protection class according to IEC 61140
II

Lifetime and capacity

Ambient temperature (min) (°C)
0 °C
Ambient temperature (max) (°C)
25 °C
Driver lifetime (h)
50000 Hz

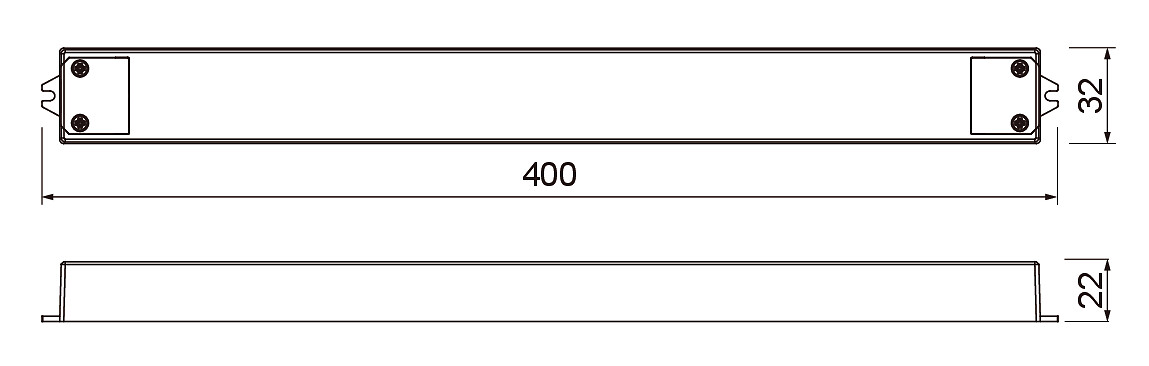

Measurements

Length (mm)
400 mm
Width (mm)
32 mm
Height (mm)
22 mm
