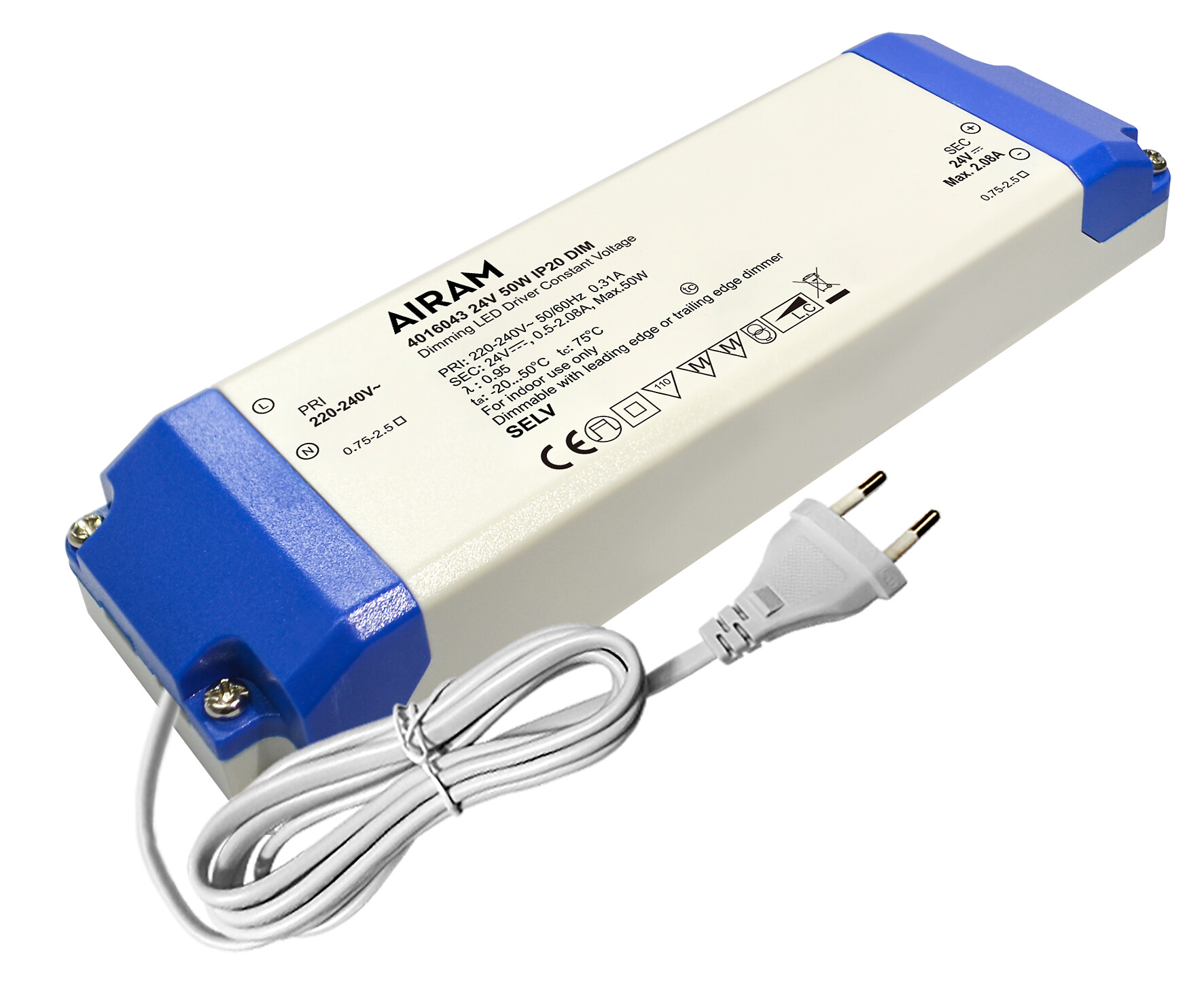

CV-Driver 24V 50W IP20 DIM
50W 24V IP20 Dimmable power source for 24V led strips for indoor use. Combatible with led strips: Apus 24V, Apus CSP 24V, Norma 24V, Norma CSP 24V.
Dim IP20 driver comes with a two-meter power cable and a Euro plug. Operates with leading and trailing edge control. IP67 versions can be used outdoorss.
- Code
- 4016043
Technical info
- Electrical number (FIN)
- 4016043
- GTIN
- 6435200307774
- Airam code
- A0TAAB
- Code
- 4016043

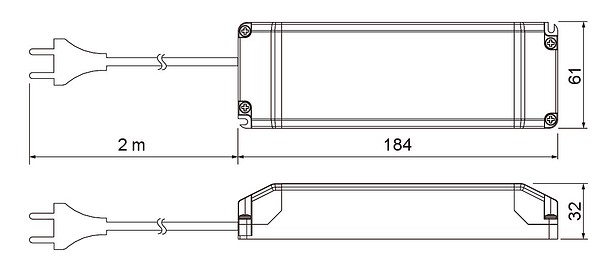

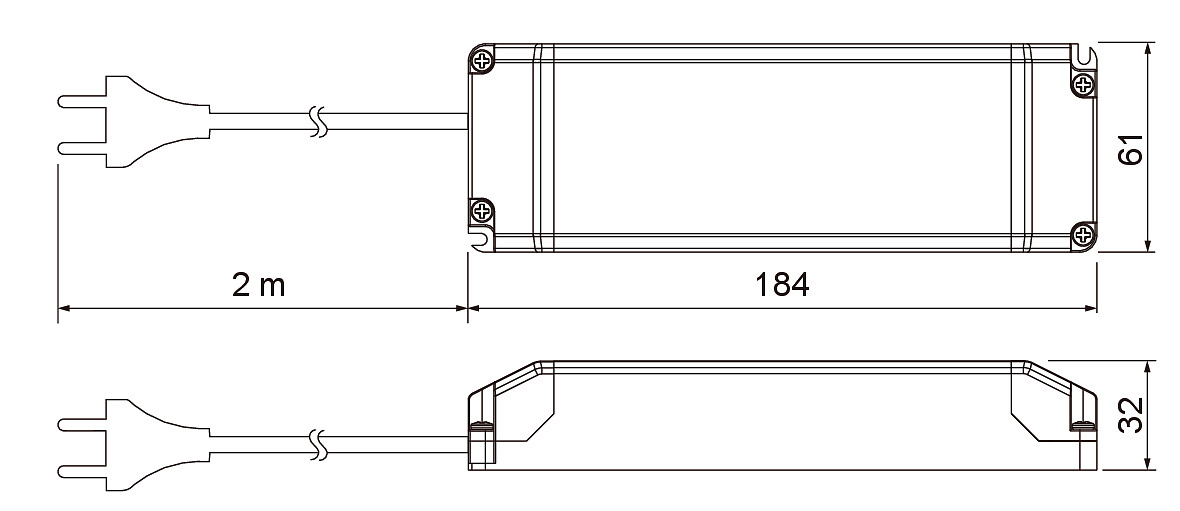

- Length (mm)
- 184
- Height (mm)
- 32
- Ambient temperature (max) (°C)
- 25
- Dimming Zigbee
- No
- Over temperature protection
- Yes
- Dimming leading edge
- Yes
- Input voltage (min) (V)
- 220
- Output power (max) (W)
- 50
- Housing
- Plastic housing
- Compatible with Google Assistant
- No
- Overload protection
- Yes
- Short-circuit protected
- Yes
- Dimming DMX
- No
- Output voltage (min) (V)
- 24
- Independently operating
- Yes
- Emergency power supply system
- None
- Dimmable
- Yes
- Dimming Sine Wave Reduction
- No
- Suitable for constant current
- No
- Dimming programmable
- No
- Compatible with Casambi
- No
- Suitable for constant voltage
- Yes
- Frequency input voltage (max) (Hz)
- 60
- Dimming D4i
- No
- PWM modulation
- No
- Dimming RF
- No
- IFTTT support available
- No
- Mains surge immunity (common mode, L/N-Ground) (kV)
- 2
- Dimming potentiometer (integrated)
- No
- Width (mm)
- 61
- Dimming with push-button
- No
- Output voltage (max) (V)
- 24
- Dimming 1-10 V
- No
- Dimming DSI
- No
- No dimming function
- No
- Bluetooth operated
- No
- Output current (max) (mA)
- 2080
- Frequency input voltage (min) (Hz)
- 50
- Ambient temperature (min) (°C)
- 0
- Dimming 0-10 V
- No
- Suitable for DC-voltage (primary side)
- Yes
- Max. number of luminaires per miniature circuit breaker C16
- 51
- Driver lifetime (h)
- 50000
- Dimming DALI-2
- No
- Mains surge immunity (differential mode, L-N) (kV)
- 1
- Dimming manufacturer's proprietary system
- No
- Degree of protection (IP)
- IP20
- Output current (min) (mA)
- 500
- Dimming Touch and Dim
- No
- Input voltage (max) (V)
- 240
- Dimming DALI
- No
- Output power (min) (W)
- 12
- Compatible with Apple HomeKit
- No
- Dimming LineSwitch
- No
- Model
- Static
- Dimming trailing edge
- Yes
- Constant luminous flux control
- No
- Compatible with Amazon Alexa
- No
- Suitable for outdoor use
- No
- Protection class according to IEC 61140
- II
- Efficiency (%)
- 95
- Dimming mains voltage modulation
- No
- Max. number of luminaires per miniature circuit breaker B16
- 51
Product versions
| Item description | Code | |
|---|---|---|
| CV-Driver 24V 25W IP20 DIM | 4016042 |
|
| CV-Driver 24V 50W IP20 DIM | 4016043 |
|
| CV-Driver 24V 100W IP20 DIM | 4016044 |
|
| CV-Driver 24V 150W IP20 DIM | 4016045 |
|
| CV-Driver 24V 100W IP67 DIM | 4016048 |
|
| CV-Driver 24V 150W IP67 DIM | 4016049 |
