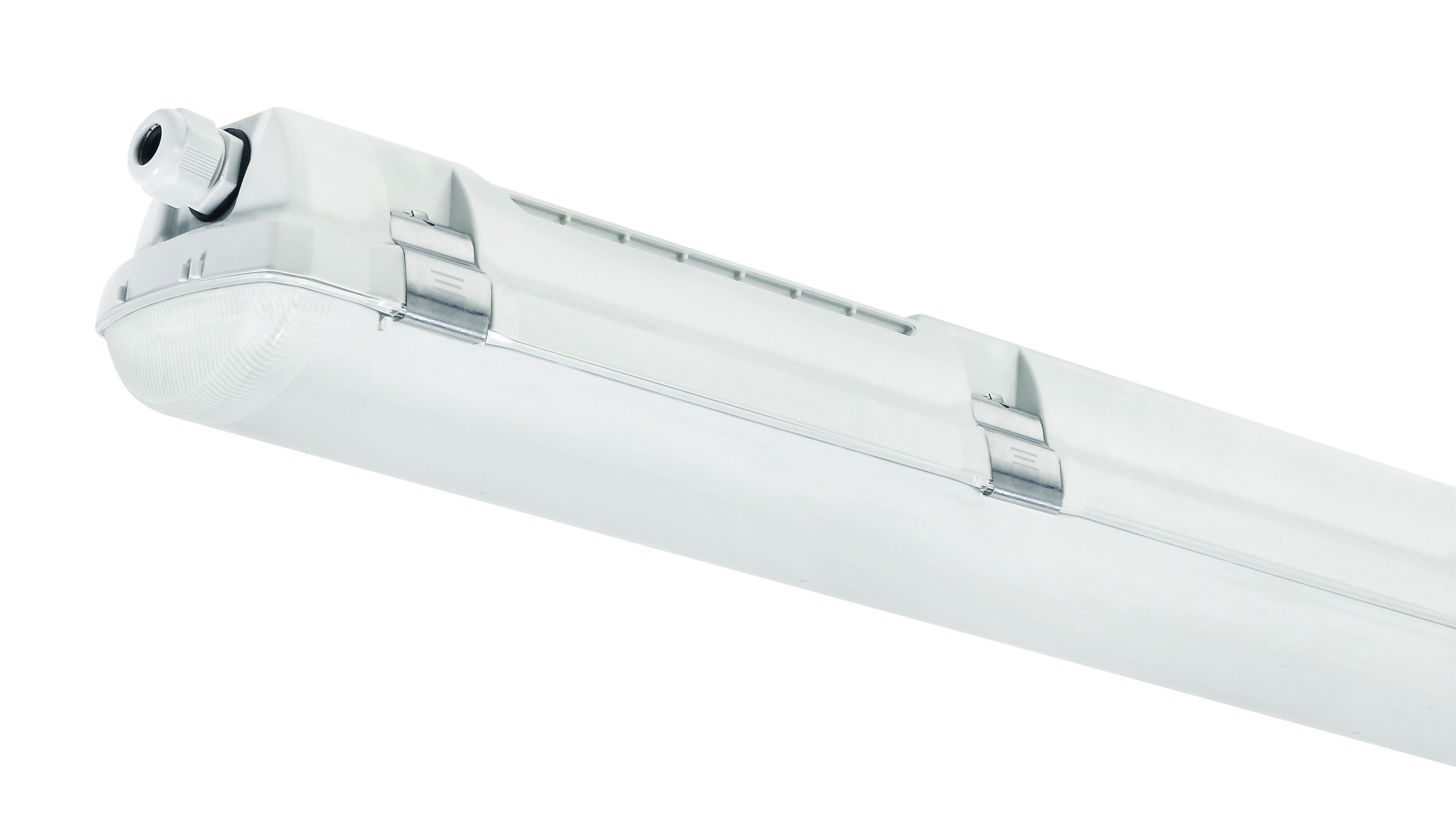

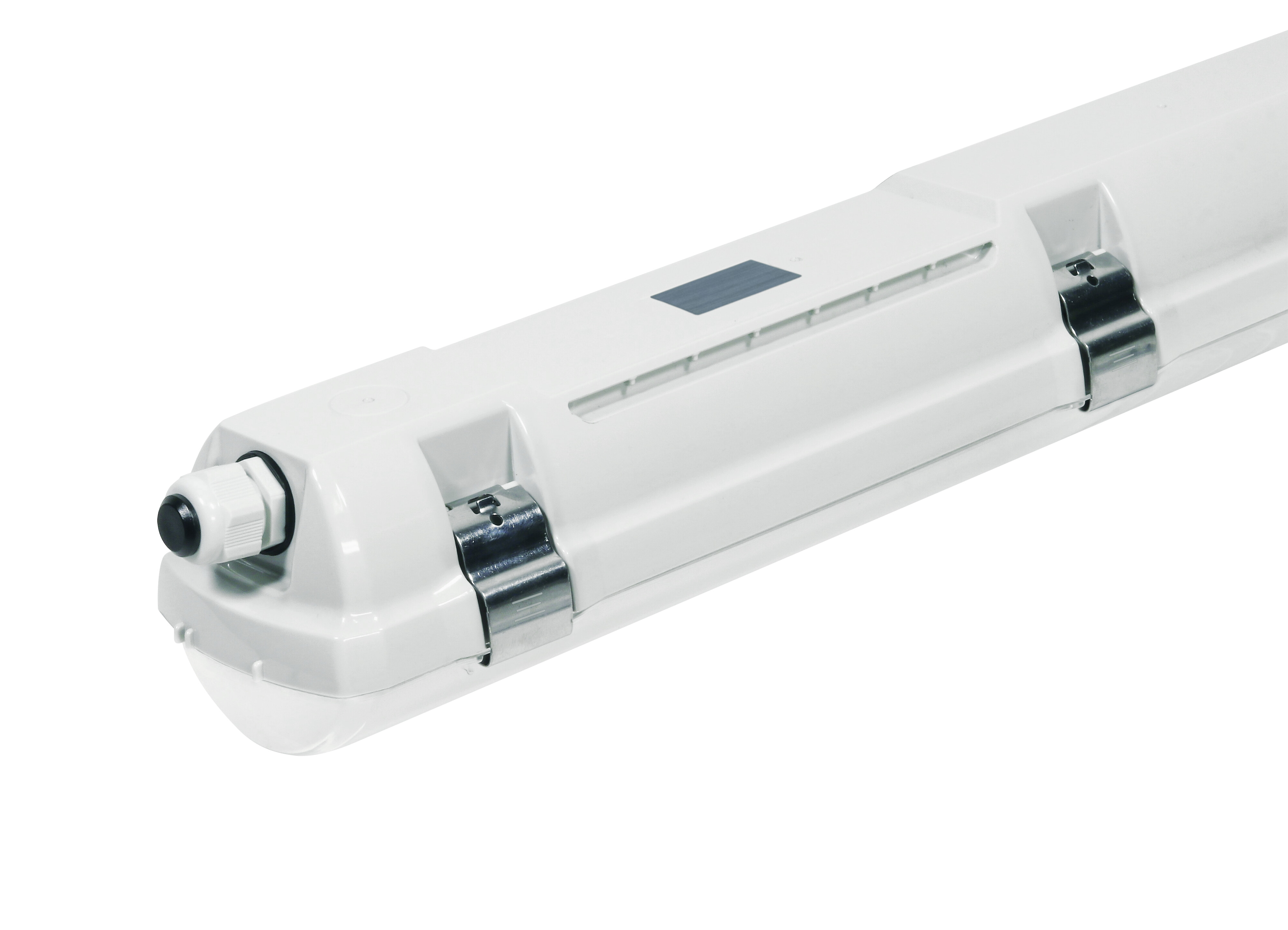

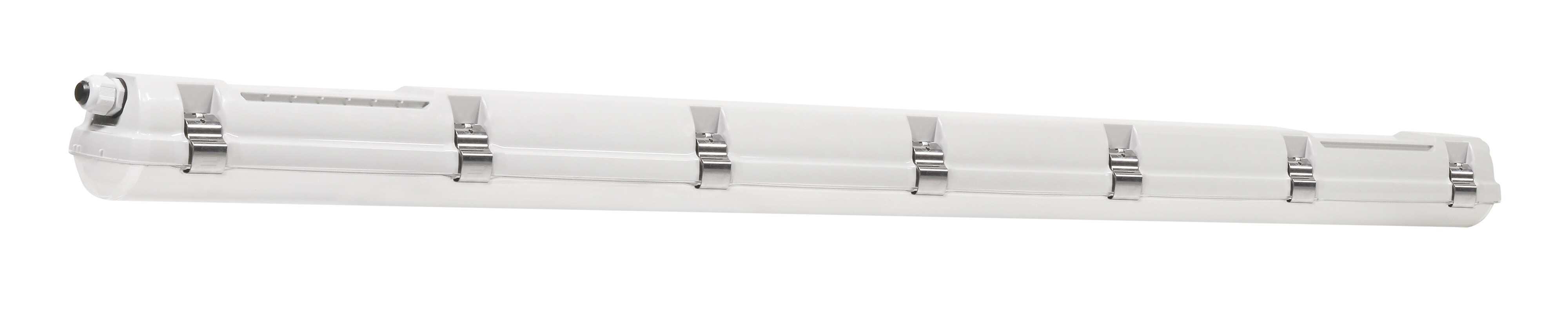

Futura Nano AC

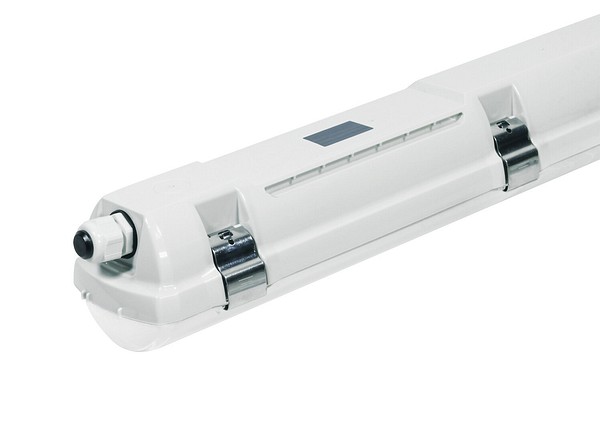

Futura Nano AC is a low-UGR industrial luminaire utilizing advanced nano-coating. A LED luminaire is designed for locations where high-quality lighting, energy efficiency, a long lifetime and freedom from maintenance are valued. The ABS housing and acrylic diffuser are resistant to ammoniac fumes, lye and alkaline compounds. It can be installed to agricultural buildings, cattle shelters, hen houses and tire warehouses. The luminaire meets the requirements for low ambient temperatures, D classification. In addition to high-quality light, the unique optical solution guarantees excellent efficiency.

ABS plastic housing, opal acrylic diffuser and stainless steel latches.
Grey RAL7001.
Protection class I.

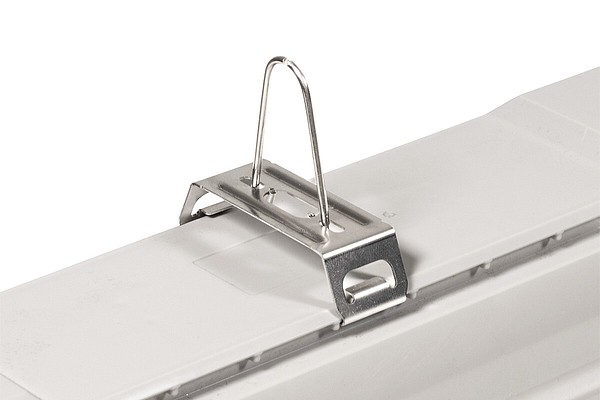

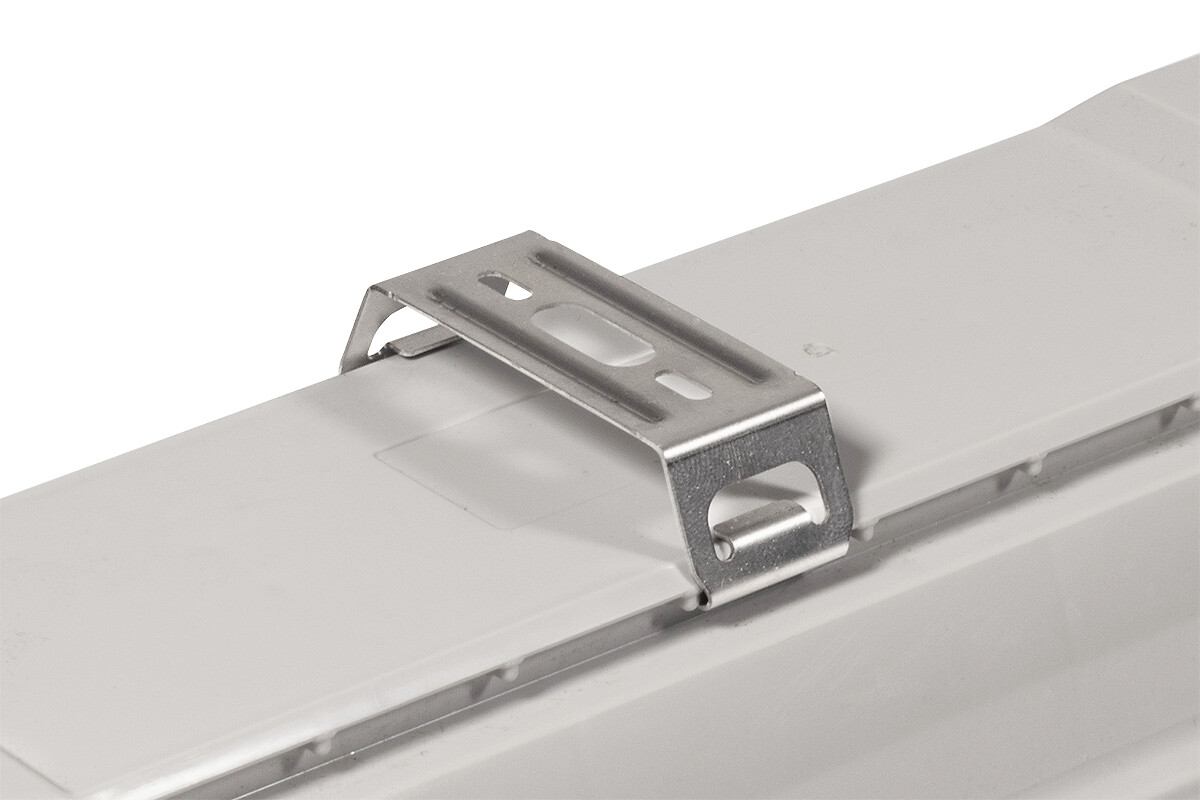

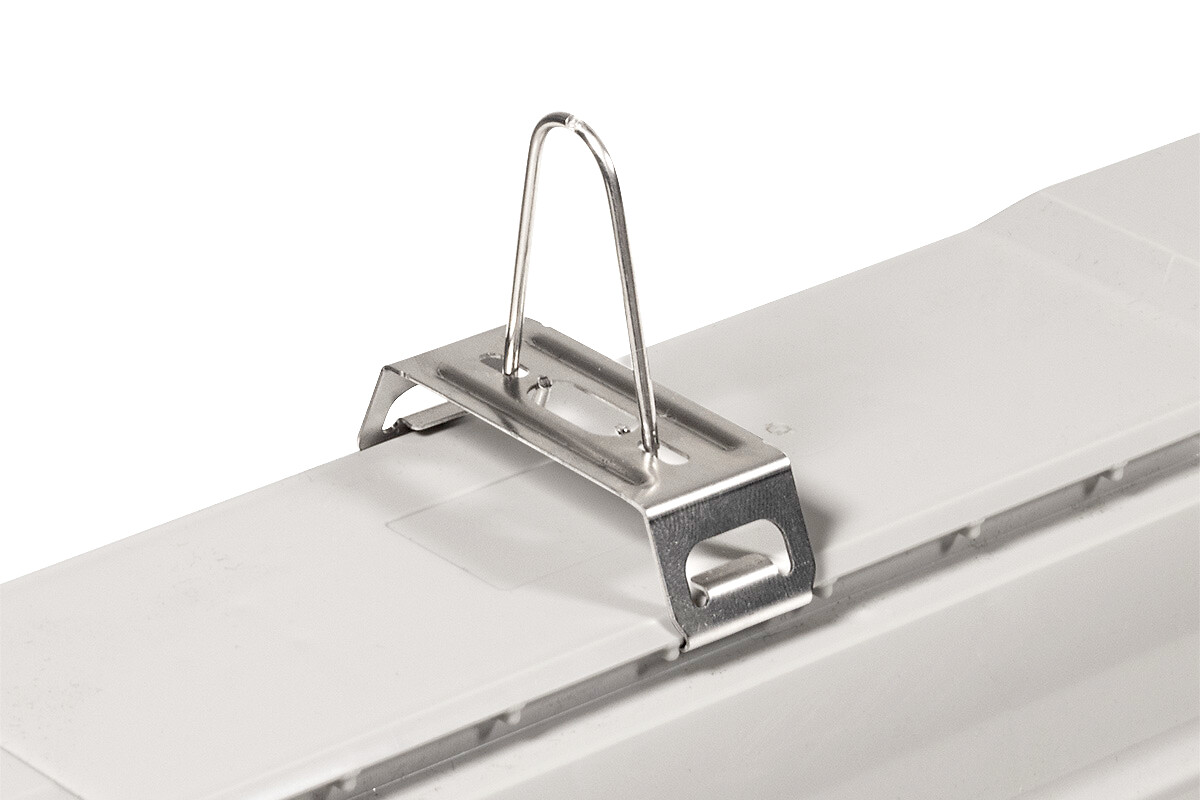

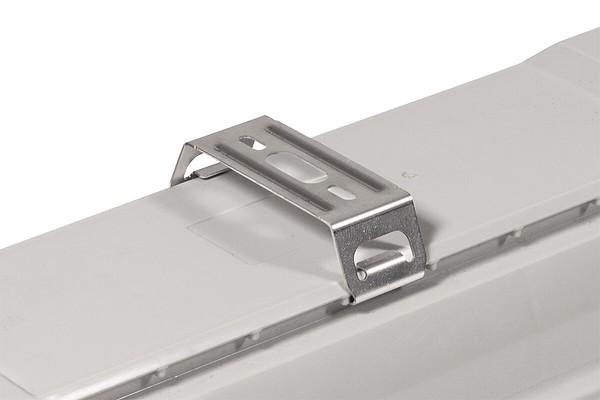

Surface and suspension mounting.
Throughwired, 5 x 2.5 mm2.
Installation height 3,5–8 m.
Integrated LED

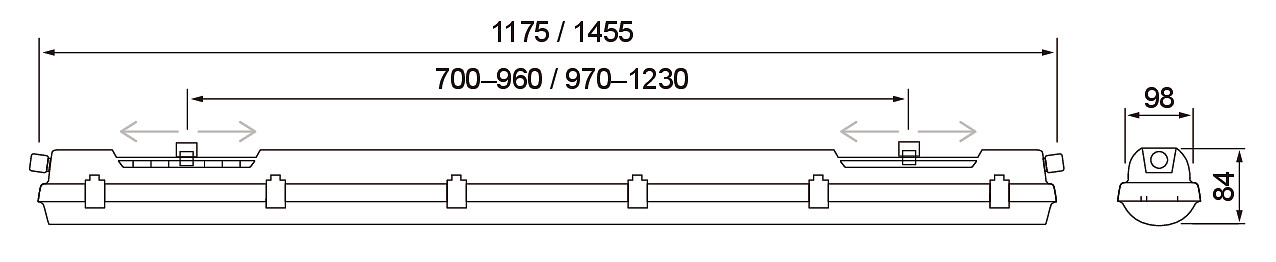

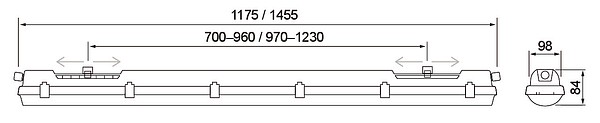

1175 mm 16–39 W / 2360–5720 lm.
1455 mm 20–47 W / 2900–7060 lm.
Colour temperature 4000 K. CRI > 80 / Ra > 80.
MacAdam 3 SDCM.
Low UGR, 19–22 depending on the model.
IP66.
IK06.
On/off and Dali-2.
Ambient temperature range -25 … 50 °C.
Rated lifetime L70 100 000 h (Ta40°C).
Rated lifetime L80 100 000 h (Ta40°C).
Rated lifetime L90 50 000 h (Ta40°C).
Power source lifetime 100 000 h.

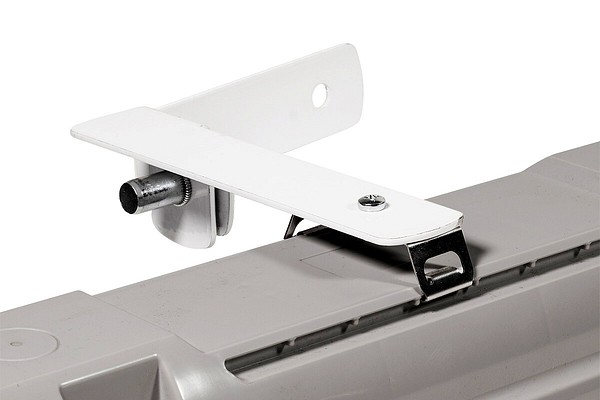

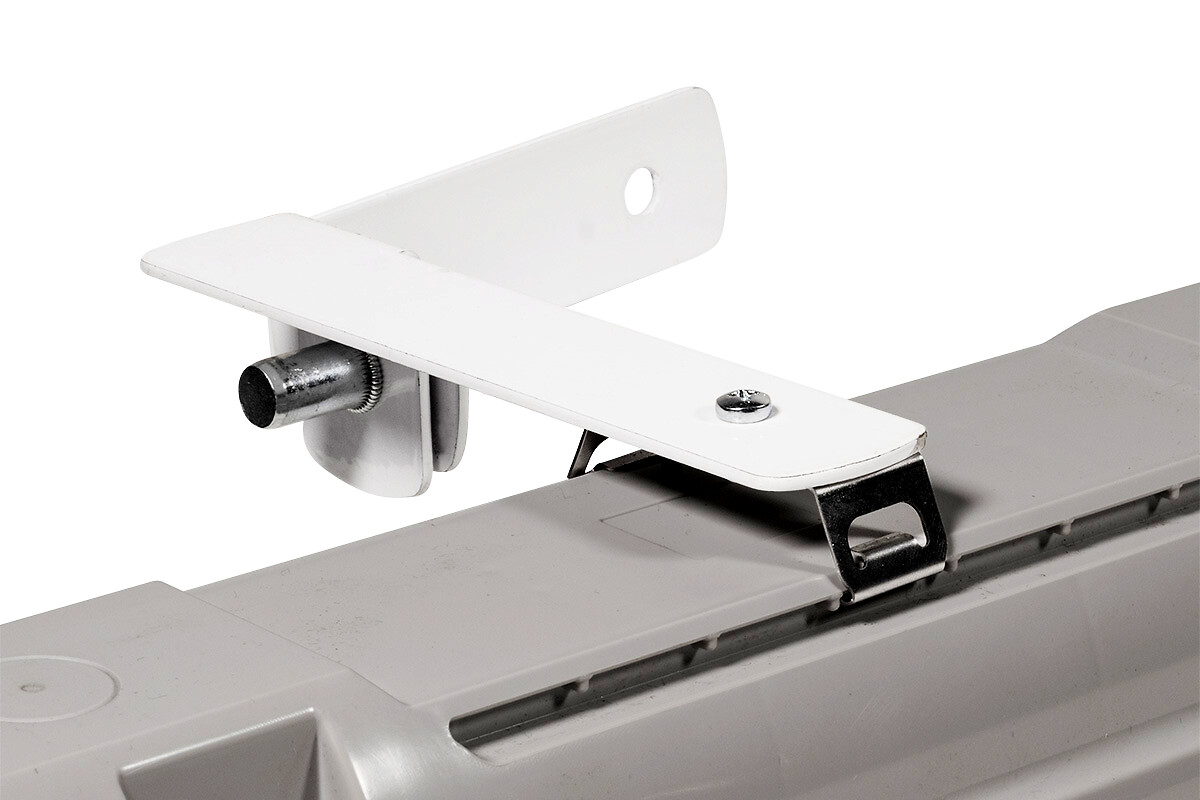

Adjustable wall bracket WH 4309996 as an accessory.

Versatile possibilities for project-specific customization:
CRI > 80: 3000 K, 5000 K, 6500 K, CRI > 90: 3000 K, 4000 K, 5000 K, 6500 K. Available as Casambi version. Also available in safety light versions with one- and three-hour batteries.
