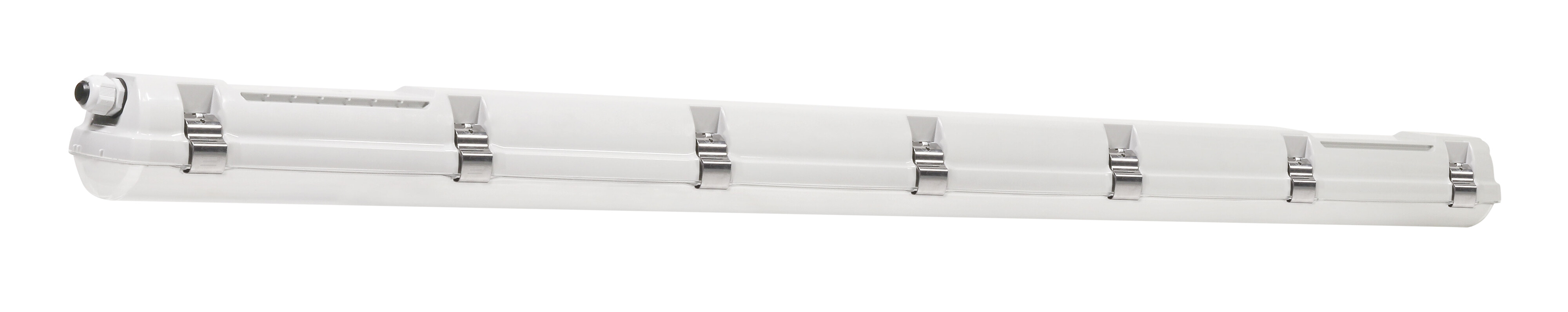

Futura Nano WB

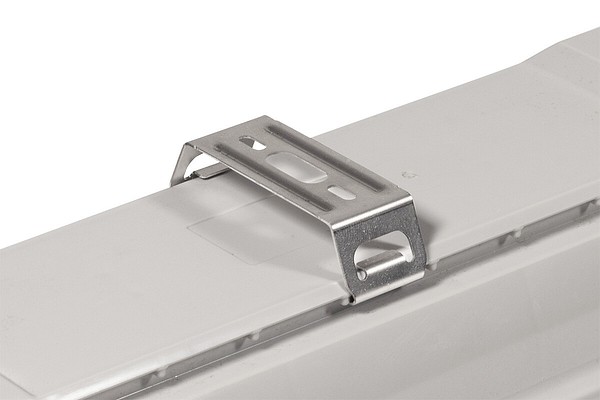

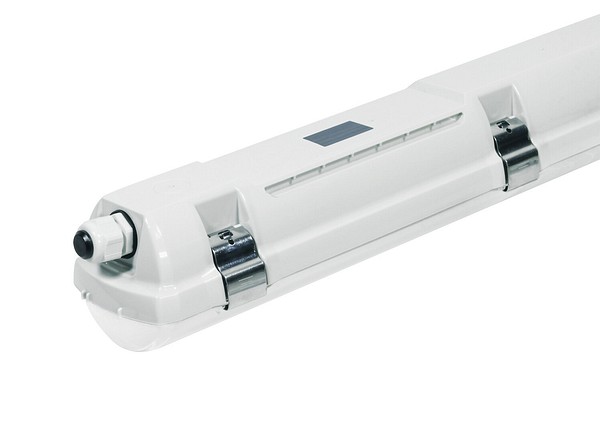

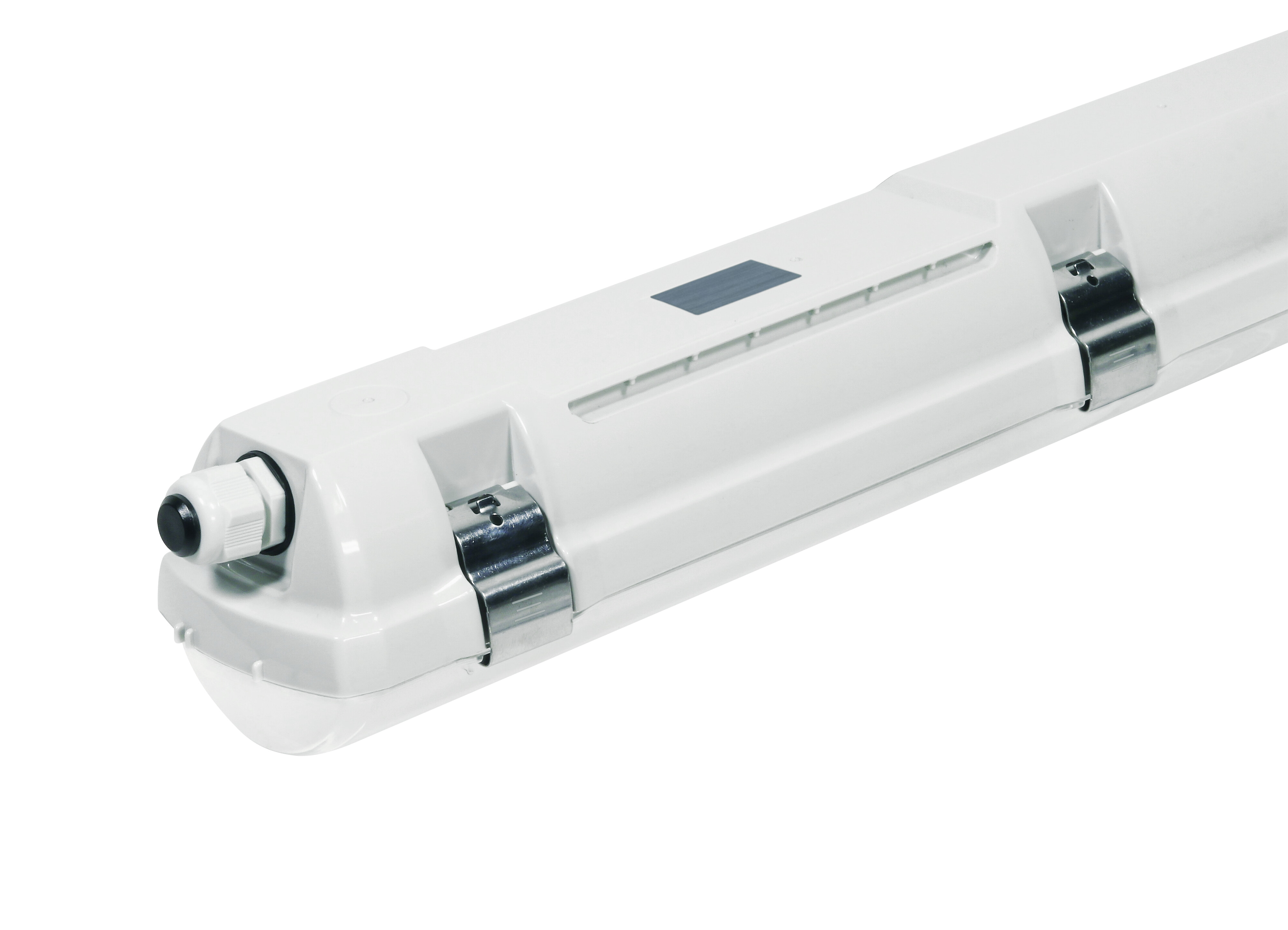

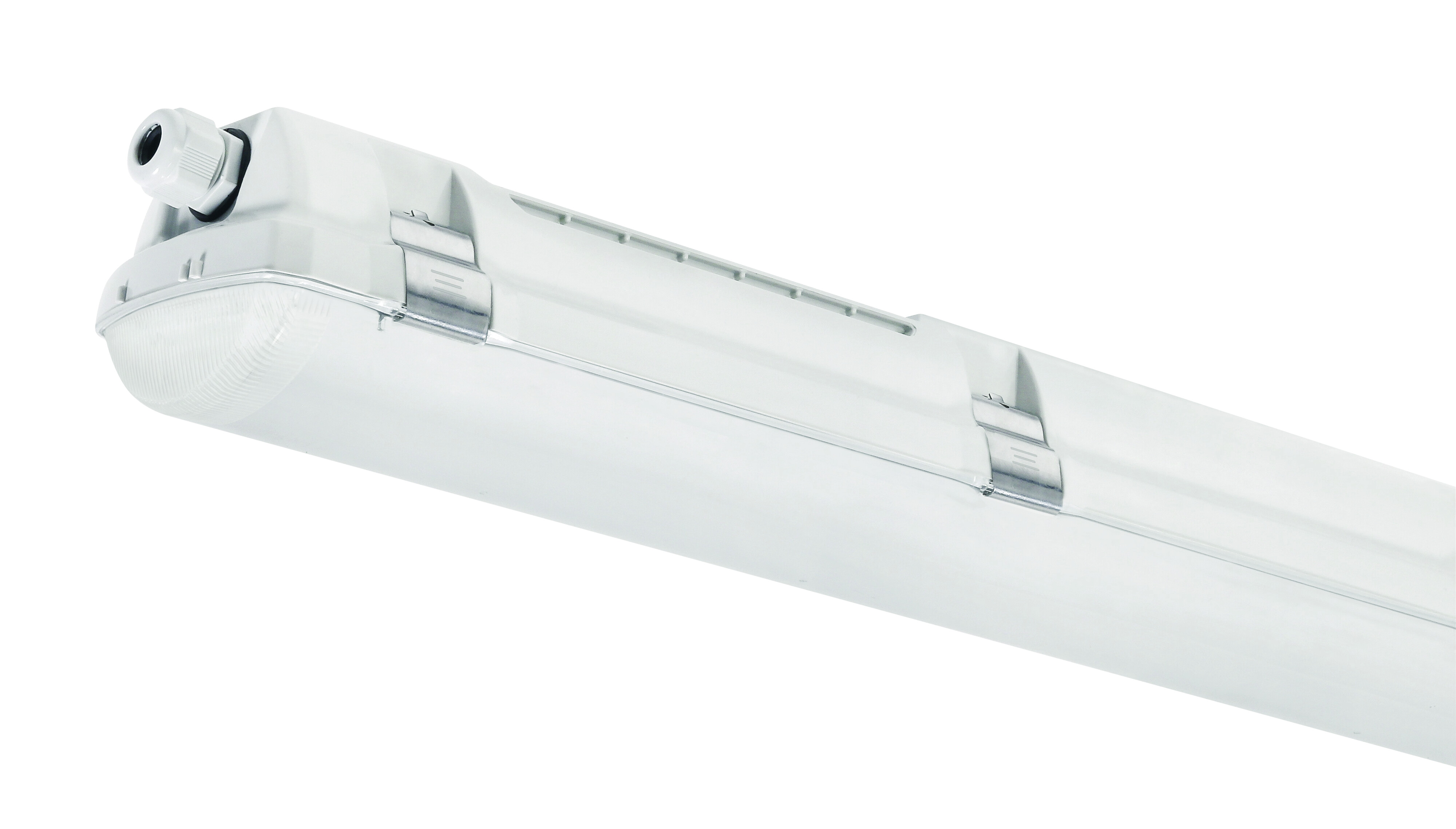

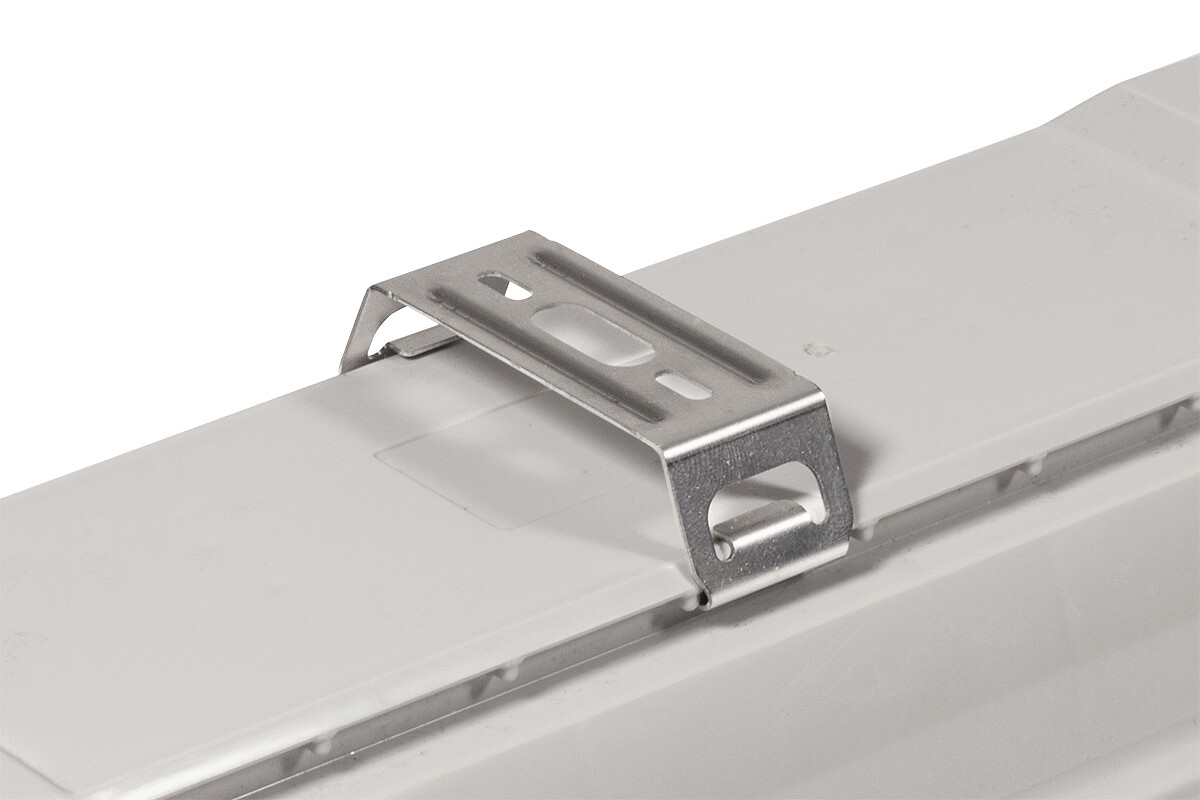

Futura Nano Wide Beam, suitable for parking garages, is an industrial luminaire with a wide beam angle that utilizes advanced nano-coating technology and features a low UGR. The luminaire is designed for locations where, in addition to high-quality lighting, energy efficiency, a long lifetime and freedom from maintenance are valued. In addition to high-quality light, the unique optical solution guarantees excellent efficiency and top-level impact resistance. The luminaire is excellently suited for low parking garages and other spaces where a wide light distribution optimizes the number of luminaires needed. The luminaire can also be installed in cold spaces. Easy and uncomplicated installation is made possible by several features: ready wiring, spring connector bars on both ends and latches that stay closed in the luminaire body.

UV-stabilised polycarbonate housing (PC) and structured UV-stabilised polycarbonate diffuser (nano-coating), stainless steel latches.
Grey.
Protection class I.

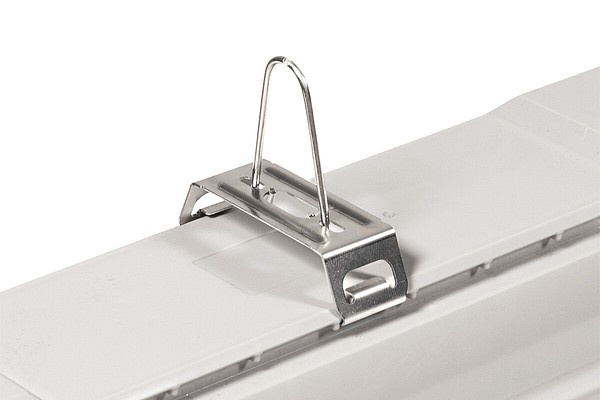

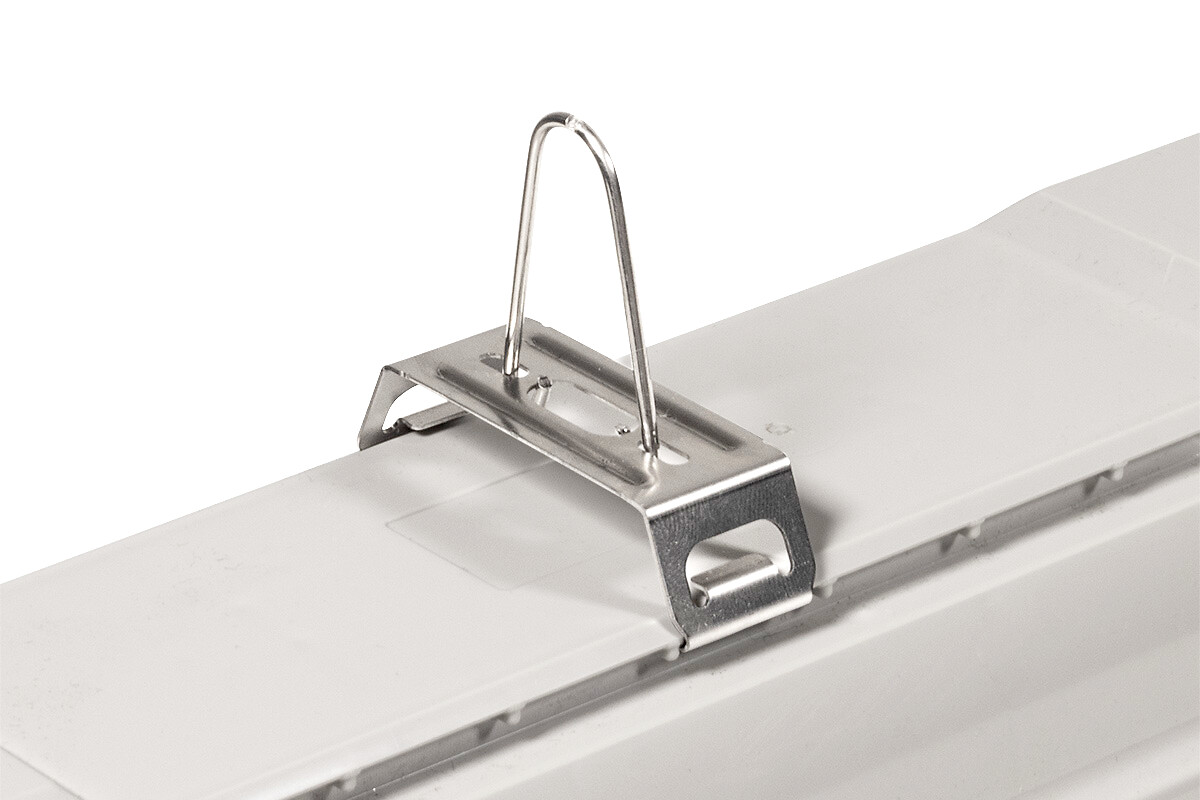

Surface and suspension mounting.
Throughwired 5 x 2,5 mm2.
Installation height 2,5–4 m.
Integrated LED:

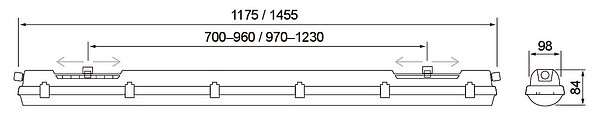

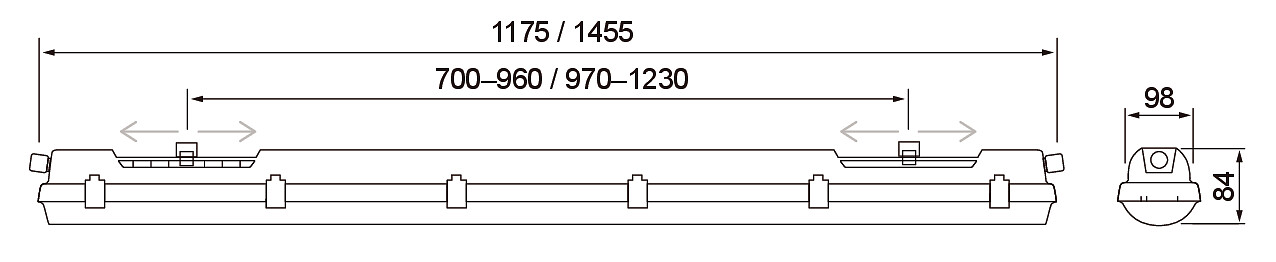

1175 mm 16–39 W / 2490–6050 lm.
1455 mm 19–47 W / 3070–7460 lm.
Colour temperature 4000 K. CRI > 80 / Ra > 80.
MacAdam 3 SDCM.
Low UGR, depending of model 20,5–24.
IP66.
IK10.
On/off- and Dali-2-models.
Ambient temperature range -25 … 45 °C.
Rated lifetime L70 >100 000 h (Ta40°C).
Rated lifetime L80 100 000 h (Ta40°C).
Rated lifetime L90 50 000 h (Ta40°C).
Power source lifetime 100 000 h.

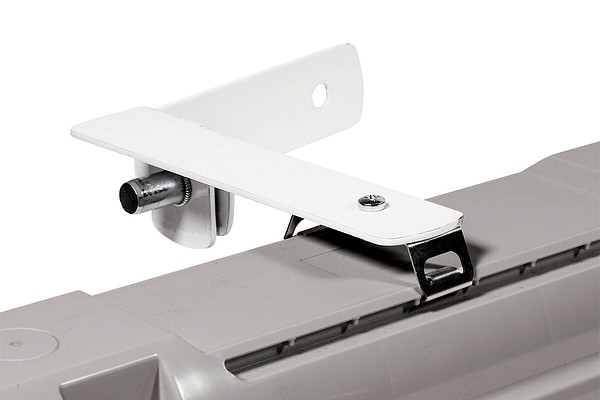

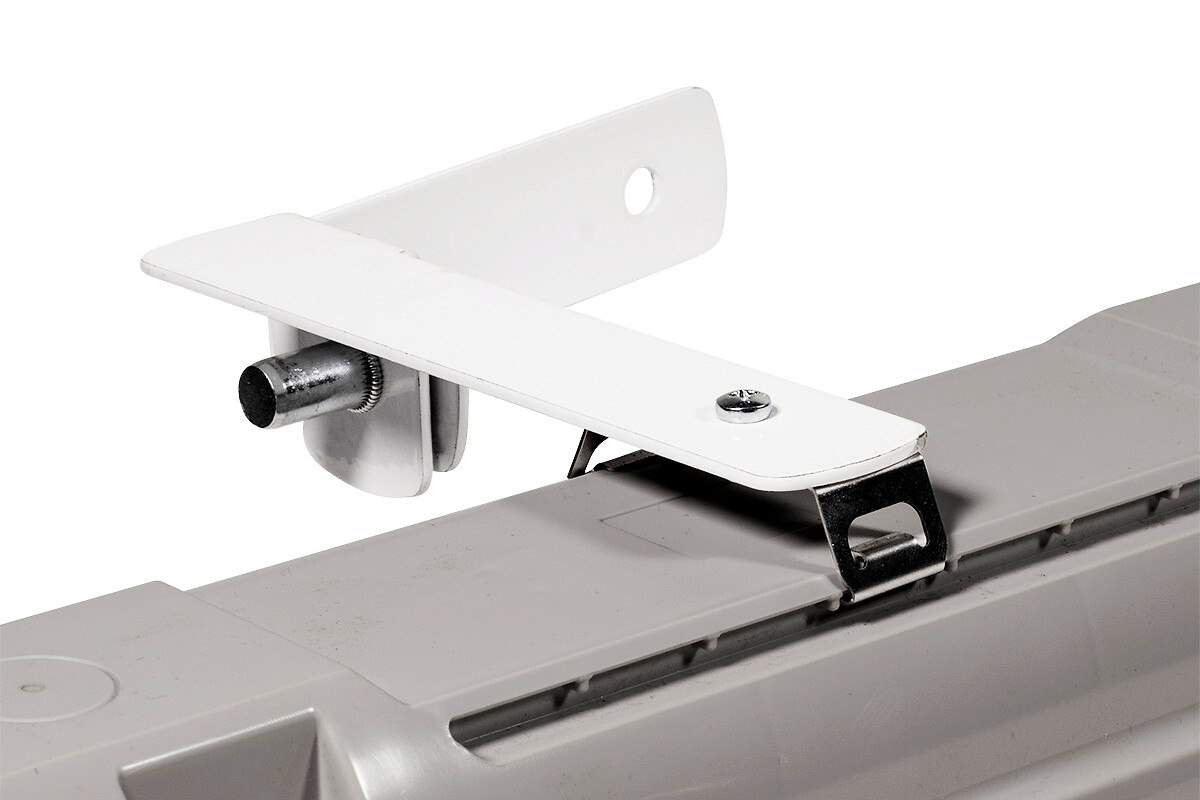

Adjustable wall bracket WH 4309996 as an accessory.

Versatile possibilities for project-specific customization: CRI > 80: 3000 K, 5000 K, 6500 K, CRI > 90: 3000 K, 4000 K, 5000 K, 6500 K. Available as Casambi version. Also available in safety light versions with one and three hour batteries.
