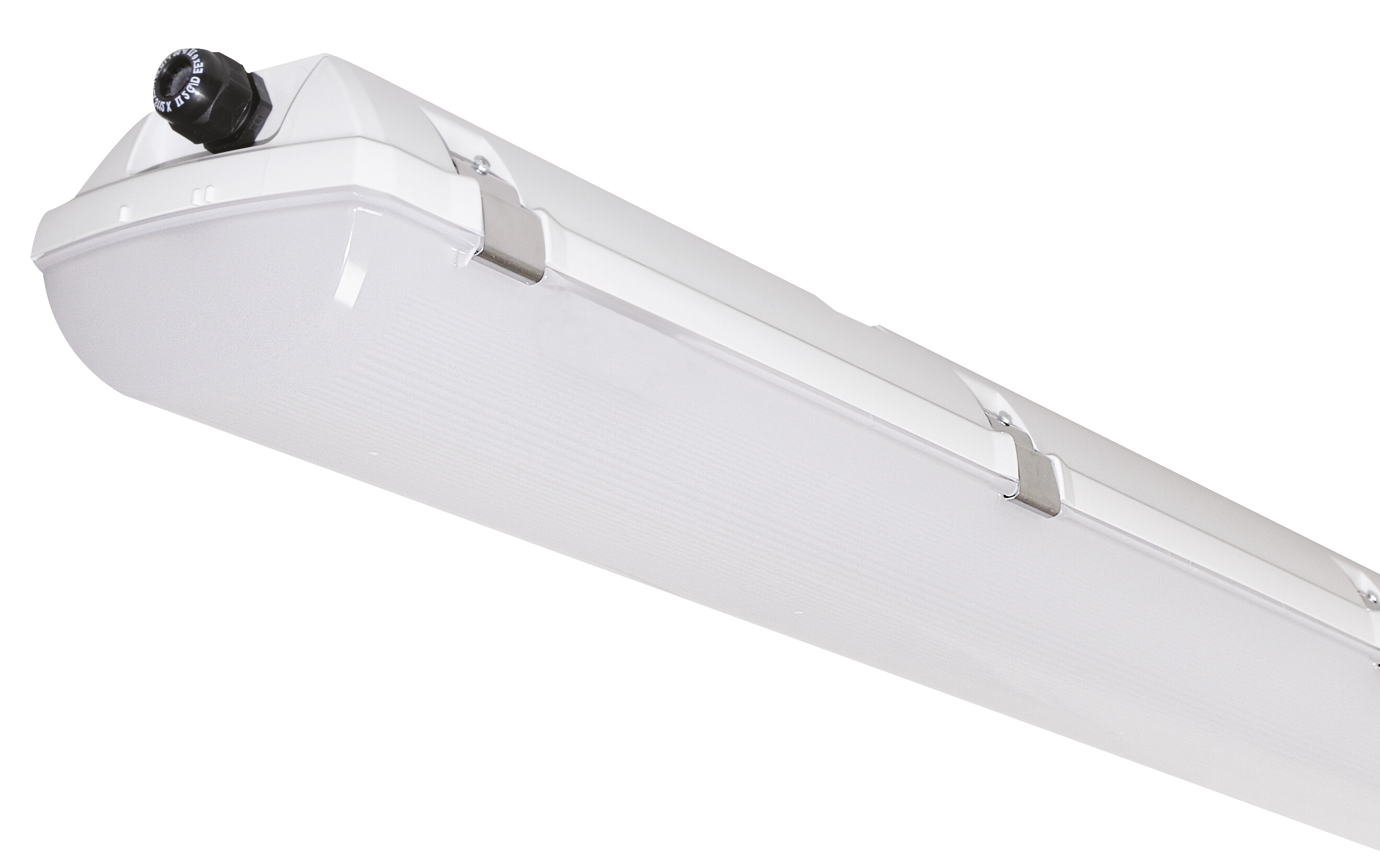

Futura Ex
Suitable for spaces with an explosive atmosphere or high levels of dust, such as chemical industry production facilities. The structure of the luminaires meets the requirements set in the ATEX directive 2014/34/EU (Ex II 3G Ex nA IIC T6 Gc, Ex II 3D Ex Tc IIIC T85°C Dc). Extremely robust design.
Polycarbonate housing and opal diffuser (PC). Stainless steel latches.
Grey.
Protection class I.
Suitable for Ex-zone classes 2 and 22.
Surface mounting.
Throughwired 5 x 2.5 mm2.
Installation height 2–8 m.
Integrated LED:
1200 mm: 27 W / 3930 lm. 53 W / 7810 lm.
1500 mm: 33 W / 4860 lm. 65 W / 9800 lm.
Colour temperature 4000 K. CRI > 80 / Ra > 80.
MacAdam 3 SDCM.
IP66.
IK10.
On/off.
Ambient temperature range -20 … 55 °C.
Rated lifetime L70 100 000 h (Ta55°C).
Power source service life 100 000 h.
Technical info
| Item description | Code | Electrical number (FIN) | Colour temperature | Luminous flux | Power | Dimensions | |||
|---|---|---|---|---|---|---|---|---|---|
| Futura Ex 1275 | |||||||||
|
Futura Ex 1200 3900lm/840 PCO | 4338540 |
4338540 |
3930lm |
27W |

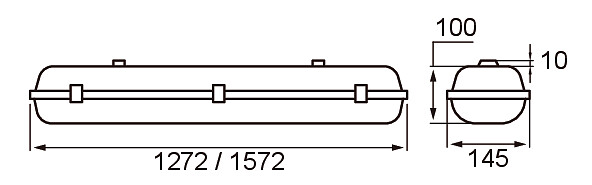

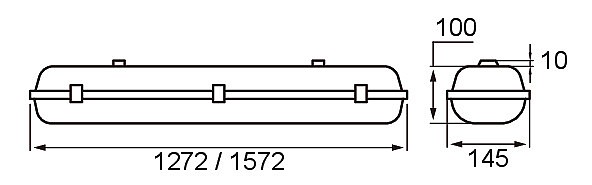

1272x145x111mm |
|||
|
Futura Ex 1200 7800lm/840 PCO | 4338541 |
4338541 |
7810lm |
53W |
1272x145x111mm |
|||
| Item description | Code | Electrical number (FIN) | Colour temperature | Luminous flux | Power | Dimensions | |||
|---|---|---|---|---|---|---|---|---|---|
| Futura Ex 1572 | |||||||||
|
Futura Ex 1500 4900lm/840 PCO | 4338542 |
4338542 |
4860lm |
33W |
1572x145x111mm |
|||
|
Futura Ex 1500 9800lm/840 PCO | 4338543 |
4338543 |
9800lm |
65W |
1572x145x111mm |
|||
