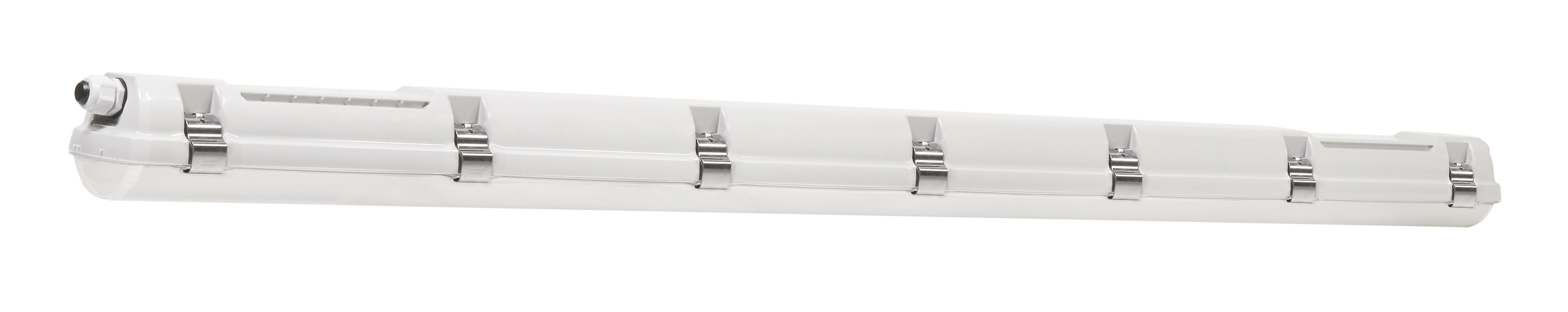

Futura Nano NB

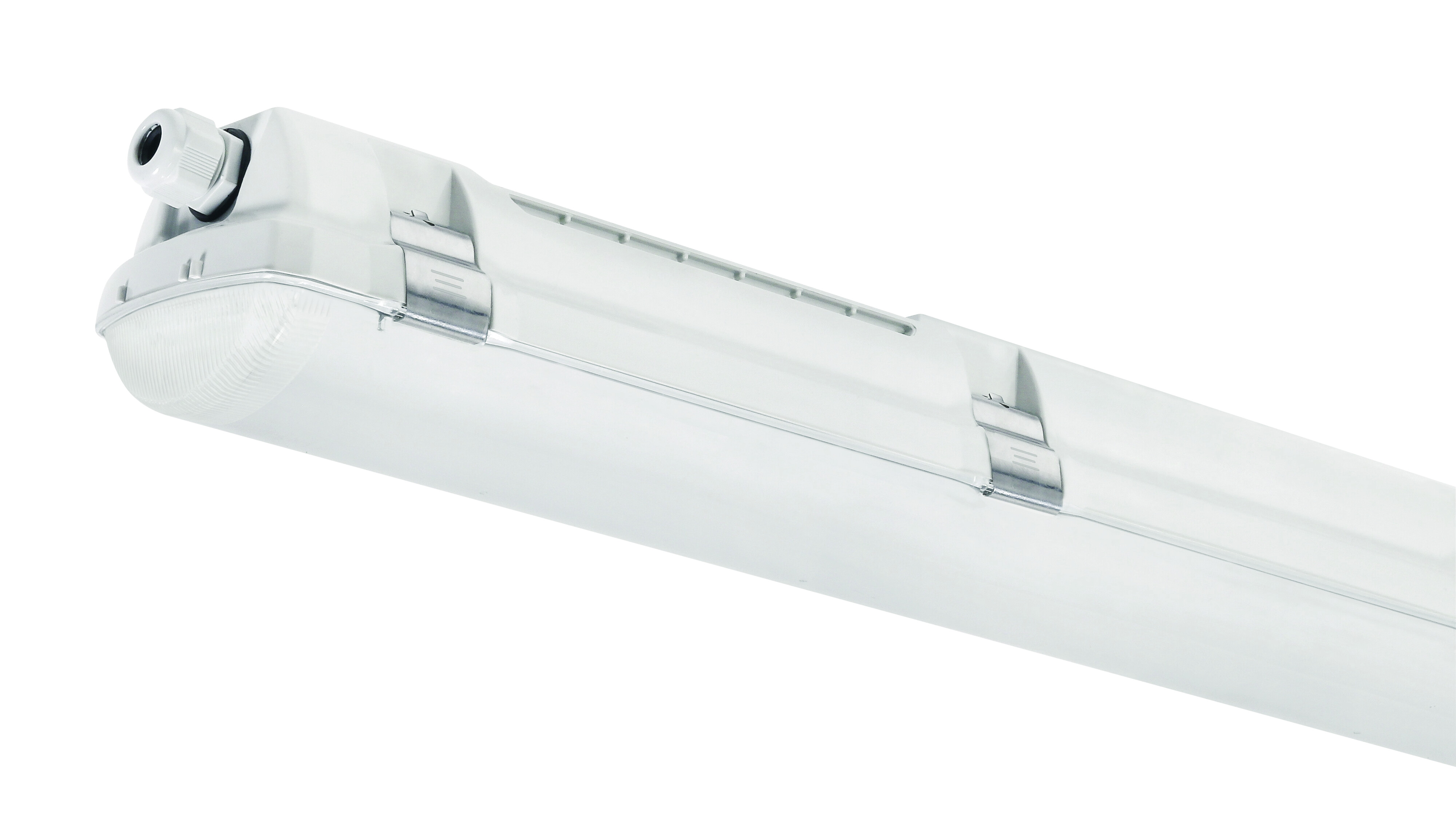

Futura Nano Narrow Beam, designed for high-ceiling spaces, is an industrial luminaire with a narrow beam angle that utilizes advanced nano-coating technology and features a low UGR. The luminaire is designed for locations where, in addition to high-quality lighting, energy efficiency, a long lifetime and freedom from maintenance are valued. In addition to high-quality light, the unique optical solution guarantees excellent efficiency and top-level impact resistance. The luminaire can be installed in industrial premises and high warehouses. Easy and uncomplicated installation is made possible by several features: ready wiring, spring connector bars on both ends and latches that stay closed in the luminaire body.

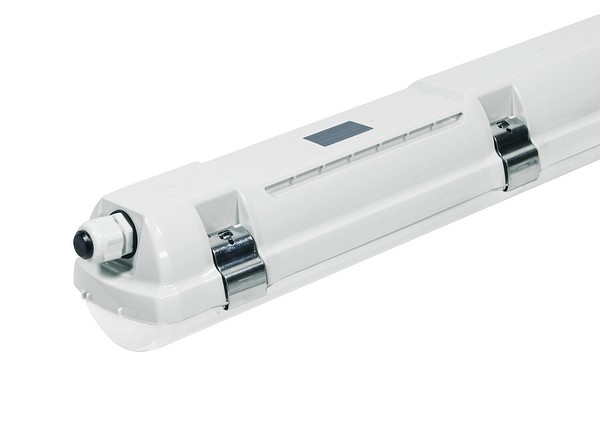

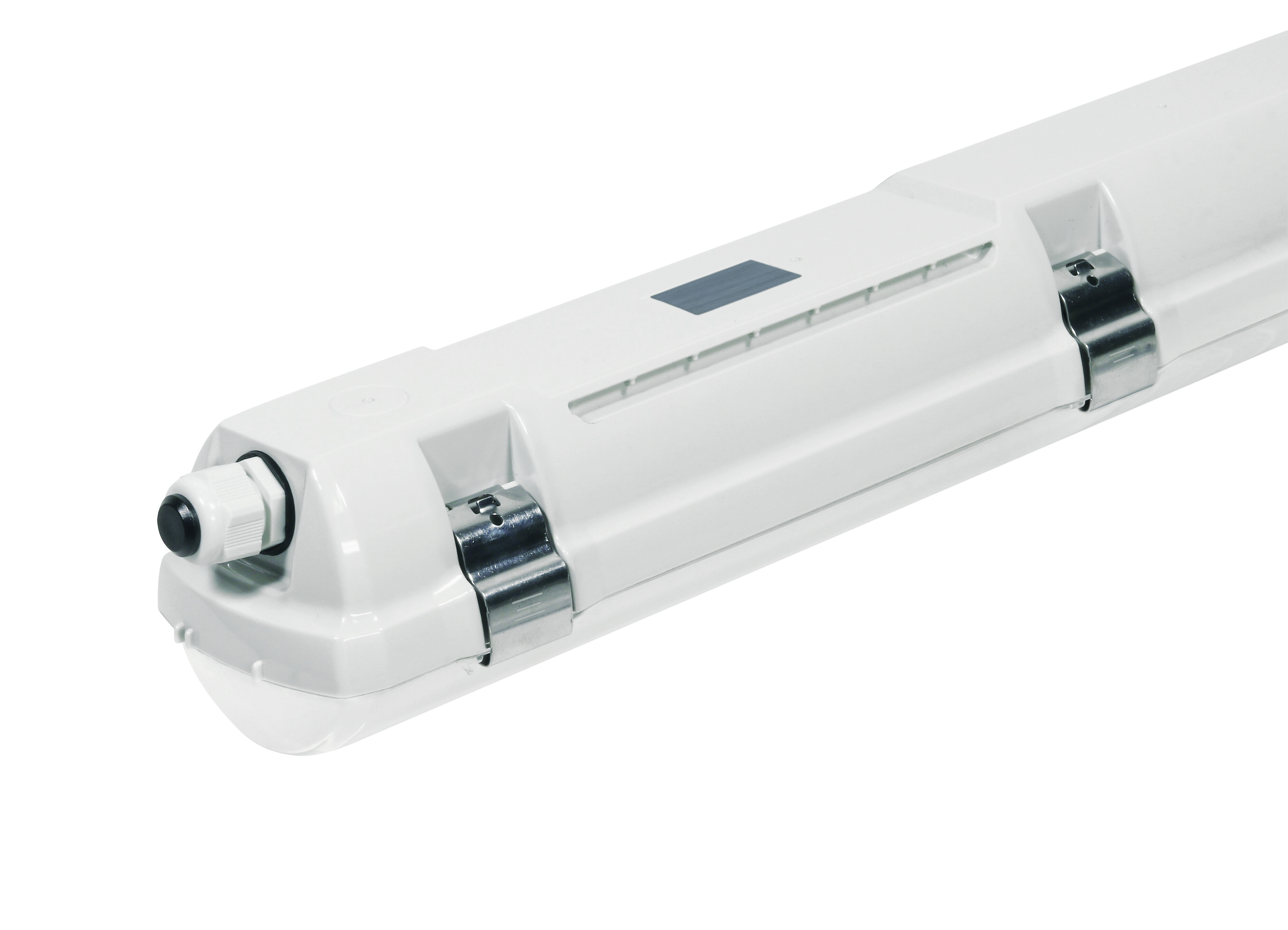

UV-stabilised polycarbonate housing (PC) and structured UV-stabilised polycarbonate diffuser (nano-coating), stainless steel latches.
Grey.
Protection class I.

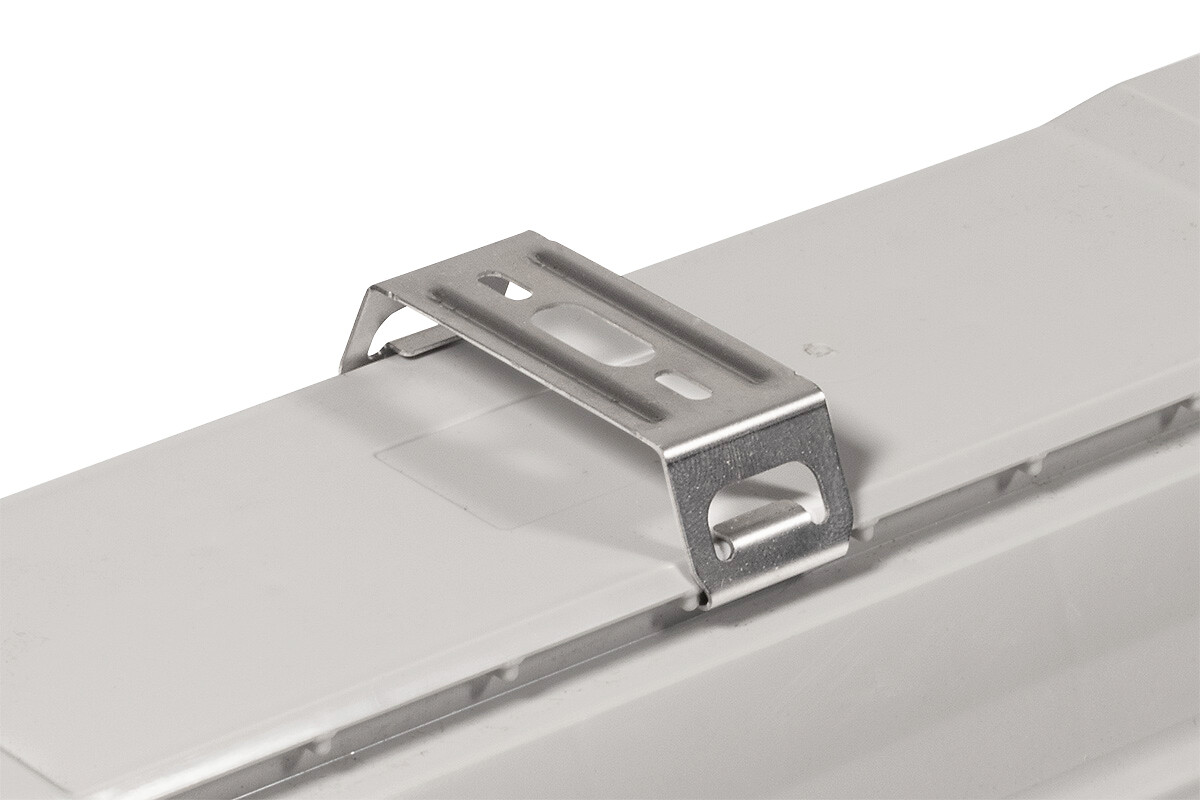

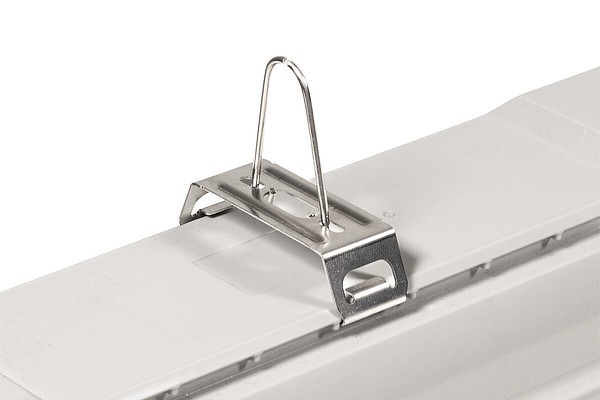

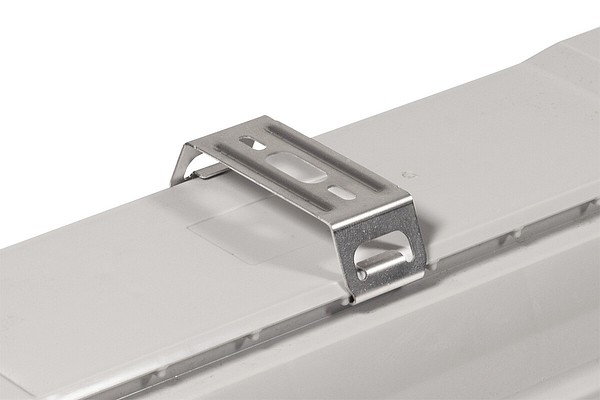

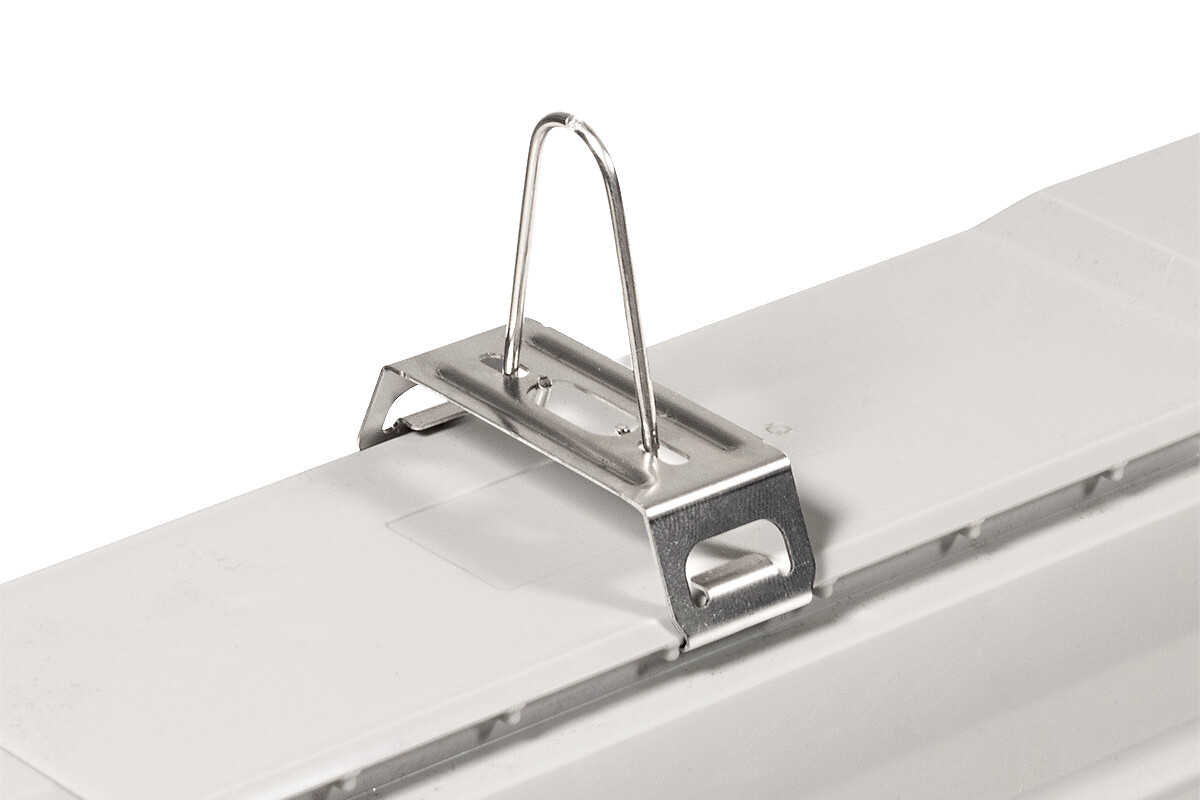

Surface and suspension mounting.
Throughwired 5 x 2,5 mm2.
Installation height 2,5–4 m.
Integrated LED:

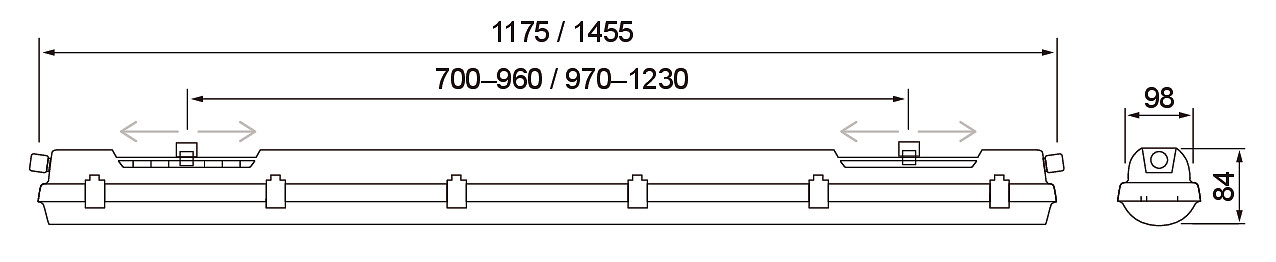

1200 mm 16–49 W / 2440–7430 lm.
1500 mm 19–63 W / 3000–9420 lm.
Colour temperature 4000 K. CRI > 80 / Ra > 80.
MacAdam 3 SDCM.
Low UGR, depending of model 20,5–24.
IP66.
IK10.
On/off- and Dali-2-models.
Ambient temperature range -25 … 45 °C.
Rated lifetime L70B50 > 100 000 h (Ta40°C).
Rated lifetime L80B10 100 000 h (Ta40°C).
Rated lifetime L90B10 50 000 h (Ta40°C).
Power source lifetime 100 000 h.

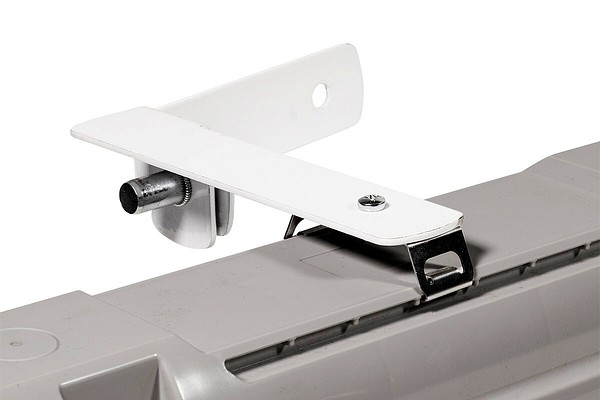

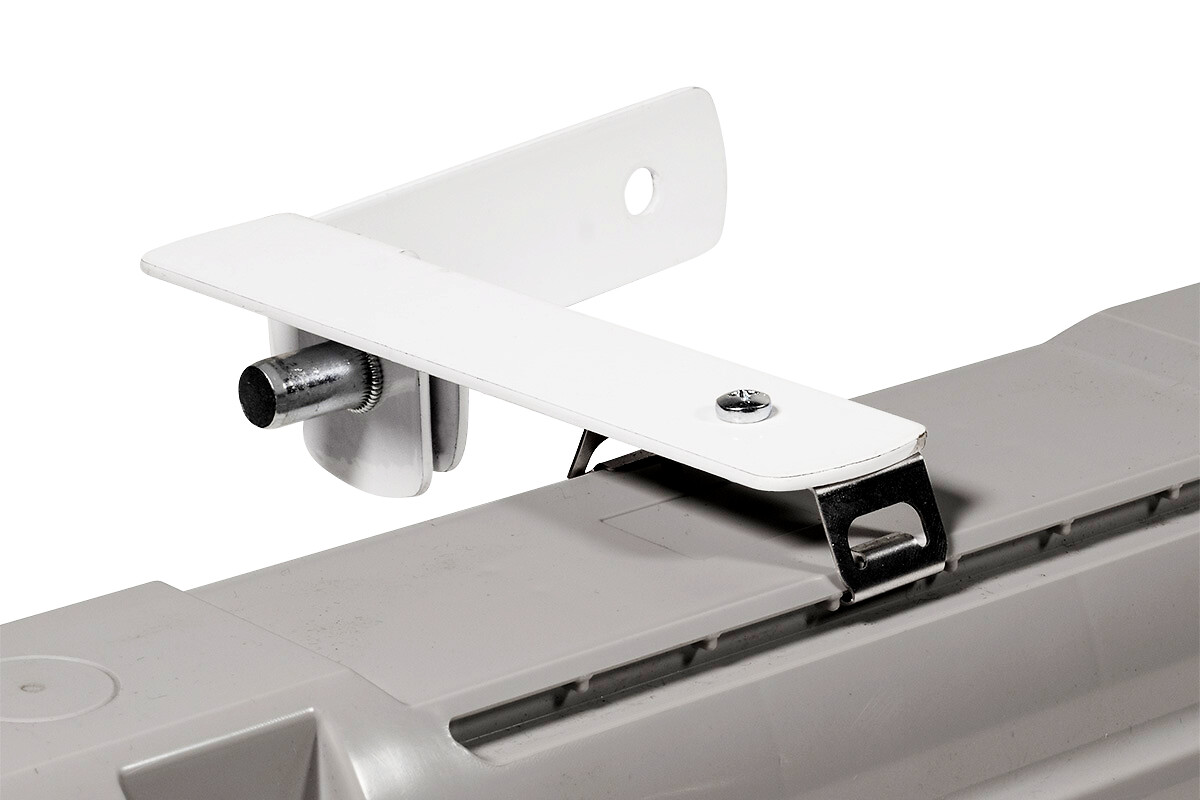

Adjustable wall bracket WH 4309996 as an accessory.

Versatile possibilities for project-specific customization: CRI > 80: 3000 K, 5000 K, 6500 K, CRI > 90: 3000 K, 4000 K, 5000 K, 6500 K. Available as Casambi version. Also available in safety light versions with one and three hour batteries.
