Futura Nano AC

Futura Nano AC 1200 2400lm/840

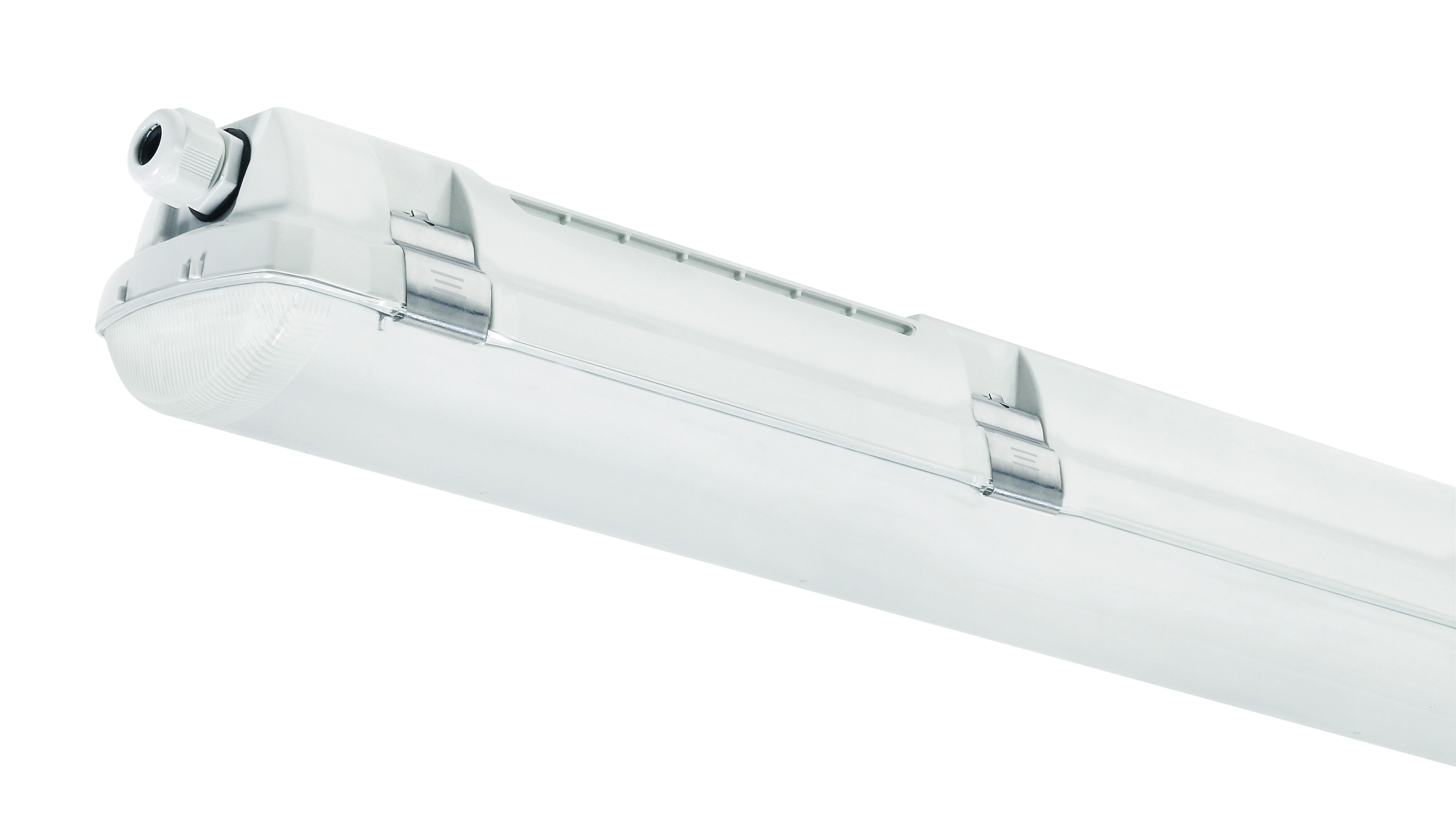

Futura Nano AC Sealed industrial luminaire 16W 4000K 2360lm No dim; IP66; IK06; Protection cl. I; L70B50 100000h; LED not exchangeable; Lamp included; CRI>80; SDCM3; Through-wired; 5x2.5mm²; Housing Plastic; Colour gr; Cover Plastic, structured; C16 max. 85

See product details
Code
4338652

Technical info

Mounting

Suitable for wall mounting
Yes
Suitable for suspended mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for recessed mounting
No
Suitable for surface mounting
Yes
Suitable for light line configuration
Yes
Suitable for clamp-mounting
Yes
Fit for workplace acc. EN 12464-1
No
Degree of protection (IP)
IP66
Degree of protection (IP), rear side
IP66
Degree of protection (IP), front side
IP66
Max. number of luminaires per miniature circuit breaker C10 (MCB)
52
Max. number of luminaires per miniature circuit breaker B16
50
Max. number of luminaires per miniature circuit breaker C16
85
Impact strength
IK06
Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24
Yes
Suitable for emergency lighting
Yes
Emergency function monitoring system
None
Luminaire may be covered with thermally insulating material
-
Type of wiring
Through-wired
Number of poles
5
Conductor cross section (mm²)
2.5 mm²
Connection type
Screwless terminal
Connectable conductor cross section (min) (mm²)
1.5 mm²
Connectable conductor cross section (max) (mm²)
2.5 mm²

Structure

With mounting material
Yes
Lamp type
LED not exchangeable
Light source included
Yes
Suitable for number of lamps
1
Lamp holder
Other
Housing material
Plastic
Housing surface protection
Untreated
Housing colour
Grey
Cover material
Plastic, structured
Type of grid
None
Control gear included
Yes
Exchangeable control gear
Yes
Energy efficiency class of light source according to EU regulation 2019/2015
C
Containing product according to 2019/2020/EU
Yes
Emergency power supply system
None
Emergency power supply integrated
No
With switch
No
With air slots
No
Filament test according to IEC 60695-2-11
650 °C - 30 s

Electrotechnical data

Voltage type
AC/DC
Nominal voltage (min) (V)
220 V
Nominal voltage (max) (V)
240 V
Nominal current (min) (mA)
66 mA
Nominal current (max) (mA)
73 mA
Type of control gear
LED operating device current-controlled
Protection class according to IEC 61140
I
Suitable for lamp power (min) (W)
16 W
Suitable for lamp power (max) (W)
16 W
Luminaire efficacy (min) (lm/W)
148 lm/W
Luminaire efficacy (max) (lm/W)
148 lm/W
Maximum system power (W)
16 W
Luminaire efficacy (lm/W)
148 lm/W
Power factor
0.95
Total harmonic distortion (THD) (%)
15 %
Total harmonic distortion
15 THD

Dimming and control

Dimmable
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DALI-2
No
Dimming DMX
No
Dimming DSI
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming leading edge
No
Dimming programmable
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
No dimming function
Yes
With presence indicator
No
With movement sensor
No
With light sensor
No
Constant luminous flux control
No
Bluetooth operated
No
Compatible with Casambi
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No

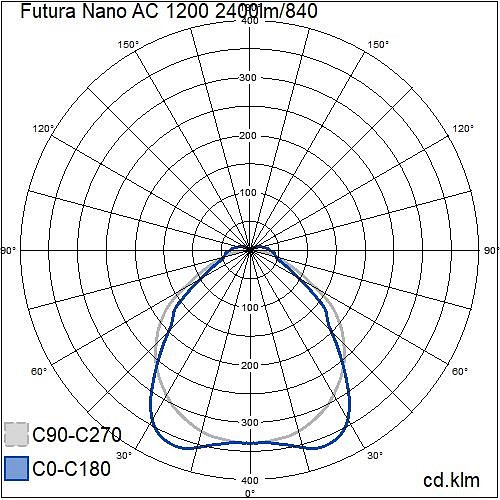

Photometric data

Light distributor
Diffuser lens/optic/panel
Light sharing
Symmetric
Beam angle
Wide beam 40-80°
Colour consistency (McAdam ellipse)
SDCM3
Light outlet
Direct/indirect
Rated luminous flux according to IEC 62722-2- 1 (min) (lm)
2360 lm
Rated luminous flux according to IEC 62722-2- 1 (max) (lm)
2360 lm
Colour of light (alphanumeric)
White
Effective luminous flux (lm)
2360 lm
Colour temperature (min) (K)
4000 K
Colour temperature (max) (K)
4000 K
Flickering value Pst LM
1
Colour rendering index (CRI/Ra)
80-89
Stroboscope effect value SVM
0.4
Photobiological safety according to EN 62471
RG0
Unified Glare Rating (UGR)
19
Colour temperature switchable
No
Lumen setting adjustable
No
Beam angle adjustable
No

Lifetime and capacity

Rated life time L70/B50 at 25 °C (h)
100000 h
Rated life time L80/B50 at 25 °C
100000 h
Lumen maintenance at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
95 %
Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
95 %
Lumen maintenance at median useful life of 75,000 hrs at 25 °C ambient (tq) (%)
90 %
Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
5 %
Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
5 %
Failure rate at median useful life of 75,000 hrs at 25 °C ambient (tq) (%)
10 %
Rated ambient temperature acc. IEC62722-2-1 (min) (°C)
-25 °C
Rated ambient temperature acc. IEC62722-2-1 (max) (°C)
50 °C

Measurements

Width (mm)
98 mm
Height/depth (mm)
84 mm
Length (mm)
1175 mm
