Plata

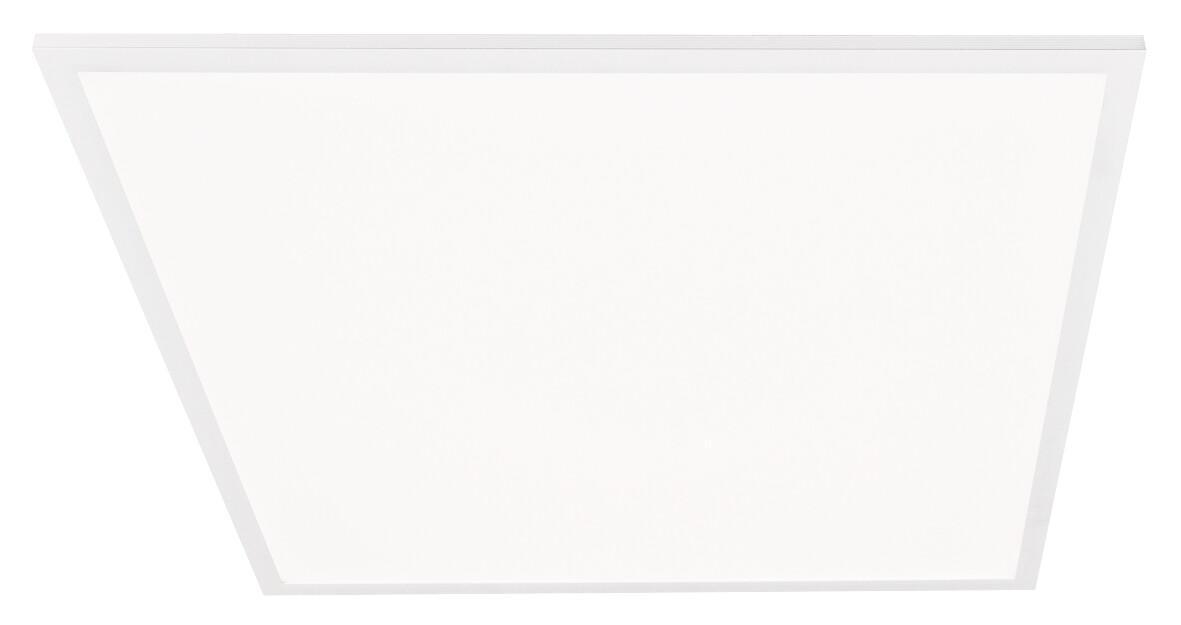

Plata is a low-profile modular luminaire designed for offices, corridors, lobbies, schools and other public spaces. Anti-glare models equipped with micro-prismatic (MP) diffusers offer an excellent solution for classrooms and spaces where computers and other equipment with displays are used. Plata is suitable for recessed mounting in false ceilings, which makes it ideal for offices and public spaces. It can also be suspended on wires or surface-mounted with a separate mounting set. The control options are on/off, Dali-2, pushbutton (direct pushbutton control 230V) and Casambi.
Aluminium housing, acrylic light guide plate and polystyrene diffuser (PS).
White, RAL 9003.
Protection class II.
Mounting on a T-grid ceiling. Suspension mounting, surface mounting and recessed mounting with accessories. Installation kits available for concealed T-grids.
Linkable, on/off and Dali max. 5 x 2.5 mm2, Casambi max. 3 x 2.5 mm2.
On/off and Casambi ranges also available with 3-meter Europlug cable H03VVH2-F 2 x 0.75 mm2.
Maximum number of led drivers to be connected to one switch is 60 pcs.
Colour temperatures 3000 K and 4000 K. CRI > 80 / Ra > 80.
MacAdam 3 SDCM.
IP20.
On/off: 26–57 W. 2800–5600 lm.
Dali-2 and Casambi: 27–54 W. 2800–5300 lm.
On/off, Dali-2, (direct pushbutton control 230V) and Casambi control.
Use with Dali-2-certified control devices is recommended.
Maximum number of led drivers to be connected to one switch is 60 pcs.
Ambient temperature range 0 ... 25 °C.
Rated lifetime L70 100 000 h (Ta25°C).
Rated lifetime L80 60 000 h (Ta25°C).
Power source lifespan 100 000 h.
Accessories include a surface mounting frame (4289994), concealed grid brackets PLK15 (4209537), asymmetrical concealed grid brackets PLK (4245342) and mounting set (4146993). The luminaires are also compatible with Plano surface mounting frames, which are available in three colours: white (4146973), black (A2PLKI) and grey (A2PLKJ). Also available: ceiling mounting frame 600 x 600 (4297811) and cover plates 600*600 R400 (A2PLZC) and 600*600 R500 (A2PLZA). The luminous flux of the luminaire decreases with cover plates about 30 % (R500) and about 50 % (R400).

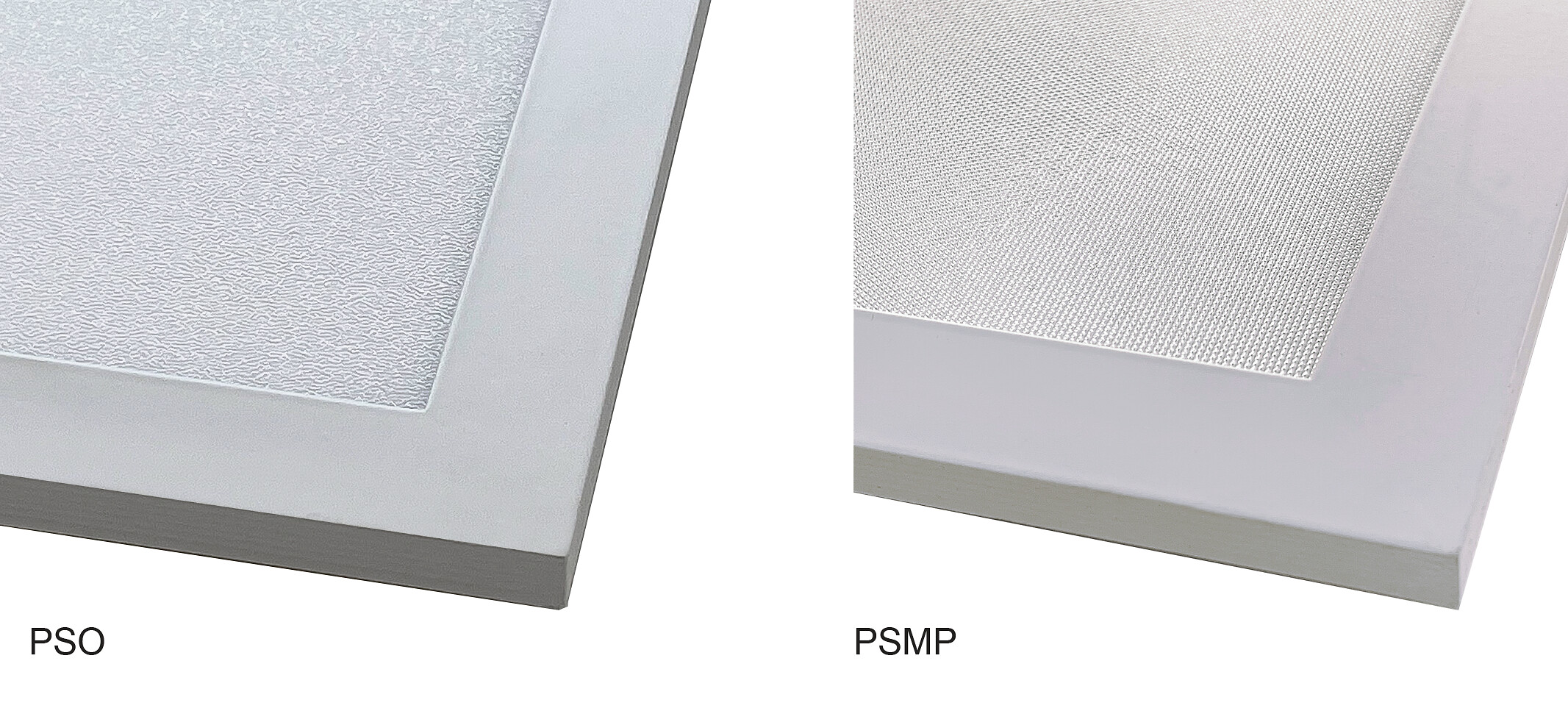

O = opal, MP = micro-prismatic optics
Customized luminous flux packages, cut-to-measure connecting cables and a variety of quick-connector cable sets are available on a project-specific basis.
Technical info
| Item description | Code | Electrical number (FIN) | Colour temperature | Luminous flux | Power | Dimensions | |||
|---|---|---|---|---|---|---|---|---|---|
| Plata PSO | |||||||||
|
Plata IP20 26W/830 PSO WH | 4146630 |
4146630 |
3000K |
2800lm |
26W |

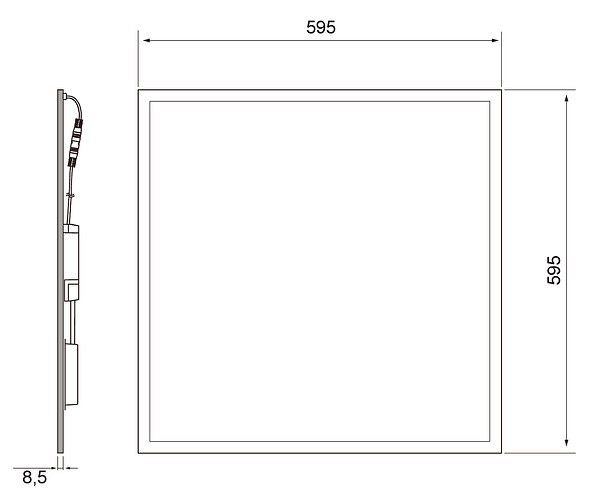

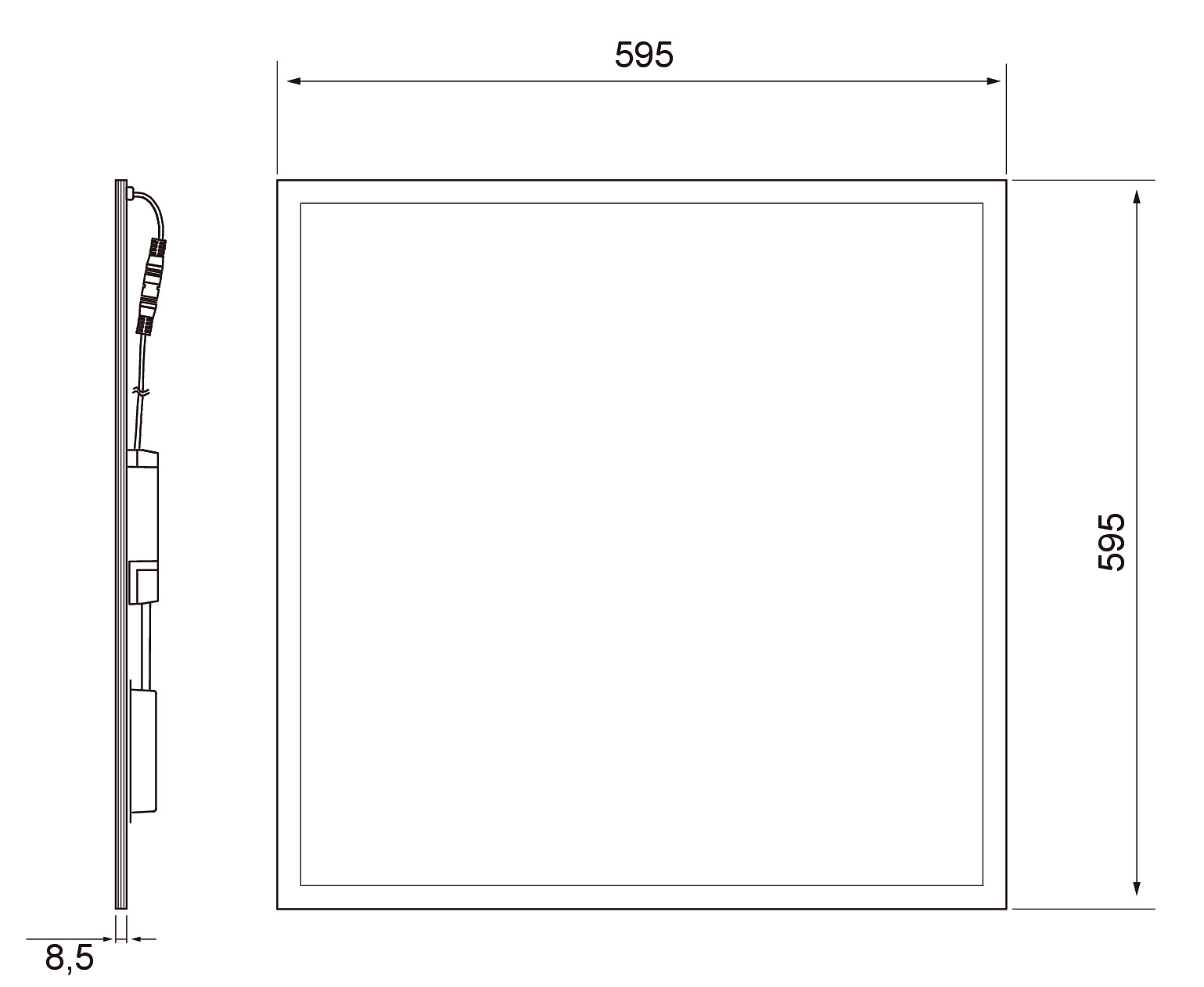

595x595x8.5mm |
||
|
Plata IP20 26W/840 PSO WH | 4146631 |
4146631 |
4000K |
2800lm |
26W |
595x595x8.5mm |
||
|
Plata IP20 33W/830 PSO WH | 4146632 |
4146632 |
3000K |
3600lm |
33W |
595x595x8.5mm |
||
|
Plata IP20 33W/840 PSO WH | 4146633 |
4146633 |
4000K |
3600lm |
33W |
595x595x8.5mm |
||
|
Plata IP20 40W/830 PSO WH | 4146812 |
4146812 |
3000K |
4100lm |
40W |
595x595x8.5mm |
||
|
Plata IP20 40W/840 PSO WH | 4146813 |
4146813 |
4000K |
4100lm |
40W |
595x595x8.5mm |
||
|
Plata IP20 45W/830 PSO WH | 4146634 |
4146634 |
3000K |
4600lm |
45W |
595x595x8.5mm |
||
|
Plata IP20 45W/840 PSO WH | 4146635 |
4146635 |
4000K |
4600lm |
45W |
595x595x8.5mm |
||
|
Plata IP20 57W/830 PSO WH | 4146636 |
4146636 |
3000K |
5600lm |
57W |
595x595x8.5mm |
||
|
Plata IP20 57W/840 PSO WH | 4146637 |
4146637 |
4000K |
5600lm |
57W |
595x595x8.5mm |
||
| Item description | Code | Electrical number (FIN) | Colour temperature | Luminous flux | Power | Dimensions | |||
|---|---|---|---|---|---|---|---|---|---|
| Plata PSMP | |||||||||
|
Plata IP20 26W/830 PSMP WH | 4146638 |
4146638 |
3000K |
2800lm |
26W |
595x595x8.5mm |
||
|
Plata IP20 26W/840 PSMP WH | 4146639 |
4146639 |
4000K |
2800lm |
26W |
595x595x8.5mm |
||
|
Plata IP20 33W/830 PSMP WH | 4146640 |
4146640 |
3000K |
3600lm |
33W |
595x595x8.5mm |
||
|
Plata IP20 40W/830 PSMP WH | 4146814 |
4146814 |
3000K |
4100lm |
40W |
595x595x8.5mm |
||
|
Plata IP20 40W/840 PSMP WH | 4146815 |
4146815 |
4000K |
4100lm |
40W |
595x595x8.5mm |
||
|
Plata IP20 45W/830 PSMP WH | 4146642 |
4146642 |
3000K |
4600lm |
45W |
595x595x8.5mm |
||
|
Plata IP20 45W/840 PSMP WH | 4146643 |
4146643 |
4000K |
4600lm |
45W |
595x595x8.5mm |
||
|
Plata IP20 57W/830 PSMP WH | 4146644 |
4146644 |
3000K |
5600lm |
57W |
595x595x8.5mm |
||
|
Plata IP20 57W/840 PSMP WH | 4146645 |
4146645 |
4000K |
5600lm |
57W |
595x595x8.5mm |
||
| Item description | Code | Electrical number (FIN) | Colour temperature | Luminous flux | Power | Dimensions | |||
|---|---|---|---|---|---|---|---|---|---|
| Plata Dali PSO | |||||||||
|
Plata IP20 27W/830 DA2 PSO WH | 4146646 |
4146646 |
3000K |
2800lm |
27W |
595x595x8.5mm |
||
|
Plata IP20 27W/840 DA2 PSO WH | 4146647 |
4146647 |
4000K |
2800lm |
27W |
595x595x8.5mm |
||
|
Plata IP20 34W/830 DA2 PSO WH | 4146648 |
4146648 |
3000K |
3600lm |
34W |
595x595x8.5mm |
||
|
Plata IP20 34W/840 DA2 PSO WH | 4146649 |
4146649 |
4000K |
3600lm |
34W |
595x595x8.5mm |
||
|
Plata IP20 41W/830 DA2 PSO WH | 4146805 |
4146805 |
3000K |
4100lm |
41W |
595x595x8.5mm |
||
|
Plata IP20 41W/840 DA2 PSO WH | 4146806 |
4146806 |
4000K |
4100lm |
41W |
595x595x8.5mm |
||
|
Plata IP20 46W/830 DA2 PSO WH | 4146650 |
4146650 |
3000K |
4600lm |
46W |
595x595x8.5mm |
||
|
Plata IP20 46W/840 DA2 PSO WH | 4146651 |
4146651 |
4000K |
4600lm |
46W |
595x595x8.5mm |
||
|
Plata IP20 54W/830 DA2 PSO WH | 4146652 |
4146652 |
3000K |
5300lm |
54W |
595x595x8.5mm |
||
|
Plata IP20 54W/840 DA2 PSO WH | 4146653 |
4146653 |
4000K |
5300lm |
54W |
595x595x8.5mm |
||
| Item description | Code | Electrical number (FIN) | Colour temperature | Luminous flux | Power | Dimensions | |||
|---|---|---|---|---|---|---|---|---|---|
| Plata Dali PSMP | |||||||||
|
Plata IP20 27W/830 DA2 PSMP WH | 4146654 |
4146654 |
3000K |
2800lm |
27W |
595x595x8.5mm |
||
|
Plata IP20 34W/830 DA2 PSMP WH | 4146656 |
4146656 |
3000K |
3600lm |
34W |
595x595x8.5mm |
||
|
Plata IP20 41W/830 DA2 PSMP WH | 4146807 |
4146807 |
3000K |
4100lm |
41W |
595x595x8.5mm |
||
|
Plata IP20 46W/830 DA2 PSMP WH | 4146658 |
4146658 |
3000K |
4600lm |
46W |
595x595x8.5mm |
||
|
Plata IP20 46W/840 DA2 PSMP WH | 4146659 |
4146659 |
4000K |
4600lm |
46W |
595x595x8.5mm |
||
|
Plata IP20 54W/830 DA2 PSMP WH | 4146660 |
4146660 |
3000K |
5300lm |
54W |
595x595x8.5mm |
||
|
Plata IP20 54W/840 DA2 PSMP WH | 4146661 |
4146661 |
4000K |
5300lm |
54W |
595x595x8.5mm |
||
| Item description | Code | Electrical number (FIN) | Colour temperature | Luminous flux | Power | Dimensions | |||
|---|---|---|---|---|---|---|---|---|---|
| Plata Casambi PSO | |||||||||
|
Plata IP20 26W/830 CA PSO WH | A1UPAA-CA |
3000K |
2800lm |
26W |
595x595x8.5mm |
|||
|
Plata IP20 33W/830 CA PSO WH | A1UPAC-CA |
3000K |
3600lm |
33W |
595x595x8.5mm |
|||
|
Plata IP20 45W/830 CA PSO WH | A1UPAE-CA |
3000K |
4600lm |
45W |
595x595x8.5mm |
|||
|
Plata IP20 53W/830 CA PSO WH | A1UPAG-CA |
3000K |
5300lm |
53W |
595x595x8.5mm |
|||
| Item description | Code | Electrical number (FIN) | Colour temperature | Luminous flux | Power | Dimensions | |||
|---|---|---|---|---|---|---|---|---|---|
| Plata Casambi PSMP | |||||||||
|
Plata IP20 26W/830 CA PSMP WH | A1UPAI-CA |
3000K |
2800lm |
26W |
595x595x8.5mm |
|||
|
Plata IP20 33W/830 CA PSMP WH | A1UPAK-CA |
3000K |
3600lm |
33W |
595x595x8.5mm |
|||
|
Plata IP20 45W/830 CA PSMP WH | A1UPAM-CA |
3000K |
4600lm |
45W |
595x595x8.5mm |
|||
|
Plata IP20 53W/830 CA PSMP WH | A1UPAO-CA |
3000K |
5300lm |
53W |
595x595x8.5mm |
|||
| Item description | Code | Electrical number (FIN) | Colour temperature | Luminous flux | Power | Dimensions | |||
|---|---|---|---|---|---|---|---|---|---|
| Plata EU Plug PSO (3 m cable) | |||||||||
|
Plata IP20 26W/830 EU PSO WH | A1UPAA-EU |
3000K |
2800lm |
26W |
595x595x8.5mm |
|||
|
Plata IP20 26W/840 EU PSO WH | A1UPAB-EU |
4000K |
2800lm |
26W |
595x595x8.5mm |
|||
|
Plata IP20 33W/830 EU PSO WH | A1UPAC-EU |
3000K |
3600lm |
33W |
595x595x8.5mm |
|||
|
Plata IP20 33W/840 EU PSO WH | A1UPAD-EU |
4000K |
3600lm |
33W |
595x595x8.5mm |
|||
|
Plata IP20 40W/830 EU PSO WH | A1UPAQ-EU |
3000K |
4100lm |
40W |
595x595x8.5mm |
|||
|
Plata IP20 45W/830 EU PSO WH | A1UPAE-EU |
3000K |
4600lm |
45W |
595x595x8.5mm |
|||
|
Plata IP20 57W/830 EU PSO WH | A1UPAG-EU |
3000K |
5600lm |
57W |
595x595x8.5mm |
|||
| Item description | Code | Electrical number (FIN) | Colour temperature | Luminous flux | Power | Dimensions | |||
|---|---|---|---|---|---|---|---|---|---|
| Plata EU Plug PSMP (3 m cable) | |||||||||
|
Plata IP20 26W/830 EU PSMP WH | A1UPAI-EU |
3000K |
2800lm |
26W |
595x595x8.5mm |
|||
|
Plata IP20 33W/830 EU PSMP WH | A1UPAK-EU |
3000K |
3600lm |
33W |
595x595x8.5mm |
|||
|
Plata IP20 40W/830 EU PSMP WH | A1UPAS-EU |
3000K |
4100lm |
40W |
595x595x8.5mm |
|||
|
Plata IP20 40W/840 EU PSMP WH | A1UPAT-EU |
4000K |
4100lm |
40W |
595x595x8.5mm |
|||
|
Plata IP20 45W/830 EU PSMP WH | A1UPAM-EU |
3000K |
4600lm |
45W |
595x595x8.5mm |
|||
|
Plata IP20 57W/830 EU PSMP WH | A1UPAO-EU |
3000K |
5600lm |
57W |
595x595x8.5mm |
|||
| Item description | Code | Electrical number (FIN) | Colour temperature | Luminous flux | Power | Dimensions | |||
|---|---|---|---|---|---|---|---|---|---|
| Plata Casambi EU Plug PSO (3 m cable) | |||||||||
|
Plata IP20 26W/830 CAEU PSO WH | A1UPAA-CAEU |
3000K |
2800lm |
26W |
595x595x8.5mm |
|||
|
Plata IP20 33W/830 CAEU PSO WH | A1UPAC-CAEU |
3000K |
3600lm |
33W |
595x595x8.5mm |
|||
|
Plata IP20 45W/830 CAEU PSO WH | A1UPAE-CAEU |
3000K |
4600lm |
45W |
595x595x8.5mm |
|||
|
Plata IP20 53W/830 CAEU PSO WH | A1UPAG-CAEU |
3000K |
5300lm |
53W |
595x595x8.5mm |
|||
| Item description | Code | Electrical number (FIN) | Colour temperature | Luminous flux | Power | Dimensions | |||
|---|---|---|---|---|---|---|---|---|---|
| Plata Casambi EU Plug PSMP (3 m cable) | |||||||||
|
Plata IP20 26W/830 CAEU PSMP WH | A1UPAI-CAEU |
3000K |
2800lm |
26W |
595x595x8.5mm |
|||
|
Plata IP20 33W/830 CAEU PSMP WH | A1UPAK-CAEU |
3000K |
3600lm |
33W |
595x595x8.5mm |
|||
|
Plata IP20 45W/830 CAEU PSMP WH | A1UPAM-CAEU |
3000K |
4600lm |
45W |
595x595x8.5mm |
|||
|
Plata IP20 53W/830 CAEU PSMP WH | A1UPAO-CAEU |
3000K |
5300lm |
53W |
595x595x8.5mm |
|||
