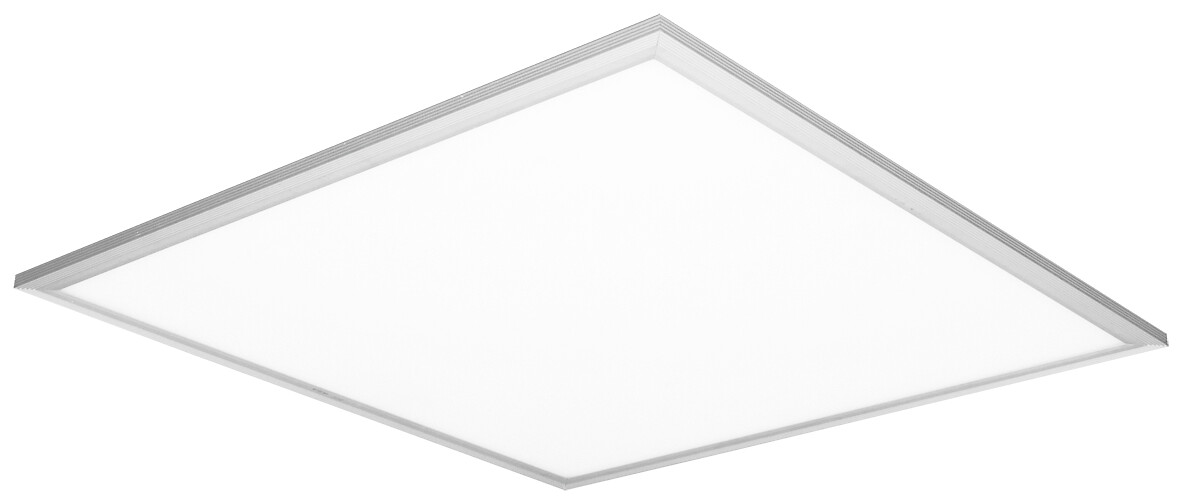

Plateia Q

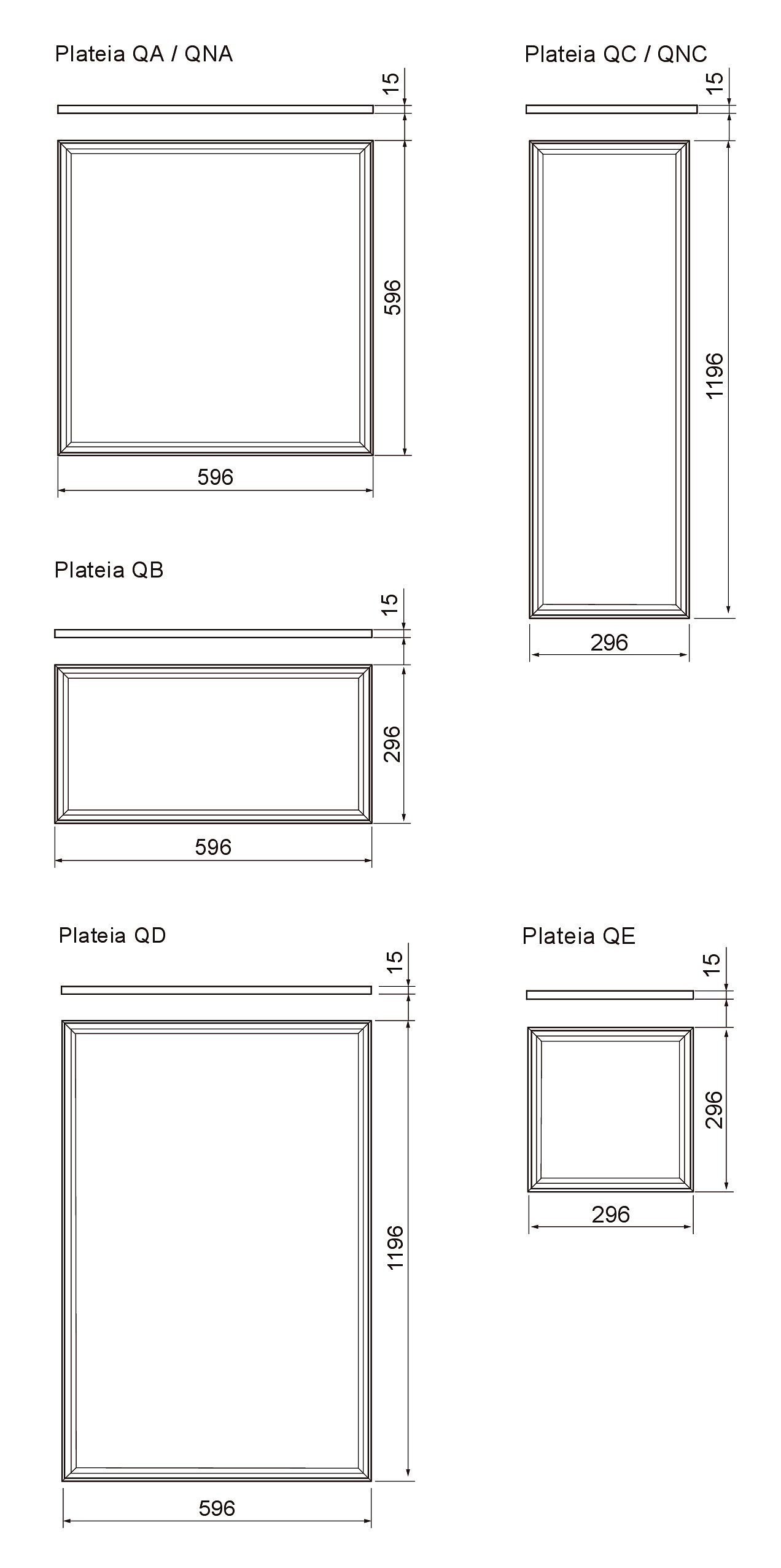

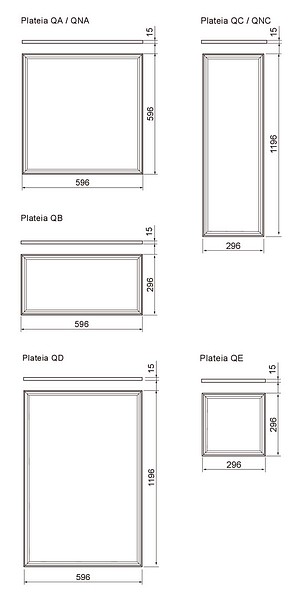

An extensive range of low-profile luminaires designed for offices and other public spaces. Available in five housing sizes with opal and nano-prismatic diffusers. UGR<19 with the nano-prismatic diffuser. Recessed mounting on a T-grid ceiling or on a plasterboard ceiling with accessories. Surface mounting with a separate mounting frame.
Aluminium or steel housing, white, RAL 9003.
Acrylic diffuser, opal (O) or nano prismatic (MP).
Protection class II.
Surface or recessed mounting.
Linkable, 3/5 × 2.5 mm2.
Installation height 2–4 m.
Integrated LED 9–111 W, 700–12,500 lm.
Colour temperatures: 3,000 K and 4,000 K. CRI > 80 / Ra > 80.
MacAdam 3 SDCM.
IP40.
The standard range includes On/Off and Dali-2 models.
Ambient temperature range 0 … 25 °C.
Rated lifetime L70 100,000 h (Ta25°C).
Rated lifetime L80 80,000 h (Ta25°C).
Power source service life 50,000 h.
Accessories include surface mounting frames 4289973, D2PSXB, 4289974, D2PSXD and D2PSXE and an universal suspension wire 4107113, universal 4-wire suspension set 4146595 and ceiling mounting frames 4297812 (size 1200*300) and 4297811 (size 600*600).
WH = white, DA2 = Dali-2.
Also available as Casambi, 1–10 V and Switch Dim solutions. CRI > 90 available for order. Also available with various connecting wire solutions. Anodised aluminium housing available via special order.
Technical info
| Item description | Code | Electrical number (FIN) | Colour temperature | Luminous flux | Power | Dimensions | |||
|---|---|---|---|---|---|---|---|---|---|
| Plateia Q opal 600 x 600 | |||||||||
|
Plateia Q 600×600 34W/830 ACO | 4289693 |
4289693 |
3000K |
4100lm |
34W |
596x596x15mm |
||
|
Plateia Q 600×600 34W/840 ACO | 4289694 |
4289694 |
4000K |
4100lm |
34W |
596x596x15mm |
||
|
Plateia Q 600×600 52W/830 ACO | 4289600 |
4289600 |
3000K |
5800lm |
52W |
596x596x15mm |
||
|
Plateia Q 600×600 52W/840 ACO | 4289601 |
4289601 |
4000K |
5800lm |
52W |
596x596x15mm |
||
| Item description | Code | Electrical number (FIN) | Colour temperature | Luminous flux | Power | Dimensions | |||
|---|---|---|---|---|---|---|---|---|---|
| Plateia Q opal 1200 x 300 | |||||||||
|
Plateia Q 1200×300 35W/830 ACO | 4289608 |
4289608 |
3000K |
4000lm |
35W |
1196x296x15mm |
||
|
Plateia Q 1200×300 35W/840 ACO | 4289609 |
4289609 |
4000K |
4000lm |
35W |
1196x296x15mm |
||
|
Plateia Q 1200×300 54W/830 ACO | 4289614 |
4289614 |
3000K |
5650lm |
54W |
1196x296x15mm |
||
|
Plateia Q 1200×300 54W/840 ACO | 4289615 |
4289615 |
4000K |
5650lm |
54W |
1196x296x15mm |
||
| Item description | Code | Electrical number (FIN) | Colour temperature | Luminous flux | Power | Dimensions | |||
|---|---|---|---|---|---|---|---|---|---|
| Plateia Q opal 1200 x 600 | |||||||||
|
Plateia Q 1200×600 111W/830 ACO | 4289620 |
4289620 |
3000K |
12500lm |
111W |
1196x596x15mm |
||
|
Plateia Q 1200×600 111W/840 ACO | 4289621 |
4289621 |
4000K |
12500lm |
111W |
1196x596x15mm |
||
| Item description | Code | Electrical number (FIN) | Colour temperature | Luminous flux | Power | Dimensions | |||
|---|---|---|---|---|---|---|---|---|---|
| Plateia Q opal 600 x 300 | |||||||||
|
Plateia Q 600×300 17W/830 ACO | 4289606 |
4289606 |
3000K |
1800lm |
17W |
596x296x15mm |
||
|
Plateia Q 600×300 17W/840 ACO | 4289607 |
4289607 |
4000K |
1800lm |
17W |
596x296x15mm |
||
|
Plateia Q 300×300 9W/830 ACO | 4289622 |
4289622 |
3000K |
700lm |
9W |
296x296x15mm |
||
|
Plateia Q 300×300 9W/840 ACO | 4289623 |
4289623 |
4000K |
700lm |
9W |
296x296x15mm |
||
| Item description | Code | Electrical number (FIN) | Colour temperature | Luminous flux | Power | Dimensions | |||
|---|---|---|---|---|---|---|---|---|---|
| Plateia Q microprismatic 600 x 600 | |||||||||
|
Plateia Q 600×600 34W/830 ACMP | 4289872 |
4289872 |
3000K |
4000lm |
34W |
596x596x15mm |
||
|
Plateia Q 600×600 34W/840 ACMP | 4289873 |
4289873 |
4000K |
4000lm |
34W |
596x596x15mm |
||
|
Plateia Q 600×600 52W/830 ACMP | 4289876 |
4289876 |
3000K |
5800lm |
52W |
596x596x15mm |
||
|
Plateia Q 600×600 52W/840 ACMP | 4289877 |
4289877 |
4000K |
5800lm |
52W |
596x596x15mm |
||
| Item description | Code | Electrical number (FIN) | Colour temperature | Luminous flux | Power | Dimensions | |||
|---|---|---|---|---|---|---|---|---|---|
| Plateia Q microprismatic 1200 x 300 | |||||||||
|
Plateia Q 1200×300 35W/830 ACMP | 4289880 |
4289880 |
3000K |
4000lm |
35W |
1196x296x15mm |
||
|
Plateia Q 1200×300 35W/840 ACMP | 4289881 |
4289881 |
4000K |
4000lm |
35W |
1196x296x15mm |
||
|
Plateia Q 1200×300 54W/830 ACMP | 4289884 |
4289884 |
3000K |
5600lm |
54W |
1196x296x15mm |
||
|
Plateia Q 1200×300 54W/840 ACMP | 4289885 |
4289885 |
4000K |
5600lm |
54W |
1196x296x15mm |
||
| Item description | Code | Electrical number (FIN) | Colour temperature | Luminous flux | Power | Dimensions | |||
|---|---|---|---|---|---|---|---|---|---|
| Plateia Q Dali opal 600 x 600 | |||||||||
|
Plateia Q 600×600 34W/830 DA2 ACO | 4209694 |
4209694 |
3000K |
4100lm |
34W |
596x596x15mm |
||
|
Plateia Q 600×600 34W/840 DA2 ACO | 4209695 |
4209695 |
4000K |
4100lm |
34W |
596x596x15mm |
||
|
Plateia Q 600×600 52W/830 DA2 ACO | 4289604 |
4289604 |
3000K |
5800lm |
52W |
596x596x15mm |
||
|
Plateia Q 600×600 52W/840 DA2 ACO | 4289605 |
4289605 |
4000K |
5800lm |
52W |
596x596x15mm |
||
| Item description | Code | Electrical number (FIN) | Colour temperature | Luminous flux | Power | Dimensions | |||
|---|---|---|---|---|---|---|---|---|---|
| Plateia Q Dali opal 1200 x 300 | |||||||||
|
Plateia Q 1200×300 35W/830 DA2 ACO | 4289612 |
4289612 |
3000K |
4000lm |
35W |
1196x296x15mm |
||
|
Plateia Q 1200×300 35W/840 DA2 ACO | 4289613 |
4289613 |
4000K |
4000lm |
35W |
1196x296x15mm |
||
|
Plateia Q 1200×300 54W/830 DA2 ACO | 4289618 |
4289618 |
3000K |
5650lm |
54W |
1196x296x15mm |
||
|
Plateia Q 1200×300 54W/840 DA2 ACO | 4289619 |
4289619 |
4000K |
5650lm |
54W |
1196x296x15mm |
||
| Item description | Code | Electrical number (FIN) | Colour temperature | Luminous flux | Power | Dimensions | |||
|---|---|---|---|---|---|---|---|---|---|
| Plateia Q Dali opal 1200 x 600 | |||||||||
|
Plateia Q 1200×600 111W/830 DA2 ACO | D2PLDA-DALI |
3000K |
12500lm |
111W |
1196x596x15mm |
|||
|
Plateia Q 1200×600 111W/840 DA2 ACO | D2PLDB-DALI |
4000K |
12500lm |
111W |
1196x596x15mm |
|||
| Item description | Code | Electrical number (FIN) | Colour temperature | Luminous flux | Power | Dimensions | |||
|---|---|---|---|---|---|---|---|---|---|
| Plateia Q Dali opal 600 x 300 | |||||||||
|
Plateia Q 600×300 17W/830 DA2 ACO | D2PLBA-DALI |
3000K |
1800lm |
17W |
596x296x15mm |
|||
|
Plateia Q 600×300 17W/840 DA2 ACO | D2PLBB-DALI |
4000K |
1800lm |
17W |
596x296x15mm |
|||
| Item description | Code | Electrical number (FIN) | Colour temperature | Luminous flux | Power | Dimensions | |||
|---|---|---|---|---|---|---|---|---|---|
| Plateia Q Dali opal 300 x 300 | |||||||||
|
Plateia Q 300×300 9W/830 DA2 ACO | 4289626 |
4289626 |
3000K |
700lm |
9W |
296x296x15mm |
||
|
Plateia Q 300×300 9W/840 DA2 ACO | 4289627 |
4289627 |
4000K |
700lm |
9W |
296x296x15mm |
||
| Item description | Code | Electrical number (FIN) | Colour temperature | Luminous flux | Power | Dimensions | |||
|---|---|---|---|---|---|---|---|---|---|
| Plateia Q Dali microprismatic 600 x 600 | |||||||||
|
Plateia Q 600×600 34W/830 DA2 ACMP | 4289874 |
4289874 |
3000K |
4000lm |
34W |
596x596x15mm |
||
|
Plateia Q 600×600 34W/840 DA2 ACMP | 4289875 |
4289875 |
4000K |
4000lm |
34W |
596x596x15mm |
||
|
Plateia Q 600×600 52W/830 DA2 ACMP | 4289878 |
4289878 |
3000K |
5800lm |
52W |
596x596x15mm |
||
|
Plateia Q 600×600 52W/840 DA2 ACMP | 4289879 |
4289879 |
4000K |
5800lm |
52W |
596x596x15mm |
||
| Item description | Code | Electrical number (FIN) | Colour temperature | Luminous flux | Power | Dimensions | |||
|---|---|---|---|---|---|---|---|---|---|
| Plateia Q Dali microprismatic 1200 x 300 | |||||||||
|
Plateia Q 1200×300 35W/830 DA2 ACMP | 4289882 |
4289882 |
3000K |
4000lm |
35W |
1196x296x15mm |
||
|
Plateia Q 1200×300 35W/840 DA2 ACMP | 4289883 |
4289883 |
4000K |
4000lm |
35W |
1196x296x15mm |
||
|
Plateia Q 1200×300 54W/830 DA2 ACMP | 4289886 |
4289886 |
3000K |
5600lm |
54W |
1196x296x15mm |
||
|
Plateia Q 1200×300 54W/840 DA2 ACMP | 4289887 |
4289887 |
4000K |
5600lm |
54W |
1196x296x15mm |
||
