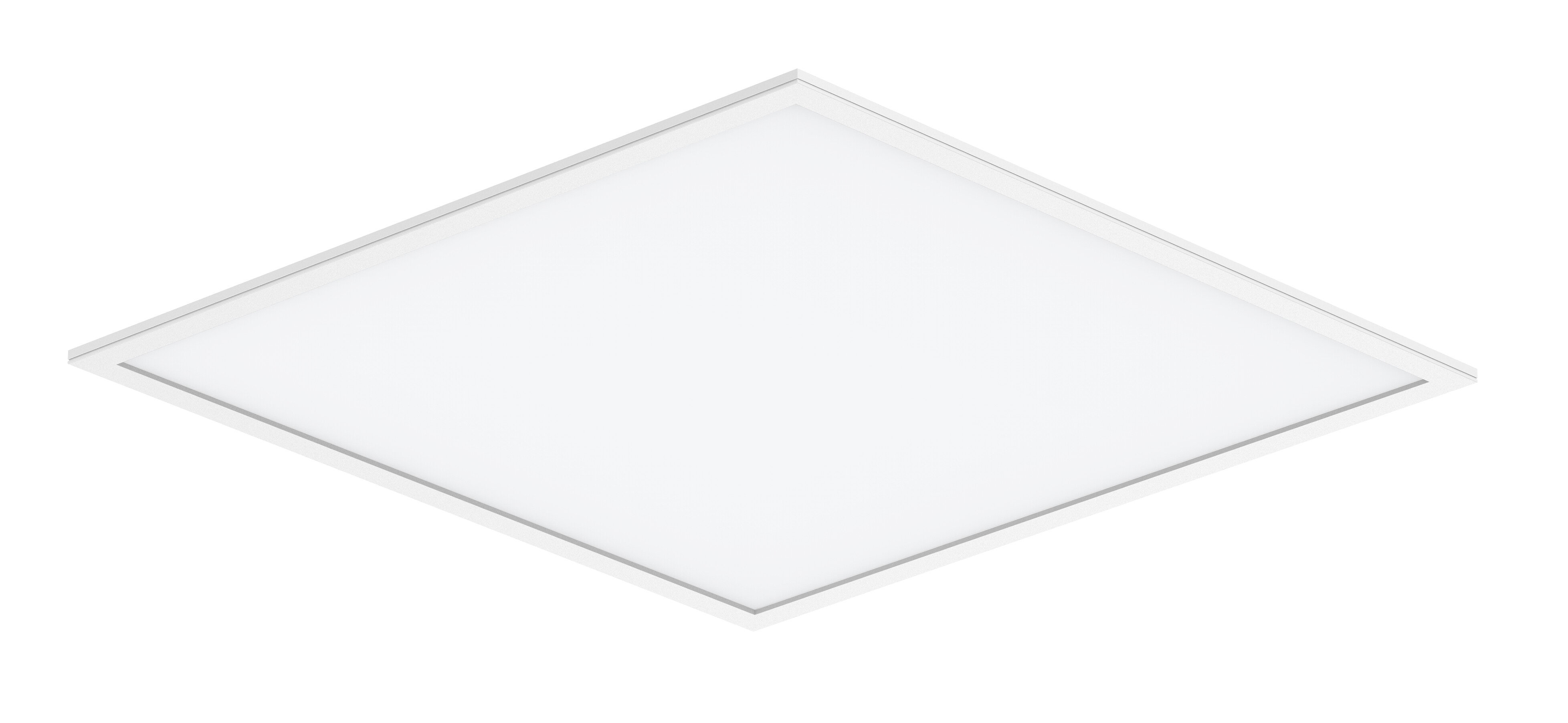

Plata Pro MP

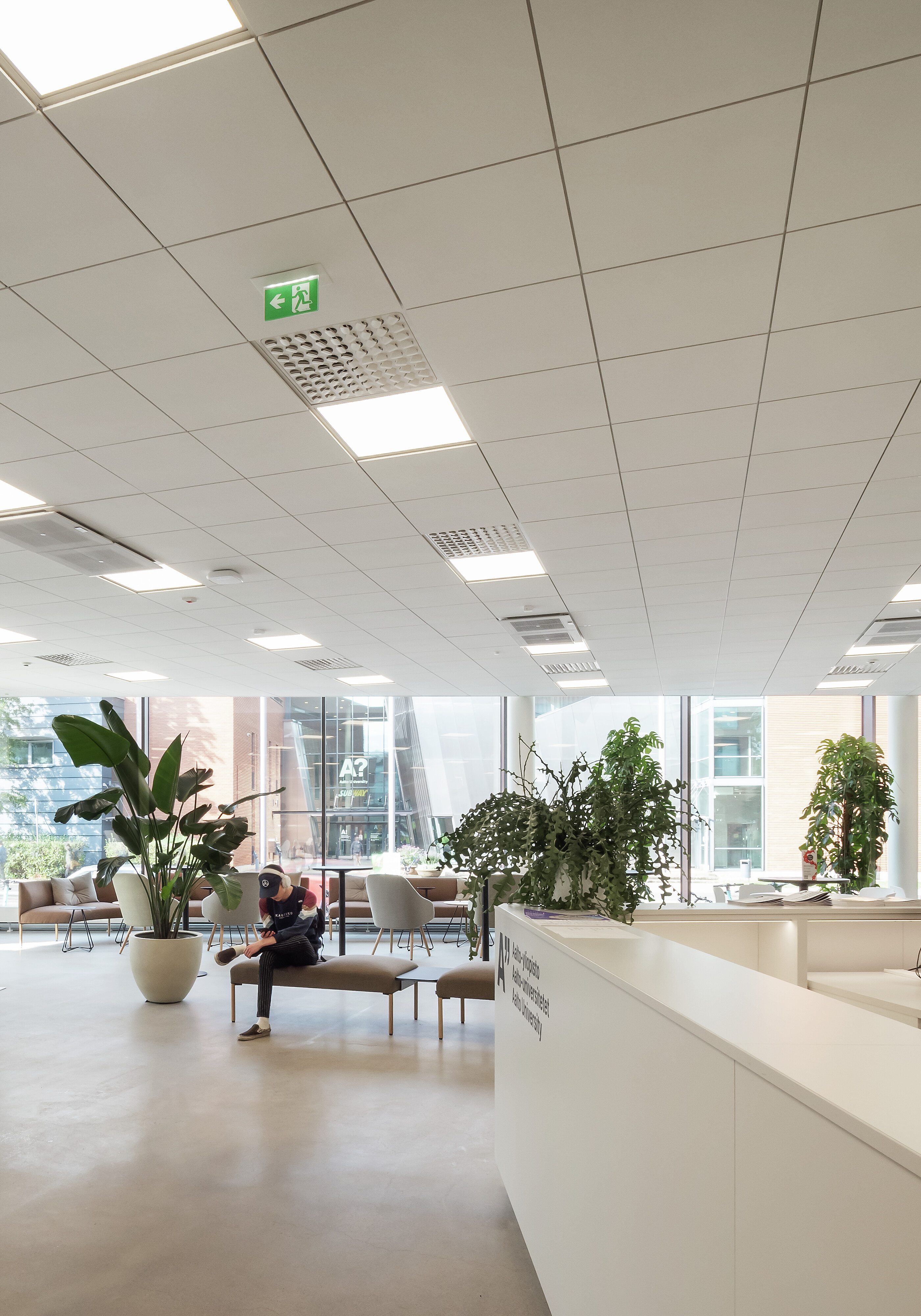

Plata Pro MP is a long-lasting and energy-efficient modular luminaire with an excellent price-quality ratio. The light output can be adjusted via the power source switch, making it a versatile and flexible solution. Suitable applications include public spaces such as offices, classrooms, corridors, and lobbies. The luminaire is particularly well-suited for installations where it can be recessed into ceiling systems. Control options include on/off, Dali-2, and Casambi. The luminaire has a long lifespan of 100,000 hours and an energy efficiency of up to 125 lm/W.

Aluminium housing, acrylic light guide plate (ACMP).
White, RAL 9016.
Protection class II.
Mounting on a T-grid ceiling. Recessed mounting with accessories.
Linkable on/off and Dali-2 max 5 x 2,5 mm2, Casambi 3 x 2,5 mm2. On/off and Casambi ranges also available with 3-meter Europlug cable H03VVH2-F 2x 0.75 mm2.
Colour temperatures 3000 K and 4000 K. CRI > 80 / Ra > 80.
MacAdam 3 SDCM.
IP20.
On/off: 19 W / 2400 lm – 37 W / 4600 lm. Luminous flux is selectable from the luminaire.
Dali: 12 W / 1500 lm – 40 W / 5000 lm. Luminous flux is selectable from the luminaire.
Casambi: 34 W / 4300 lm.
On/off, Dali-2, (direct pushbutton control 230V) and Casambi (Bluetooth mesh).
Use with Dali-2-certified control devices is recommended.
Maximum number of luminaires to be connected to one switch is 20 pcs. The length of the cable between the switch and the luminaire is 10 meters maximum.
Ambient temperature range 0 ... 25 °C.
Rated lifetime L70 100,000 h (Ta25°C).
Rated lifetime L80 60,000 h (Ta25°C).
Power source lifespan 100,000 h.
Accessories include a surface mounting frame (4289994), concealed grid brackets PLK15 (4209537) and mounting set (4146993). The luminaires are also compatible with Plano surface mounting frames, which are available in three colours: white (4146973), black (A2PLKI) and grey (A2PLKJ). Also available: ceiling mounting frame 600 x 600 (4297811) and cover plates 600*600 R400 (A2PLZC) and 600*600 R500 (A2PLZA). The luminous flux of the luminaire decreases with cover plates about 30 % (R500) and about 50 % (R400).

Cut-to-measure cables and a variety of quick-connector cable sets can be ordered on a project-specific basis.
