Ebba

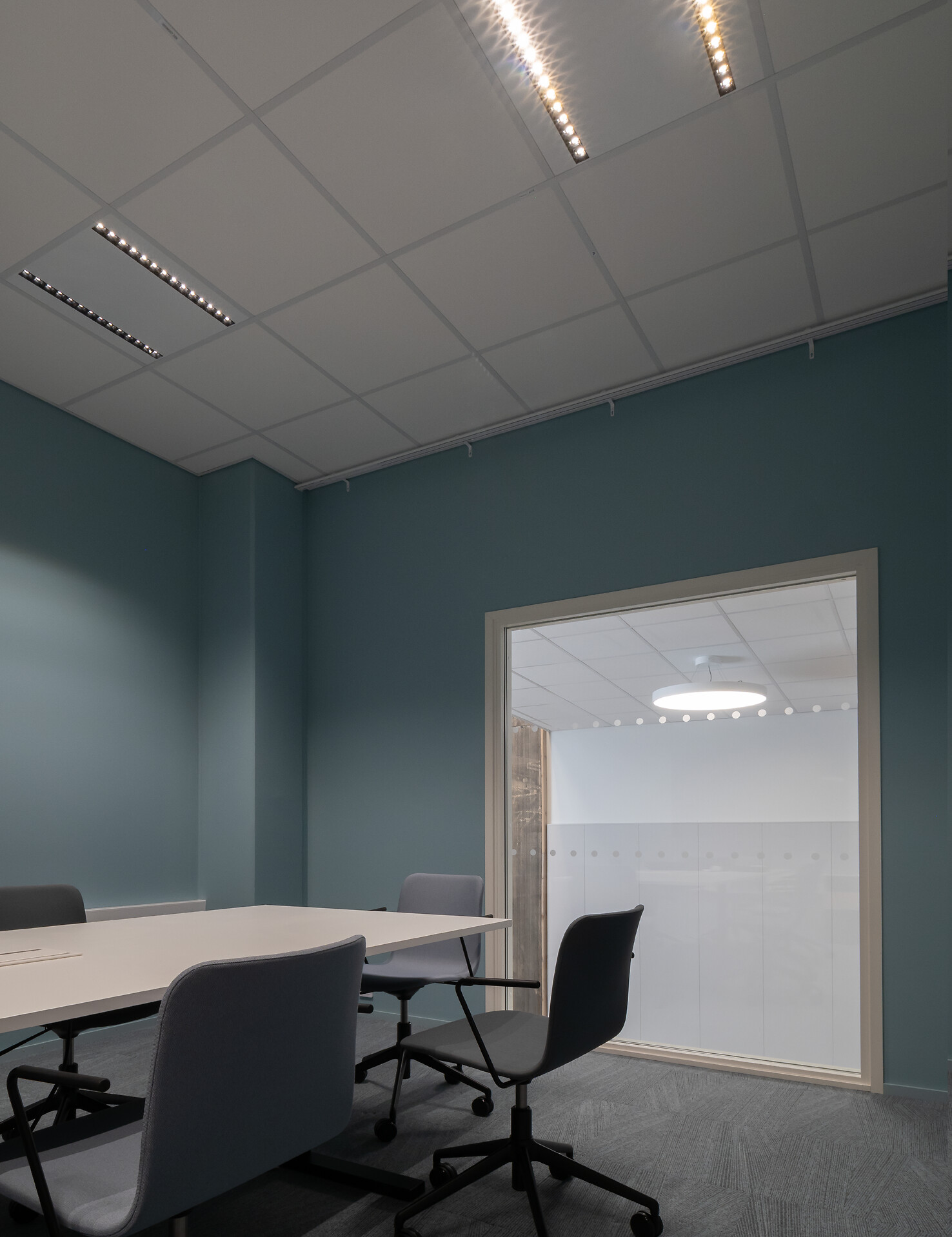

A modular luminaire with minimalistic design for offices and public spaces. The units blend in seamlessly with the ceiling structure, creating a harmonious appearance thanks to their recessed design and glare-free lens optics. Models equipped with a black reflector (UGR<16) are suitable for workstations. The UGR<19 models with a white reflector are ideal for corridors and waiting areas.Recessed mounting on a T-grid ceiling or, with accessories, on a plasterboard ceiling. Surface mounting too is possible. Housings for recessed and surface mounting are available as accessories.

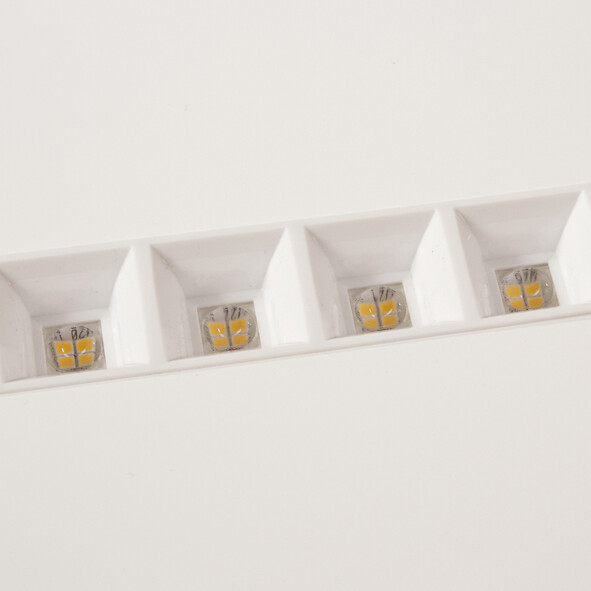

Steel housing, polycarbonate reflector and acrylic lenses.
White housing, RAL 9003; white, RAL 9003 or black, RAL 9005 reflector.
Protection class II.
Recessed mounting on a T-grid ceiling or, with accessories, on a plasterboard ceiling. Alternatively, surface mounting.
Linkable units, 5 x 2.5 mm2.
Installation height 2–4 m.
Colour temperatures 3,000 K and 4,000, K. CRI > 80 / Ra > 80.
MacAdam 3 SDCM.
IP20.
Integrated LED 22–42 W, 2,600–6,100 lm.
The standard range includes on/off and Dali-2 models.
Ambient temperature range 0 … 25 °C.
Rated lifetime L70 100,000 h (Ta25°C).
Rated lifetime L80 80,000 h (Ta25°C).
Power source service life 50,000 h.
Accessories: mounting frame 4289973 and ceiling mounting frame 4297811.
WH = white, DA2 = Dali2.

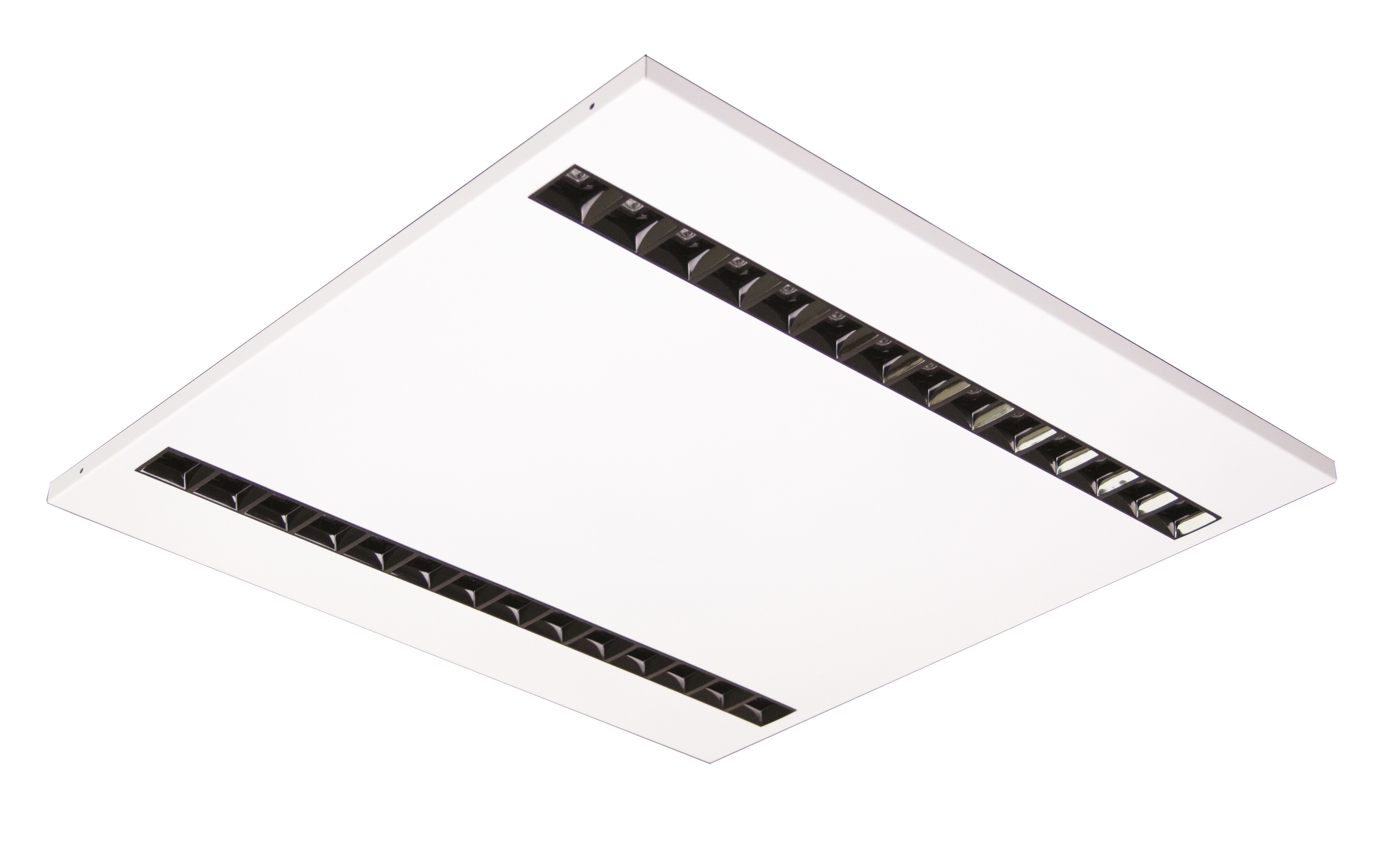

1WH 80D = white reflector, one light line.
2WH 80D = white reflector, two light lines.
1BK 80D = black reflector, one light line.
2BK 80D = black reflector, two light lines.

Also available as Casambi, ActiveAhead, Philips SR, 1–10 V, Switch Dim and Tunable White solutions on a project-specific basis. Models with a black RAL 9005 housing and a rectangular shape (296 x 1,196 mm) available for order. CRI > 90 available for order. Colour temperatures 2700 K and 5700 K area also available as an option. Models with 11 W / 1,250–1,400 lm by special order. Available with various connecting wire solutions.
