Plata IP20 57W/840 PSO WH
Plata Modular luminaire 57W 4000K 5600lm No dim; IP20; IK02; Protection cl. II; L70B50 100000h; LED not exchangeable; Lamp included; CRI>80; SDCM3; Suitable for through wiring; 5x2.5mm²; Housing al; Colour wh; Cover Plastic, opal; C16 max. 29

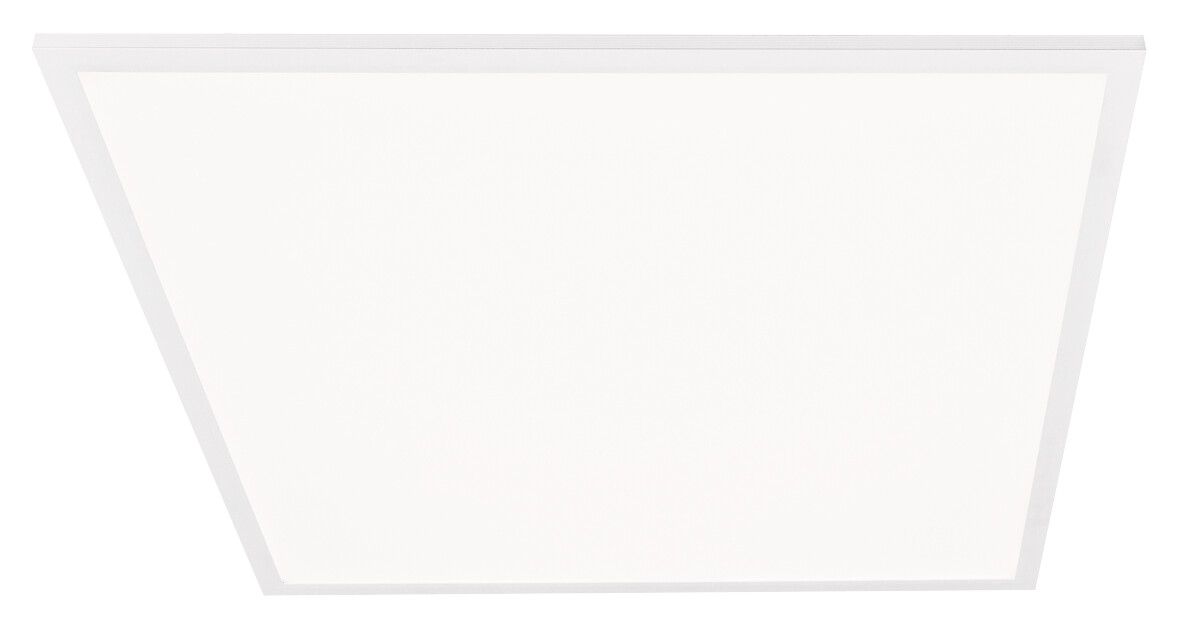

Plata is a low-profile modular luminaire designed for offices, corridors, lobbies, schools and other public spaces. Anti-glare models equipped with micro-prismatic (MP) diffusers offer an excellent solution for classrooms and spaces where computers and other equipment with displays are used. Plata is suitable for recessed mounting in false ceilings, which makes it ideal for offices and public spaces. It can also be suspended on wires or surface-mounted with a separate mounting set. The control options are on/off, Dali-2, pushbutton (direct pushbutton control 230V) and Casambi.
Aluminium housing, acrylic light guide plate and polystyrene diffuser (PS).
White, RAL 9003.
Protection class II.
Mounting on a T-grid ceiling. Suspension mounting, surface mounting and recessed mounting with accessories. Installation kits available for concealed T-grids.
Linkable, on/off and Dali max. 5 x 2.5 mm2, Casambi max. 3 x 2.5 mm2.
On/off and Casambi ranges also available with 3-meter Europlug cable H03VVH2-F 2 x 0.75 mm2.
Maximum number of led drivers to be connected to one switch is 60 pcs.
Colour temperatures 3000 K and 4000 K. CRI > 80 / Ra > 80.
MacAdam 3 SDCM.
IP20.
On/off: 26–57 W. 2800–5600 lm.
Dali-2 and Casambi: 27–54 W. 2800–5300 lm.
On/off, Dali-2, (direct pushbutton control 230V) and Casambi control.
Use with Dali-2-certified control devices is recommended.
Maximum number of led drivers to be connected to one switch is 60 pcs.
Ambient temperature range 0 ... 25 °C.
Rated lifetime L70 100 000 h (Ta25°C).
Rated lifetime L80 60 000 h (Ta25°C).
Power source lifespan 100 000 h.
Accessories include a surface mounting frame (4289994), concealed grid brackets PLK15 (4209537), asymmetrical concealed grid brackets PLK (4245342) and mounting set (4146993). The luminaires are also compatible with Plano surface mounting frames, which are available in three colours: white (4146973), black (A2PLKI) and grey (A2PLKJ). Also available: ceiling mounting frame 600 x 600 (4297811) and cover plates 600*600 R400 (A2PLZC) and 600*600 R500 (A2PLZA). The luminous flux of the luminaire decreases with cover plates about 30 % (R500) and about 50 % (R400).
O = opal, MP = micro-prismatic optics
Customized luminous flux packages, cut-to-measure connecting cables and a variety of quick-connector cable sets are available on a project-specific basis.
- Code
- 4146637
Downloads
Technical info
- Electrical number (FIN)
- 4146637
- Electrical number (SWE)
- 7021019
- GTIN
- 6435200286598
- Airam code
- A1UPAH
- Code
- 4146637
- Compatible with Apple HomeKit
- No
- Beam angle adjustable
- No
- Dimming 1-10 V
- No
- With light sensor
- No
- Connectable conductor cross section (min) (mm²)
- 1.5
- With air slots
- No
- Compatible with Google Assistant
- No
- Luminaire efficacy (max) (lm/W)
- 98
- Light sharing
- Symmetric
- Beam angle
- Open beam
- Fit for workplace acc. EN 12464-1
- No
- Impact strength
- IK02
- Stroboscope effect value SVM
- 0.4
- With presence indicator
- No
- Dimming DSI
- No
- Rated luminous flux according to IEC 62722-2- 1 (max) (lm)
- 5600
- Effective luminous flux (lm)
- 5600
- Constant luminous flux control
- No
- Dimming trailing edge
- No
- Light source included
- Yes
- Rated luminous flux according to IEC 62722-2- 1 (min) (lm)
- 5600
- No dimming function
- Yes
- Max. number of luminaires per miniature circuit breaker B16
- 20
- Housing material
- Aluminium

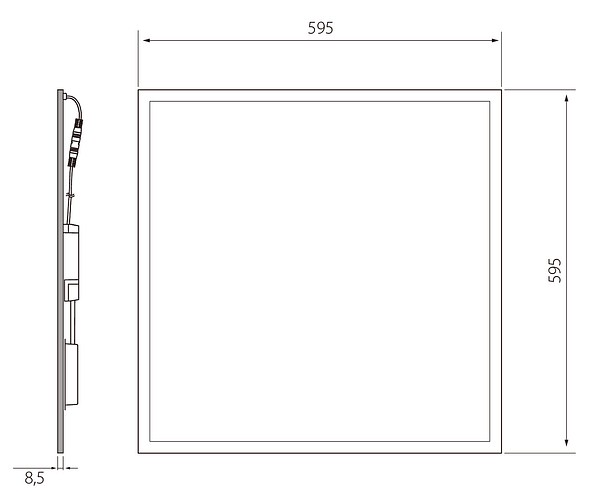

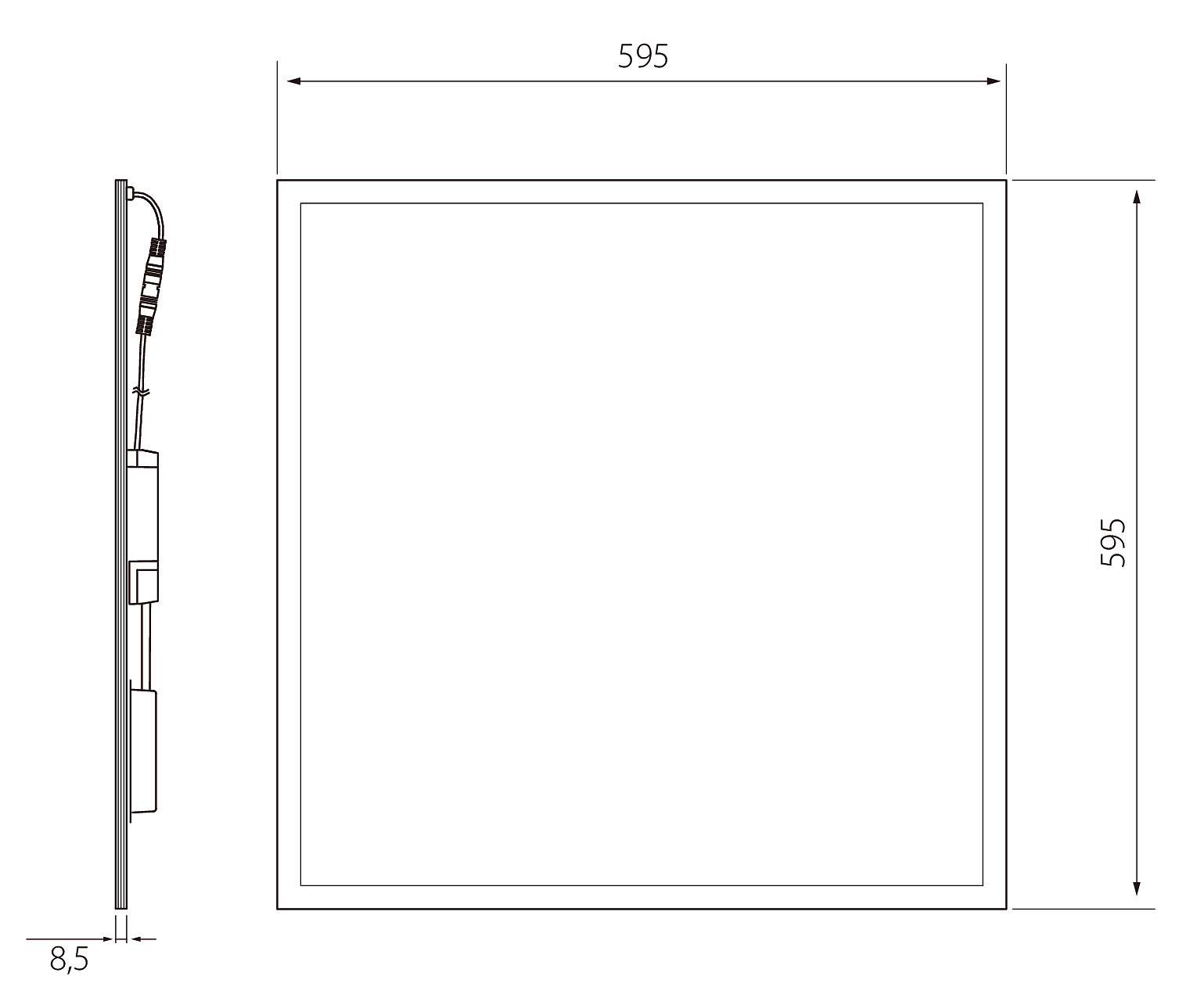

- Width (mm)
- 595
- Suitable for suspended mounting
- Yes
- Type of grid
- None
- Luminaire may be covered with thermally insulating material
- No
- Flickering value Pst LM
- 1
- Bluetooth operated
- No
- Colour temperature switchable
- No
- Dimming DMX
- No
- Compatible with Casambi
- No
- Lamp holder
- Other
- Type of control gear
- LED operating device current-controlled
- Suitable for lamp power (min) (W)
- 57
- Dimming programmable
- No
- IFTTT support available
- No
- Dimming mains voltage modulation
- No
- Light distributor
- Diffuser lens/optic/panel
- Dimming RF
- No
- Emergency function monitoring system
- None
- Luminaire efficacy (lm/W)
- 98
- Dimming 0-10 V
- No
- Total harmonic distortion (THD) (%)
- 20
- Height/depth (mm)
- 8.5
- Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 5
- Exchangeable control gear
- Yes
- Voltage type
- AC
- Length (mm)
- 595
- Dimming Touch and Dim
- No
- Photobiological safety according to EN 62471
- RG0
- Dimming potentiometer (integrated)
- No
- Filament test according to IEC 60695-2-11
- 650 °C - 30 s
- Suitable for wall mounting
- No
- Built-in height/depth (mm)
- 80
- Nominal current (min) (mA)
- 1500
- With mounting material
- Yes
- Suitable for surface mounting
- Yes
- Colour of light (alphanumeric)
- White
- Colour temperature (max) (K)
- 4000
- Built-in width (mm)
- 600
- Rated life time L70/B50 at 25 °C (h)
- 100000
- Dimming Sine Wave Reduction
- No
- Colour rendering index (CRI/Ra)
- 80-89
- Colour consistency (McAdam ellipse)
- SDCM3
- Nominal voltage (min) (V)
- 220
- Connectable conductor cross section (max) (mm²)
- 2.5
- Dimming leading edge
- No
- Failure rate at median useful life of 75,000 hrs at 25 °C ambient (tq) (%)
- 10
- Dimming DALI-2
- No
- Suitable for recessed mounting
- Yes
- Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
- 5
- Max. number of luminaires per miniature circuit breaker C16
- 29
- Rated life time L80/B50 at 25 °C
- 60000
- Containing product according to 2019/2020/EU
- Yes
- Control gear included
- Yes
- Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24
- Yes
- With movement sensor
- No
- Lumen maintenance at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
- 90
- Degree of protection (IP), front side
- IP20
- Type of wiring
- Suitable for through wiring
- Dimming with push-button
- No
- Built-in length (mm)
- 600
- Emergency power supply system
- None
- Protection class according to IEC 61140
- II
- Degree of protection (IP), rear side
- IP20
- Power factor
- 0.9
- Dimming Zigbee
- No
- Dimming DALI
- No
- Max. number of luminaires per miniature circuit breaker C10 (MCB)
- 20
- Suitable for clamp-mounting
- No
- Unified Glare Rating (UGR)
- 22
- Dimming LineSwitch
- No
- Compatible with Amazon Alexa
- No
- Dimmable
- No
- Cover material
- Plastic, opal
- With switch
- No
- Total harmonic distortion
- 20
- Conductor cross section (mm²)
- 2.5
- Rated ambient temperature acc. IEC62722-2-1 (min) (°C)
- 0
- Suitable for lamp power (max) (W)
- 57
- Nominal voltage (max) (V)
- 240
- Colour temperature (min) (K)
- 4000
- Luminaire efficacy (min) (lm/W)
- 98
- Suitable for light line configuration
- No
- Energy efficiency class of light source according to EU regulation 2019/2015
- E
- Housing colour
- White
- Number of poles
- 5
- Suitable for emergency lighting
- No
- Rated ambient temperature acc. IEC62722-2-1 (max) (°C)
- 25
- Suitable for number of lamps
- 1
- Dimming manufacturer's proprietary system
- No
- Lumen maintenance at median useful life of 75,000 hrs at 25 °C ambient (tq) (%)
- 80
- Light outlet
- Direct
- Housing surface protection
- Powder coating
- Suitable for ceiling mounting
- Yes
- Lamp type
- LED not exchangeable
- Nominal current (max) (mA)
- 1500
- Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 85
- Connection type
- Screwless terminal
- Emergency power supply integrated
- No
- Degree of protection (IP)
- IP20
- Maximum system power (W)
- 57
- Lumen setting adjustable
- No
Product versions
Plata PSO
| Item description | Code | |
|---|---|---|
| Plata IP20 26W/830 PSO WH | 4146630 |
|
| Plata IP20 26W/840 PSO WH | 4146631 |
|
| Plata IP20 33W/830 PSO WH | 4146632 |
|
| Plata IP20 33W/840 PSO WH | 4146633 |
|
| Plata IP20 40W/830 PSO WH | 4146812 |
|
| Plata IP20 40W/840 PSO WH | 4146813 |
|
| Plata IP20 45W/830 PSO WH | 4146634 |
|
| Plata IP20 45W/840 PSO WH | 4146635 |
|
| Plata IP20 57W/830 PSO WH | 4146636 |
|
| Plata IP20 57W/840 PSO WH | 4146637 |
Plata PSMP
| Item description | Code | |
|---|---|---|
| Plata IP20 26W/830 PSMP WH | 4146638 |
|
| Plata IP20 26W/840 PSMP WH | 4146639 |
|
| Plata IP20 33W/830 PSMP WH | 4146640 |
|
| Plata IP20 33W/840 PSMP WH | 4146641 |
|
| Plata IP20 40W/830 PSMP WH | 4146814 |
|
| Plata IP20 40W/840 PSMP WH | 4146815 |
|
| Plata IP20 45W/830 PSMP WH | 4146642 |
|
| Plata IP20 45W/840 PSMP WH | 4146643 |
|
| Plata IP20 57W/830 PSMP WH | 4146644 |
|
| Plata IP20 57W/840 PSMP WH | 4146645 |
Plata Dali PSO
| Item description | Code | |
|---|---|---|
| Plata IP20 27W/830 DA2 PSO WH | 4146646 |
|
| Plata IP20 27W/840 DA2 PSO WH | 4146647 |
|
| Plata IP20 34W/830 DA2 PSO WH | 4146648 |
|
| Plata IP20 34W/840 DA2 PSO WH | 4146649 |
|
| Plata IP20 41W/830 DA2 PSO WH | 4146805 |
|
| Plata IP20 41W/840 DA2 PSO WH | 4146806 |
|
| Plata IP20 46W/830 DA2 PSO WH | 4146650 |
|
| Plata IP20 46W/840 DA2 PSO WH | 4146651 |
|
| Plata IP20 54W/830 DA2 PSO WH | 4146652 |
|
| Plata IP20 54W/840 DA2 PSO WH | 4146653 |
Plata Dali PSMP
| Item description | Code | |
|---|---|---|
| Plata IP20 27W/830 DA2 PSMP WH | 4146654 |
|
| Plata IP20 34W/830 DA2 PSMP WH | 4146656 |
|
| Plata IP20 41W/830 DA2 PSMP WH | 4146807 |
|
| Plata IP20 41W/840 DA2 PSMP WH | 4146808 |
|
| Plata IP20 46W/830 DA2 PSMP WH | 4146658 |
|
| Plata IP20 46W/840 DA2 PSMP WH | 4146659 |
|
| Plata IP20 54W/830 DA2 PSMP WH | 4146660 |
|
| Plata IP20 54W/840 DA2 PSMP WH | 4146661 |
Plata Casambi PSO
| Item description | Code | |
|---|---|---|
| Plata IP20 26W/830 CA PSO WH | A1UPAA-CA |
|
| Plata IP20 33W/830 CA PSO WH | A1UPAC-CA |
|
| Plata IP20 45W/830 CA PSO WH | A1UPAE-CA |
|
| Plata IP20 53W/830 CA PSO WH | A1UPAG-CA |
Plata Casambi PSMP
| Item description | Code | |
|---|---|---|
| Plata IP20 26W/830 CA PSMP WH | A1UPAI-CA |
|
| Plata IP20 33W/830 CA PSMP WH | A1UPAK-CA |
|
| Plata IP20 45W/830 CA PSMP WH | A1UPAM-CA |
|
| Plata IP20 53W/830 CA PSMP WH | A1UPAO-CA |
Plata EU Plug PSO (3 m cable)
| Item description | Code | |
|---|---|---|
| Plata IP20 26W/830 EU PSO WH | A1UPAA-EU |
|
| Plata IP20 26W/840 EU PSO WH | A1UPAB-EU |
|
| Plata IP20 33W/830 EU PSO WH | A1UPAC-EU |
|
| Plata IP20 33W/840 EU PSO WH | A1UPAD-EU |
|
| Plata IP20 40W/830 EU PSO WH | A1UPAQ-EU |
|
| Plata IP20 45W/830 EU PSO WH | A1UPAE-EU |
|
| Plata IP20 57W/830 EU PSO WH | A1UPAG-EU |
Plata EU Plug PSMP (3 m cable)
| Item description | Code | |
|---|---|---|
| Plata IP20 26W/830 EU PSMP WH | A1UPAI-EU |
|
| Plata IP20 33W/830 EU PSMP WH | A1UPAK-EU |
|
| Plata IP20 40W/830 EU PSMP WH | A1UPAS-EU |
|
| Plata IP20 40W/840 EU PSMP WH | A1UPAT-EU |
|
| Plata IP20 45W/830 EU PSMP WH | A1UPAM-EU |
|
| Plata IP20 57W/830 EU PSMP WH | A1UPAO-EU |
Plata Casambi EU Plug PSO (3 m cable)
| Item description | Code | |
|---|---|---|
| Plata IP20 26W/830 CAEU PSO WH | A1UPAA-CAEU |
|
| Plata IP20 33W/830 CAEU PSO WH | A1UPAC-CAEU |
|
| Plata IP20 45W/830 CAEU PSO WH | A1UPAE-CAEU |
|
| Plata IP20 53W/830 CAEU PSO WH | A1UPAG-CAEU |
Plata Casambi EU Plug PSMP (3 m cable)
| Item description | Code | |
|---|---|---|
| Plata IP20 26W/830 CAEU PSMP WH | A1UPAI-CAEU |
|
| Plata IP20 33W/830 CAEU PSMP WH | A1UPAK-CAEU |
|
| Plata IP20 45W/830 CAEU PSMP WH | A1UPAM-CAEU |
|
| Plata IP20 53W/830 CAEU PSMP WH | A1UPAO-CAEU |
