Plata IP20 26W/830 CAEU PSO WH
Plata Modular luminaire 26W 3000K 2800lm Dim programmable; Casambi; IP20; IK02; Protection cl. II; L70B50 100000h; LED not exchangeable; Lamp included; CRI>80; SDCM3; Ending; 2x0.75mm²; Housing al; Colour wh; Cover Plastic, opal; C16 max. 38

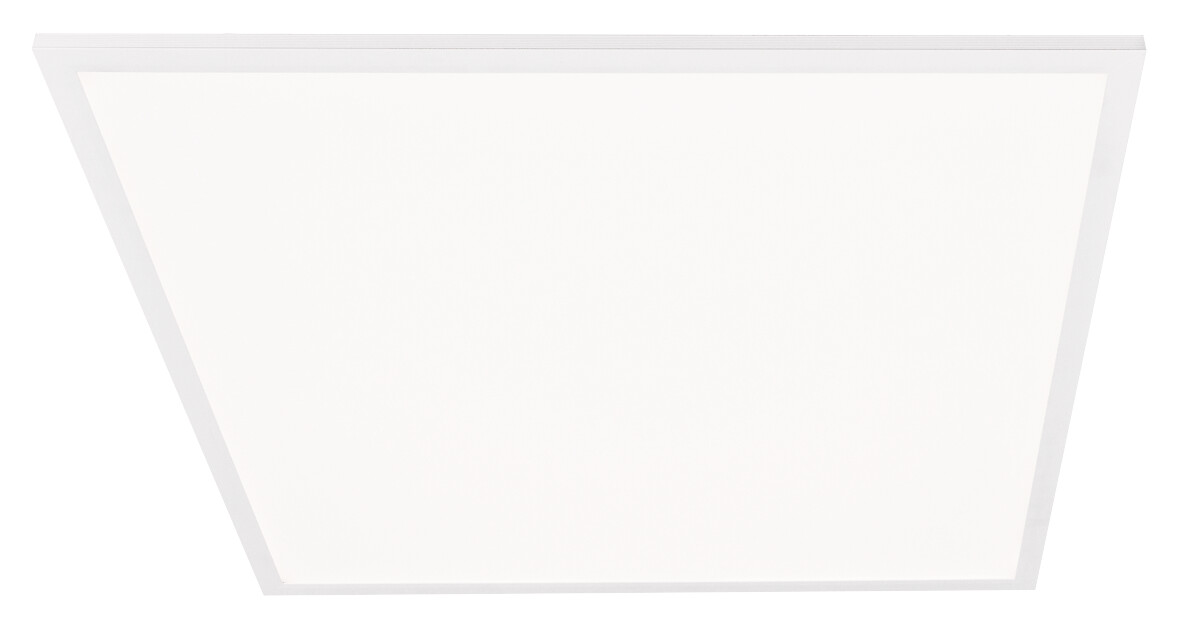

Plata is a low-profile modular luminaire designed for offices, corridors, lobbies, schools and other public spaces. Anti-glare models equipped with micro-prismatic (MP) diffusers offer an excellent solution for classrooms and spaces where computers and other equipment with displays are used. Plata is suitable for recessed mounting in false ceilings, which makes it ideal for offices and public spaces. It can also be suspended on wires or surface-mounted with a separate mounting set. The control options are on/off, Dali-2, pushbutton (direct pushbutton control 230V) and Casambi.
Aluminium housing, acrylic light guide plate and polystyrene diffuser (PS).
White, RAL 9003.
Protection class II.
Mounting on a T-grid ceiling. Suspension mounting, surface mounting and recessed mounting with accessories. Installation kits available for concealed T-grids.
Linkable, on/off and Dali max. 5 x 2.5 mm2, Casambi max. 3 x 2.5 mm2.

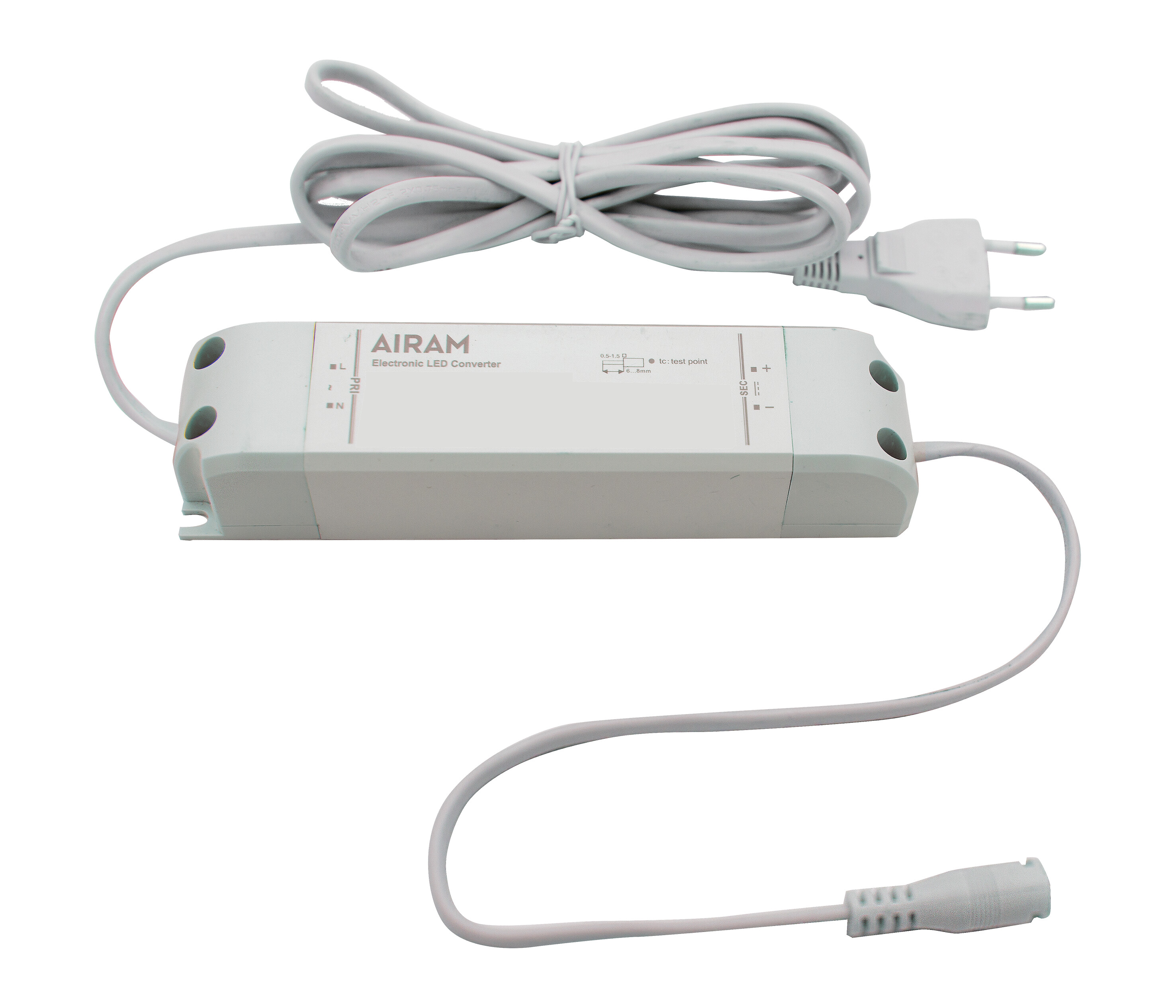

On/off and Casambi ranges also available with 3-meter Europlug cable H03VVH2-F 2 x 0.75 mm2.
Maximum number of led drivers to be connected to one switch is 60 pcs.
Colour temperatures 3000 K and 4000 K. CRI > 80 / Ra > 80.
MacAdam 3 SDCM.
IP20.
On/off: 26–57 W. 2800–5600 lm.
Dali-2 and Casambi: 27–54 W. 2800–5300 lm.
On/off, Dali-2, (direct pushbutton control 230V) and Casambi control.
Use with Dali-2-certified control devices is recommended.
Maximum number of led drivers to be connected to one switch is 60 pcs.
Ambient temperature range 0 ... 25 °C.
Rated lifetime L70 100 000 h (Ta25°C).
Rated lifetime L80 60 000 h (Ta25°C).
Power source lifespan 100 000 h.
Accessories include a surface mounting frame (4289994), concealed grid brackets PLK15 (4209537), asymmetrical concealed grid brackets PLK (4245342) and mounting set (4146993). The luminaires are also compatible with Plano surface mounting frames, which are available in three colours: white (4146973), black (A2PLKI) and grey (A2PLKJ). Also available: ceiling mounting frame 600 x 600 (4297811) and cover plates 600*600 R400 (A2PLZC) and 600*600 R500 (A2PLZA). The luminous flux of the luminaire decreases with cover plates about 30 % (R500) and about 50 % (R400).
O = opal, MP = micro-prismatic optics
Customized luminous flux packages, cut-to-measure connecting cables and a variety of quick-connector cable sets are available on a project-specific basis.
- Code
- A1UPAA-CAEU
Downloads
Technical info
- Electrical number (SWE)
- 7021318
- GTIN
- 6435200293756
- Airam code
- A1UPAA-CAEU
- Code
- A1UPAA-CAEU
- With light sensor
- No
- Connection type
- Plug
- Nominal voltage (min) (V)
- 220
- Nominal current (min) (mA)
- 700

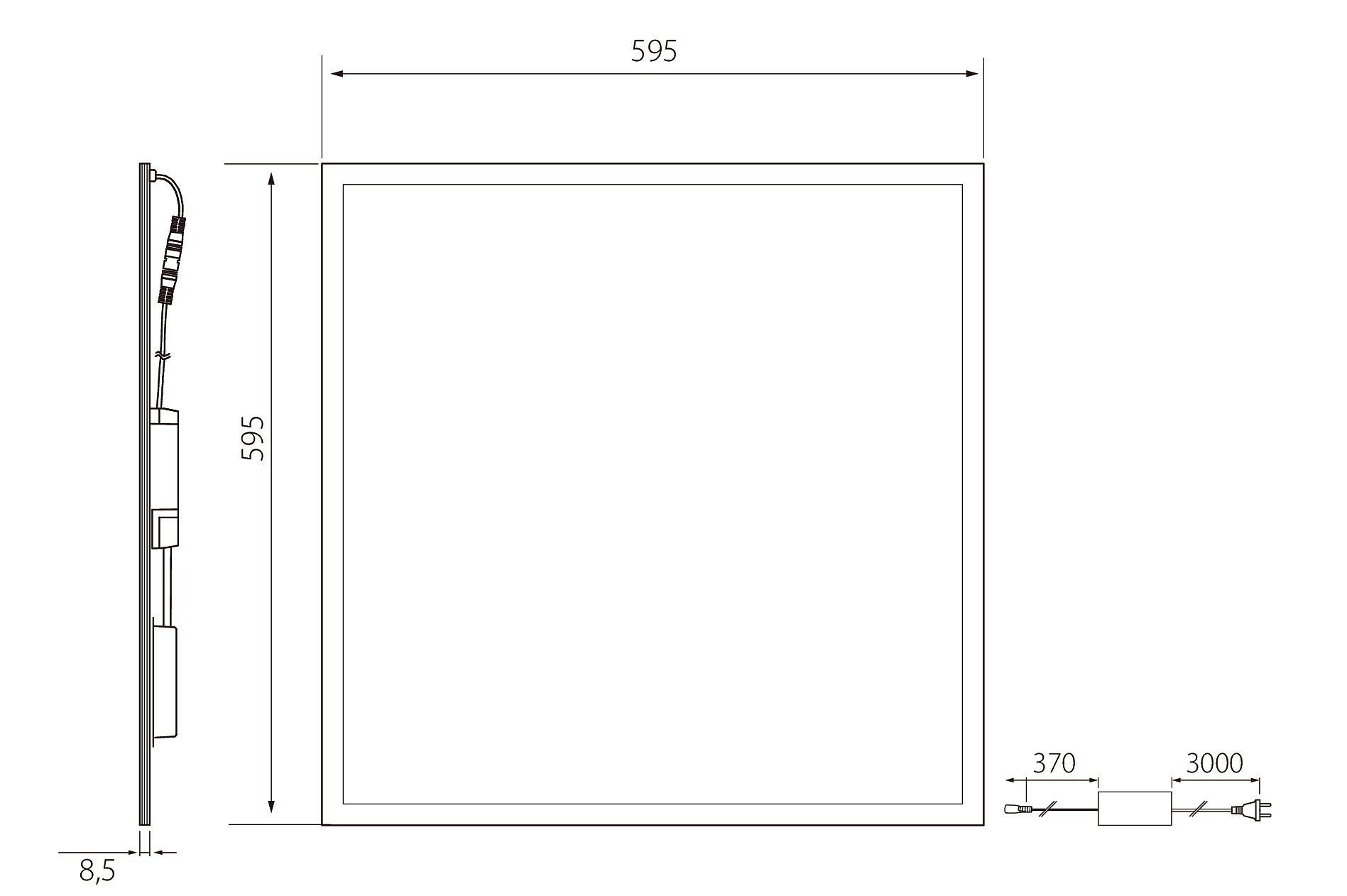

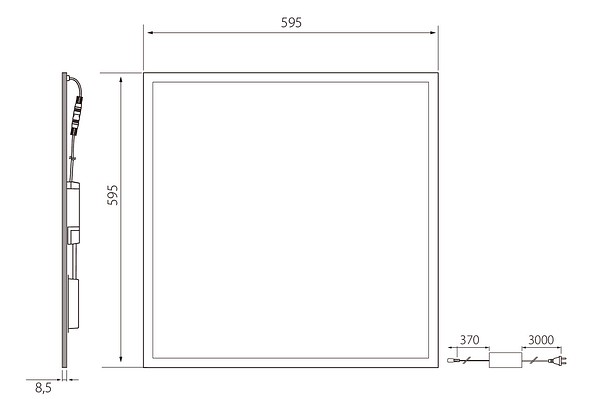

- Height/depth (mm)
- 8.5
- Suitable for lamp power (max) (W)
- 26
- Colour rendering index (CRI/Ra)
- 80-89
- With mounting material
- Yes
- Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
- 5
- Colour of light (alphanumeric)
- White
- Number of poles
- 2
- Suitable for clamp-mounting
- No
- Nominal voltage (max) (V)
- 240
- Dimming mains voltage modulation
- No
- Flickering value Pst LM
- 1
- Housing colour
- White
- Power factor
- 0.9
- Lamp holder
- Other
- Width (mm)
- 595
- Dimming trailing edge
- No
- Colour consistency (McAdam ellipse)
- SDCM3
- Housing surface protection
- Powder coating
- Light sharing
- Symmetric
- Colour temperature (min) (K)
- 3000
- Length (mm)
- 595
- Dimming LineSwitch
- No
- Dimming Touch and Dim
- No
- Dimming DSI
- No
- Lamp type
- LED not exchangeable
- Dimming with push-button
- No
- Dimming 0-10 V
- No
- Exchangeable control gear
- Yes
- Compatible with Casambi
- Yes
- Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 85
- Housing material
- Aluminium
- Rated ambient temperature acc. IEC62722-2-1 (min) (°C)
- 0
- No dimming function
- No
- Dimming Zigbee
- No
- Dimming DMX
- No
- Lumen maintenance at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
- 90
- Dimming manufacturer's proprietary system
- No
- Luminaire may be covered with thermally insulating material
- No
- Unified Glare Rating (UGR)
- 22
- Beam angle adjustable
- No
- Degree of protection (IP), front side
- IP20
- Control gear included
- Yes
- Degree of protection (IP)
- IP20
- Dimming Sine Wave Reduction
- No
- Fit for workplace acc. EN 12464-1
- No
- Colour temperature (max) (K)
- 3000
- Dimming DALI-2
- No
- Colour temperature switchable
- No
- Light source included
- Yes
- Built-in height/depth (mm)
- 80
- Effective luminous flux (lm)
- 2800
- Nominal current (max) (mA)
- 700
- Type of wiring
- Ending
- Compatible with Amazon Alexa
- No
- Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 5
- Protection class according to IEC 61140
- II
- Compatible with Apple HomeKit
- No
- Beam angle
- Open beam
- Max. number of luminaires per miniature circuit breaker B16
- 23
- Rated life time L70/B50 at 25 °C (h)
- 100000
- Built-in width (mm)
- 600
- Lumen maintenance at median useful life of 75,000 hrs at 25 °C ambient (tq) (%)
- 80
- Rated ambient temperature acc. IEC62722-2-1 (max) (°C)
- 25
- Rated life time L80/B50 at 25 °C
- 60000
- Emergency power supply system
- None
- Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24
- Yes
- Constant luminous flux control
- Yes
- Total harmonic distortion (THD) (%)
- 5
- Rated luminous flux according to IEC 62722-2- 1 (max) (lm)
- 2800
- Luminaire efficacy (min) (lm/W)
- 108
- Connectable conductor cross section (min) (mm²)
- 1.5
- Rated luminous flux according to IEC 62722-2- 1 (min) (lm)
- 2800
- IFTTT support available
- No
- With switch
- No
- Stroboscope effect value SVM
- 0.4
- Max. number of luminaires per miniature circuit breaker C10 (MCB)
- 23
- With air slots
- No
- With presence indicator
- No
- Type of grid
- None
- Suitable for surface mounting
- Yes
- Light distributor
- Diffuser lens/optic/panel
- Suitable for lamp power (min) (W)
- 26
- Light outlet
- Direct
- Maximum system power (W)
- 26
- Conductor cross section (mm²)
- 0.75
- Suitable for recessed mounting
- Yes
- Suitable for ceiling mounting
- Yes
- Voltage type
- AC
- Luminaire efficacy (lm/W)
- 108
- Dimming RF
- No
- Emergency function monitoring system
- None
- Dimming 1-10 V
- No
- Built-in length (mm)
- 600
- Suitable for number of lamps
- 1
- Connectable conductor cross section (max) (mm²)
- 2.5
- Bluetooth operated
- Yes
- Suitable for suspended mounting
- Yes
- Dimmable
- Yes
- Suitable for wall mounting
- No
- Luminaire efficacy (max) (lm/W)
- 108
- With movement sensor
- No
- Total harmonic distortion
- 5
- Max. number of luminaires per miniature circuit breaker C16
- 38
- Impact strength
- IK02
- Dimming leading edge
- No
- Degree of protection (IP), rear side
- IP20
- Cover material
- Plastic, opal
- Dimming programmable
- Yes
- Emergency power supply integrated
- No
- Energy efficiency class of light source according to EU regulation 2019/2015
- E
- Photobiological safety according to EN 62471
- RG0
- Compatible with Google Assistant
- No
- Suitable for light line configuration
- No
- Filament test according to IEC 60695-2-11
- 650 °C - 30 s
- Containing product according to 2019/2020/EU
- Yes
- Lumen setting adjustable
- No
- Dimming potentiometer (integrated)
- No
- Type of control gear
- LED operating device current-controlled
- Suitable for emergency lighting
- No
- Failure rate at median useful life of 75,000 hrs at 25 °C ambient (tq) (%)
- 10
- Dimming DALI
- No
