Plata IP20 26W/840 PSMP WH
Plata Modular luminaire 26W 4000K 2800lm No dim; IP20; IK02; Protection cl. II; L70B50 100000h; LED not exchangeable; Lamp included; CRI>80; SDCM3; Suitable for through wiring; 5x2.5mm²; Housing al; Colour wh; Cover Plastic, structured; C16 max. 74

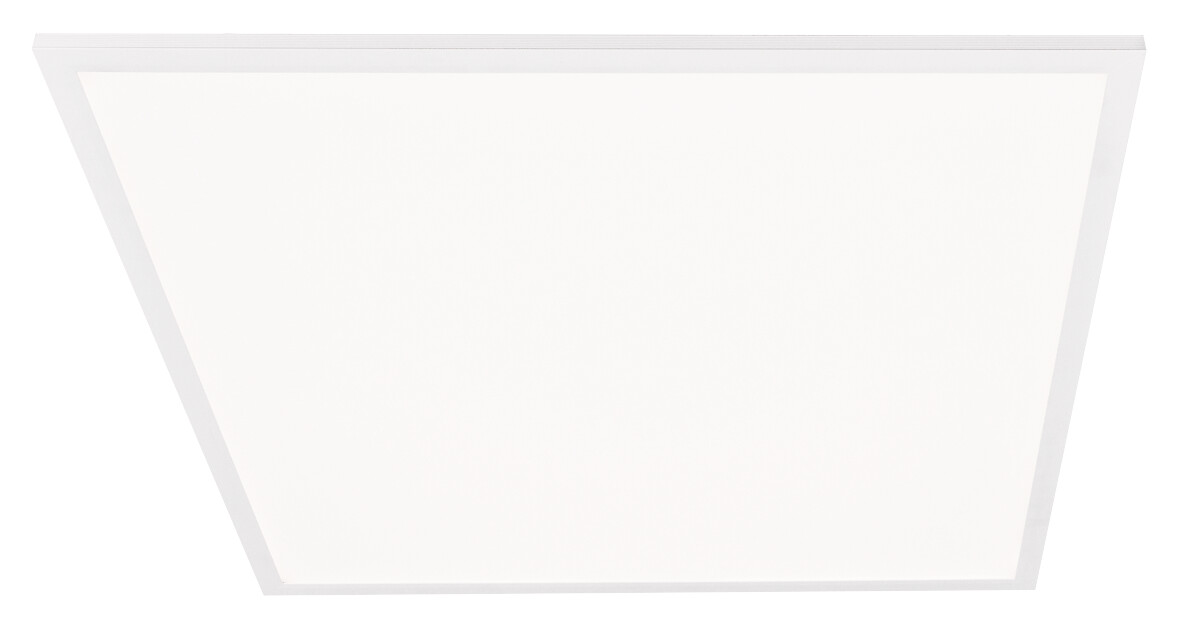

Plata is a low-profile modular luminaire designed for offices, corridors, lobbies, schools and other public spaces. Anti-glare models equipped with micro-prismatic (MP) diffusers offer an excellent solution for classrooms and spaces where computers and other equipment with displays are used. Plata is suitable for recessed mounting in false ceilings, which makes it ideal for offices and public spaces. It can also be suspended on wires or surface-mounted with a separate mounting set. The control options are on/off, Dali-2, pushbutton (direct pushbutton control 230V) and Casambi.
Aluminium housing, acrylic light guide plate and polystyrene diffuser (PS).
White, RAL 9003.
Protection class II.
Mounting on a T-grid ceiling. Suspension mounting, surface mounting and recessed mounting with accessories. Installation kits available for concealed T-grids.
Linkable, on/off and Dali max. 5 x 2.5 mm2, Casambi max. 3 x 2.5 mm2.
On/off and Casambi ranges also available with 3-meter Europlug cable H03VVH2-F 2 x 0.75 mm2.
Maximum number of led drivers to be connected to one switch is 60 pcs.
Colour temperatures 3000 K and 4000 K. CRI > 80 / Ra > 80.
MacAdam 3 SDCM.
IP20.
On/off: 26–57 W. 2800–5600 lm.
Dali-2 and Casambi: 27–54 W. 2800–5300 lm.
On/off, Dali-2, (direct pushbutton control 230V) and Casambi control.
Use with Dali-2-certified control devices is recommended.
Maximum number of led drivers to be connected to one switch is 60 pcs.
Ambient temperature range 0 ... 25 °C.
Rated lifetime L70 100 000 h (Ta25°C).
Rated lifetime L80 60 000 h (Ta25°C).
Power source lifespan 100 000 h.
Accessories include a surface mounting frame (4289994), concealed grid brackets PLK15 (4209537), asymmetrical concealed grid brackets PLK (4245342) and mounting set (4146993). The luminaires are also compatible with Plano surface mounting frames, which are available in three colours: white (4146973), black (A2PLKI) and grey (A2PLKJ). Also available: ceiling mounting frame 600 x 600 (4297811) and cover plates 600*600 R400 (A2PLZC) and 600*600 R500 (A2PLZA). The luminous flux of the luminaire decreases with cover plates about 30 % (R500) and about 50 % (R400).
O = opal, MP = micro-prismatic optics
Customized luminous flux packages, cut-to-measure connecting cables and a variety of quick-connector cable sets are available on a project-specific basis.
- Code
- 4146639
Downloads
Technical info
- Electrical number (FIN)
- 4146639
- Electrical number (SWE)
- 7021023
- GTIN
- 6435200286611
- Airam code
- A1UPAJ
- Code
- 4146639
- Nominal voltage (min) (V)
- 220
- With mounting material
- Yes
- Connectable conductor cross section (max) (mm²)
- 2.5
- Luminaire efficacy (max) (lm/W)
- 108
- Containing product according to 2019/2020/EU
- Yes
- Dimming mains voltage modulation
- No
- Compatible with Apple HomeKit
- No
- Dimming programmable
- No
- Dimming RF
- No
- Dimming 1-10 V
- No
- Dimming manufacturer's proprietary system
- No

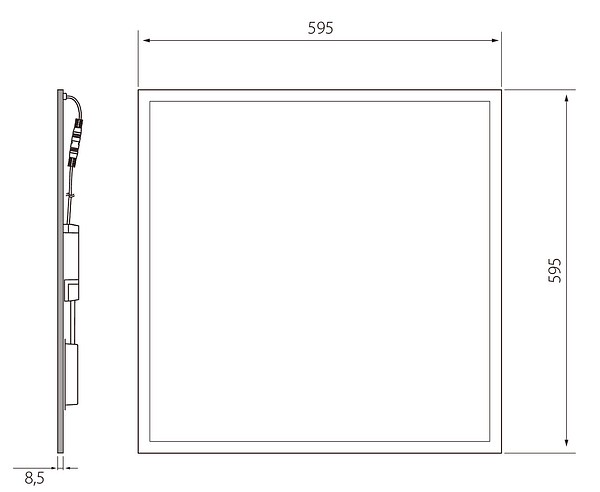

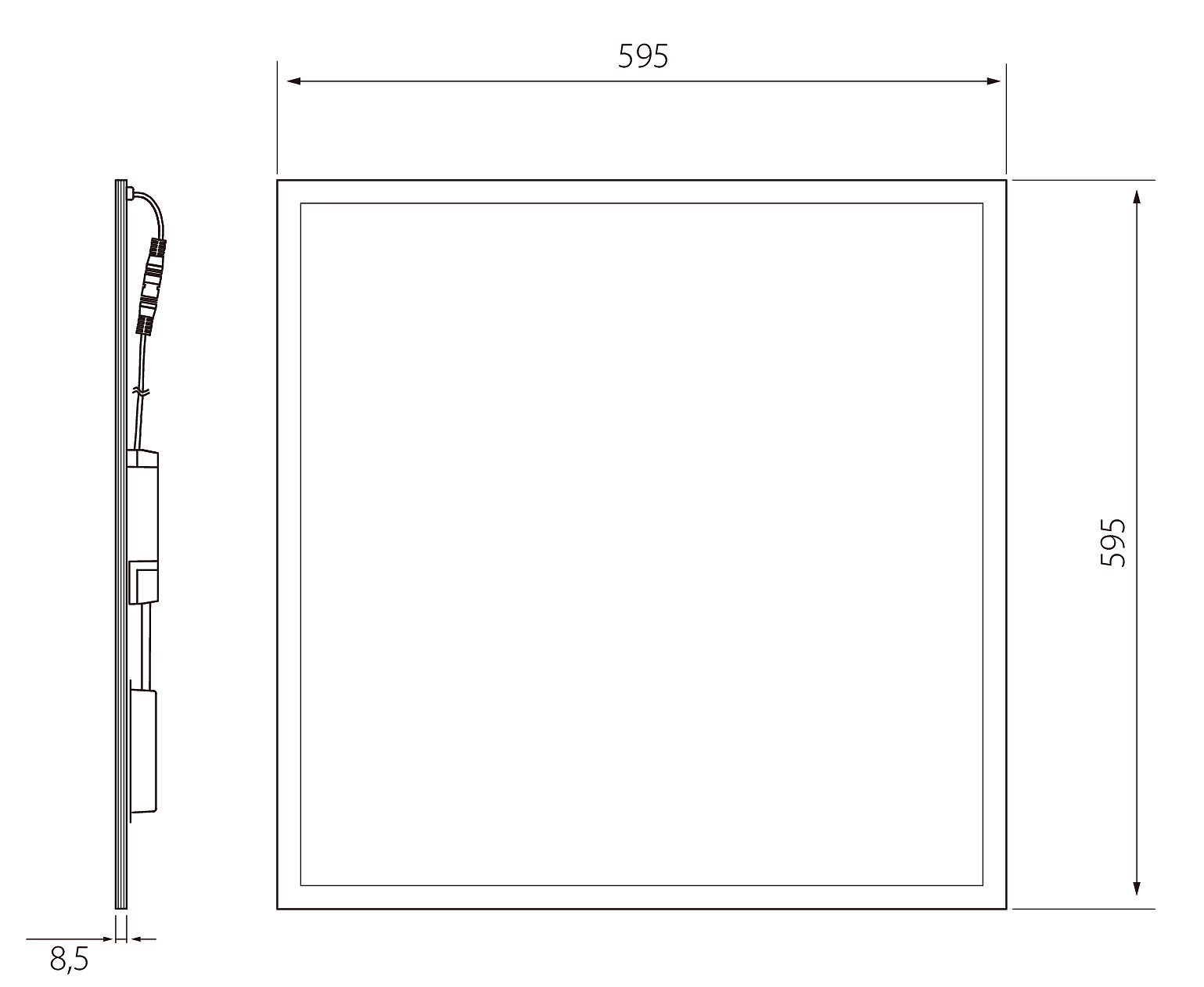

- Height/depth (mm)
- 8.5
- Suitable for suspended mounting
- Yes
- Max. number of luminaires per miniature circuit breaker C10 (MCB)
- 45
- Voltage type
- AC
- Stroboscope effect value SVM
- 0.4
- Suitable for surface mounting
- Yes
- Connection type
- Screwless terminal
- Constant luminous flux control
- No
- Light source included
- Yes
- Width (mm)
- 595
- Power factor
- 0.9
- Failure rate at median useful life of 75,000 hrs at 25 °C ambient (tq) (%)
- 10
- IFTTT support available
- No
- Housing surface protection
- Powder coating
- Beam angle adjustable
- No
- Suitable for wall mounting
- No
- Dimmable
- No
- Dimming DSI
- No
- With switch
- No
- Built-in height/depth (mm)
- 80
- With light sensor
- No
- Colour temperature (min) (K)
- 4000
- Dimming Touch and Dim
- No
- Emergency power supply integrated
- No
- Degree of protection (IP), front side
- IP20
- Light sharing
- Symmetric
- Colour temperature switchable
- No
- Dimming with push-button
- No
- Cover material
- Plastic, structured
- Luminaire efficacy (min) (lm/W)
- 108
- Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24
- Yes
- No dimming function
- Yes
- Suitable for number of lamps
- 1
- Dimming leading edge
- No
- Type of grid
- None
- Dimming 0-10 V
- No
- Emergency function monitoring system
- None
- Lumen maintenance at median useful life of 75,000 hrs at 25 °C ambient (tq) (%)
- 80
- Connectable conductor cross section (min) (mm²)
- 1.5
- Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 5
- Suitable for ceiling mounting
- Yes
- Built-in length (mm)
- 600
- Rated luminous flux according to IEC 62722-2- 1 (max) (lm)
- 2800
- Unified Glare Rating (UGR)
- 19
- Effective luminous flux (lm)
- 2800
- Colour of light (alphanumeric)
- White
- Number of poles
- 5
- Max. number of luminaires per miniature circuit breaker B16
- 44
- Colour consistency (McAdam ellipse)
- SDCM3
- Suitable for clamp-mounting
- No
- Impact strength
- IK02
- Rated luminous flux according to IEC 62722-2- 1 (min) (lm)
- 2800
- Dimming Sine Wave Reduction
- No
- Colour rendering index (CRI/Ra)
- 80-89
- Suitable for recessed mounting
- Yes
- Dimming potentiometer (integrated)
- No
- Bluetooth operated
- No
- Light distributor
- Diffuser lens/optic/panel
- Rated life time L80/B50 at 25 °C
- 60000
- Lamp holder
- Other
- Dimming LineSwitch
- No
- Total harmonic distortion (THD) (%)
- 20
- Built-in width (mm)
- 600
- Beam angle
- Open beam
- Exchangeable control gear
- Yes
- Control gear included
- Yes
- Luminaire efficacy (lm/W)
- 108
- Nominal current (min) (mA)
- 700
- Length (mm)
- 595
- Compatible with Casambi
- No
- Luminaire may be covered with thermally insulating material
- No
- Max. number of luminaires per miniature circuit breaker C16
- 74
- Dimming trailing edge
- No
- Photobiological safety according to EN 62471
- RG0
- Dimming DMX
- No
- Dimming DALI-2
- No
- Filament test according to IEC 60695-2-11
- 650 °C - 30 s
- Type of wiring
- Suitable for through wiring
- Nominal voltage (max) (V)
- 240
- Type of control gear
- LED operating device current-controlled
- Total harmonic distortion
- 20
- Nominal current (max) (mA)
- 700
- With air slots
- No
- Flickering value Pst LM
- 1
- Colour temperature (max) (K)
- 4000
- Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
- 5
- Light outlet
- Direct
- Protection class according to IEC 61140
- II
- Degree of protection (IP), rear side
- IP20
- Suitable for lamp power (min) (W)
- 26
- Emergency power supply system
- None
- Lamp type
- LED not exchangeable
- Dimming Zigbee
- No
- Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 85
- Housing colour
- White
- Compatible with Amazon Alexa
- No
- Compatible with Google Assistant
- No
- Suitable for emergency lighting
- No
- Fit for workplace acc. EN 12464-1
- Yes
- Housing material
- Aluminium
- Lumen maintenance at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
- 90
- Rated life time L70/B50 at 25 °C (h)
- 100000
- Lumen setting adjustable
- No
- With movement sensor
- No
- Suitable for lamp power (max) (W)
- 26
- Rated ambient temperature acc. IEC62722-2-1 (min) (°C)
- 0
- Rated ambient temperature acc. IEC62722-2-1 (max) (°C)
- 25
- Conductor cross section (mm²)
- 2.5
- Maximum system power (W)
- 26
- Suitable for light line configuration
- No
- Dimming DALI
- No
- Energy efficiency class of light source according to EU regulation 2019/2015
- E
- Degree of protection (IP)
- IP20
- With presence indicator
- No
