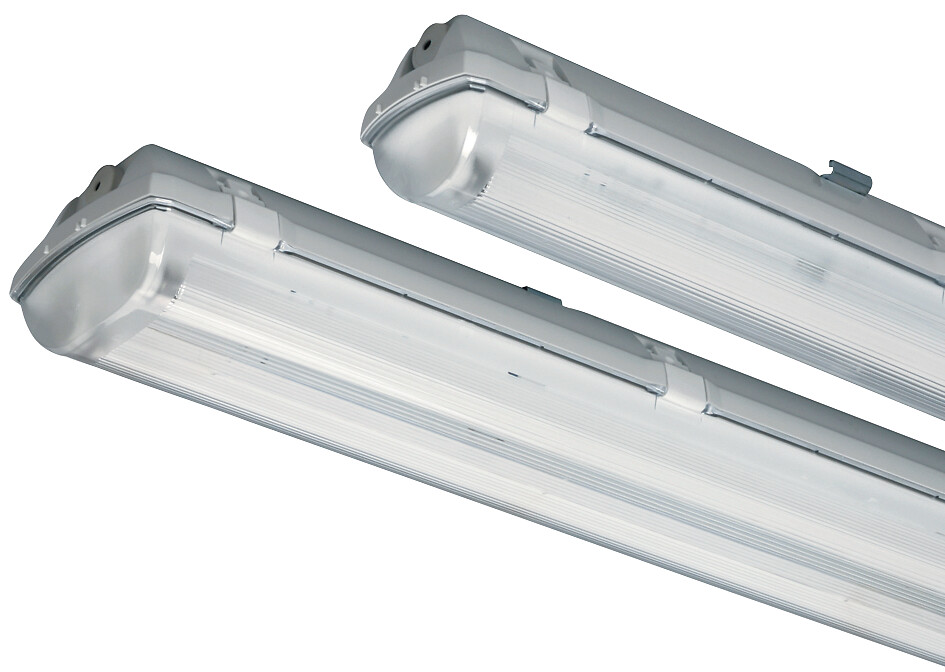

Led Housing Basic IP66 2X1200 PCC GR
Led Housing Sealed industrial luminaire IP66; IK10; Protection cl. I; LED exchangeable; Suitable for through wiring; 5x2.5mm²; Housing Plastic; Colour gr; Cover Plastic, transparent
A luminaire designed for LED tubes that correspond to T8 fluorescent tubes. The cost-efficient empty housing for LED tubes is ideal for warehouses and industrial facilities where through-wiring is not needed. Good impact-resistance. The luminaires are suitable for surface mounting. Also read about our robust Led Housing Abs model and throughwired Led Housing models, as well as our range of LED tubes.
Polycarbonate body and clear structured polycarbonate (PCC) diffuser.
Latches are made of fibreglass.
Protection class I.
Surface mounting on a wall or ceiling. Suspended with fixtures included in the package.
Installation height 2–5 m.
Suitable for through-wiring, 5 x 2.5 mm2.
IP66.
IK10.
Max. 1/2 x 20/30 W. For 1XG13 and 2XG13 LED tubes. We recommend LED tubes from the Airam Pro range.
Control: on/off.
Ambient temperature range -30 … 40 °C (or according to the selected lamp).
- Code
- 4310528
Technical info
Mounting
- Suitable for wall mounting
- Yes
- Suitable for suspended mounting
- Yes
- Suitable for ceiling mounting
- Yes
- Suitable for recessed mounting
- No
- Suitable for surface mounting
- Yes
- Suitable for light line configuration
- No
- Suitable for clamp-mounting
- Yes
- Fit for workplace acc. EN 12464-1
- No
- Degree of protection (IP)
- IP66
- Degree of protection (IP), rear side
- IP66
- Degree of protection (IP), front side
- IP66
- Impact strength
- IK10
- Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24
- Yes
- Suitable for emergency lighting
- No
- Emergency function monitoring system
- None
- Type of wiring
- Suitable for through wiring
- Number of poles
- 5
- Conductor cross section (mm²)
- 2.5 mm²
- Connection type
- Screwless terminal
- Connectable conductor cross section (min) (mm²)
- 1.5 mm²
- Connectable conductor cross section (max) (mm²)
- 2.5 mm²
Structure
- With mounting material
- Yes
- Lamp type
- LED exchangeable
- Light source included
- No
- Suitable for number of lamps
- 2
- Lamp holder
- G13
- Housing material
- Plastic
- Housing surface protection
- Plastic-coated
- Housing colour
- Grey
- Cover material
- Plastic, structured
- Type of grid
- None
- Control gear included
- No
- Exchangeable control gear
- No
- Energy efficiency class of light source according to EU regulation 2019/2015
- Not required
- Containing product according to 2019/2020/EU
- No
- Emergency power supply system
- None
- Emergency power supply integrated
- No
- With switch
- No
- With air slots
- No
- Filament test according to IEC 60695-2-11
- 850 °C - 30 s
Electrotechnical data
- Voltage type
- AC
- Nominal voltage (min) (V)
- 220 V
- Nominal voltage (max) (V)
- 240 V
- Type of control gear
- Not required
- Protection class according to IEC 61140
- I
- Suitable for lamp power (min) (W)
- 1 W
- Suitable for lamp power (max) (W)
- 18 W
Dimming and control
- Dimmable
- No
- Dimming 0-10 V
- No
- Dimming 1-10 V
- No
- Dimming DALI
- No
- Dimming DALI-2
- No
- Dimming DMX
- No
- Dimming DSI
- No
- Dimming LineSwitch
- No
- Dimming manufacturer's proprietary system
- No
- Dimming mains voltage modulation
- No
- Dimming trailing edge
- No
- Dimming leading edge
- No
- Dimming programmable
- No
- Dimming potentiometer (integrated)
- No
- Dimming RF
- No
- Dimming Sine Wave Reduction
- No
- Dimming Touch and Dim
- No
- Dimming Zigbee
- No
- Dimming with push-button
- No
- No dimming function
- Yes
- With presence indicator
- No
- With movement sensor
- No
- With light sensor
- No
- Constant luminous flux control
- No
- Bluetooth operated
- No
- Compatible with Casambi
- No
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- IFTTT support available
- No
Photometric data
- Light distributor
- Diffuser lens/optic/panel
- Light sharing
- Symmetric
- Beam angle
- Open beam
- Light outlet
- Direct
- Colour temperature switchable
- No
- Lumen setting adjustable
- No
- Beam angle adjustable
- No
Lifetime and capacity
- Rated ambient temperature acc. IEC62722-2-1 (min) (°C)
- -30 °C
- Rated ambient temperature acc. IEC62722-2-1 (max) (°C)
- 40 °C
Measurements
- Width (mm)
- 145 mm
- Height/depth (mm)
- 111 mm
- Length (mm)
- 1272 mm
| Item description | Code | Electrical number (FIN) | Colour temperature | Luminous flux | Power | Dimensions | ||
|---|---|---|---|---|---|---|---|---|
|
Led Housing Basic IP66 2X1200 PCC GR | 4310528 |
4310528 |
1-18W |
1272x145x111mm |
|||
|
Led Housing Basic IP66 2X1500 PCC GR | 4310529 |
4310529 |
1-24W |
1572x145x111mm |
- Electrical number (FIN)
- 4310528
- GTIN
- 6435200231512
- Airam code
- T3MREB
- Code
- 4310528
