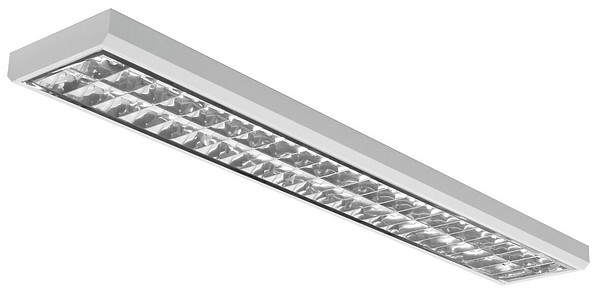

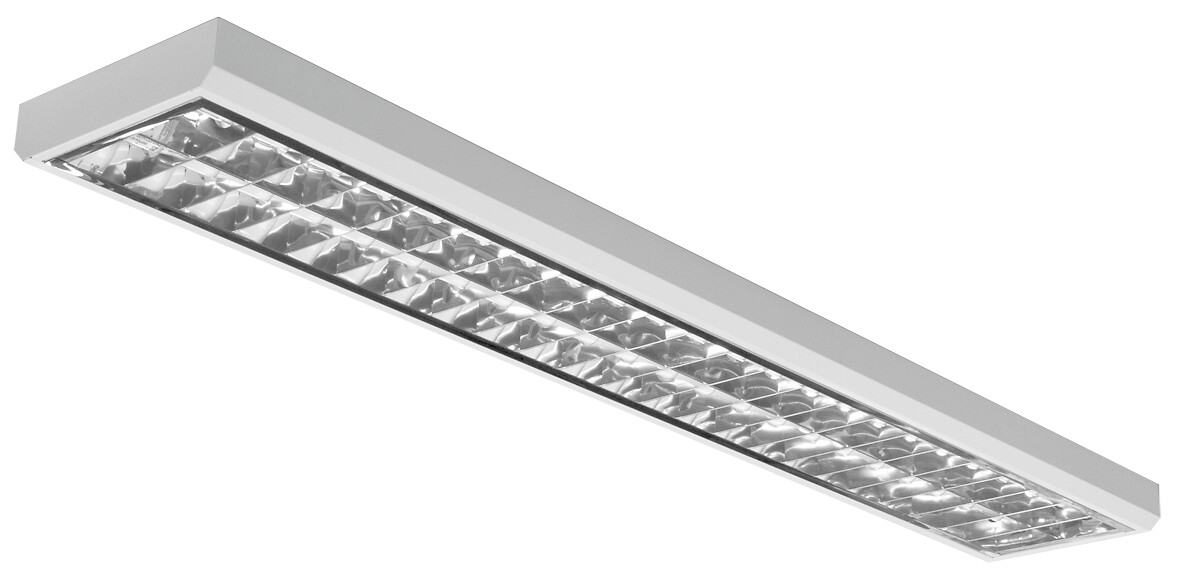

Profi L
A luminaire range designed for offices and other public spaces. Available in two housing lengths and widths. The range includes two colour temperatures and several output options. You can choose from models with one or two matte anti-glare shields. Suspension or surface mounting.
Steel housing, aluminium anti-glare shield, matt.
White, RAL 9003.
Protection class I.
Suspension or surface mounting.
Linkable 3 x 2,5 mm2, Dali-models 5 x 2,5 mm2.
Integrated LED 19–58 W, 2250–7200 lm.
Colour temperatures 3000 K and 4000 K. CRI > 80 / Ra > 80.
MacAdam 3 SDCM.
IP20.
The standard range includes on/off and Dali models.
Ambient temperature range 0 … 25 °C.
Rated lifetime L70 100 000 h (Ta25°C).
Rated lifetime L80 80 000 h (Ta25°C).
Power source service life 50 000 h.
Wire-suspension fixture 4146595 and 4107113 are available as an accessory.
WH = white, DA = Dali.
Also available with Casambi, 1–10 V and push-button control (230V). CRI > 90 available for order. Also available with various connecting wire solutions and a pull switch (on/off and Dali).
Downloads
Product versions
Profi L
| Item description | Code | |
|---|---|---|
| Profi L 1210x153 IP20 19W/830 WH | 4289666 |
|
| Profi L 1210x153 IP20 19W/840 WH | 4289667 |
|
| Profi L 1510x153 IP20 30W/830 WH | 4289668 |
|
| Profi L 1510x153 IP20 30W/840 WH | 4289669 |
|
| Profi L 1210x238 IP20 37W/830 WH | 4289670 |
|
| Profi L 1210x238 IP20 37W/840 WH | 4289671 |
|
| Profi L 1510x238 IP20 41W/830 WH | 4289672 |
|
| Profi L 1510x238 IP20 41W/840 WH | 4289673 |
|
| Profi L 1510x238 IP20 58W/830 WH | 4289674 |
|
| Profi L 1510x238 IP20 58W/840 WH | 4289675 |
Profi L Dali
| Item description | Code | |
|---|---|---|
| Profi L 1210x153 IP20 19W/830 DA WH | D2PRAA-DALI |
|
| Profi L 1210x153 IP20 19W/840 DA WH | D2PRAB-DALI |
|
| Profi L 1510x153 IP20 30W/830 DA WH | D2PRBA-DALI |
|
| Profi L 1510x153 IP20 30W/840 DA WH | D2PRBB-DALI |
|
| Profi L 1210x238 IP20 37W/830 DA WH | D2PRCA-DALI |
|
| Profi L 1210x238 IP20 37W/840 DA WH | D2PRCB-DALI |
|
| Profi L 1510x238 IP20 41W/830 DA WH | D2PREA-DALI |
|
| Profi L 1510x238 IP20 41W/840 DA WH | D2PREB-DALI |
|
| Profi L 1510x238 IP20 58W/830 DA WH | D2PREG-DALI |
|
| Profi L 1510x238 IP20 58W/840 DA WH | D2PREH-DALI |
