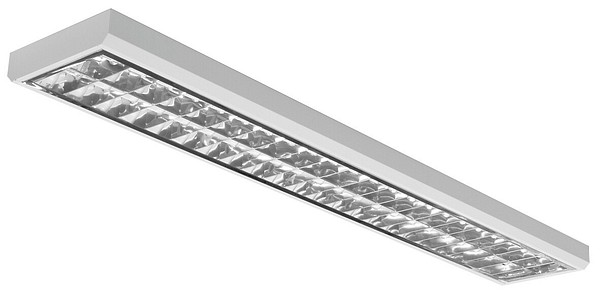

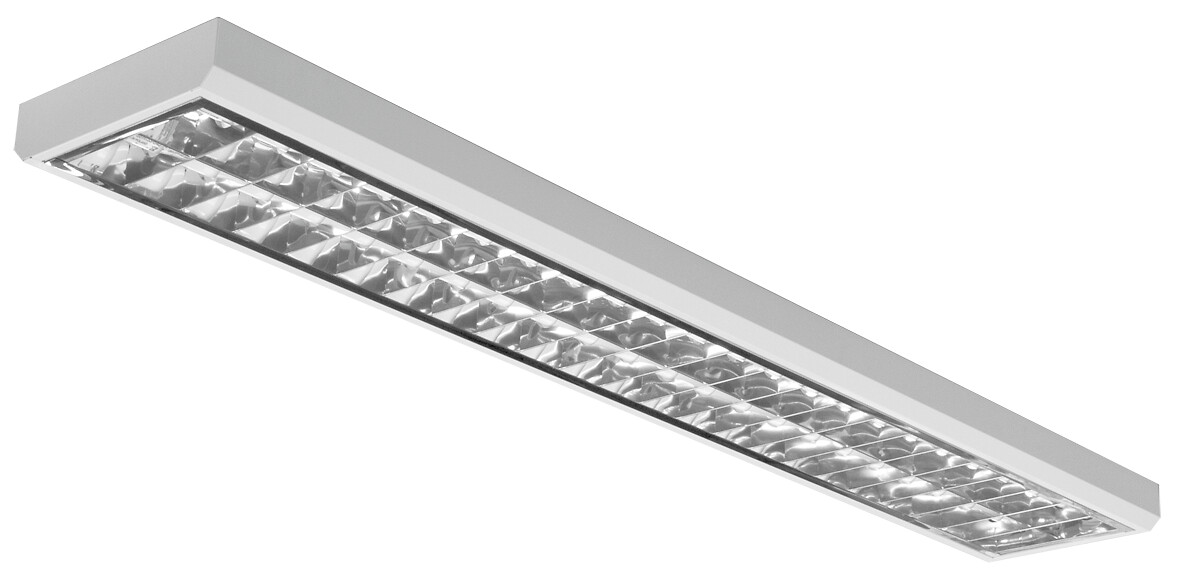

Profi L 1510x153 IP20 30W/830 DA WH
Profi L Surface mnt./suspen. luminaire 30W 3000K 3500lm Dim DALI-2; IP20; Protection cl. I; L70B50 100000h; LED not exchangeable; CRI>80; SDCM3; Suitable for through wiring; 5x2.5mm²; Housing Steel; Colour wh; Cover Other; C16 max. 33
A luminaire range designed for offices and other public spaces. Available in two housing lengths and widths. The range includes two colour temperatures and several output options. You can choose from models with one or two matte anti-glare shields. Suspension or surface mounting.
Steel housing, aluminium anti-glare shield, matt.
White, RAL 9003.
Protection class I.
Suspension or surface mounting.
Linkable 3 x 2,5 mm2, Dali-models 5 x 2,5 mm2.
Integrated LED 19–58 W, 2250–7200 lm.
Colour temperatures 3000 K and 4000 K. CRI > 80 / Ra > 80.
MacAdam 3 SDCM.
IP20.
The standard range includes on/off and Dali models.
Ambient temperature range 0 … 25 °C.
Rated lifetime L70 100 000 h (Ta25°C).
Rated lifetime L80 80 000 h (Ta25°C).
Power source service life 50 000 h.
Wire-suspension fixture 4146595 and 4107113 are available as an accessory.
WH = white, DA = Dali.
Also available with Casambi, 1–10 V and push-button control (230V). CRI > 90 available for order. Also available with various connecting wire solutions and a pull switch (on/off and Dali).
- Code
- D2PRBA-DALI
Downloads
Technical info
- Airam code
- D2PRBA-DALI
- Code
- D2PRBA-DALI
- Length (mm)
- 1510
- Fit for workplace acc. EN 12464-1
- Yes
- Emergency function monitoring system
- None
- Luminaire efficacy (max) (lm/W)
- 117
- Colour of light (alphanumeric)
- White
- Lamp holder
- Other
- Dimming Zigbee
- No
- Colour temperature (max) (K)
- 3000
- Dimming leading edge
- No
- Unified Glare Rating (UGR)
- 19
- Number of poles
- 5
- Connectable conductor cross section (min) (mm²)
- 1.5
- Compatible with Google Assistant
- No
- Connectable conductor cross section (max) (mm²)
- 2.5
- Conductor cross section (mm²)
- 2.5
- Rated life time L70/B50 at 25 °C (h)
- 100000
- Dimming DMX
- No
- Containing product according to 2019/2020/EU
- Yes
- Suitable for emergency lighting
- No
- Suspension supplied with the product
- No
- Maximum system power (W)
- 30
- With presence indicator
- No
- Emergency power supply system
- None
- Dimmable
- Yes
- Rated luminous flux according to IEC 62722-2- 1 (max) (lm)
- 3500
- Dimming Sine Wave Reduction
- No
- Dimming programmable
- No
- Housing colour
- White
- Emergency power supply integrated
- No
- Compatible with Casambi
- No
- Suitable for number of lamps
- 1
- Control gear included
- Yes
- Dimming RF
- No
- Effective luminous flux (lm)
- 3500
- IFTTT support available
- No
- Dimming potentiometer (integrated)
- No
- Width (mm)
- 153
- Luminaire efficacy (lm/W)
- 117
- Dimming with push-button
- No
- With movement sensor
- No
- Nominal voltage (max) (V)
- 240
- Nominal current (min) (mA)
- 350
- Type of wiring
- Suitable for through wiring
- Dimming 1-10 V
- No
- Colour rendering index (CRI/Ra)
- 80-89
- Dimming DSI
- No
- Light outlet
- Direct
- Suitable for lamp power (min) (W)
- 30
- No dimming function
- No
- Bluetooth operated
- No
- Reflector
- Matt
- Dimming 0-10 V
- No
- Connection type
- Screwless terminal
- Light source included
- Yes
- Impact strength
- IK02
- Max. number of luminaires per miniature circuit breaker C16
- 51
- Lamp type
- LED not exchangeable
- Type of grid
- Matt
- Light distributor
- Reflector
- Filament test according to IEC 60695-2-11
- 650 °C - 30 s
- Suitable for light line configuration
- No
- Dimming DALI-2
- Yes
- Nominal voltage (min) (V)
- 220
- Energy efficiency class of light source according to EU regulation 2019/2015
- D
- Dimming manufacturer's proprietary system
- No
- Type of control gear
- LED operating device current-controlled
- Colour temperature (min) (K)
- 3000
- Degree of protection (IP)
- IP20
- Dimming Touch and Dim
- No
- Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24
- No
- Power factor
- 0.9
- Rated luminous flux according to IEC 62722-2- 1 (min) (lm)
- 3500
- Suitable for lamp power (max) (W)
- 30
- Dimming DALI
- Yes
- With light sensor
- No
- Light sharing
- Symmetric
- Luminaire efficacy (min) (lm/W)
- 117
- Voltage type
- AC
- Colour temperature switchable
- No
- Compatible with Apple HomeKit
- No
- Dimming LineSwitch
- No
- Housing material
- Steel
- Dimming trailing edge
- No
- Compatible with Amazon Alexa
- No
- Height/depth (mm)
- 52
- Colour consistency (McAdam ellipse)
- SDCM3
- Protection class according to IEC 61140
- I
- Dimming mains voltage modulation
- No
- Nominal current (max) (mA)
- 350
- Cover material
- Other
- Max. number of luminaires per miniature circuit breaker B16
- 30
Product versions
Profi L
| Item description | Code | |
|---|---|---|
| Profi L 1210x153 IP20 19W/830 WH | 4289666 |
|
| Profi L 1210x153 IP20 19W/840 WH | 4289667 |
|
| Profi L 1510x153 IP20 30W/830 WH | 4289668 |
|
| Profi L 1510x153 IP20 30W/840 WH | 4289669 |
|
| Profi L 1210x238 IP20 37W/830 WH | 4289670 |
|
| Profi L 1210x238 IP20 37W/840 WH | 4289671 |
|
| Profi L 1510x238 IP20 41W/830 WH | 4289672 |
|
| Profi L 1510x238 IP20 41W/840 WH | 4289673 |
|
| Profi L 1510x238 IP20 58W/830 WH | 4289674 |
|
| Profi L 1510x238 IP20 58W/840 WH | 4289675 |
Profi L Dali
| Item description | Code | |
|---|---|---|
| Profi L 1210x153 IP20 19W/830 DA WH | D2PRAA-DALI |
|
| Profi L 1210x153 IP20 19W/840 DA WH | D2PRAB-DALI |
|
| Profi L 1510x153 IP20 30W/830 DA WH | D2PRBA-DALI |
|
| Profi L 1510x153 IP20 30W/840 DA WH | D2PRBB-DALI |
|
| Profi L 1210x238 IP20 37W/830 DA WH | D2PRCA-DALI |
|
| Profi L 1210x238 IP20 37W/840 DA WH | D2PRCB-DALI |
|
| Profi L 1510x238 IP20 41W/830 DA WH | D2PREA-DALI |
|
| Profi L 1510x238 IP20 41W/840 DA WH | D2PREB-DALI |
|
| Profi L 1510x238 IP20 58W/830 DA WH | D2PREG-DALI |
|
| Profi L 1510x238 IP20 58W/840 DA WH | D2PREH-DALI |
