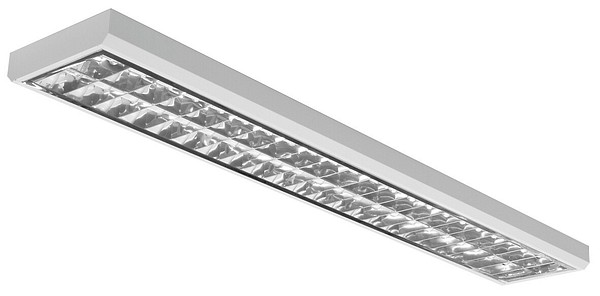

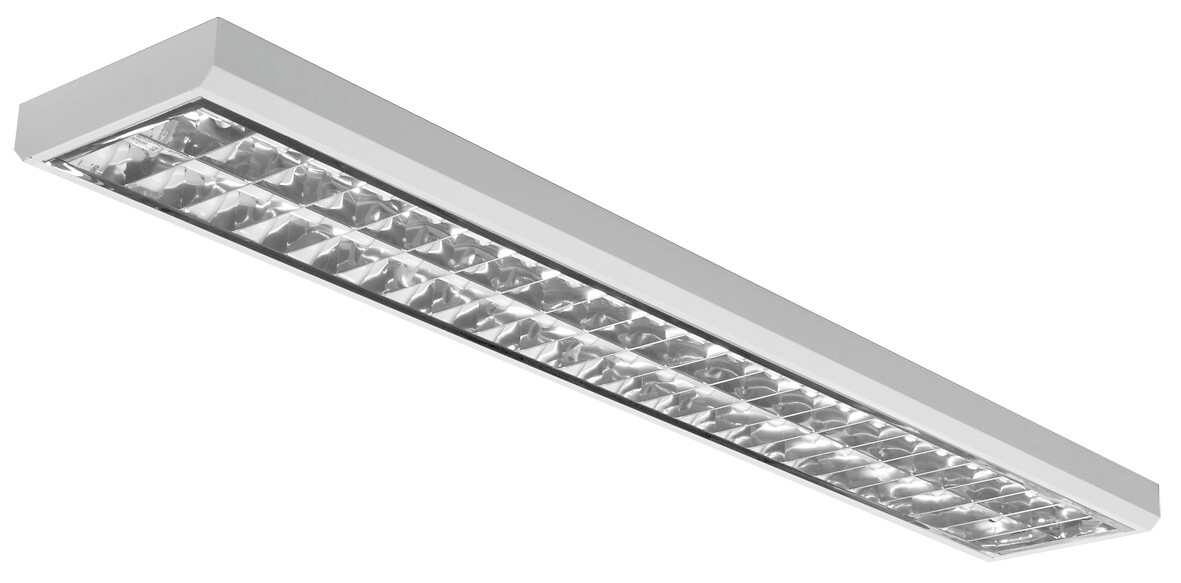

Profi L 1510x238 IP20 41W/830 WH
Profi L Surface mnt./suspen. luminaire 41W 3000K 5350lm No dim; IP20; Protection cl. I; L70B50 100000h; LED not exchangeable; CRI>80; SDCM3; Suitable for through wiring; 3x2.5mm²; Housing Steel; Colour wh; Cover Other; C16 max. 26
A luminaire range designed for offices and other public spaces. Available in two housing lengths and widths. The range includes two colour temperatures and several output options. You can choose from models with one or two matte anti-glare shields. Suspension or surface mounting.
Steel housing, aluminium anti-glare shield, matt.
White, RAL 9003.
Protection class I.
Suspension or surface mounting.
Linkable 3 x 2,5 mm2, Dali-models 5 x 2,5 mm2.
Integrated LED 19–58 W, 2250–7200 lm.
Colour temperatures 3000 K and 4000 K. CRI > 80 / Ra > 80.
MacAdam 3 SDCM.
IP20.
The standard range includes on/off and Dali models.
Ambient temperature range 0 … 25 °C.
Rated lifetime L70 100 000 h (Ta25°C).
Rated lifetime L80 80 000 h (Ta25°C).
Power source service life 50 000 h.
Wire-suspension fixture 4146595 and 4107113 are available as an accessory.
WH = white, DA = Dali.
Also available with Casambi, 1–10 V and push-button control (230V). CRI > 90 available for order. Also available with various connecting wire solutions and a pull switch (on/off and Dali).
- Code
- 4289672
Downloads
Technical info
- Electrical number (FIN)
- 4289672
- Electrical number (SWE)
- 7011494
- GTIN
- 6435200199898
- Airam code
- D2PREA
- Code
- 4289672
- Nominal voltage (min) (V)
- 220
- Connectable conductor cross section (max) (mm²)
- 2.5
- Luminaire efficacy (max) (lm/W)
- 130
- Containing product according to 2019/2020/EU
- Yes
- Dimming mains voltage modulation
- No
- Compatible with Apple HomeKit
- No
- Dimming programmable
- No
- Dimming RF
- No
- Dimming 1-10 V
- No
- Dimming manufacturer's proprietary system
- No
- Height/depth (mm)
- 52
- Voltage type
- AC
- Stroboscope effect value SVM
- 1
- Connection type
- Screwless terminal
- Constant luminous flux control
- No
- Light source included
- Yes
- Width (mm)
- 238
- Power factor
- 0.9
- IFTTT support available
- No
- Beam angle adjustable
- No
- Dimmable
- No
- Dimming DSI
- No
- With light sensor
- No
- Colour temperature (min) (K)
- 3000
- Dimming Touch and Dim
- No
- Emergency power supply integrated
- No
- Light sharing
- Symmetric
- Colour temperature switchable
- No
- Dimming with push-button
- No
- Cover material
- Other
- Luminaire efficacy (min) (lm/W)
- 130
- Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24
- No
- No dimming function
- Yes
- Suitable for number of lamps
- 1
- Dimming leading edge
- No
- Type of grid
- Matt
- Dimming 0-10 V
- No
- Emergency function monitoring system
- None
- Connectable conductor cross section (min) (mm²)
- 1.5
- Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 90
- Rated luminous flux according to IEC 62722-2- 1 (max) (lm)
- 5350
- Unified Glare Rating (UGR)
- 19
- Effective luminous flux (lm)
- 5350
- Colour of light (alphanumeric)
- White
- Number of poles
- 3
- Max. number of luminaires per miniature circuit breaker B16
- 24
- Colour consistency (McAdam ellipse)
- SDCM3
- Impact strength
- IK02
- Rated luminous flux according to IEC 62722-2- 1 (min) (lm)
- 5350
- Dimming Sine Wave Reduction
- No
- Colour rendering index (CRI/Ra)
- 80-89
- Dimming potentiometer (integrated)
- No
- Bluetooth operated
- No
- Light distributor
- Reflector
- Lamp holder
- Other
- Dimming LineSwitch
- No
- Exchangeable control gear
- Yes
- Control gear included
- Yes
- Luminaire efficacy (lm/W)
- 130
- Nominal current (min) (mA)
- 250
- Reflector
- Matt
- Length (mm)
- 1510
- Compatible with Casambi
- No
- Max. number of luminaires per miniature circuit breaker C16
- 40
- Dimming trailing edge
- No
- Dimming DMX
- No
- Dimming DALI-2
- No
- Filament test according to IEC 60695-2-11
- 650 °C - 30 s
- Type of wiring
- Suitable for through wiring
- Nominal voltage (max) (V)
- 240
- Type of control gear
- LED operating device current-controlled
- Nominal current (max) (mA)
- 250
- Flickering value Pst LM
- 5
- Colour temperature (max) (K)
- 3000
- Light outlet
- Direct
- Protection class according to IEC 61140
- I
- Suitable for lamp power (min) (W)
- 41
- Emergency power supply system
- None
- Lamp type
- LED not exchangeable
- Dimming Zigbee
- No
- Housing colour
- White
- Compatible with Amazon Alexa
- No
- Compatible with Google Assistant
- No
- Suitable for emergency lighting
- No
- Fit for workplace acc. EN 12464-1
- Yes
- Housing material
- Steel
- Rated life time L70/B50 at 25 °C (h)
- 100000
- Lumen setting adjustable
- No
- With movement sensor
- No
- Suspension supplied with the product
- No
- Suitable for lamp power (max) (W)
- 41
- Conductor cross section (mm²)
- 2.5
- Maximum system power (W)
- 41
- Suitable for light line configuration
- No
- Dimming DALI
- No
- Energy efficiency class of light source according to EU regulation 2019/2015
- D
- Degree of protection (IP)
- IP20
- With presence indicator
- No
Product versions
| Item description | Code | |
|---|---|---|
| Profi L 1210x153 IP20 19W/830 WH | 4289666 |
|
| Profi L 1210x153 IP20 19W/840 WH | 4289667 |
|
| Profi L 1510x153 IP20 30W/830 WH | 4289668 |
|
| Profi L 1510x153 IP20 30W/840 WH | 4289669 |
|
| Profi L 1210x238 IP20 37W/830 WH | 4289670 |
|
| Profi L 1210x238 IP20 37W/840 WH | 4289671 |
|
| Profi L 1510x238 IP20 41W/830 WH | 4289672 |
|
| Profi L 1510x238 IP20 41W/840 WH | 4289673 |
|
| Profi L 1510x238 IP20 58W/830 WH | 4289674 |
|
| Profi L 1510x238 IP20 58W/840 WH | 4289675 |
|
| Profi L 1210x153 IP20 19W/830 DA WH | D2PRAA-DALI |
|
| Profi L 1210x153 IP20 19W/840 DA WH | D2PRAB-DALI |
|
| Profi L 1510x153 IP20 30W/830 DA WH | D2PRBA-DALI |
|
| Profi L 1510x153 IP20 30W/840 DA WH | D2PRBB-DALI |
|
| Profi L 1210x238 IP20 37W/830 DA WH | D2PRCA-DALI |
|
| Profi L 1210x238 IP20 37W/840 DA WH | D2PRCB-DALI |
|
| Profi L 1510x238 IP20 41W/830 DA WH | D2PREA-DALI |
|
| Profi L 1510x238 IP20 41W/840 DA WH | D2PREB-DALI |
|
| Profi L 1510x238 IP20 58W/830 DA WH | D2PREG-DALI |
|
| Profi L 1510x238 IP20 58W/840 DA WH | D2PREH-DALI |
