Office P

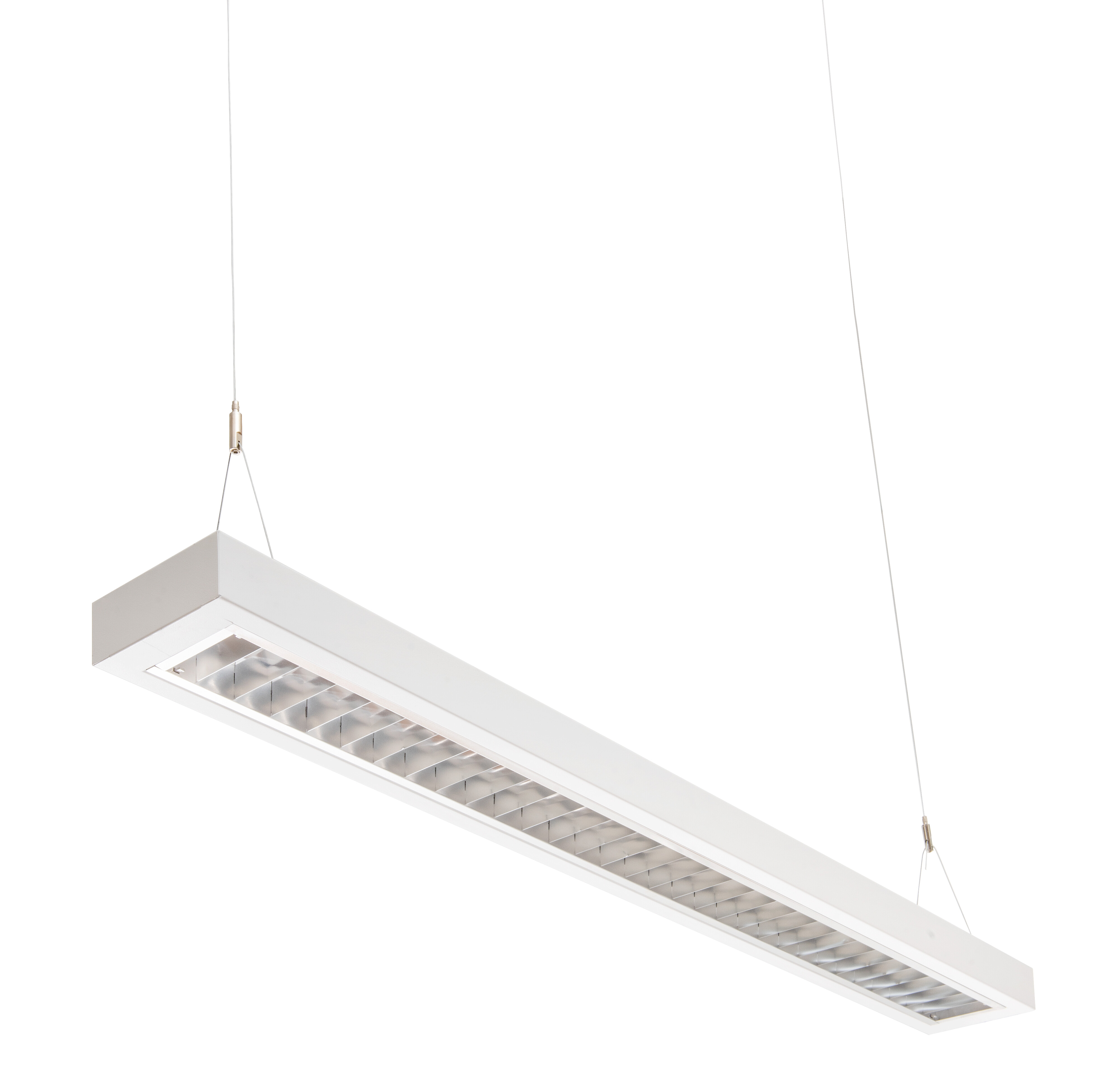

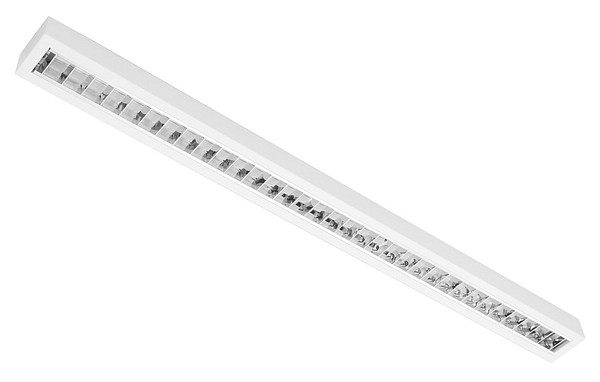

The suspension-mounted Office P is an energy-efficient office luminaire range with a downlight. This extensive range offers numerous customisation options. Its optics features include an aluminium parabolic louvre and integrated opal shield, which eliminate glare from the LEDs and achieve a low Unified Glare Rating l/value (UGR <19). The luminaire is delivered with a 2-metre cable. Typical applications include schools, offices and other spaces where computers are used.

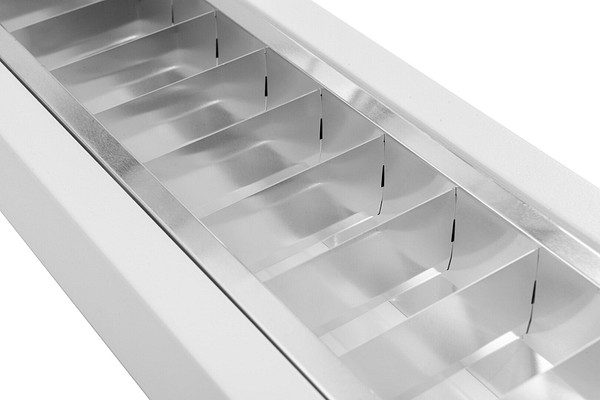

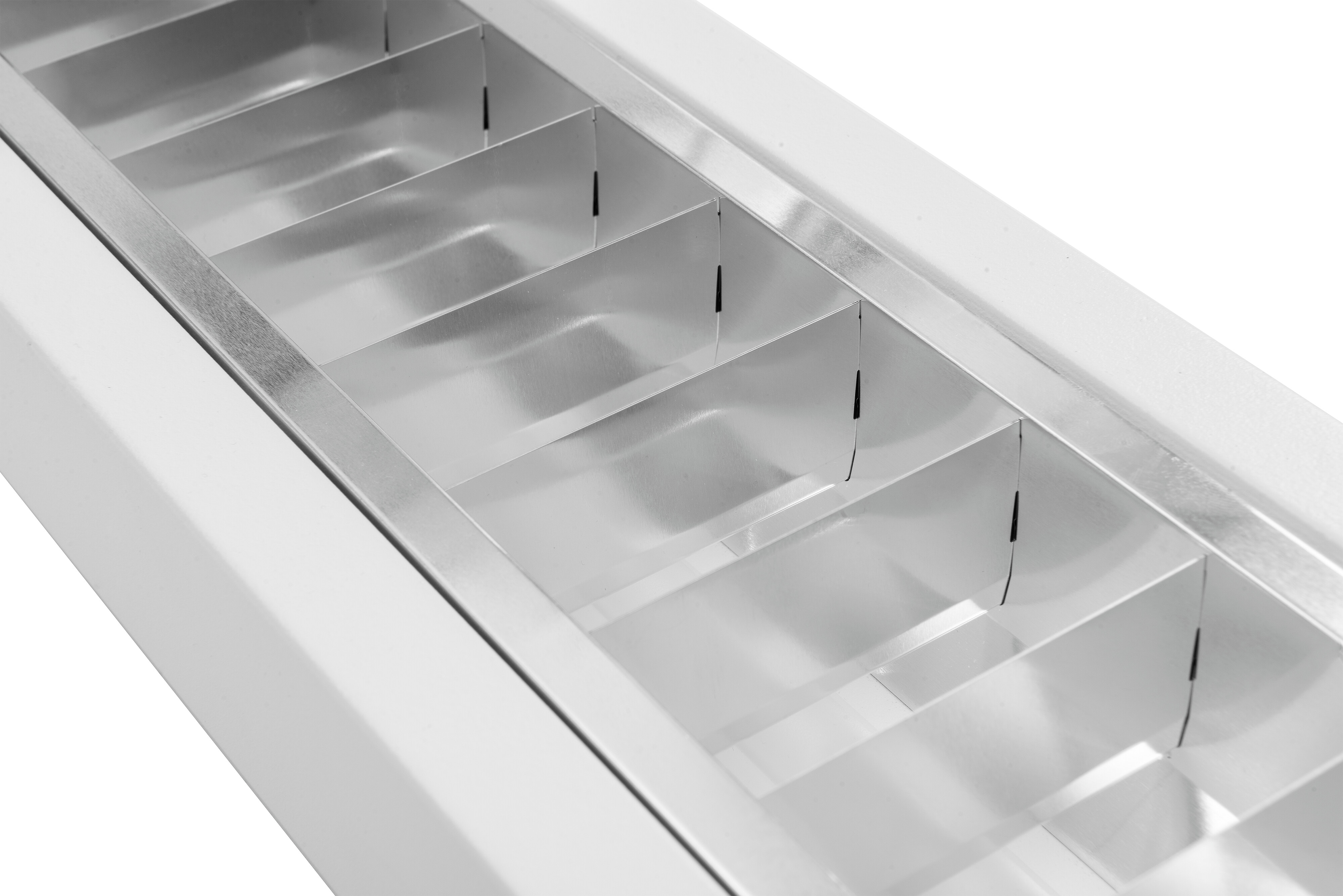

Steel housing, low-luminance louvre made of anodised aluminium.
White, RAL9003.
Protection class I.

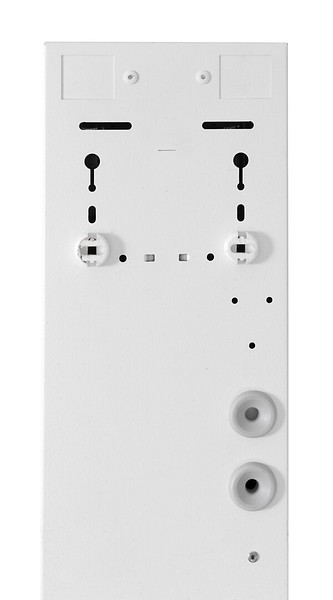

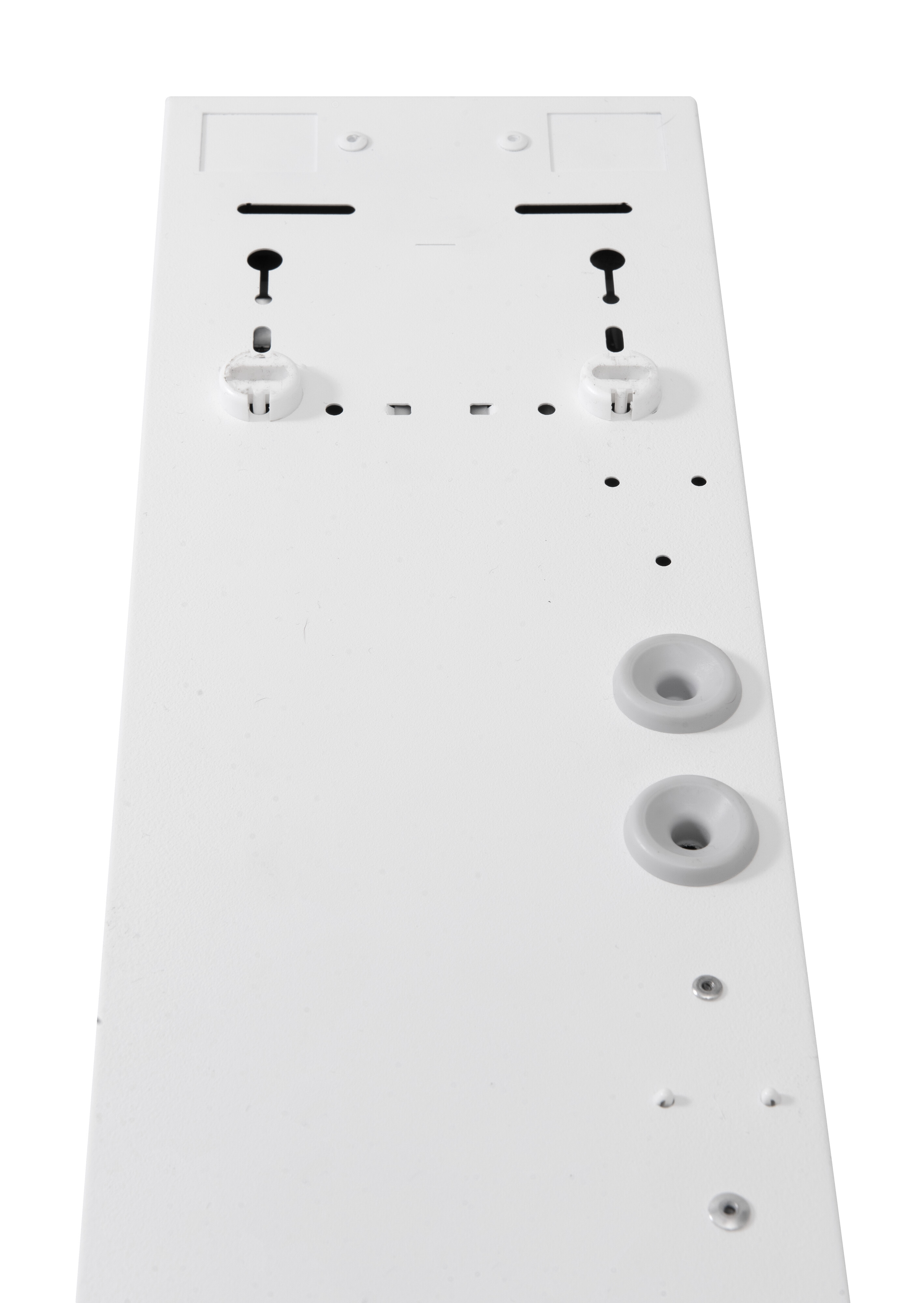

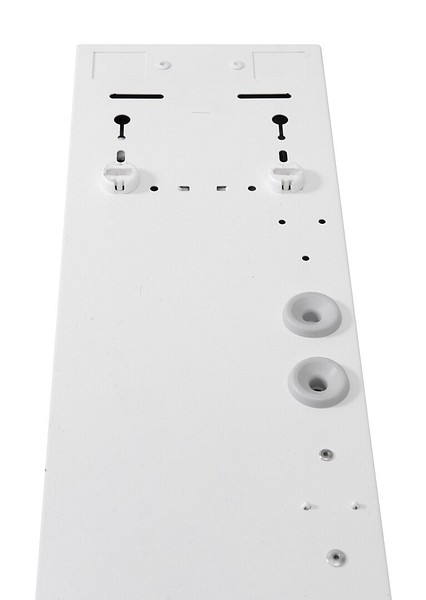

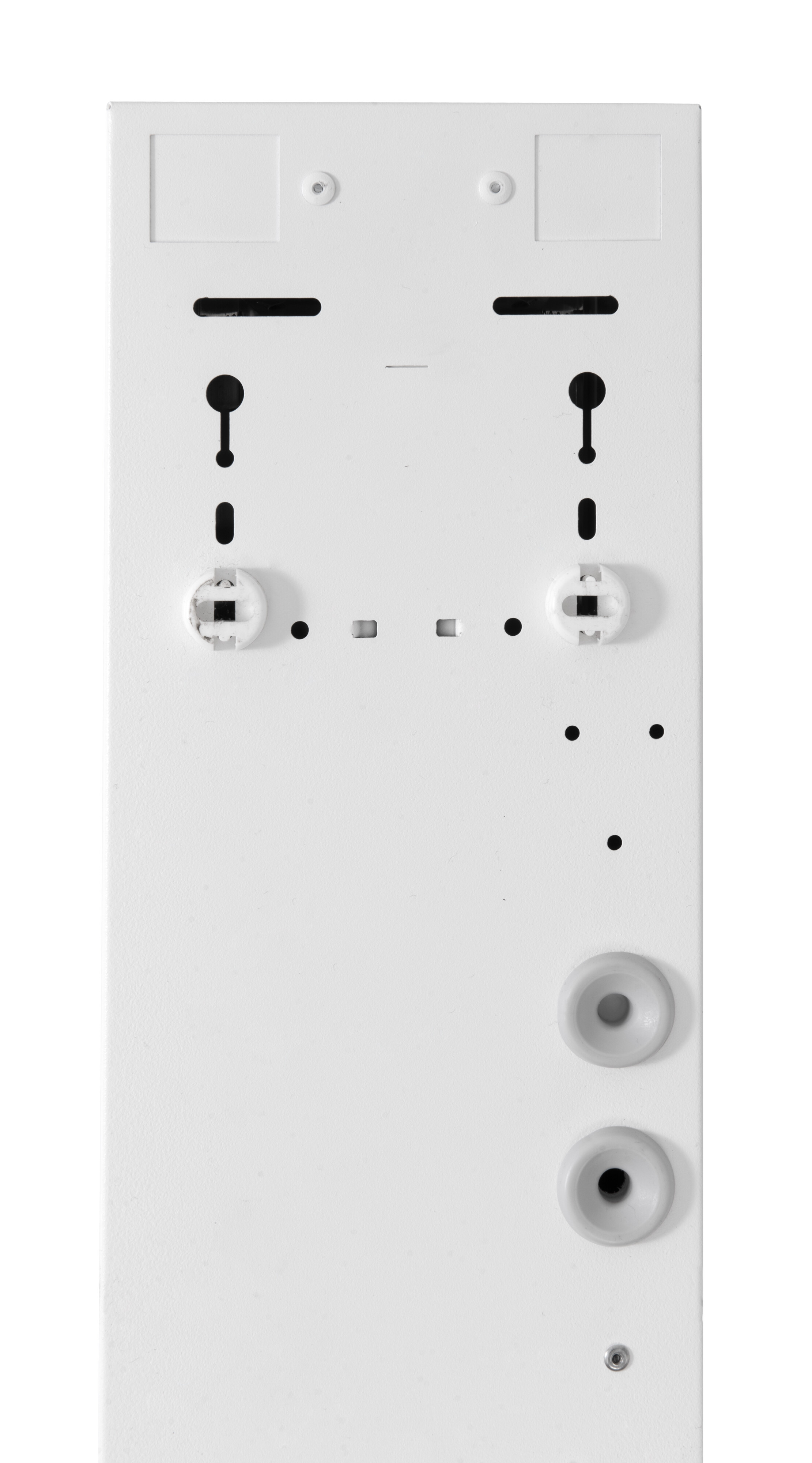

Suspension mounting, 2 meters cabel (1 mm2 MSK), connection via a junction box.
Integrated LED:

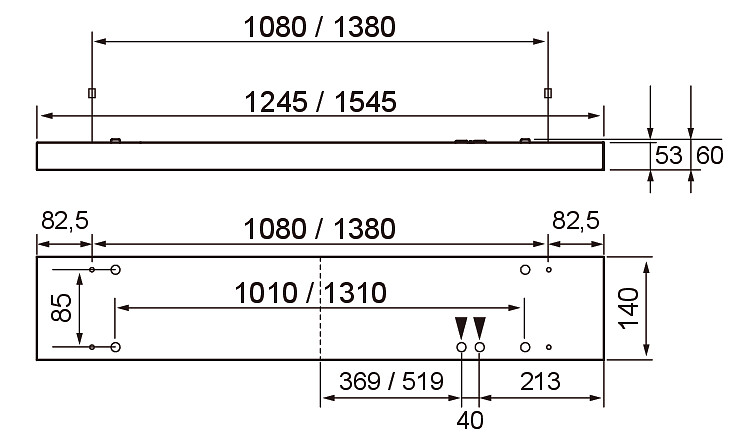

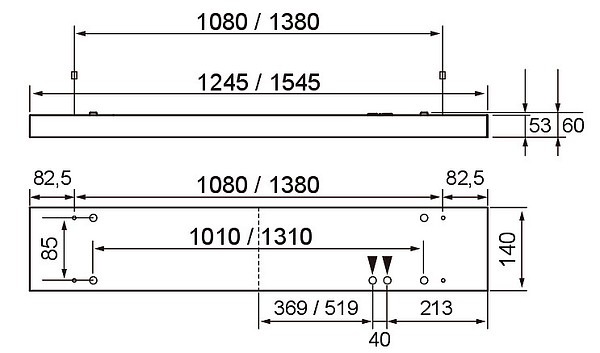

1245 mm 33 W 4000 lm / 46 W 5500 lm.
1545 mm 42 W 5000 lm / 58 W 7000 lm.
Colour temperatures 3000 K and 4000 K and Tunable white 2700–6500 K. CRI > 80 / Ra > 80.
MacAdam 3 SDCM.
IP20.
IK02.
On/off, Dali-2, with pushbutton control 230V and CLO-function, Casambi (Bluetooth mesh) and ActiveAhead (with G2 sensor).
Ambient temperature range 0 … 25 °C.
Rated lifetime L80 100 000 h (Ta25°C).
Rated lifetime L90 80 000 h (Ta25°C).

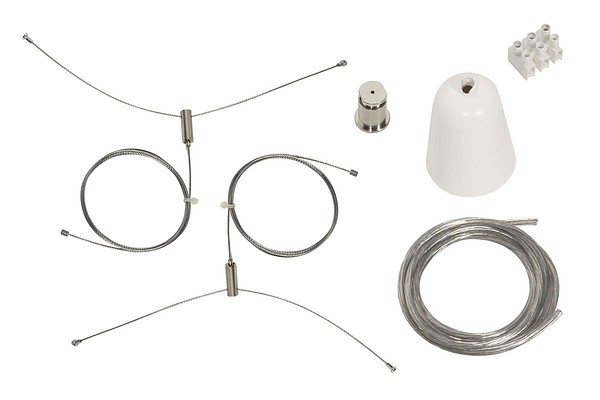

Wire suspension kits 4107113 and 4146595 as accessories.
WH = white, DA2 = Dali-2, CA = Casambi, AA = Helvar ActiveAhead, AL = aluminium, MA = low luminance.

Also available in colour temperatures 2700 K, 5000 K and 6500 K. CRI > 90 available for order. Project-specific luminous flux packages available on request. High-gloss louvre optics are available for the luminaire by special order. Available color options are also grey (RAL 9007) or black. Available with one pull switch, on/off and Dim.
