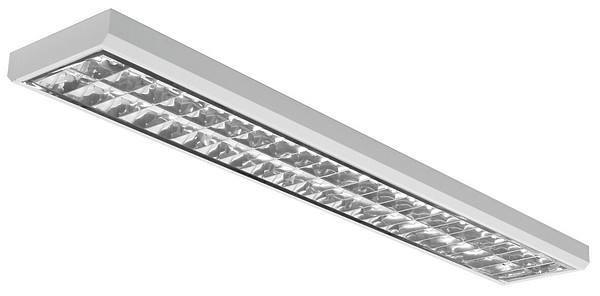

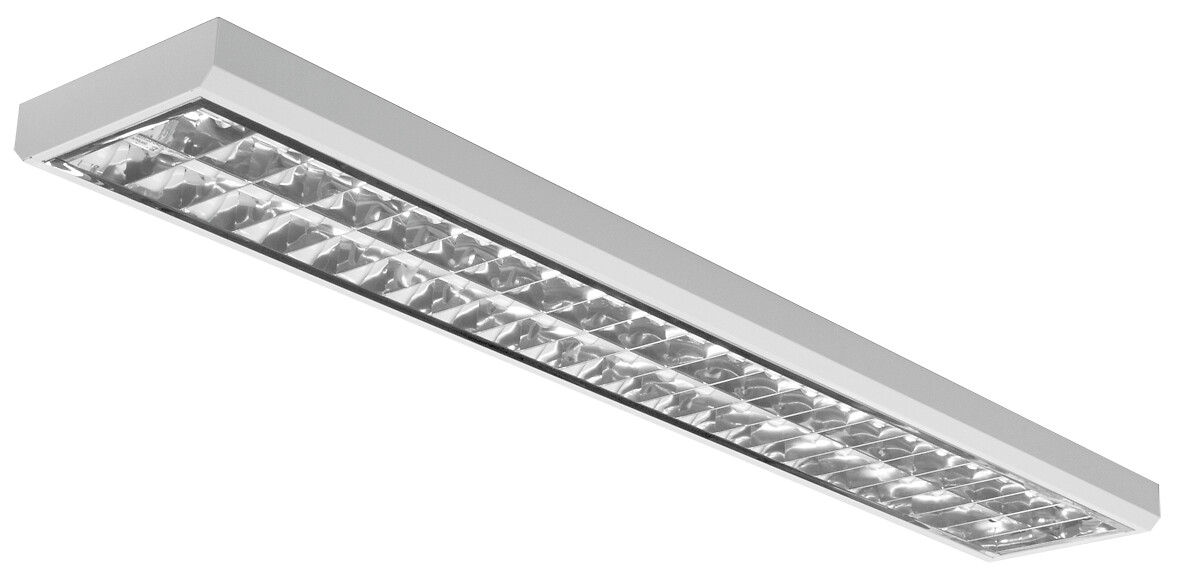

Profi L 1210x238 IP20 37W/840 WH
Profi L Surface mnt./suspen. luminaire 37W 4000K 4450lm No dim; IP20; Protection cl. I; L70B50 100000h; LED not exchangeable; CRI>80; SDCM3; Suitable for through wiring; 3x2.5mm²; Housing Steel; Colour wh; Cover Other; C16 max. 26
A luminaire range designed for offices and other public spaces. Available in two housing lengths and widths. The range includes two colour temperatures and several output options. You can choose from models with one or two matte anti-glare shields. Suspension or surface mounting.
Steel housing, aluminium anti-glare shield, matt.
White, RAL 9003.
Protection class I.
Suspension or surface mounting.
Linkable 3 x 2,5 mm2, Dali-models 5 x 2,5 mm2.
Integrated LED 19–58 W, 2250–7200 lm.
Colour temperatures 3000 K and 4000 K. CRI > 80 / Ra > 80.
MacAdam 3 SDCM.
IP20.
The standard range includes on/off and Dali models.
Ambient temperature range 0 … 25 °C.
Rated lifetime L70 100 000 h (Ta25°C).
Rated lifetime L80 80 000 h (Ta25°C).
Power source service life 50 000 h.
Wire-suspension fixture 4146595 and 4107113 are available as an accessory.
WH = white, DA = Dali.
Also available with Casambi, 1–10 V and push-button control (230V). CRI > 90 available for order. Also available with various connecting wire solutions and a pull switch (on/off and Dali).
- Code
- 4289671
Downloads
Technical info
- Electrical number (FIN)
- 4289671
- Electrical number (SWE)
- 7011493
- GTIN
- 6435200199881
- Airam code
- D2PRCB
- Code
- 4289671
- Compatible with Apple HomeKit
- No
- Beam angle adjustable
- No
- Dimming 1-10 V
- No
- With light sensor
- No
- Connectable conductor cross section (min) (mm²)
- 1.5
- Compatible with Google Assistant
- No
- Luminaire efficacy (max) (lm/W)
- 120
- Light sharing
- Symmetric
- Fit for workplace acc. EN 12464-1
- Yes
- Impact strength
- IK02
- Stroboscope effect value SVM
- 1
- With presence indicator
- No
- Dimming DSI
- No
- Rated luminous flux according to IEC 62722-2- 1 (max) (lm)
- 4450
- Effective luminous flux (lm)
- 4450
- Constant luminous flux control
- No
- Dimming trailing edge
- No
- Light source included
- Yes
- Suspension supplied with the product
- No
- Rated luminous flux according to IEC 62722-2- 1 (min) (lm)
- 4450
- No dimming function
- Yes
- Max. number of luminaires per miniature circuit breaker B16
- 31
- Housing material
- Steel
- Width (mm)
- 238
- Type of grid
- Matt
- Flickering value Pst LM
- 5
- Bluetooth operated
- No
- Colour temperature switchable
- No
- Dimming DMX
- No
- Compatible with Casambi
- No
- Lamp holder
- Other
- Type of control gear
- LED operating device current-controlled
- Suitable for lamp power (min) (W)
- 37
- Dimming programmable
- No
- IFTTT support available
- No
- Dimming mains voltage modulation
- No
- Light distributor
- Reflector
- Dimming RF
- No
- Emergency function monitoring system
- None
- Luminaire efficacy (lm/W)
- 120
- Dimming 0-10 V
- No
- Height/depth (mm)
- 52
- Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 90
- Exchangeable control gear
- Yes
- Voltage type
- AC
- Length (mm)
- 1210
- Dimming Touch and Dim
- No
- Dimming potentiometer (integrated)
- No
- Filament test according to IEC 60695-2-11
- 650 °C - 30 s
- Nominal current (min) (mA)
- 350
- Colour of light (alphanumeric)
- White
- Colour temperature (max) (K)
- 4000
- Rated life time L70/B50 at 25 °C (h)
- 100000
- Dimming Sine Wave Reduction
- No
- Colour rendering index (CRI/Ra)
- 80-89
- Colour consistency (McAdam ellipse)
- SDCM3
- Nominal voltage (min) (V)
- 220
- Connectable conductor cross section (max) (mm²)
- 2.5
- Dimming leading edge
- No
- Dimming DALI-2
- No
- Reflector
- Matt
- Max. number of luminaires per miniature circuit breaker C16
- 53
- Containing product according to 2019/2020/EU
- Yes
- Control gear included
- Yes
- Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24
- No
- With movement sensor
- No
- Type of wiring
- Suitable for through wiring
- Dimming with push-button
- No
- Emergency power supply system
- None
- Protection class according to IEC 61140
- I
- Power factor
- 0.9
- Dimming Zigbee
- No
- Dimming DALI
- No
- Unified Glare Rating (UGR)
- 19
- Dimming LineSwitch
- No
- Compatible with Amazon Alexa
- No
- Dimmable
- No
- Cover material
- Other
- Conductor cross section (mm²)
- 2.5
- Suitable for lamp power (max) (W)
- 37
- Nominal voltage (max) (V)
- 240
- Colour temperature (min) (K)
- 4000
- Luminaire efficacy (min) (lm/W)
- 120
- Suitable for light line configuration
- No
- Energy efficiency class of light source according to EU regulation 2019/2015
- C
- Housing colour
- White
- Number of poles
- 3
- Suitable for emergency lighting
- No
- Suitable for number of lamps
- 1
- Dimming manufacturer's proprietary system
- No
- Light outlet
- Direct
- Lamp type
- LED not exchangeable
- Nominal current (max) (mA)
- 350
- Connection type
- Screwless terminal
- Emergency power supply integrated
- No
- Degree of protection (IP)
- IP20
- Maximum system power (W)
- 37
- Lumen setting adjustable
- No
Product versions
Profi L
| Item description | Code | |
|---|---|---|
| Profi L 1210x153 IP20 19W/830 WH | 4289666 |
|
| Profi L 1210x153 IP20 19W/840 WH | 4289667 |
|
| Profi L 1510x153 IP20 30W/830 WH | 4289668 |
|
| Profi L 1510x153 IP20 30W/840 WH | 4289669 |
|
| Profi L 1210x238 IP20 37W/830 WH | 4289670 |
|
| Profi L 1210x238 IP20 37W/840 WH | 4289671 |
|
| Profi L 1510x238 IP20 41W/830 WH | 4289672 |
|
| Profi L 1510x238 IP20 41W/840 WH | 4289673 |
|
| Profi L 1510x238 IP20 58W/830 WH | 4289674 |
|
| Profi L 1510x238 IP20 58W/840 WH | 4289675 |
Profi L Dali
| Item description | Code | |
|---|---|---|
| Profi L 1210x153 IP20 19W/830 DA WH | D2PRAA-DALI |
|
| Profi L 1210x153 IP20 19W/840 DA WH | D2PRAB-DALI |
|
| Profi L 1510x153 IP20 30W/830 DA WH | D2PRBA-DALI |
|
| Profi L 1510x153 IP20 30W/840 DA WH | D2PRBB-DALI |
|
| Profi L 1210x238 IP20 37W/830 DA WH | D2PRCA-DALI |
|
| Profi L 1210x238 IP20 37W/840 DA WH | D2PRCB-DALI |
|
| Profi L 1510x238 IP20 41W/830 DA WH | D2PREA-DALI |
|
| Profi L 1510x238 IP20 41W/840 DA WH | D2PREB-DALI |
|
| Profi L 1510x238 IP20 58W/830 DA WH | D2PREG-DALI |
|
| Profi L 1510x238 IP20 58W/840 DA WH | D2PREH-DALI |
