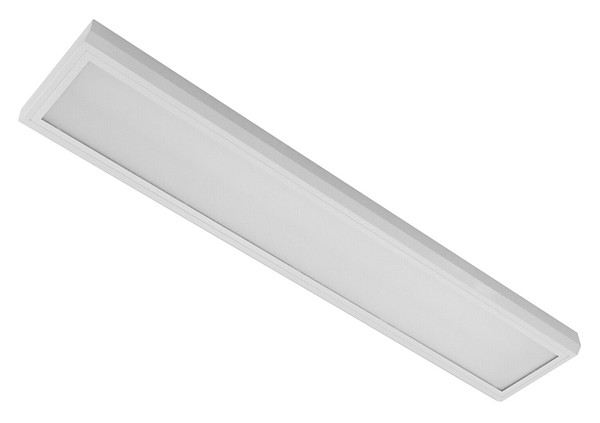

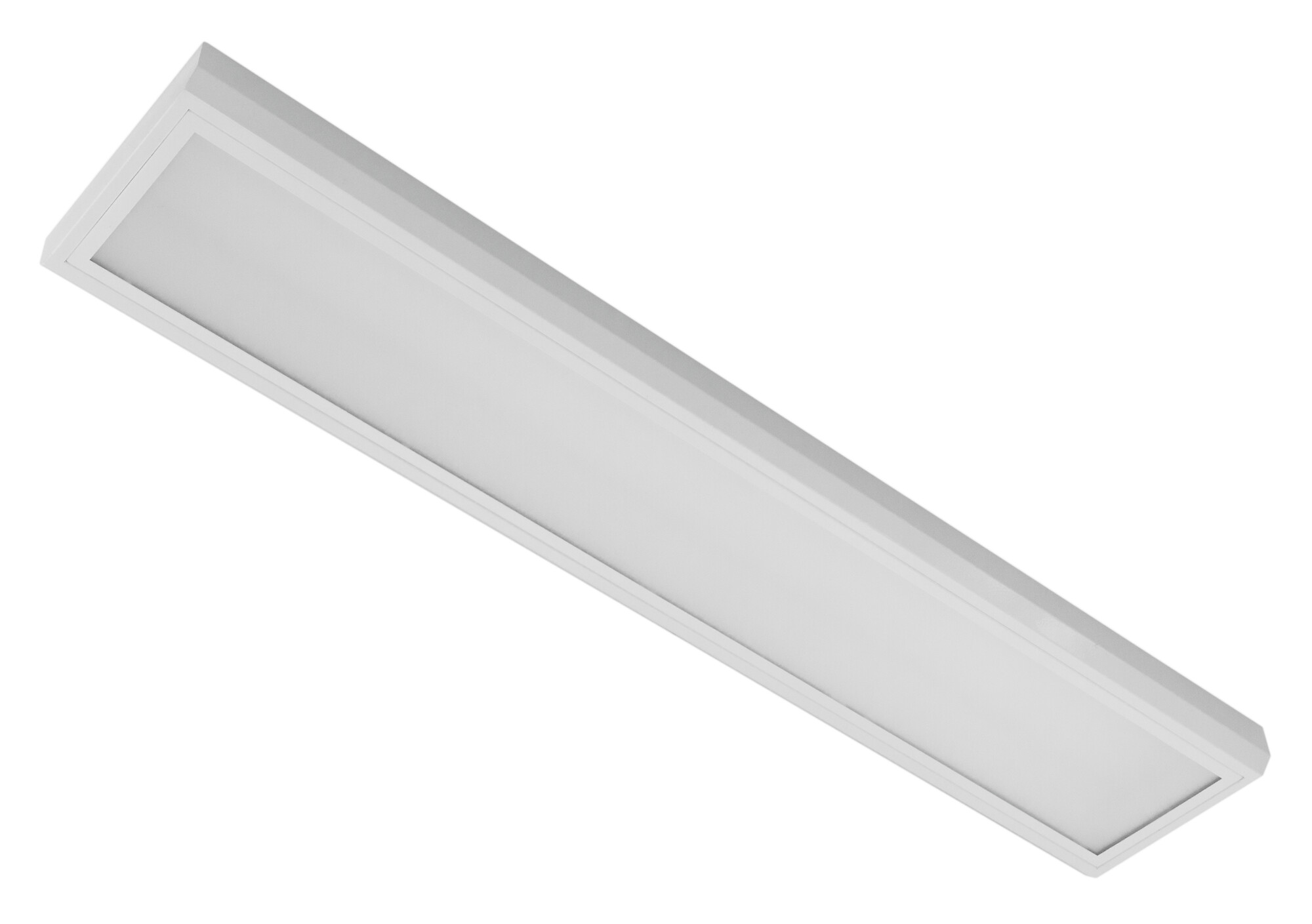

Tradi
A luminaire range designed for offices and other public spaces. The wide frame allows the replacement of old T5 and T8 luminaires with Tradi luminaires that are similar in appearance. Available in two lengths. Surface mounting or wire suspension with a separate wire-suspension fixture.
Steel housing, acrylic (AC), opal (O) or micro-prismatic (MP) diffuser.
White RAL 9003.
Protection class I.
Surface or wire suspension mounting.
Linkable, 3/5 x 2.5 mm2
Installation height: 2–5 m.
Fixed LED: 26–63 W / 3300–7000 lm.
Colour temperatures: 3000 K and 4000 K. CRI > 80 / Ra > 80.
MacAdam 3 SDCM.
IP40.
The standard range includes on/off and Dali-2 models.
Ambient temperature range: 0 ... 25 °C.
Rated lifetime: L70 100 000 h (Ta 25 °C).
Rated lifetime: L80 65 000 h (Ta25°C).
Power source service life: 50 000 h.
Wire-suspension fixture 4146595 and 4107113 are available as an accessory.
WH = white, DA2 = Dali-2.
Also available as Casambi, 1–10 V and Switch Dim solutions. CRI > 90 available by special order. Also available with various connecting wire solutions.
Downloads
Product versions
Tradi opal
| Item description | Code | |
|---|---|---|
| Tradi 1210 IP40 26W/830 ACO WH | 4245273 |
|
| Tradi 1210 IP40 26W/840 ACO WH | 4245274 |
|
| Tradi 1210 IP40 38W/830 ACO WH | 4245277 |
|
| Tradi 1210 IP40 38W/840 ACO WH | 4245278 |
|
| Tradi 1510 IP40 44W/830 ACO WH | 4245281 |
|
| Tradi 1510 IP40 44W/840 ACO WH | 4245282 |
|
| Tradi 1510 IP40 63W/830 ACO WH | 4245285 |
|
| Tradi 1510 IP40 63W/840 ACO WH | 4245286 |
Tradi microprismatic
| Item description | Code | |
|---|---|---|
| Tradi 1210 IP40 26W/830 ACMP WH | 4245289 |
|
| Tradi 1210 IP40 26W/840 ACMP WH | 4245290 |
|
| Tradi 1210 IP40 38W/830 ACMP WH | 4245293 |
|
| Tradi 1210 IP40 38W/840 ACMP WH | 4245294 |
|
| Tradi 1510 IP40 44W/830 ACMP WH | 4245297 |
|
| Tradi 1510 IP40 44W/840 ACMP WH | 4245298 |
|
| Tradi 1510 IP40 63W/830 ACMP WH | 4245301 |
|
| Tradi 1510 IP40 63W/840 ACMP WH | 4245302 |
Tradi Dali opal
| Item description | Code | |
|---|---|---|
| Tradi 1210 IP40 26W/830 DA2 ACO WH | 4245275 |
|
| Tradi 1210 IP40 26W/840 DA2 ACO WH | 4245276 |
|
| Tradi 1210 IP40 38W/830 DA2 ACO WH | 4245279 |
|
| Tradi 1210 IP40 38W/840 DA2 ACO WH | 4245280 |
|
| Tradi 1510 IP40 44W/830 DA2 ACO WH | 4245283 |
|
| Tradi 1510 IP40 44W/840 DA2 ACO WH | 4245284 |
|
| Tradi 1510 IP40 63W/830 DA2 ACO WH | 4245287 |
|
| Tradi 1510 IP40 63W/840 DA2 ACO WH | 4245288 |
Tradi Dali microprismatic
| Item description | Code | |
|---|---|---|
| Tradi 1210 IP40 26W/830 DA2 ACMP WH | 4245291 |
|
| Tradi 1210 IP40 26W/840 DA2 ACMP WH | 4245292 |
|
| Tradi 1210 IP40 38W/830 DA2 ACMP WH | 4245295 |
|
| Tradi 1210 IP40 38W/840 DA2 ACMP WH | 4245296 |
|
| Tradi 1510 IP40 44W/830 DA2 ACMP WH | 4245299 |
|
| Tradi 1510 IP40 44W/840 DA2 ACMP WH | 4245300 |
|
| Tradi 1510 IP40 63W/830 DA2 ACMP WH | 4245303 |
|
| Tradi 1510 IP40 63W/840 DA2 ACMP WH | 4245304 |
