Eval

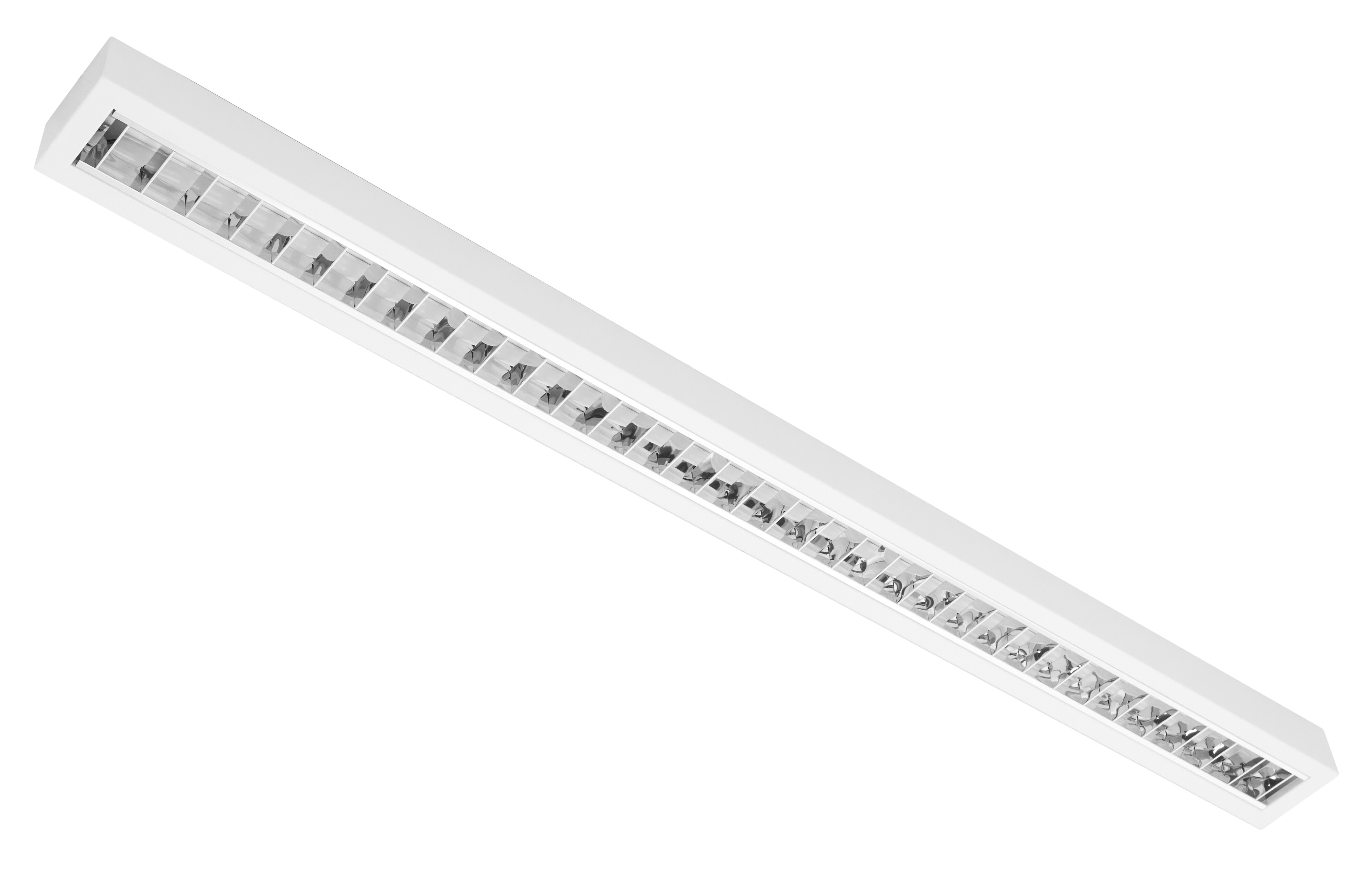

The slimline Eval luminaire range is designed for offices and other public spaces. The luminaires are equipped with a matt anti-glare shield. The luminaire can be surface mounted or suspended using a wire-suspension fixture that is sold separately. The standard range includes two colour temperatures and efficacies.

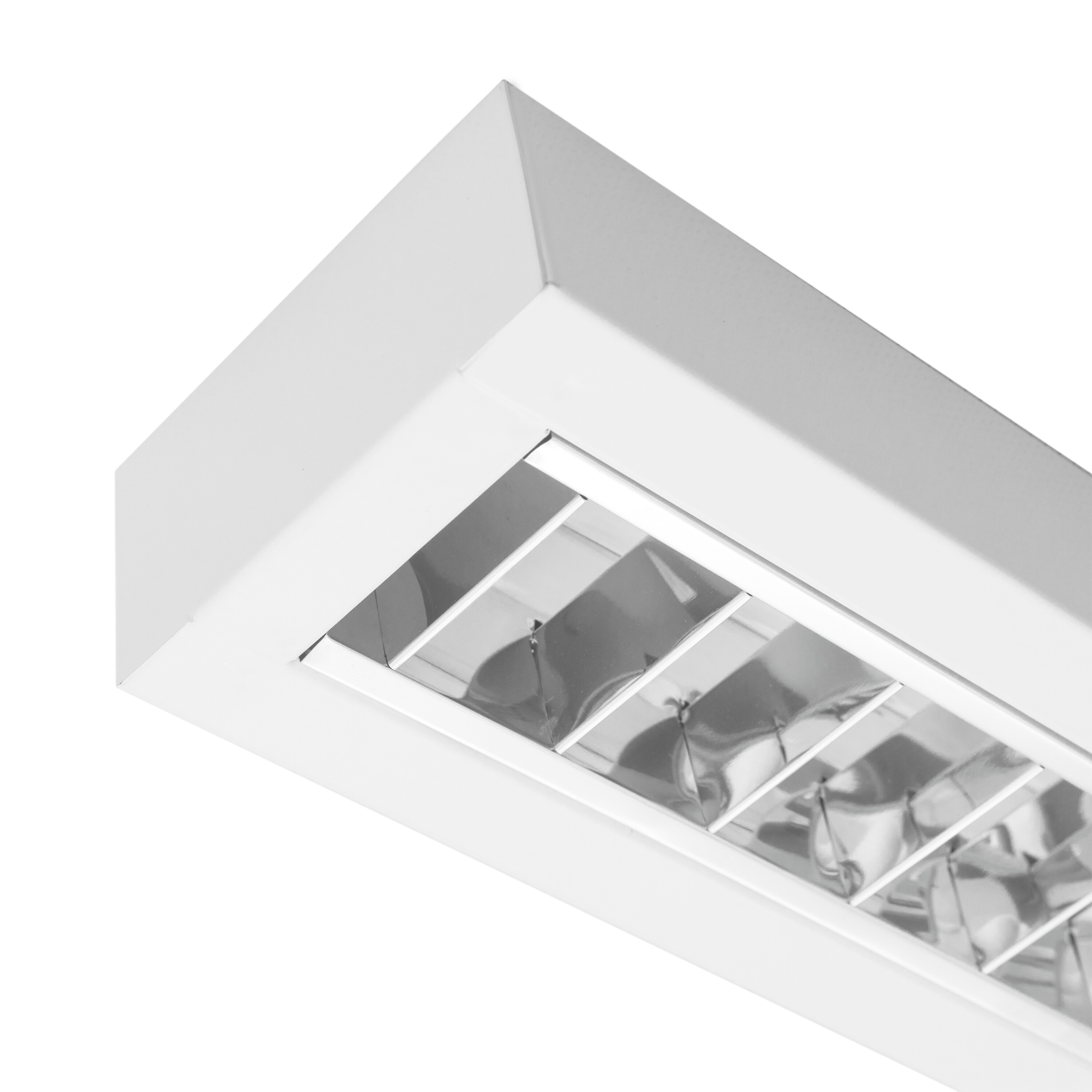

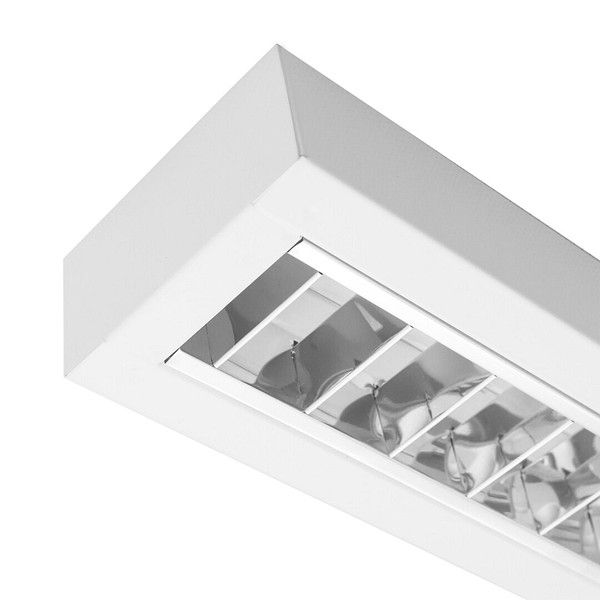

Steel housing, a matt aluminium anti-glare shield.
White RAL 9003.
Protection class I.
Linkable, 3 x 2.5 mm2, Dali-2 models 5 x 2.5 mm2.
Installation height 2–4 m.
Fixed LED: 33–51 W, 2800–4100 lm.
Colour temperatures 3000 K and 4000 K CRI > 80 / Ra > 80.
MacAdam 3 SDCM.
IP20.
The standard range includes on/off and Dali-2 models.
Ambient temperature range 0 ... 25 °C.
Rated lifetime L70 100 000 h (Ta25°C).
Rated lifetime L80 65 000 h (Ta25°C).
Power source service life 50 000 h.
Wire-suspension fixture 4107113 and 4146595 are available as an accessories.
WH = white, DA2 = Dali-2, AL = aluminium, MA = matt.

Also available as Casambi, 1–10 V and Switch Dim solutions, and Tunable White model on a project-specific basis. CRI > 90 / Ra > 90 available by special order. Also available with various connecting wire solutions, a high-polish visor, and a 1500 mm frame. A 4800 lm luminous flux set is also available by special order.
