Plata IP20 45W/830 EU PSMP WH
Plata Modular luminaire 45W 3000K 4600lm No dim; IP20; IK02; Protection cl. II; L70B50 100000h; LED not exchangeable; Lamp included; CRI>80; SDCM3; Ending; 2x0.75mm²; Housing al; Colour wh; Cover Plastic, structured; C16 max. 52

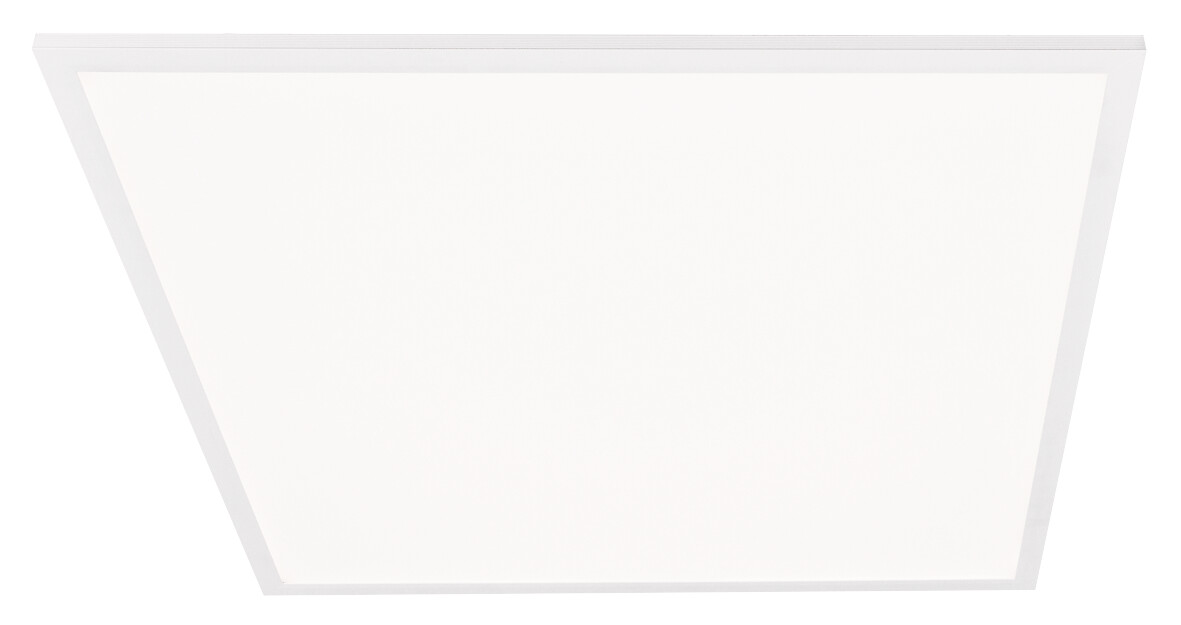

Plata is a low-profile modular luminaire designed for offices, corridors, lobbies, schools and other public spaces. Anti-glare models equipped with micro-prismatic (MP) diffusers offer an excellent solution for classrooms and spaces where computers and other equipment with displays are used. Plata is suitable for recessed mounting in false ceilings, which makes it ideal for offices and public spaces. It can also be suspended on wires or surface-mounted with a separate mounting set. The control options are on/off, Dali-2, pushbutton (direct pushbutton control 230V) and Casambi.
Aluminium housing, acrylic light guide plate and polystyrene diffuser (PS).
White, RAL 9003.
Protection class II.
Mounting on a T-grid ceiling. Suspension mounting, surface mounting and recessed mounting with accessories. Installation kits available for concealed T-grids.
Linkable, on/off and Dali max. 5 x 2.5 mm2, Casambi max. 3 x 2.5 mm2.

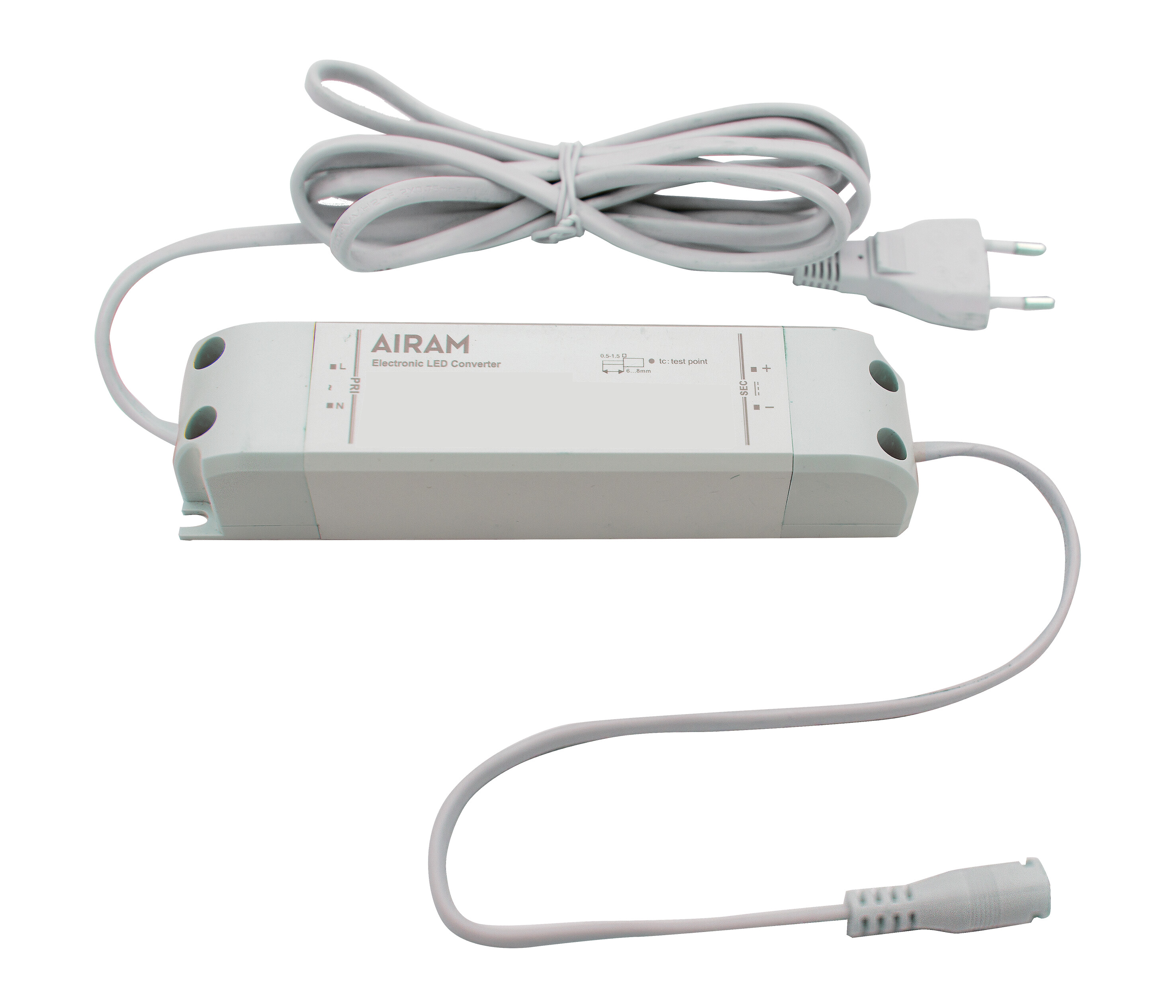

On/off and Casambi ranges also available with 3-meter Europlug cable H03VVH2-F 2 x 0.75 mm2.
Maximum number of led drivers to be connected to one switch is 60 pcs.
Colour temperatures 3000 K and 4000 K. CRI > 80 / Ra > 80.
MacAdam 3 SDCM.
IP20.
On/off: 26–57 W. 2800–5600 lm.
Dali-2 and Casambi: 27–54 W. 2800–5300 lm.
On/off, Dali-2, (direct pushbutton control 230V) and Casambi control.
Use with Dali-2-certified control devices is recommended.
Maximum number of led drivers to be connected to one switch is 60 pcs.
Ambient temperature range 0 ... 25 °C.
Rated lifetime L70 100 000 h (Ta25°C).
Rated lifetime L80 60 000 h (Ta25°C).
Power source lifespan 100 000 h.
Accessories include a surface mounting frame (4289994), concealed grid brackets PLK15 (4209537), asymmetrical concealed grid brackets PLK (4245342) and mounting set (4146993). The luminaires are also compatible with Plano surface mounting frames, which are available in three colours: white (4146973), black (A2PLKI) and grey (A2PLKJ). Also available: ceiling mounting frame 600 x 600 (4297811) and cover plates 600*600 R400 (A2PLZC) and 600*600 R500 (A2PLZA). The luminous flux of the luminaire decreases with cover plates about 30 % (R500) and about 50 % (R400).
O = opal, MP = micro-prismatic optics
Customized luminous flux packages, cut-to-measure connecting cables and a variety of quick-connector cable sets are available on a project-specific basis.
- Code
- A1UPAM-EU
Downloads
Technical info
- Electrical number (SWE)
- 7021311
- GTIN
- 6435200293695
- Airam code
- A1UPAM-EU
- Code
- A1UPAM-EU

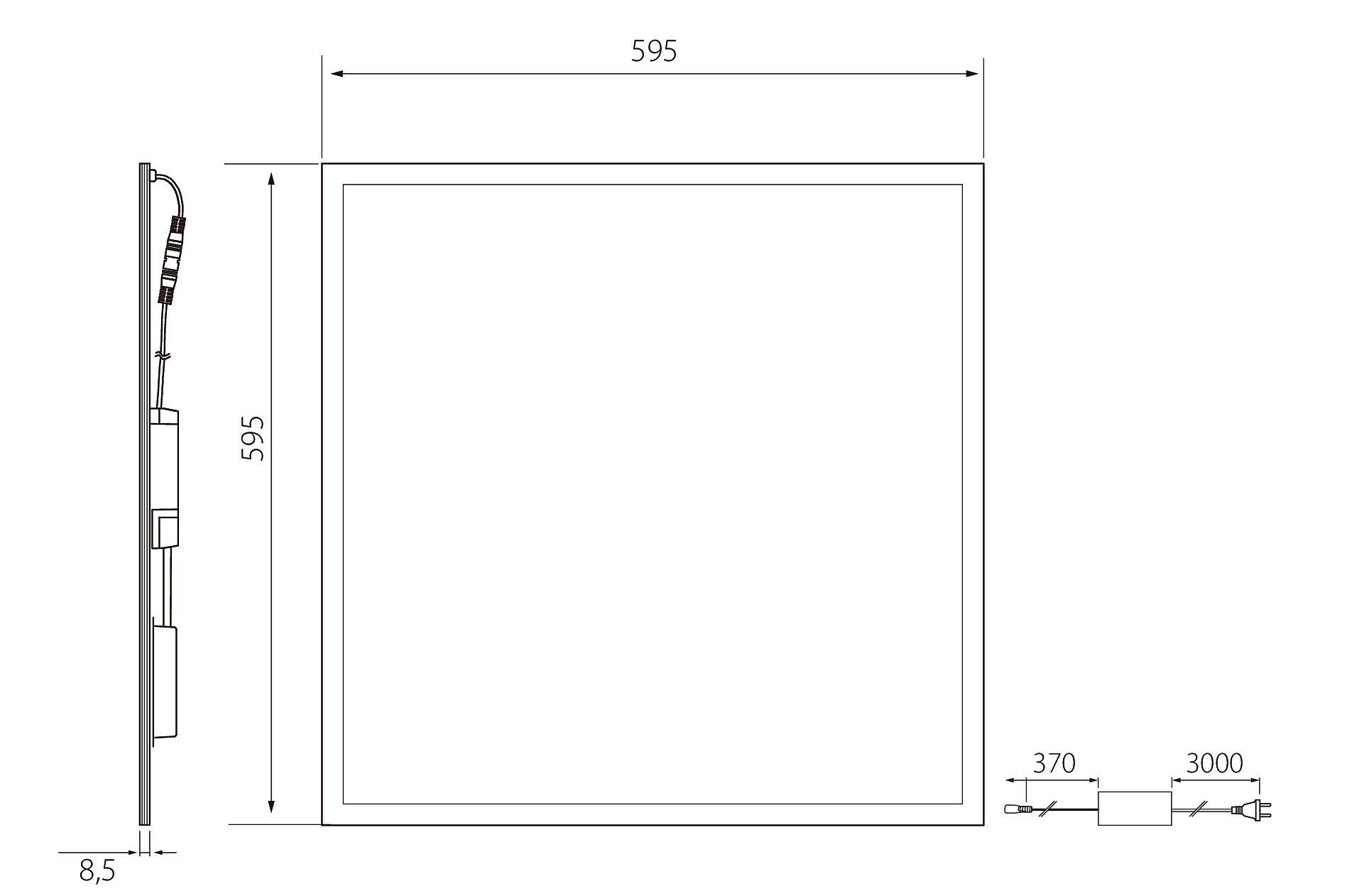

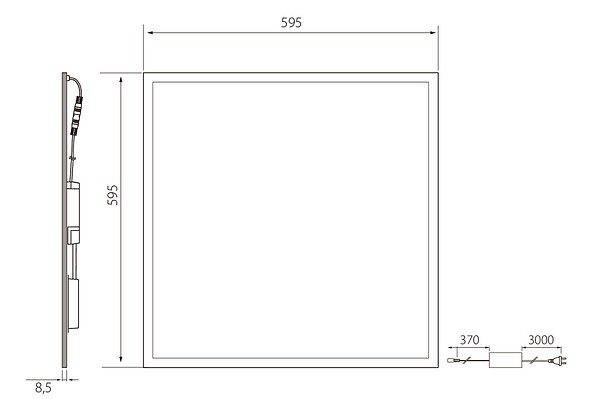

- Length (mm)
- 595
- Fit for workplace acc. EN 12464-1
- Yes
- Suitable for suspended mounting
- Yes
- Emergency function monitoring system
- None
- Luminaire efficacy (max) (lm/W)
- 102
- Colour of light (alphanumeric)
- White
- Lamp holder
- Other
- Suitable for clamp-mounting
- No
- Dimming Zigbee
- No
- Colour temperature (max) (K)
- 3000
- Dimming leading edge
- No
- Unified Glare Rating (UGR)
- 19
- Number of poles
- 2
- Stroboscope effect value SVM
- 0.4
- Connectable conductor cross section (min) (mm²)
- 1.5
- Total harmonic distortion
- 20
- Compatible with Google Assistant
- No
- Connectable conductor cross section (max) (mm²)
- 2.5
- Conductor cross section (mm²)
- 0.75
- Rated life time L70/B50 at 25 °C (h)
- 100000
- Dimming DMX
- No
- With switch
- No
- Containing product according to 2019/2020/EU
- Yes
- Suitable for emergency lighting
- No
- Photobiological safety according to EN 62471
- RG0
- Maximum system power (W)
- 45
- With presence indicator
- No
- Emergency power supply system
- None
- Dimmable
- No
- Suitable for ceiling mounting
- Yes
- Exchangeable control gear
- Yes
- Rated luminous flux according to IEC 62722-2- 1 (max) (lm)
- 4600
- Dimming Sine Wave Reduction
- No
- Dimming programmable
- No
- Housing colour
- White
- Emergency power supply integrated
- No
- Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 85
- Compatible with Casambi
- No
- Beam angle adjustable
- No
- Degree of protection (IP), rear side
- IP20
- Lumen maintenance at median useful life of 75,000 hrs at 25 °C ambient (tq) (%)
- 80
- Lumen maintenance at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
- 90
- Built-in width (mm)
- 600
- Housing surface protection
- Powder coating
- With air slots
- No
- Suitable for number of lamps
- 1
- Control gear included
- Yes
- Dimming RF
- No
- Rated ambient temperature acc. IEC62722-2-1 (min) (°C)
- 0
- Effective luminous flux (lm)
- 4600
- Rated life time L80/B50 at 25 °C
- 60000
- IFTTT support available
- No
- Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 5
- Dimming potentiometer (integrated)
- No
- Max. number of luminaires per miniature circuit breaker C10 (MCB)
- 35
- Width (mm)
- 595
- Suitable for surface mounting
- Yes
- Luminaire efficacy (lm/W)
- 102
- Dimming with push-button
- No
- With movement sensor
- No
- Nominal voltage (max) (V)
- 240
- Nominal current (min) (mA)
- 1200
- Type of wiring
- Ending
- Dimming 1-10 V
- No
- Colour rendering index (CRI/Ra)
- 80-89
- Dimming DSI
- No
- Light outlet
- Direct
- Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
- 5
- Suitable for lamp power (min) (W)
- 45
- No dimming function
- Yes
- Flickering value Pst LM
- 1
- Bluetooth operated
- No
- Dimming 0-10 V
- No
- Connection type
- Plug
- Light source included
- Yes
- Impact strength
- IK02
- Max. number of luminaires per miniature circuit breaker C16
- 52
- Failure rate at median useful life of 75,000 hrs at 25 °C ambient (tq) (%)
- 10
- Lamp type
- LED not exchangeable
- Type of grid
- None
- Light distributor
- Diffuser lens/optic/panel
- Total harmonic distortion (THD) (%)
- 20
- Built-in height/depth (mm)
- 80
- Filament test according to IEC 60695-2-11
- 650 °C - 30 s
- Suitable for light line configuration
- No
- Dimming DALI-2
- No
- Nominal voltage (min) (V)
- 220
- Suitable for recessed mounting
- Yes
- Energy efficiency class of light source according to EU regulation 2019/2015
- E
- Degree of protection (IP), front side
- IP20
- Dimming manufacturer's proprietary system
- No
- Type of control gear
- LED operating device current-controlled
- Colour temperature (min) (K)
- 3000
- Degree of protection (IP)
- IP20
- Dimming Touch and Dim
- No
- Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24
- Yes
- Power factor
- 0.9
- Beam angle
- Open beam
- Rated luminous flux according to IEC 62722-2- 1 (min) (lm)
- 4600
- Lumen setting adjustable
- No
- Suitable for lamp power (max) (W)
- 45
- Dimming DALI
- No
- With light sensor
- No
- Light sharing
- Symmetric
- Luminaire efficacy (min) (lm/W)
- 102
- Voltage type
- AC
- Colour temperature switchable
- No
- Built-in length (mm)
- 600
- Compatible with Apple HomeKit
- No
- Dimming LineSwitch
- No
- Housing material
- Aluminium
- Luminaire may be covered with thermally insulating material
- No
- Dimming trailing edge
- No
- With mounting material
- Yes
- Constant luminous flux control
- No
- Compatible with Amazon Alexa
- No
- Height/depth (mm)
- 8.5
- Rated ambient temperature acc. IEC62722-2-1 (max) (°C)
- 25
- Colour consistency (McAdam ellipse)
- SDCM3
- Protection class according to IEC 61140
- II
- Suitable for wall mounting
- No
- Dimming mains voltage modulation
- No
- Nominal current (max) (mA)
- 1200
- Cover material
- Plastic, structured
- Max. number of luminaires per miniature circuit breaker B16
- 34
Product versions
Plata PSO
| Item description | Code | |
|---|---|---|
| Plata IP20 26W/830 PSO WH | 4146630 |
|
| Plata IP20 26W/840 PSO WH | 4146631 |
|
| Plata IP20 33W/830 PSO WH | 4146632 |
|
| Plata IP20 33W/840 PSO WH | 4146633 |
|
| Plata IP20 40W/830 PSO WH | 4146812 |
|
| Plata IP20 40W/840 PSO WH | 4146813 |
|
| Plata IP20 45W/830 PSO WH | 4146634 |
|
| Plata IP20 45W/840 PSO WH | 4146635 |
|
| Plata IP20 57W/830 PSO WH | 4146636 |
|
| Plata IP20 57W/840 PSO WH | 4146637 |
Plata PSMP
| Item description | Code | |
|---|---|---|
| Plata IP20 26W/830 PSMP WH | 4146638 |
|
| Plata IP20 26W/840 PSMP WH | 4146639 |
|
| Plata IP20 33W/830 PSMP WH | 4146640 |
|
| Plata IP20 33W/840 PSMP WH | 4146641 |
|
| Plata IP20 40W/830 PSMP WH | 4146814 |
|
| Plata IP20 40W/840 PSMP WH | 4146815 |
|
| Plata IP20 45W/830 PSMP WH | 4146642 |
|
| Plata IP20 45W/840 PSMP WH | 4146643 |
|
| Plata IP20 57W/830 PSMP WH | 4146644 |
|
| Plata IP20 57W/840 PSMP WH | 4146645 |
Plata Dali PSO
| Item description | Code | |
|---|---|---|
| Plata IP20 27W/830 DA2 PSO WH | 4146646 |
|
| Plata IP20 27W/840 DA2 PSO WH | 4146647 |
|
| Plata IP20 34W/830 DA2 PSO WH | 4146648 |
|
| Plata IP20 34W/840 DA2 PSO WH | 4146649 |
|
| Plata IP20 41W/830 DA2 PSO WH | 4146805 |
|
| Plata IP20 41W/840 DA2 PSO WH | 4146806 |
|
| Plata IP20 46W/830 DA2 PSO WH | 4146650 |
|
| Plata IP20 46W/840 DA2 PSO WH | 4146651 |
|
| Plata IP20 54W/830 DA2 PSO WH | 4146652 |
|
| Plata IP20 54W/840 DA2 PSO WH | 4146653 |
Plata Dali PSMP
| Item description | Code | |
|---|---|---|
| Plata IP20 27W/830 DA2 PSMP WH | 4146654 |
|
| Plata IP20 27W/840 DA2 PSMP WH | 4146655 |
|
| Plata IP20 34W/830 DA2 PSMP WH | 4146656 |
|
| Plata IP20 34W/840 DA2 PSMP WH | 4146657 |
|
| Plata IP20 41W/830 DA2 PSMP WH | 4146807 |
|
| Plata IP20 41W/840 DA2 PSMP WH | 4146808 |
|
| Plata IP20 46W/830 DA2 PSMP WH | 4146658 |
|
| Plata IP20 46W/840 DA2 PSMP WH | 4146659 |
|
| Plata IP20 54W/830 DA2 PSMP WH | 4146660 |
|
| Plata IP20 54W/840 DA2 PSMP WH | 4146661 |
Plata Casambi PSO
| Item description | Code | |
|---|---|---|
| Plata IP20 26W/830 CA PSO WH | A1UPAA-CA |
|
| Plata IP20 33W/830 CA PSO WH | A1UPAC-CA |
|
| Plata IP20 45W/830 CA PSO WH | A1UPAE-CA |
|
| Plata IP20 53W/830 CA PSO WH | A1UPAG-CA |
Plata Casambi PSMP
| Item description | Code | |
|---|---|---|
| Plata IP20 26W/830 CA PSMP WH | A1UPAI-CA |
|
| Plata IP20 33W/830 CA PSMP WH | A1UPAK-CA |
|
| Plata IP20 45W/830 CA PSMP WH | A1UPAM-CA |
|
| Plata IP20 53W/830 CA PSMP WH | A1UPAO-CA |
Plata EU Plug PSO (3 m cable)
| Item description | Code | |
|---|---|---|
| Plata IP20 26W/830 EU PSO WH | A1UPAA-EU |
|
| Plata IP20 26W/840 EU PSO WH | A1UPAB-EU |
|
| Plata IP20 33W/830 EU PSO WH | A1UPAC-EU |
|
| Plata IP20 33W/840 EU PSO WH | A1UPAD-EU |
|
| Plata IP20 40W/830 EU PSO WH | A1UPAQ-EU |
|
| Plata IP20 45W/830 EU PSO WH | A1UPAE-EU |
|
| Plata IP20 57W/830 EU PSO WH | A1UPAG-EU |
Plata EU Plug PSMP (3 m cable)
| Item description | Code | |
|---|---|---|
| Plata IP20 26W/830 EU PSMP WH | A1UPAI-EU |
|
| Plata IP20 33W/830 EU PSMP WH | A1UPAK-EU |
|
| Plata IP20 40W/830 EU PSMP WH | A1UPAS-EU |
|
| Plata IP20 40W/840 EU PSMP WH | A1UPAT-EU |
|
| Plata IP20 45W/830 EU PSMP WH | A1UPAM-EU |
|
| Plata IP20 57W/830 EU PSMP WH | A1UPAO-EU |
Plata Casambi EU Plug PSO (3 m cable)
| Item description | Code | |
|---|---|---|
| Plata IP20 26W/830 CAEU PSO WH | A1UPAA-CAEU |
|
| Plata IP20 33W/830 CAEU PSO WH | A1UPAC-CAEU |
|
| Plata IP20 45W/830 CAEU PSO WH | A1UPAE-CAEU |
|
| Plata IP20 53W/830 CAEU PSO WH | A1UPAG-CAEU |
Plata Casambi EU Plug PSMP (3 m cable)
| Item description | Code | |
|---|---|---|
| Plata IP20 26W/830 CAEU PSMP WH | A1UPAI-CAEU |
|
| Plata IP20 33W/830 CAEU PSMP WH | A1UPAK-CAEU |
|
| Plata IP20 45W/830 CAEU PSMP WH | A1UPAM-CAEU |
|
| Plata IP20 53W/830 CAEU PSMP WH | A1UPAO-CAEU |
