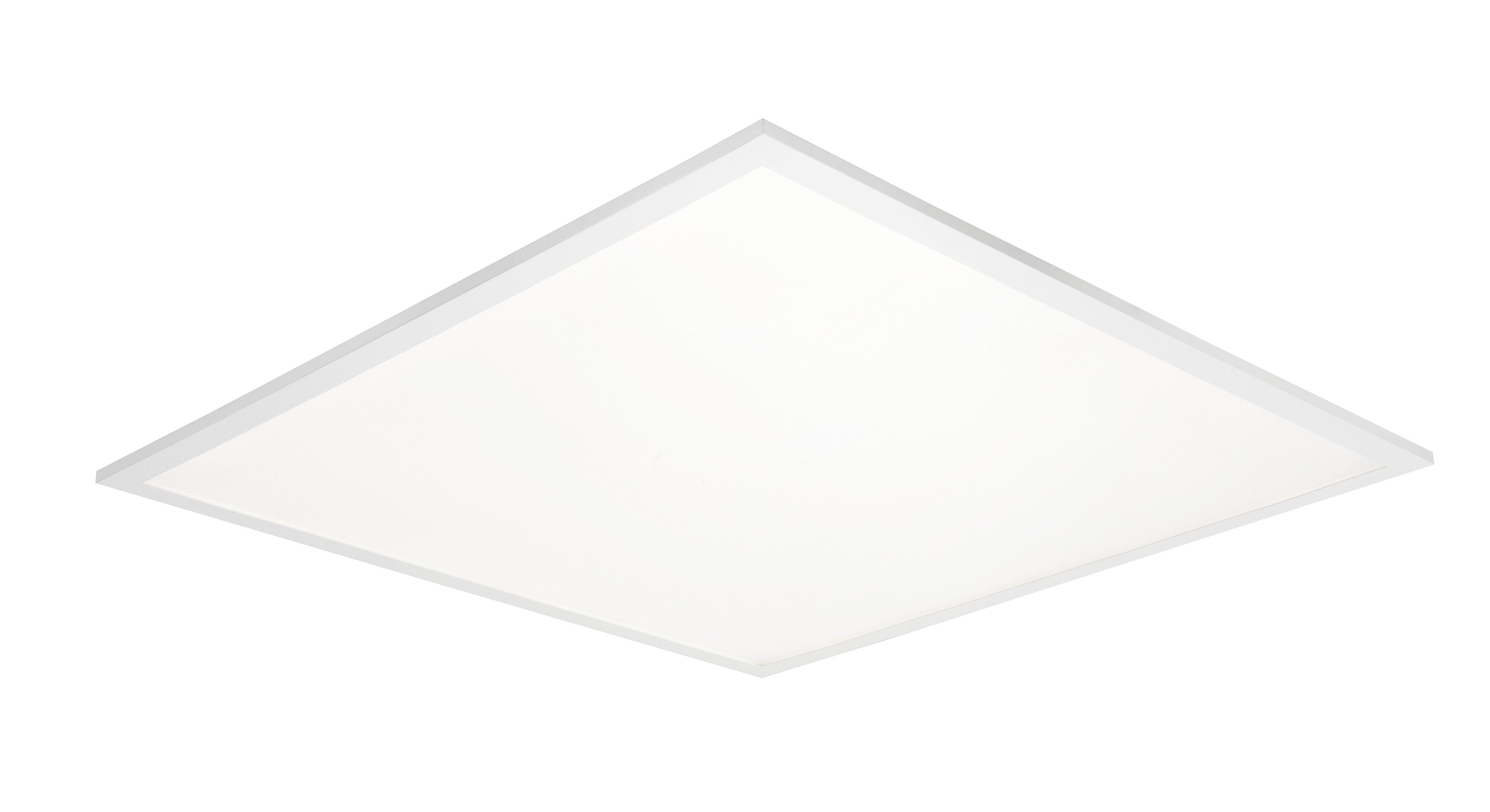

Plano Pro IP44 45W/940 PSMP DA2 WH
Plano Pro Modular luminaire 45W 4000K 5800lm Dim DALI-2; Dim programmable; Dim with push-button; IP44; IK02; Protection cl. II; L70B50 100000h; LED not exchangeable; Lamp included; CRI>90; SDCM3; Suitable for through wiring; 5x2.5mm²; Housing al; Colour wh; Cover Plastic, structured; C16 max. 80

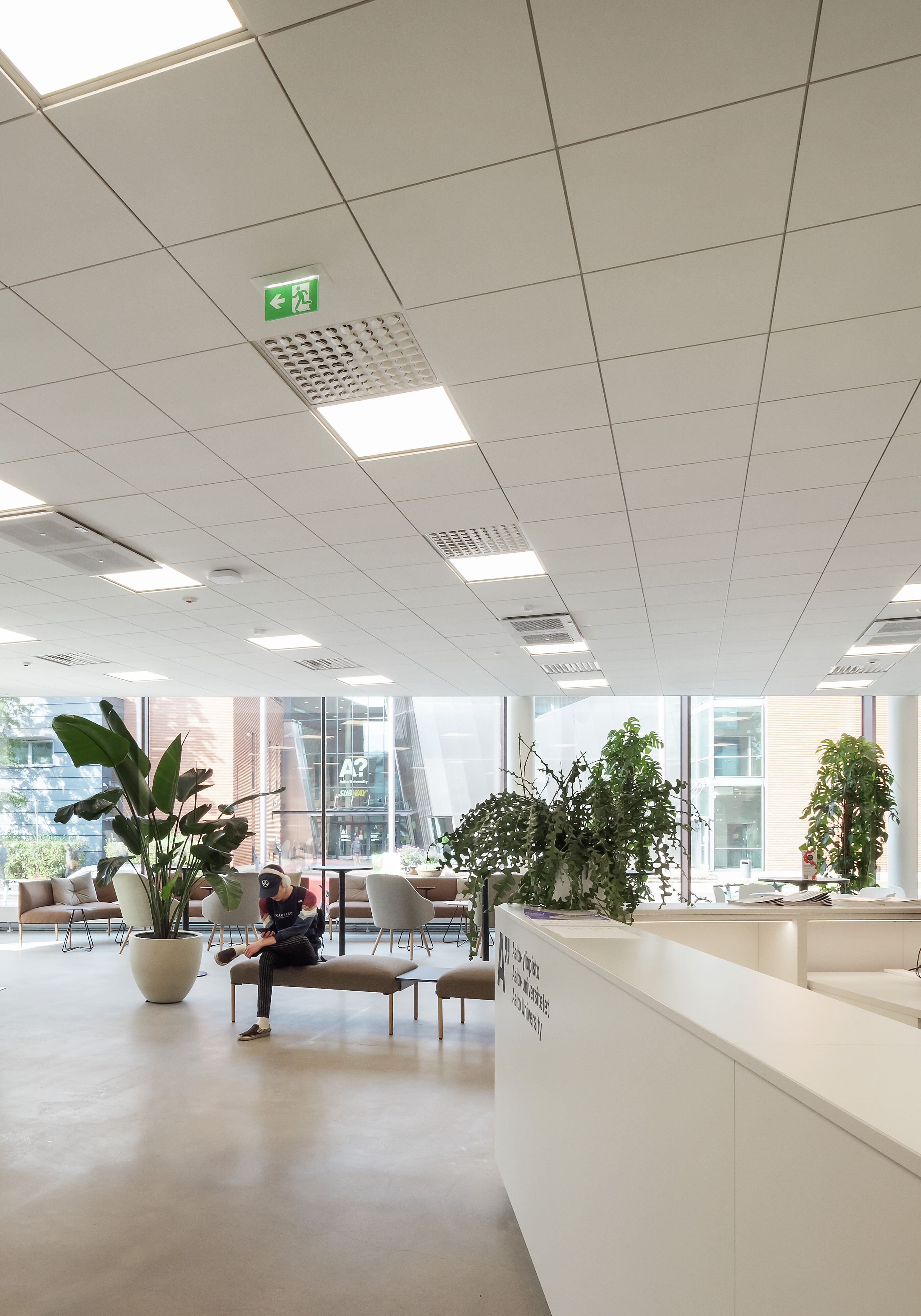

Plano Pro is a new-generation, energy-efficient and versatile modular luminaire with a huge range of applications. The luminaire’s excellent colour rendering index, UGR value (<19) and IP44 class make it an ideal choice for almost any application. Thanks to its energy-efficiency, Plano Pro is suitable for public spaces such as corridors, lobbies and open-plan offices. Because of its low UGR value, the luminaire can be used in schools, day-care centres and spaces where computers are used. The bottom part of the luminaire has an IP44 classification, making it suitable for dusty and humid spaces. A variety of installation accessories are available for the luminaire, including cover sheets for the round light opening and accessories for surface and recessed mounting. The luminaire is also available as a Tunable White version.
Aluminium frame, steel housing, polystyrene diffuser (PSMP) and acrylic lenses.
White, RAL 9016.
Luminaire protection class III.
LED driver protection class II.
Mounting on a T-grid ceiling, recessed and surface mounting with accessories.
Linkable: on/off and Dali-2 max 5 x 2,5 mm2, Casambi and ActiveAhead 3 x 2,5 mm2, Dim 3 x 1,5 mm2.
Colour temperatures 3000K, 4000 K and Tunable White 2700–6000 K. CRI > 90 / Ra > 90.
MacAdam 3 SDCM.
IP44. ActiveAhead-models IP20.
IK02.
On/off: 27 W 3500 lm / 35 W 4500 lm.
Dim: 31 W 4000 lm.
Dali-2, Casambi and ActiveAhead: 27 W 3500 lm / 35 W 4500 lm / 45 W 5800 lm.
Dali DT8 35 W 4300 lm.
Casambi TW 35 W 4300 lm.
On/off, Dim (trailing-edge dimming), Dali-2 with direct pushbutton control 230V and CLO functions, Casambi (Bluetooth mesh), ActiveAhead (self-learning wireless lighting control solution) and TW with Dali DT8- or Casambi-control.
On/off and Casambi ranges also available with 3-meter Europlug cable H03VVH2-F 2 x 0.75 mm2.
Use with Dali-2-certified control devices is recommended.
Maximum number of led drivers to be connected to one switch is 60 pcs. The length of the cable between the switch and the luminaire is max. 10 meters.
Ambient temperature range 0 … 25 °C.
Rated lifetime L70B50 > 100 000 h (Ta25°C).
Rated lifetime L80B10 100 000 h (Ta25°C).
Rated lifetime L90B10 80 000 h (Ta25°C).
Power source lifespan 100 000 h.
Accessories include three different colored surface mounting frames: white (4146973), black (A2PLKI) and gray (A2PLKJ). Also: flush mounting frame 600 x 600 (4297811), installation kit for concealed grid ceilings (4146933) and mounting set (4146993). Also available cover plates 600*600 R400 (A2PLZC) and 600*600 R500 (A2PLZA). The luminous flux of the luminaire decreases with cover plates about 30% (R500) and about 50% (R400).
DIM = phase-cut dimming, TW = Tunable White.
Cut-to-measure cables and a variety of quick-connector cable sets can be ordered on a project-specific basis.
- Code
- 4146850
Downloads
Technical info
- Electrical number (FIN)
- 4146850
- Electrical number (SWE)
- 7022904
- GTIN
- 6435200295859
- Airam code
- A2PRAH-DALI
- Code
- 4146850
- Length (mm)
- 595
- Fit for workplace acc. EN 12464-1
- Yes
- Suitable for suspended mounting
- No
- Emergency function monitoring system
- None
- Luminaire efficacy (max) (lm/W)
- 130
- Colour of light (alphanumeric)
- White
- Lamp holder
- Other
- Suitable for clamp-mounting
- No
- Dimming Zigbee
- No
- Colour temperature (max) (K)
- 4000
- Dimming leading edge
- No
- Unified Glare Rating (UGR)
- 19
- Number of poles
- 5
- Stroboscope effect value SVM
- 0.4
- Connectable conductor cross section (min) (mm²)
- 1.5
- Total harmonic distortion
- 10
- Compatible with Google Assistant
- No
- Connectable conductor cross section (max) (mm²)
- 2.5
- Conductor cross section (mm²)
- 2.5
- Rated life time L70/B50 at 25 °C (h)
- 100000
- Dimming DMX
- No
- With switch
- No
- Containing product according to 2019/2020/EU
- Yes
- Suitable for emergency lighting
- No
- With light sensor
- No
- Photobiological safety according to EN 62471
- RG0
- Maximum system power (W)
- 45
- With presence indicator
- No
- Emergency power supply system
- None
- Dimmable
- Yes
- Suitable for ceiling mounting
- Yes
- Exchangeable control gear
- Yes
- Rated luminous flux according to IEC 62722-2- 1 (max) (lm)
- 5800
- Dimming Sine Wave Reduction
- No
- Dimming programmable
- Yes
- Housing colour
- White
- Emergency power supply integrated
- No
- Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 90
- Compatible with Casambi
- No
- Beam angle adjustable
- No
- Degree of protection (IP), rear side
- IP20
- Lumen maintenance at median useful life of 75,000 hrs at 25 °C ambient (tq) (%)
- 85
- Filament test according to IEC 60695-2-11
- 650 °C - 30 s
- Lumen maintenance at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
- 95
- Built-in width (mm)
- 600
- Housing surface protection
- Powder coating
- With air slots
- No
- Suitable for number of lamps
- 1
- Control gear included
- Yes
- Dimming RF
- No
- Rated ambient temperature acc. IEC62722-2-1 (min) (°C)
- 0
- Effective luminous flux (lm)
- 5800
- Rated life time L80/B50 at 25 °C
- 100000
- IFTTT support available
- No
- Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 10
- Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24
- Yes
- Dimming potentiometer (integrated)
- No
- Impact strength
- IK02
- Max. number of luminaires per miniature circuit breaker C10 (MCB)
- 48
- Width (mm)
- 595
- Suitable for surface mounting
- Yes
- Luminaire efficacy (lm/W)
- 130
- Dimming with push-button
- Yes
- Energy efficiency class of light source according to EU regulation 2019/2015
- D
- With movement sensor
- No
- Nominal voltage (max) (V)
- 240
- Nominal current (min) (mA)
- 1200
- Type of wiring
- Suitable for through wiring
- Dimming 1-10 V
- No
- Colour rendering index (CRI/Ra)
- 90-100
- Dimming DSI
- No
- Light outlet
- Direct
- Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
- 5
- Suitable for lamp power (min) (W)
- 45
- No dimming function
- No
- Degree of protection (IP), front side
- IP44
- Flickering value Pst LM
- 1
- Bluetooth operated
- No
- Dimming 0-10 V
- No
- Connection type
- Screwless terminal
- Light source included
- Yes
- Max. number of luminaires per miniature circuit breaker C16
- 80
- Failure rate at median useful life of 75,000 hrs at 25 °C ambient (tq) (%)
- 10
- Lamp type
- LED not exchangeable
- Type of grid
- None
- Light distributor
- Diffuser lens/optic/panel
- Luminaire may be covered with thermally insulating material
- No
- Total harmonic distortion (THD) (%)
- 10
- Built-in height/depth (mm)
- 80
- Suitable for light line configuration
- No
- Dimming DALI-2
- Yes
- Nominal voltage (min) (V)
- 220
- Suitable for recessed mounting
- Yes
- Dimming manufacturer's proprietary system
- No
- Type of control gear
- LED operating device current-controlled
- Colour temperature (min) (K)
- 4000
- Degree of protection (IP)
- IP44
- Power factor
- 0.9
- Beam angle
- Open beam
- Rated luminous flux according to IEC 62722-2- 1 (min) (lm)
- 5800
- Lumen setting adjustable
- No
- Suitable for lamp power (max) (W)
- 45
- Protection class according to IEC 61140
- II
- Dimming DALI
- Yes
- Light sharing
- Symmetric
- Luminaire efficacy (min) (lm/W)
- 130
- Voltage type
- AC
- Colour temperature switchable
- No
- Built-in length (mm)
- 600
- Compatible with Apple HomeKit
- No
- Dimming LineSwitch
- No
- Housing material
- Aluminium
- With mounting material
- Yes
- Constant luminous flux control
- Yes
- Compatible with Amazon Alexa
- No
- Height/depth (mm)
- 32
- Rated ambient temperature acc. IEC62722-2-1 (max) (°C)
- 25
- Colour consistency (McAdam ellipse)
- SDCM3
- Dimming trailing edge
- No
- Suitable for wall mounting
- No
- Dimming Touch and Dim
- No
- Dimming mains voltage modulation
- No
- Nominal current (max) (mA)
- 1200
- Cover material
- Plastic, structured
- Max. number of luminaires per miniature circuit breaker B16
- 47
Product versions
Plano Pro
| Item description | Code | |
|---|---|---|
| Plano Pro IP44 27W/930 PSMP WH | 4146839 |
|
| Plano Pro IP44 27W/940 PSMP WH | 4146840 |
|
| Plano Pro IP44 35W/930 PSMP WH | 4146841 |
|
| Plano Pro IP44 35W/940 PSMP WH | 4146842 |
Plano Pro Dim
| Item description | Code | |
|---|---|---|
| Plano Pro IP44 31W/930 PSMP DIM WH | 4146843 |
|
| Plano Pro IP44 31W/940 PSMP DIM WH | 4146844 |
Plano Pro Dali
| Item description | Code | |
|---|---|---|
| Plano Pro IP44 27W/930 PSMP DA2 WH | 4146845 |
|
| Plano Pro IP44 27W/940 PSMP DA2 WH | 4146846 |
|
| Plano Pro IP44 35W/930 PSMP DA2 WH | 4146847 |
|
| Plano Pro IP44 35W/940 PSMP DA2 WH | 4146848 |
|
| Plano Pro IP44 45W/930 PSMP DA2 WH | 4146849 |
|
| Plano Pro IP44 45W/940 PSMP DA2 WH | 4146850 |
|
| Plano Pro IP44 35W/TW PSMP DA2 WH | 4146851 |
Plano Pro Casambi
| Item description | Code | |
|---|---|---|
| Plano Pro IP44 27W/930 PSMP CA WH | A2PRAA-CA |
|
| Plano Pro IP44 27W/940 PSMP CA WH | A2PRAB-CA |
|
| Plano Pro IP44 35W/930 PSMP CA WH | A2PRAC-CA |
|
| Plano Pro IP44 35W/940 PSMP CA WH | 4146852 |
|
| Plano Pro IP44 45W/930 PSMP CA WH | A2PRAG-CA |
|
| Plano Pro IP44 45W/940 PSMP CA WH | 4146853 |
|
| Plano Pro IP44 35W/TW PSMP CA WH | 4146854 |
Plano Pro ActiveAhead
| Item description | Code | |
|---|---|---|
| Plano Pro IP20 35W/930 PSMP AA WH | A2PRAC-AA |
|
| Plano Pro IP20 35W/940 PSMP AA WH | A2PRAD-AA |
|
| Plano Pro IP20 45W/930 PSMP AA WH | A2PRAG-AA |
|
| Plano Pro IP20 45W/940 PSMP AA WH | A2PRAH-AA |
Plano Pro EU Plug PSMP (3 m cable)
| Item description | Code | |
|---|---|---|
| Plano Pro IP44 27W/930 PSMP EU WH | A2PRAA-EU |
|
| Plano Pro IP44 27W/940 PSMP EU WH | A2PRAB-EU |
|
| Plano Pro IP44 35W/930 PSMP EU WH | A2PRAC-EU |
|
| Plano Pro IP44 35W/940 PSMP EU WH | A2PRAD-EU |
Plano Pro Dim EU Plug PSMP (3m cable)
| Item description | Code | |
|---|---|---|
| Plano Pro IP44 31W/930 PSMP EU DIM | A2PRAE-EU |
|
| Plano Pro IP44 31W/940 PSMP EU DIM | A2PRAF-EU |
Plano Pro Casambi EU Plug PSMP (3 m cable)
| Item description | Code | |
|---|---|---|
| Plano Pro IP44 27W/930 PSMP CAEU WH | A2PRAA-CAEU |
|
| Plano Pro IP44 27W/940 PSMP CAEU WH | A2PRAB-CAEU |
|
| Plano Pro IP44 35W/930 PSMP CAEU WH | A2PRAC-CAEU |
|
| Plano Pro IP44 35W/940 PSMP CAEU WH | A2PRAD-CAEU |
|
| Plano Pro IP44 45W/930 PSMP CAEU WH | A2PRAG-CAEU |
|
| Plano Pro IP44 45W/940 PSMP CAEU WH | A2PRAH-CAEU |
