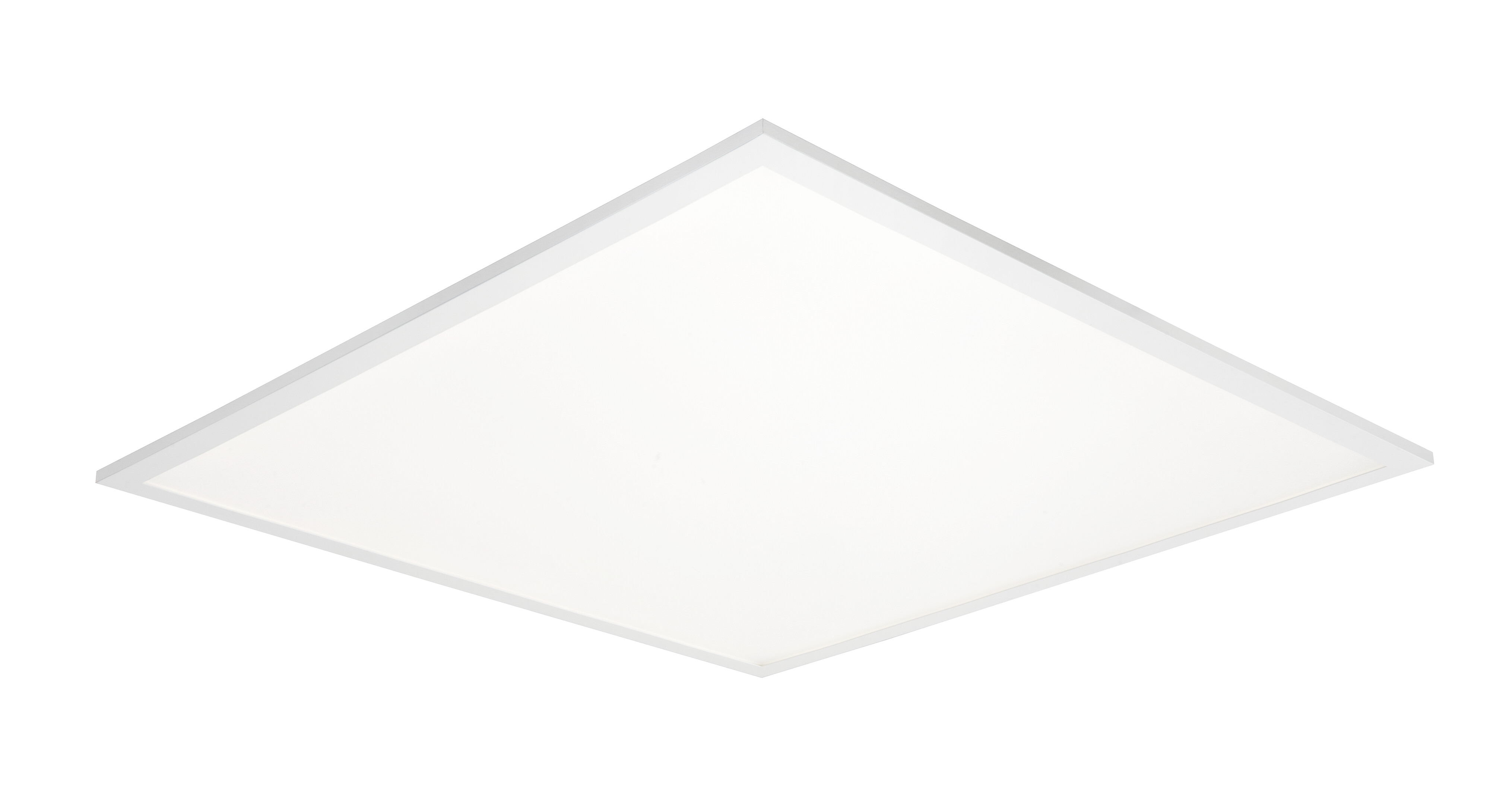

Plano Pro IP44 27W/940 PSMP WH
Plano Pro Modular luminaire 27W 4000K 3500lm No dim; IP44; IK02; Protection cl. II; L70B50 100000h; LED not exchangeable; Lamp included; CRI>90; SDCM3; Suitable for through wiring; 5x2.5mm²; Housing al; Colour wh; Cover Plastic, structured; C16 max. 27

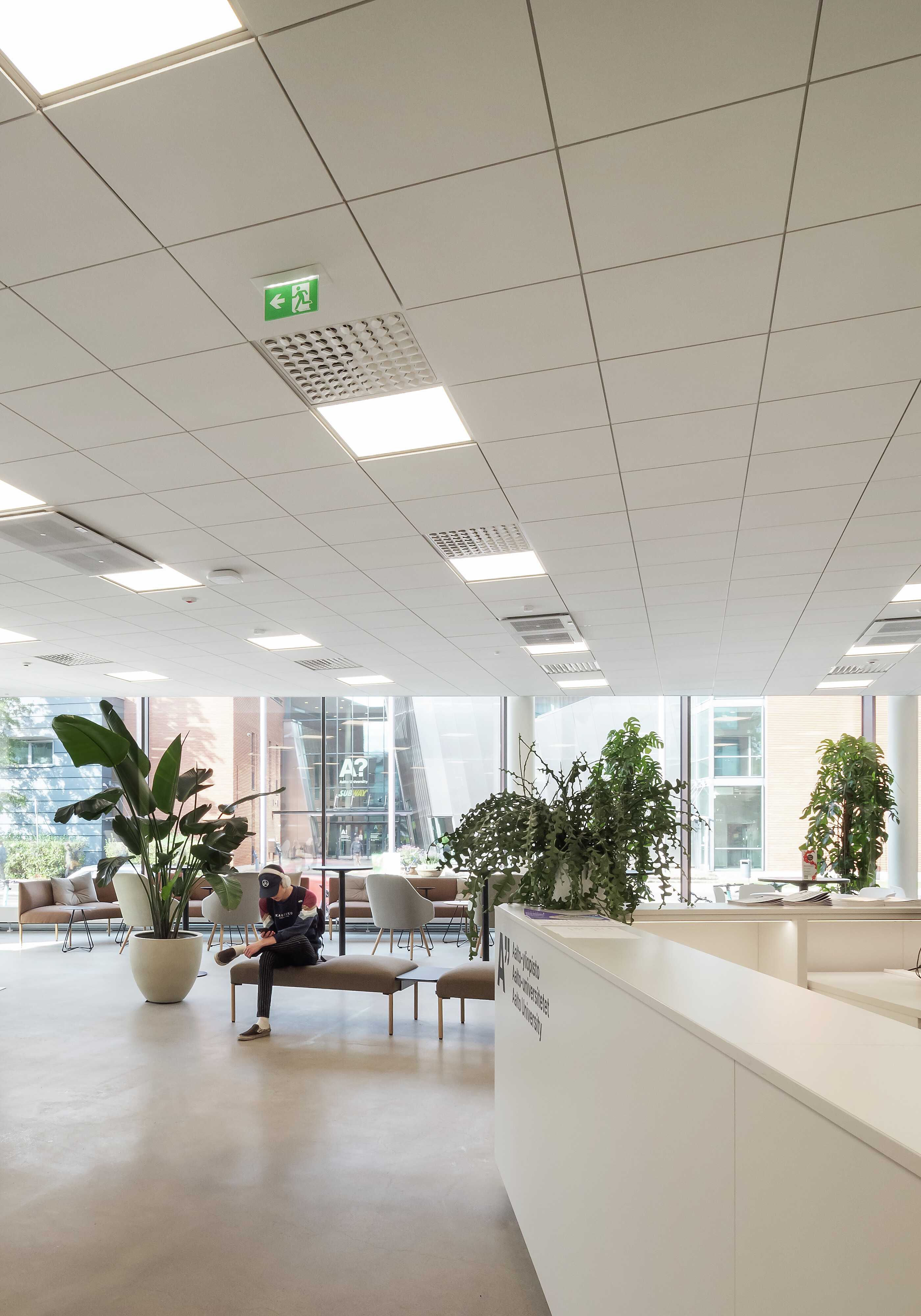

Plano Pro is a new-generation, energy-efficient and versatile modular luminaire with a huge range of applications. The luminaire’s excellent colour rendering index, UGR value (<19) and IP44 class make it an ideal choice for almost any application. Thanks to its energy-efficiency, Plano Pro is suitable for public spaces such as corridors, lobbies and open-plan offices. Because of its low UGR value, the luminaire can be used in schools, day-care centres and spaces where computers are used. The bottom part of the luminaire has an IP44 classification, making it suitable for dusty and humid spaces. A variety of installation accessories are available for the luminaire, including cover sheets for the round light opening and accessories for surface and recessed mounting. The luminaire is also available as a Tunable White version.
Aluminium frame, steel housing, polystyrene diffuser (PSMP) and acrylic lenses.
White, RAL 9016.
Luminaire protection class III.
LED driver protection class II.
Mounting on a T-grid ceiling, recessed and surface mounting with accessories.
Linkable: on/off and Dali-2 max 5 x 2,5 mm2, Casambi and ActiveAhead 3 x 2,5 mm2, Dim 3 x 1,5 mm2.
Colour temperatures 3000K, 4000 K and Tunable White 2700–6000 K. CRI > 90 / Ra > 90.
MacAdam 3 SDCM.
IP44. ActiveAhead-models IP20.
IK02.
On/off: 27 W 3500 lm / 35 W 4500 lm.
Dim: 31 W 4000 lm.
Dali-2, Casambi and ActiveAhead: 27 W 3500 lm / 35 W 4500 lm / 45 W 5800 lm.
Dali DT8 35 W 4300 lm.
Casambi TW 35 W 4300 lm.
On/off, Dim (trailing-edge dimming), Dali-2 with direct pushbutton control 230V and CLO functions, Casambi (Bluetooth mesh), ActiveAhead (self-learning wireless lighting control solution) and TW with Dali DT8- or Casambi-control.
On/off and Casambi ranges also available with 3-meter Europlug cable H03VVH2-F 2 x 0.75 mm2.
Use with Dali-2-certified control devices is recommended.
Maximum number of led drivers to be connected to one switch is 60 pcs. The length of the cable between the switch and the luminaire is max. 10 meters.
Ambient temperature range 0 … 25 °C.
Rated lifetime L70B50 > 100 000 h (Ta25°C).
Rated lifetime L80B10 100 000 h (Ta25°C).
Rated lifetime L90B10 80 000 h (Ta25°C).
Power source lifespan 100 000 h.
Accessories include three different colored surface mounting frames: white (4146973), black (A2PLKI) and gray (A2PLKJ). Also: flush mounting frame 600 x 600 (4297811), installation kit for concealed grid ceilings (4146933) and mounting set (4146993). Also available cover plates 600*600 R400 (A2PLZC) and 600*600 R500 (A2PLZA). The luminous flux of the luminaire decreases with cover plates about 30% (R500) and about 50% (R400).
DIM = phase-cut dimming, TW = Tunable White.
Cut-to-measure cables and a variety of quick-connector cable sets can be ordered on a project-specific basis.
- Code
- 4146840
Downloads
Technical info
- Electrical number (FIN)
- 4146840
- Electrical number (SWE)
- 7024471
- GTIN
- 6435200295750
- Airam code
- A2PRAB
- Code
- 4146840
- Compatible with Apple HomeKit
- No
- Beam angle adjustable
- No
- With light sensor
- No
- Connectable conductor cross section (min) (mm²)
- 1.5
- With air slots
- No
- Compatible with Google Assistant
- No
- Fit for workplace acc. EN 12464-1
- Yes
- Luminaire efficacy (max) (lm/W)
- 130
- Light sharing
- Symmetric
- Energy efficiency class of light source according to EU regulation 2019/2015
- D
- Beam angle
- Open beam
- Impact strength
- IK02
- Stroboscope effect value SVM
- 0.4
- With presence indicator
- No
- Dimming DSI
- No
- No dimming function
- Yes
- Rated luminous flux according to IEC 62722-2- 1 (max) (lm)
- 3500
- Effective luminous flux (lm)
- 3500
- Constant luminous flux control
- No
- Dimming trailing edge
- No
- Rated luminous flux according to IEC 62722-2- 1 (min) (lm)
- 3500
- Light source included
- Yes
- Housing material
- Aluminium
- Width (mm)
- 595
- Suitable for suspended mounting
- No
- Type of grid
- None
- Rated ambient temperature acc. IEC62722-2-1 (max) (°C)
- 25
- Max. number of luminaires per miniature circuit breaker B16
- 16
- Luminaire may be covered with thermally insulating material
- No
- Flickering value Pst LM
- 1
- Bluetooth operated
- No
- Colour temperature switchable
- No
- Dimming DMX
- No
- Compatible with Casambi
- No
- Lamp holder
- Other
- Type of control gear
- LED operating device current-controlled
- Suitable for lamp power (min) (W)
- 27
- Dimming programmable
- No
- IFTTT support available
- No
- Dimming mains voltage modulation
- No
- Light distributor
- Diffuser lens/optic/panel
- Dimming RF
- No
- Emergency function monitoring system
- None
- Luminaire efficacy (lm/W)
- 130
- Dimming 0-10 V
- No
- Total harmonic distortion (THD) (%)
- 20
- Height/depth (mm)
- 32
- Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 10
- Exchangeable control gear
- Yes
- Voltage type
- AC
- Length (mm)
- 595
- Dimming Touch and Dim
- No
- Photobiological safety according to EN 62471
- RG0
- Dimming potentiometer (integrated)
- No
- Filament test according to IEC 60695-2-11
- 650 °C - 30 s
- Suitable for wall mounting
- No
- Built-in height/depth (mm)
- 80
- Nominal current (min) (mA)
- 700
- With mounting material
- Yes
- Suitable for surface mounting
- Yes
- Colour of light (alphanumeric)
- White
- Colour temperature (max) (K)
- 4000
- Rated life time L70/B50 at 25 °C (h)
- 100000
- Dimming Sine Wave Reduction
- No
- Colour rendering index (CRI/Ra)
- 90-100
- Built-in width (mm)
- 600
- Colour consistency (McAdam ellipse)
- SDCM3
- Nominal voltage (min) (V)
- 220
- Connectable conductor cross section (max) (mm²)
- 2.5
- Rated ambient temperature acc. IEC62722-2-1 (min) (°C)
- 0
- Dimming leading edge
- No
- Failure rate at median useful life of 75,000 hrs at 25 °C ambient (tq) (%)
- 10
- Suitable for recessed mounting
- Yes
- Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
- 5
- Max. number of luminaires per miniature circuit breaker C16
- 27
- Rated life time L80/B50 at 25 °C
- 100000
- Containing product according to 2019/2020/EU
- Yes
- Control gear included
- Yes
- Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24
- Yes
- Lumen maintenance at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
- 95
- Degree of protection (IP), front side
- IP44
- Type of wiring
- Suitable for through wiring
- With movement sensor
- No
- Dimming with push-button
- No
- Built-in length (mm)
- 600
- Emergency power supply system
- None
- Protection class according to IEC 61140
- II
- Degree of protection (IP), rear side
- IP20
- Power factor
- 0.9
- Dimming Zigbee
- No
- Max. number of luminaires per miniature circuit breaker C10 (MCB)
- 16
- Suitable for clamp-mounting
- No
- Unified Glare Rating (UGR)
- 19
- Dimming LineSwitch
- No
- Compatible with Amazon Alexa
- No
- Dimming 1-10 V
- No
- Dimmable
- No
- Dimming DALI
- No
- Cover material
- Plastic, structured
- With switch
- No
- Total harmonic distortion
- 20
- Conductor cross section (mm²)
- 2.5
- Suitable for lamp power (max) (W)
- 27
- Nominal voltage (max) (V)
- 240
- Colour temperature (min) (K)
- 4000
- Luminaire efficacy (min) (lm/W)
- 130
- Suitable for light line configuration
- No
- Housing colour
- White
- Dimming DALI-2
- No
- Number of poles
- 5
- Suitable for emergency lighting
- No
- Dimming manufacturer's proprietary system
- No
- Suitable for number of lamps
- 1
- Housing surface protection
- Powder coating
- Lumen maintenance at median useful life of 75,000 hrs at 25 °C ambient (tq) (%)
- 85
- Light outlet
- Direct
- Suitable for ceiling mounting
- Yes
- Lamp type
- LED not exchangeable
- Nominal current (max) (mA)
- 700
- Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 90
- Connection type
- Screwless terminal
- Emergency power supply integrated
- No
- Degree of protection (IP)
- IP44
- Maximum system power (W)
- 27
- Lumen setting adjustable
- No
Product versions
Plano Pro
| Item description | Code | |
|---|---|---|
| Plano Pro IP44 27W/930 PSMP WH | 4146839 |
|
| Plano Pro IP44 27W/940 PSMP WH | 4146840 |
|
| Plano Pro IP44 35W/930 PSMP WH | 4146841 |
|
| Plano Pro IP44 35W/940 PSMP WH | 4146842 |
Plano Pro Dim
| Item description | Code | |
|---|---|---|
| Plano Pro IP44 31W/930 PSMP DIM WH | 4146843 |
|
| Plano Pro IP44 31W/940 PSMP DIM WH | 4146844 |
Plano Pro Dali
| Item description | Code | |
|---|---|---|
| Plano Pro IP44 27W/930 PSMP DA2 WH | 4146845 |
|
| Plano Pro IP44 27W/940 PSMP DA2 WH | 4146846 |
|
| Plano Pro IP44 35W/930 PSMP DA2 WH | 4146847 |
|
| Plano Pro IP44 35W/940 PSMP DA2 WH | 4146848 |
|
| Plano Pro IP44 45W/930 PSMP DA2 WH | 4146849 |
|
| Plano Pro IP44 45W/940 PSMP DA2 WH | 4146850 |
|
| Plano Pro IP44 35W/TW PSMP DA2 WH | 4146851 |
Plano Pro Casambi
| Item description | Code | |
|---|---|---|
| Plano Pro IP44 27W/930 PSMP CA WH | A2PRAA-CA |
|
| Plano Pro IP44 27W/940 PSMP CA WH | A2PRAB-CA |
|
| Plano Pro IP44 35W/930 PSMP CA WH | A2PRAC-CA |
|
| Plano Pro IP44 35W/940 PSMP CA WH | 4146852 |
|
| Plano Pro IP44 45W/930 PSMP CA WH | A2PRAG-CA |
|
| Plano Pro IP44 45W/940 PSMP CA WH | 4146853 |
|
| Plano Pro IP44 35W/TW PSMP CA WH | 4146854 |
Plano Pro ActiveAhead
| Item description | Code | |
|---|---|---|
| Plano Pro IP20 35W/930 PSMP AA WH | A2PRAC-AA |
|
| Plano Pro IP20 35W/940 PSMP AA WH | A2PRAD-AA |
|
| Plano Pro IP20 45W/930 PSMP AA WH | A2PRAG-AA |
|
| Plano Pro IP20 45W/940 PSMP AA WH | A2PRAH-AA |
Plano Pro EU Plug PSMP (3 m cable)
| Item description | Code | |
|---|---|---|
| Plano Pro IP44 27W/930 PSMP EU WH | A2PRAA-EU |
|
| Plano Pro IP44 27W/940 PSMP EU WH | A2PRAB-EU |
|
| Plano Pro IP44 35W/930 PSMP EU WH | A2PRAC-EU |
|
| Plano Pro IP44 35W/940 PSMP EU WH | A2PRAD-EU |
Plano Pro Dim EU Plug PSMP (3m cable)
| Item description | Code | |
|---|---|---|
| Plano Pro IP44 31W/930 PSMP EU DIM | A2PRAE-EU |
|
| Plano Pro IP44 31W/940 PSMP EU DIM | A2PRAF-EU |
Plano Pro Casambi EU Plug PSMP (3 m cable)
| Item description | Code | |
|---|---|---|
| Plano Pro IP44 27W/930 PSMP CAEU WH | A2PRAA-CAEU |
|
| Plano Pro IP44 27W/940 PSMP CAEU WH | A2PRAB-CAEU |
|
| Plano Pro IP44 35W/930 PSMP CAEU WH | A2PRAC-CAEU |
|
| Plano Pro IP44 35W/940 PSMP CAEU WH | A2PRAD-CAEU |
|
| Plano Pro IP44 45W/930 PSMP CAEU WH | A2PRAG-CAEU |
|
| Plano Pro IP44 45W/940 PSMP CAEU WH | A2PRAH-CAEU |
