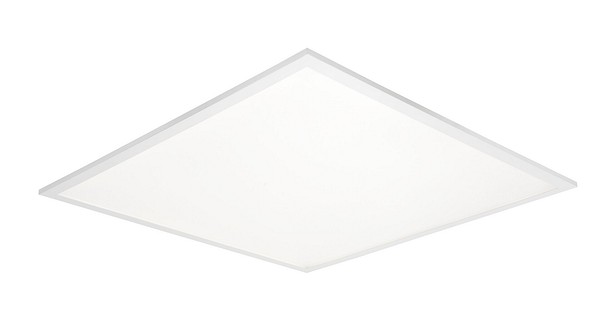

Plano Pro IP44 35W/930 PSMP EU WH
Plano Pro Modular luminaire 35W 3000K 4500lm No dim; IP44; IK02; Protection cl. II; L70B50 100000h; LED not exchangeable; Lamp included; CRI>90; SDCM3; Ending; 2x0.75mm²; Housing al; Colour wh; Cover Plastic, structured; C16 max. 27

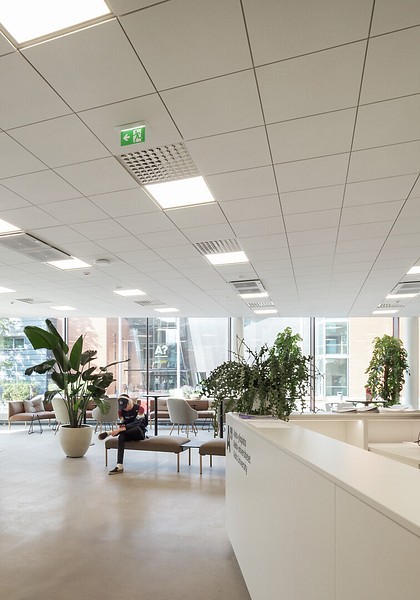

Plano Pro is a new-generation, energy-efficient and versatile modular luminaire with a huge range of applications. The luminaire’s excellent colour rendering index, UGR value (<19) and IP44 class make it an ideal choice for almost any application. Thanks to its energy-efficiency, Plano Pro is suitable for public spaces such as corridors, lobbies and open-plan offices. Because of its low UGR value, the luminaire can be used in schools, day-care centres and spaces where computers are used. The bottom part of the luminaire has an IP44 classification, making it suitable for dusty and humid spaces. A variety of installation accessories are available for the luminaire, including cover sheets for the round light opening and accessories for surface and recessed mounting. The luminaire is also available as a Tunable White version.
Aluminium frame, steel housing, polystyrene diffuser (PSMP) and acrylic lenses.
White, RAL 9016.
Luminaire protection class III.
LED driver protection class II.
Mounting on a T-grid ceiling, recessed and surface mounting with accessories.
Linkable: on/off and Dali-2 max 5 x 2,5 mm2, Casambi and ActiveAhead 3 x 2,5 mm2, Dim 3 x 1,5 mm2.
Colour temperatures 3000K, 4000 K and Tunable White 2700–6000 K. CRI > 90 / Ra > 90.
MacAdam 3 SDCM.
IP44. ActiveAhead-models IP20.
IK02.
On/off: 27 W 3500 lm / 35 W 4500 lm.
Dim: 31 W 4000 lm.
Dali-2, Casambi and ActiveAhead: 27 W 3500 lm / 35 W 4500 lm / 45 W 5800 lm.
Dali DT8 35 W 4300 lm.
Casambi TW 35 W 4300 lm.
On/off, Dim (trailing-edge dimming), Dali-2 with direct pushbutton control 230V and CLO functions, Casambi (Bluetooth mesh), ActiveAhead (self-learning wireless lighting control solution) and TW with Dali DT8- or Casambi-control.
On/off and Casambi ranges also available with 3-meter Europlug cable H03VVH2-F 2 x 0.75 mm2.
Use with Dali-2-certified control devices is recommended.
Maximum number of led drivers to be connected to one switch is 60 pcs. The length of the cable between the switch and the luminaire is max. 10 meters.
Ambient temperature range 0 … 25 °C.
Rated lifetime L70B50 > 100 000 h (Ta25°C).
Rated lifetime L80B10 100 000 h (Ta25°C).
Rated lifetime L90B10 80 000 h (Ta25°C).
Power source lifespan 100 000 h.
Accessories include three different colored surface mounting frames: white (4146973), black (A2PLKI) and gray (A2PLKJ). Also: flush mounting frame 600 x 600 (4297811), installation kit for concealed grid ceilings (4146933) and mounting set (4146993). Also available cover plates 600*600 R400 (A2PLZC) and 600*600 R500 (A2PLZA). The luminous flux of the luminaire decreases with cover plates about 30% (R500) and about 50% (R400).
DIM = phase-cut dimming, TW = Tunable White.
Cut-to-measure cables and a variety of quick-connector cable sets can be ordered on a project-specific basis.
- Code
- A2PRAC-EU
Downloads
Technical info
- Electrical number (SWE)
- 7022908
- GTIN
- 6435200295965
- Airam code
- A2PRAC-EU
- Code
- A2PRAC-EU
- With light sensor
- No
- Connection type
- Plug
- Nominal voltage (min) (V)
- 220
- Nominal current (min) (mA)
- 900
- Height/depth (mm)
- 32
- Suitable for lamp power (max) (W)
- 35
- Colour rendering index (CRI/Ra)
- 90-100
- With mounting material
- Yes
- Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
- 5
- Colour of light (alphanumeric)
- White
- Number of poles
- 2
- Suitable for clamp-mounting
- No
- Nominal voltage (max) (V)
- 240
- Dimming mains voltage modulation
- No
- Flickering value Pst LM
- 1
- Housing colour
- White
- Power factor
- 0.9
- Lamp holder
- Other
- Width (mm)
- 595
- Dimming trailing edge
- No
- Colour consistency (McAdam ellipse)
- SDCM3
- Housing surface protection
- Powder coating
- Light sharing
- Symmetric
- Colour temperature (min) (K)
- 3000
- Length (mm)
- 595
- Dimming LineSwitch
- No
- Dimming Touch and Dim
- No
- Dimming DSI
- No
- Lamp type
- LED not exchangeable
- Dimming with push-button
- No
- Dimming 0-10 V
- No
- Exchangeable control gear
- Yes
- Compatible with Casambi
- No
- Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 90
- Housing material
- Aluminium
- Rated ambient temperature acc. IEC62722-2-1 (min) (°C)
- 0
- No dimming function
- Yes
- Dimming Zigbee
- No
- Dimming DMX
- No
- Lumen maintenance at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
- 95
- Dimming manufacturer's proprietary system
- No
- Luminaire may be covered with thermally insulating material
- No
- Unified Glare Rating (UGR)
- 19
- Beam angle adjustable
- No
- Degree of protection (IP), front side
- IP44
- Control gear included
- Yes
- Degree of protection (IP)
- IP44
- Dimming Sine Wave Reduction
- No
- Fit for workplace acc. EN 12464-1
- Yes
- Colour temperature (max) (K)
- 3000
- Dimming DALI-2
- No
- Colour temperature switchable
- No
- Light source included
- Yes
- Built-in height/depth (mm)
- 80
- Effective luminous flux (lm)
- 4500
- Nominal current (max) (mA)
- 900
- Type of wiring
- Ending
- Compatible with Amazon Alexa
- No
- Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 10
- Protection class according to IEC 61140
- II
- Compatible with Apple HomeKit
- No
- Beam angle
- Open beam
- Max. number of luminaires per miniature circuit breaker B16
- 16
- Rated life time L70/B50 at 25 °C (h)
- 100000
- Built-in width (mm)
- 600
- Lumen maintenance at median useful life of 75,000 hrs at 25 °C ambient (tq) (%)
- 85
- Rated ambient temperature acc. IEC62722-2-1 (max) (°C)
- 25
- Rated life time L80/B50 at 25 °C
- 100000
- Emergency power supply system
- None
- Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24
- Yes
- Constant luminous flux control
- No
- Total harmonic distortion (THD) (%)
- 20
- Rated luminous flux according to IEC 62722-2- 1 (max) (lm)
- 4500
- Luminaire efficacy (min) (lm/W)
- 130
- Connectable conductor cross section (min) (mm²)
- 1.5
- Rated luminous flux according to IEC 62722-2- 1 (min) (lm)
- 4500
- IFTTT support available
- No
- With switch
- No
- Stroboscope effect value SVM
- 0.4
- Max. number of luminaires per miniature circuit breaker C10 (MCB)
- 16
- With air slots
- No
- With presence indicator
- No
- Type of grid
- None
- Suitable for surface mounting
- Yes
- Light distributor
- Diffuser lens/optic/panel
- Suitable for lamp power (min) (W)
- 35
- Light outlet
- Direct
- Maximum system power (W)
- 35
- Conductor cross section (mm²)
- 0.75
- Suitable for recessed mounting
- Yes
- Suitable for ceiling mounting
- Yes
- Voltage type
- AC
- Luminaire efficacy (lm/W)
- 130
- Dimming RF
- No
- Emergency function monitoring system
- None
- Dimming 1-10 V
- No
- Built-in length (mm)
- 600
- Suitable for number of lamps
- 1
- Connectable conductor cross section (max) (mm²)
- 2.5
- Bluetooth operated
- No
- Suitable for suspended mounting
- No
- Dimmable
- No
- Suitable for wall mounting
- No
- Luminaire efficacy (max) (lm/W)
- 130
- With movement sensor
- No
- Total harmonic distortion
- 20
- Max. number of luminaires per miniature circuit breaker C16
- 27
- Impact strength
- IK02
- Dimming leading edge
- No
- Degree of protection (IP), rear side
- IP20
- Cover material
- Plastic, structured
- Dimming programmable
- No
- Emergency power supply integrated
- No
- Energy efficiency class of light source according to EU regulation 2019/2015
- D
- Photobiological safety according to EN 62471
- RG0
- Compatible with Google Assistant
- No
- Suitable for light line configuration
- No
- Filament test according to IEC 60695-2-11
- 650 °C - 30 s
- Containing product according to 2019/2020/EU
- Yes
- Lumen setting adjustable
- No
- Dimming potentiometer (integrated)
- No
- Type of control gear
- LED operating device current-controlled
- Suitable for emergency lighting
- No
- Failure rate at median useful life of 75,000 hrs at 25 °C ambient (tq) (%)
- 10
- Dimming DALI
- No
