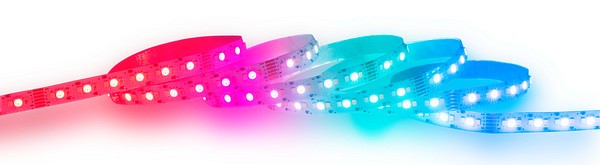

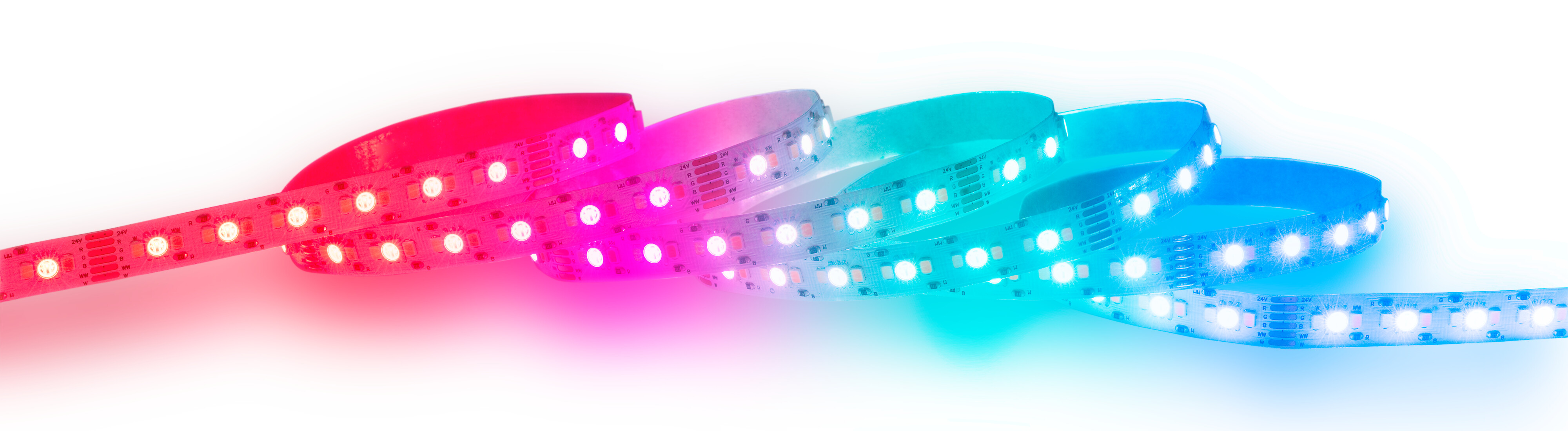

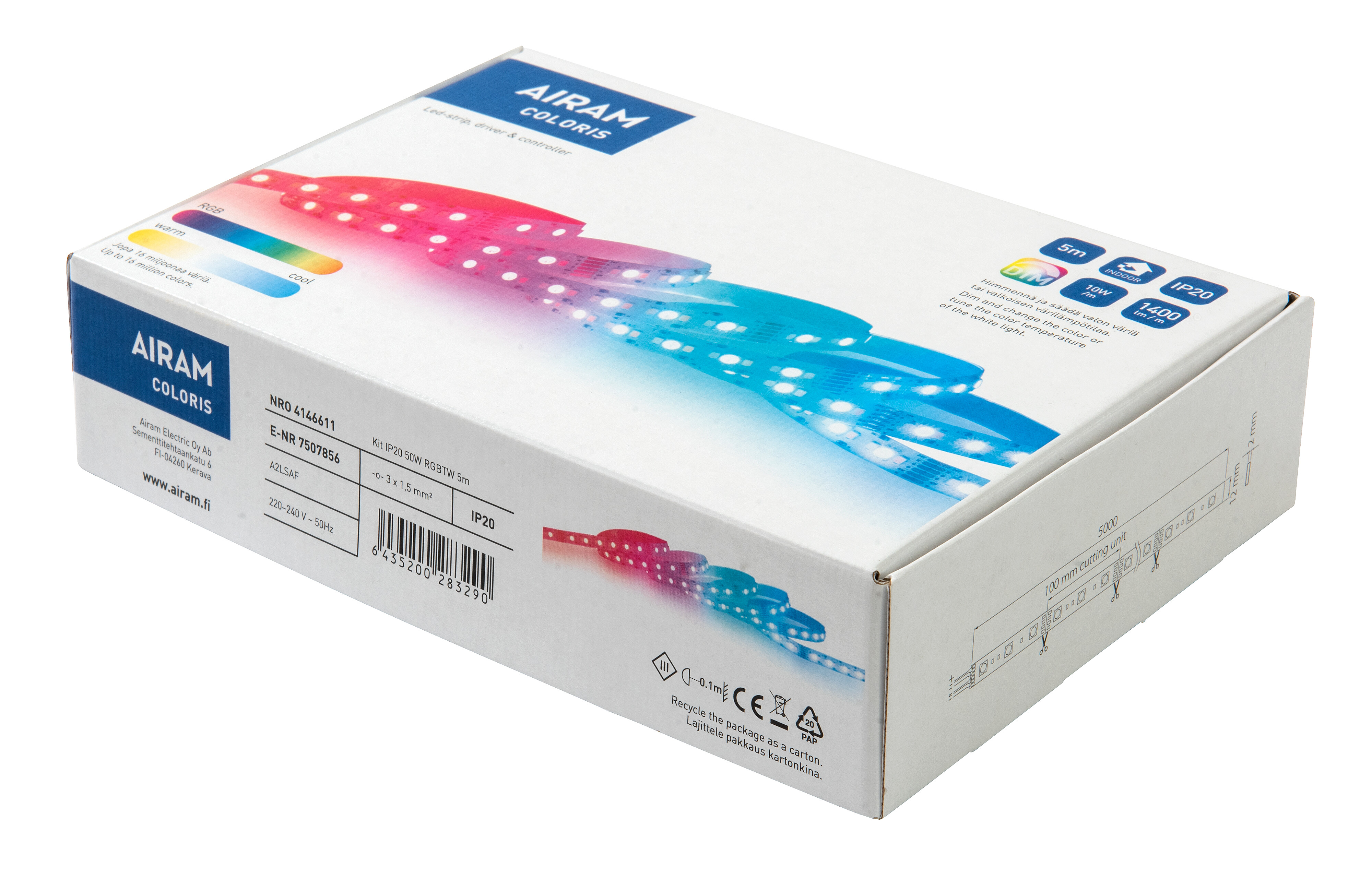

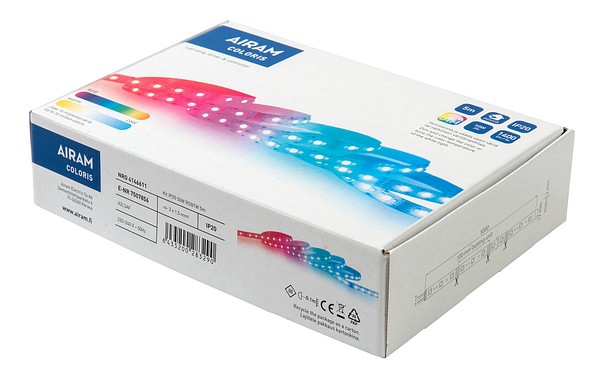

Coloris 24V Kit IP20 50W RGBTW 5m

Name: Coloris 24V Kit IP20 50W RGBTW 5m
SKU: 4146611

Coloris 24V 50W 10W/m RGBW 2200K IP20; Protection cl. III; L70B50 50000h; LED not exchangeable; CRI>90; Suitable for through wiring; 3x1.5mm²

See product details

With the Coloris LED strip you can create different kinds of atmospheres depending on the space and the situation. The white colour temperature is continuously adjustable and gives lots of possibilities to the general lighting. With RGB you can choose from millions of colours to use in creating intriguing details and atmospheres. You can light up spaces without a glare indirectly by reflecting the light into a space via surfaces. The strip can be installed to a window post as well as on the back of furnitures, frames and mirrors. A LED strip installed on a railing or on the surface beneath the stairs brings more safety to a staircase. The IP65 strip is suitable for humid spaces indoors or as installed without a profile on furniture surfaces. The colour rendering and the luminous flux of the Coloris LED-strip is outstanding, CRI90, 1400 lm/m. The series also includes a ready to be used package of the IP20 model, which contains the LED strip as well as all the needed components.

IP20: Uncoated LED strip 24V.
IP65: UV-protected silicon-coated LED strip. Protection class III.
Length 5 m, 2 m connection cable.
The maximum length of the continuous line of light 8 m.
The product comes with a self-adhesive fixture for surface mounting.
For lower surface installations, it is recommended to use Airam's wide range of Slimline profiles.
Check the compatibility table for the appropriate installation profiles.
Colour temperatures RGB abd 2200–6500K. CRI > 90 / Ra > 90 e.g. 4000K.
MacAdam 3 SDCM white light.
A 24V DC power supply, an LED controller (4016037) and a remote control (4016038) are required to control the LED strip. The ready-to-use LED package contains all the necessary components.
IP20 and IP65.
RGB: 6W/m e.g. 4000K: 10W/m 1400 lm/m.
Ambient temperature range IP20: 0 … 25 °C.
Ambient temperature range IP65: -15 … 25 °C.
Rated lifetime L70 50 000 h (Ta25°C).
Project-specifically available as cut to measure and installed inside a profile, when necessary.
Accessories (IP20): Coloris quick connector IP20 4146523, to join two previously cut Coloris strips.
Coloris quick connector IP20 2MLJ 4146524, to connect two previously cut Coloris strips with a two-meter connecting cord. Suitable, for example, for crossing windows or even a cooker hood.

Code: 4146611

Technical info

Structure

Model: Tape
Lamp type: LED not exchangeable
Number of LEDs per metre: 180
Number of nodes per foot: 55
Type of power supply: Mains power supply
Exchangeable control gear: Yes
Energy efficiency class of light source according to EU regulation 2019/2015: G
Length of particular segments (mm): 100 mm
With end piece: No
With connection set: Yes
With protective cover: No
Self-adhesive: Yes

Mounting

Mounting method: Surface mounted
Degree of protection (IP): IP20
Lowest bending radius (mm): 30 mm
Type of wiring: Suitable for through wiring
Number of poles: 3
Conductor cross section (mm²): 1.5 mm²
Connectable conductor cross section (min) (mm²): 1.5 mm²
Connectable conductor cross section (max) (mm²): 2.5 mm²
Connection type: Screwless terminal

Electrotechnical data

Lamp power per meter (W): 10 W
Lamp power per foot (W): 3.05 W
Luminaire efficacy (lm/W): 140 lm/W
Voltage type: DC
Lamp voltage (min) (V): 24 V
Lamp voltage (max) (V): 24 V
Type of control gear: LED operating device voltage-controlled
Protection class according to IEC 61140: III
Maximum system power (W): 50 W
Power factor: 0.9

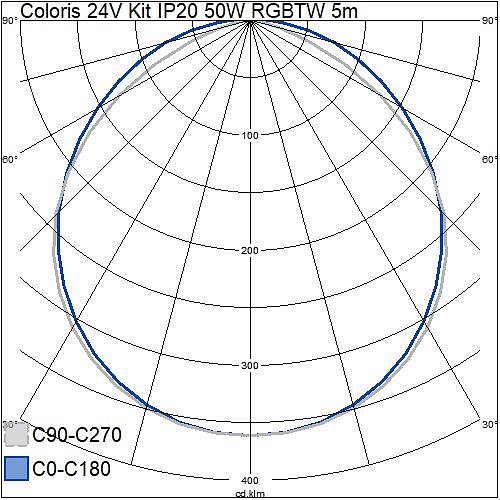

Photometric data

Luminous flux per meter (lm): 1400 lm
Radiation angle (°): 120 °
Colour of light (alphanumeric): RGBW
Colour temperature (min) (K): 2200 K
Colour temperature (max) (K): 6500 K
Colour rendering index (CRI/Ra): 90-100
Colour temperature switchable: Continuously variable
Lumen setting adjustable: Continuously variable
Beam angle adjustable: No

ETIM

Suitable for dimmer: Yes

Lifetime and capacity

Rated life time L70/B50 at 25 °C (h): 50000 h
Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) (%): 70 %
Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) (%): 5 %
