Outdoor applications

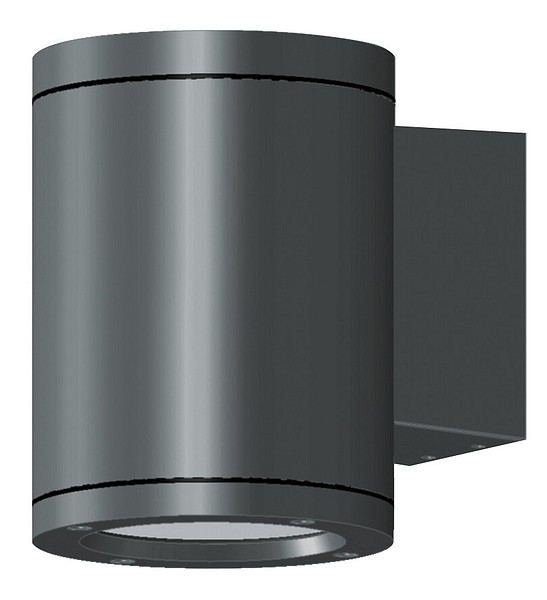

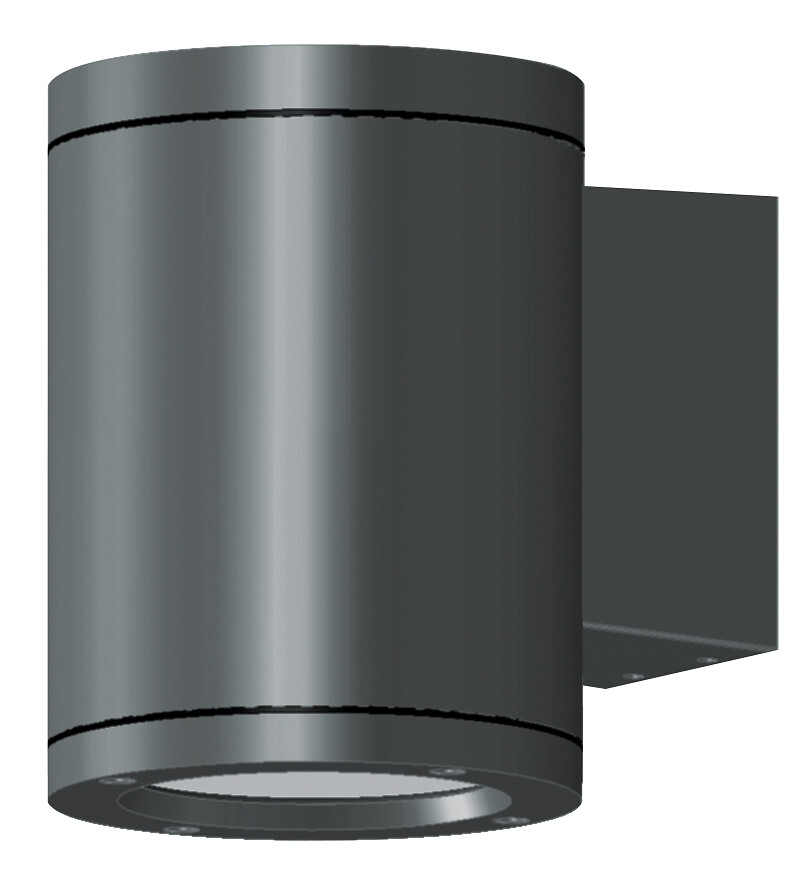

Blitz M Double

Blitz M Double 31W/840 16D ANT

Blitz M Double Outdoors wall luminaire 31W 4000K 3350lm No dim; IP65; IK07; Protection cl. I; L70B50 50000h; LED not exchangeable; CRI>80; SDCM3; Ending; 3x2.5mm²; Housing al; Colour ant; Cover Glass transparent; C16 max. 35

See product details
Code
4511521

Technical info

Mounting

Suitable for wall mounting
Yes
Suitable for suspended mounting
No
Suitable for ceiling mounting
No
Suitable for recessed mounting
No
Suitable for surface mounting
Yes
Suitable for light line configuration
No
Suitable for clamp-mounting
No
Fit for workplace acc. EN 12464-1
No
Degree of protection (IP)
IP65
Degree of protection (IP), rear side
IP65
Degree of protection (IP), front side
IP65
Max. number of luminaires per miniature circuit breaker C10 (MCB)
23
Max. number of luminaires per miniature circuit breaker B16
23
Max. number of luminaires per miniature circuit breaker C16
35
Impact strength
IK07
Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24
No
Suitable for emergency lighting
No
Emergency function monitoring system
None
Type of wiring
Ending
Number of poles
3
Conductor cross section (mm²)
2.5 mm²
Connection type
Screwed terminal
Connectable conductor cross section (min) (mm²)
1.5 mm²
Connectable conductor cross section (max) (mm²)
2.5 mm²

Structure

With mounting material
Yes
Lamp type
LED not exchangeable
Light source included
Yes
Suitable for number of lamps
2
Lamp holder
Other
Housing material
Aluminium
Housing surface protection
Powder coating
Housing colour
Anthracite
Cover material
Glass transparent
Type of grid
None
Control gear included
Yes
Exchangeable control gear
Yes
Energy efficiency class of light source according to EU regulation 2019/2015
C
Containing product according to 2019/2020/EU
Yes
Emergency power supply system
None
Emergency power supply integrated
No
With switch
No
With air slots
No
Filament test according to IEC 60695-2-11
650 °C - 30 s

Electrotechnical data

Voltage type
AC
Nominal voltage (min) (V)
220 V
Nominal voltage (max) (V)
240 V
Nominal current (min) (mA)
530 mA
Nominal current (max) (mA)
530 mA
Type of control gear
LED operating device current-controlled
Protection class according to IEC 61140
I
Suitable for lamp power (min) (W)
31 W
Suitable for lamp power (max) (W)
31 W
Luminaire efficacy (min) (lm/W)
107 lm/W
Luminaire efficacy (max) (lm/W)
107 lm/W
Maximum system power (W)
31 W
Luminaire efficacy (lm/W)
107 lm/W
Power factor
0.9
Total harmonic distortion (THD) (%)
20 %
Total harmonic distortion
20 THD

Dimming and control

Dimmable
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DALI-2
No
Dimming DMX
No
Dimming DSI
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming leading edge
No
Dimming programmable
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
No dimming function
Yes
With presence indicator
No
With movement sensor
No
With light sensor
No
Constant luminous flux control
No
Bluetooth operated
No
Compatible with Casambi
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No

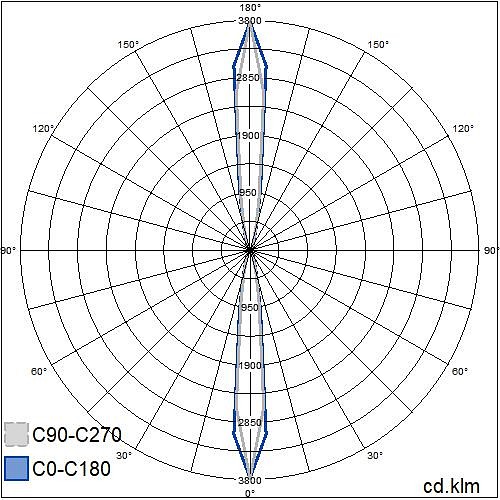

Photometric data

Light distributor
Reflector
Light sharing
Symmetric
Beam angle
Narrow beam 10-20°
Colour consistency (McAdam ellipse)
SDCM3
Light outlet
Direct/indirect
Rated luminous flux according to IEC 62722-2- 1 (min) (lm)
3350 lm
Rated luminous flux according to IEC 62722-2- 1 (max) (lm)
3350 lm
Colour of light (alphanumeric)
White
Effective luminous flux (lm)
3350 lm
Colour temperature (min) (K)
4000 K
Colour temperature (max) (K)
4000 K
Flickering value Pst LM
1
Colour rendering index (CRI/Ra)
80-89
Stroboscope effect value SVM
0.4
Photobiological safety according to EN 62471
RG0
Colour temperature switchable
No
Lumen setting adjustable
No
Beam angle adjustable
No

Lifetime and capacity

Rated life time L70/B50 at 25 °C (h)
50000 h
Rated life time L80/B50 at 25 °C
35000 h
Lumen maintenance at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
80 %
Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
70 %
Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
5 %
Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
10 %
Rated ambient temperature acc. IEC62722-2-1 (min) (°C)
-25 °C
Rated ambient temperature acc. IEC62722-2-1 (max) (°C)
25 °C

Measurements

Width (mm)
130 mm
Height/depth (mm)
130 mm
Length (mm)
250 mm
Outer diameter (mm)
130 mm
