  5. Planex Housing IP23 GX53 max 6W WH

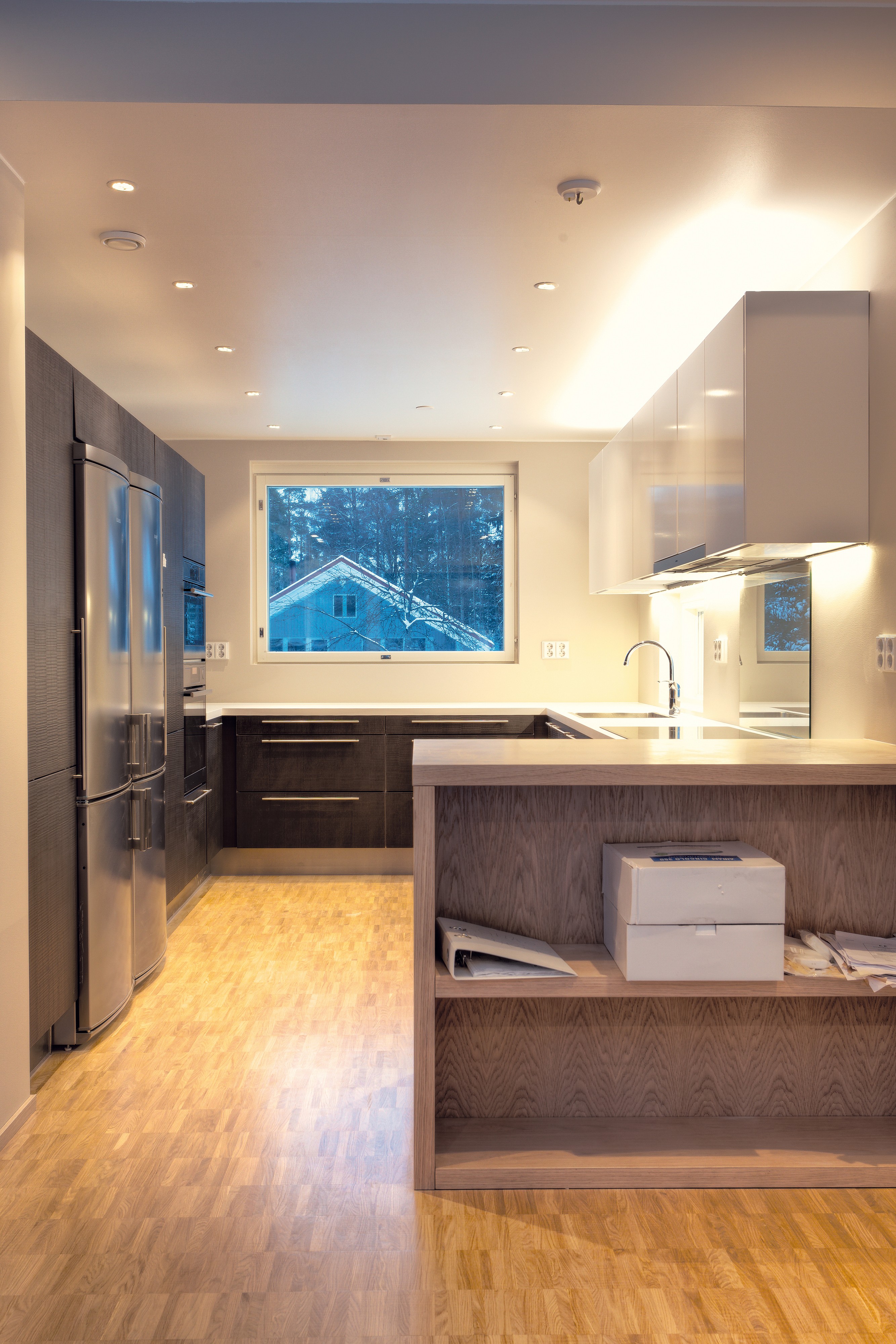

Residential spaces, indoor

Planex

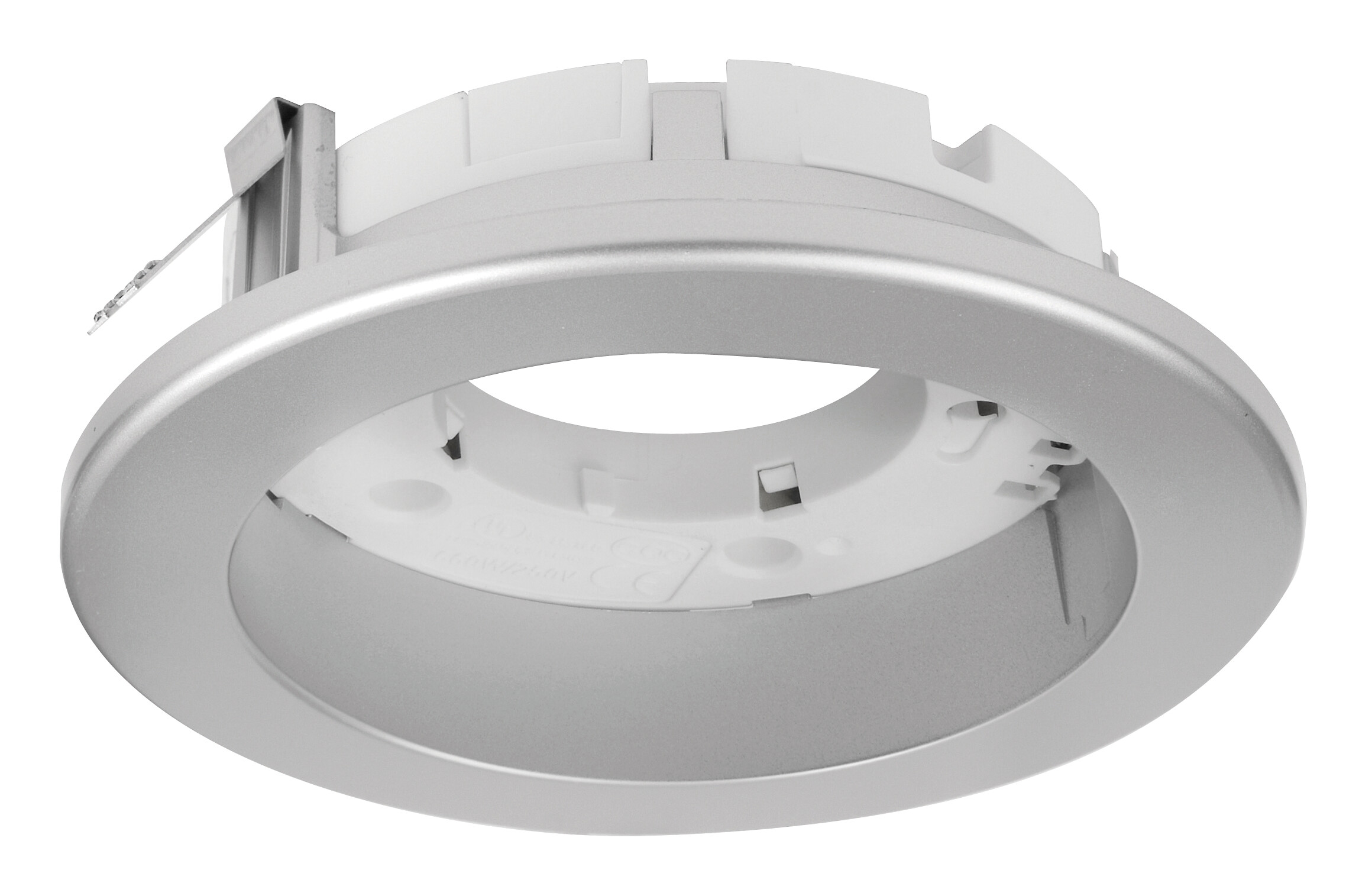

Planex Housing IP23 GX53 max 6W WH

Planex Downlight Beam angle Extreme wide beam >80°; No dim; IP23; Protection cl. II; LED exchangeable; Suitable for through wiring; 3x2.5mm²; Housing Plastic; Colour wh; Cover None

See product details
Code
4107114

Technical info

Mounting

Suitable for surface mounting
No
Suitable for recessed mounting
Yes
Suitable for wall mounting
No
Suitable for suspended mounting
No
Suitable for ceiling mounting
Yes
Suitable for traverse mounting
No
Suitable for pedestal/floor mounting
No
Suitable for light-track mounting
No
Suitable for clamp-mounting
No
Suitable for low voltage cable system
No
Degree of protection (IP)
IP23
Degree of protection (IP), rear side
IP20
Degree of protection (IP), front side
IP20
Emergency function monitoring system
None
Type of wiring
Suitable for through wiring
Number of poles
3
Conductor cross section (mm²)
2.5 mm²
Connectable conductor cross section (min) (mm²)
1 mm²
Connectable conductor cross section (max) (mm²)
2.5 mm²
Connection type
Screwless terminal
Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24
No
Fit for workplace acc. EN 12464-1
No
Luminaire may be covered with thermally insulating material
No

Structure

Adjustability
Not adjustable
Lamp type
LED exchangeable
Light source included
No
Suitable for number of lamps
1
Lamp holder
GX53
Housing material
Plastic
Surface protection
Plastic-coated
Housing colour
White
Cover material
None
Surface brushed
No
Control gear included
No
Exchangeable control gear
No
Reflector
None
Energy efficiency class of light source according to EU regulation 2019/2015
Not required
Containing product according to 2019/2020/EU
No
Emergency power supply system
None
Emergency power supply integrated
No

Dimming and control

With movement sensor
No
With presence indicator
No
With light sensor
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI-2
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming leading edge
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
No dimming function
Yes
Constant luminous flux control
No
IFTTT support available
No
Compatible with Apple HomeKit
No
Bluetooth operated
No
Compatible with Google Assistant
No
Compatible with Casambi
No
Compatible with Amazon Alexa
No

Electrotechnical data

Voltage type
AC
Nominal voltage (min) (V)
220 V
Nominal voltage (max) (V)
240 V
Type of control gear
Not required
Protection class according to IEC 61140
II
Suitable for lamp power (min) (W)
6 W
Suitable for lamp power (max) (W)
6 W
Maximum system power (W)
6 W

Photometric data

Light distributor
None
Light sharing
Symmetric
Beam angle
Extreme wide beam >80°
Light outlet
Direct
Colour of light (alphanumeric)
White
Colour temperature switchable
No
Lumen setting adjustable
No
Beam angle adjustable
No

Lifetime and capacity

Rated ambient temperature acc. IEC62722-2-1 (min) (°C)
0 °C
Rated ambient temperature acc. IEC62722-2-1 (max) (°C)
25 °C

Measurements

Length (mm)
104 mm
Width (mm)
104 mm
Height/depth (mm)
39 mm
Outer diameter (mm)
104 mm
Built-in length (mm)
90 mm
Built-in width (mm)
90 mm
Built-in height/depth (mm)
34 mm
Installation height (min) (mm)
2000 mm
Installation height (max) (mm)
4000 mm
Recess diameter (min) (mm)
90 mm
Recess diameter (max) (mm)
90 mm
