PRO LED KM75 840 470lm GX53 DIM OP

Name: PRO LED KM75 840 470lm GX53 DIM OP
SKU: 4713760

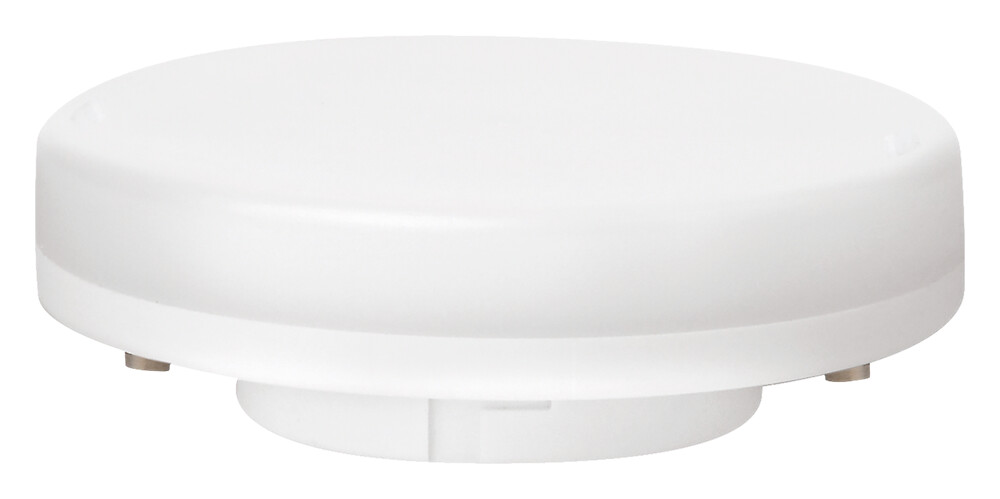

Opal spot dimmable LED lamp 4.9W 4000K GX53 470lm 110D 25000h 75x25mm, cardboard packing. Supply frequency ~50/60Hz.

See product details

Airam’s dimmable PRO LED 4000 K series includes all the most common bulb types, allowing it to cover all basic light source needs. They are packed in cardboard boxes that clearly indicate the key technical specifications. Special characteristics for the lamps in this series include an extremely long operating life (25,000 h) and a high number of switch-on cycles (500,000). The colour temperature is cool white (4000 K). The lamps in the series are dimmable by means of LED dimmers.

Very long lifetime, 25 000 h.
Switches on instantly, even in freezing conditions.
Excellent light efficiency, even > 100 lm/W.
Colour temperature 4000 K.
Good colour rendering CRI > 80.
Continuous even spectrum, no colour alterations.
No ultraviolet or infrared radiation.
No mercury.
All models can be dimmed with LED dimmers.

Code: 4713760

Technical info

Electrotechnical data

Nominal voltage (min) (V): 220 V
Nominal voltage (max) (V): 240 V
Nominal current (min) (mA): 24 mA
Nominal current (max) (mA): 24 mA
Power factor: 0.5
Lamp power (min) (W): 4.9 W
Lamp power (max) (W): 4.9 W
Voltage type: AC

ETIM

Suitable for electronic ballast: No
Suitable for magnetic ballast: No
Rated luminous flux according to IEC 62612 (lm): 470 lm
Lamp efficacy (lm/W): 96 lm/W
Lamp shape: Flat round
Filament lamp: No
Type of glass/cover: Opal
Cap: GX53
Energy efficiency class according to EU regulation 2019/2015: F
Lamp designation: Other
Min. number of switching cycles: 50000
Weighted energy consumption in 1,000 hours (kWh): 5 kWh
Average nominal lifespan (h): 25000 h

Photometric data

Luminous flux (min) (lm): 470 lm
Luminous flux (max) (lm): 470 lm
Colour rendering index (CRI/Ra): 80-89
Colour of light acc. EN 12464-1: Neutral 3300-5300 K
Colour temperature (min) (K): 4000 K
Colour temperature (max) (K): 4000 K
Beam angle (min) (°): 110 °
Beam angle (max) (°): 110 °
Colour consistency (McAdam ellipse): SDCM6
Photobiological safety according to EN 62471: RG1

Structure

Colour: White
Housing colour: White

Dimming and control

Dimmable: Yes
Dimming trailing edge: Yes
Dimming leading edge: Yes
Dimming Touch and Dim: No
Dimming Zigbee: No
Dimming Bluetooth: No
Dimming Wi-Fi: No
No dimming function: No
Remote operation possible: No
With movement sensor: No
With remote control: No
With twilight switch: No
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
IFTTT support available: No

Measurements

Diameter (mm): 75 mm
Length (mm): 25 mm

Mounting

Degree of protection (IP): IP20

Item description	Code	Electrical number (FIN)	Colour temperature	Luminous flux	Power	Dimensions
PRO LED P45 840 470lm E14 DIM OP	4713440	4713440	4000K	470lm	4.2W	45x45x78mm
PRO LED P45 840 470lm E27 DIM OP	4713442	4713442	4000K	470lm	4.2W	45x45x74mm
PRO LED PAR16 840 600lm GU10 36 DIM	4713449	4713449	4000K	600lm	5.7W	50x50x54mm
PRO LED KM75 840 470lm GX53 DIM OP	4713760	4713760	4000K	470lm	4.9W	75x75x25mm
