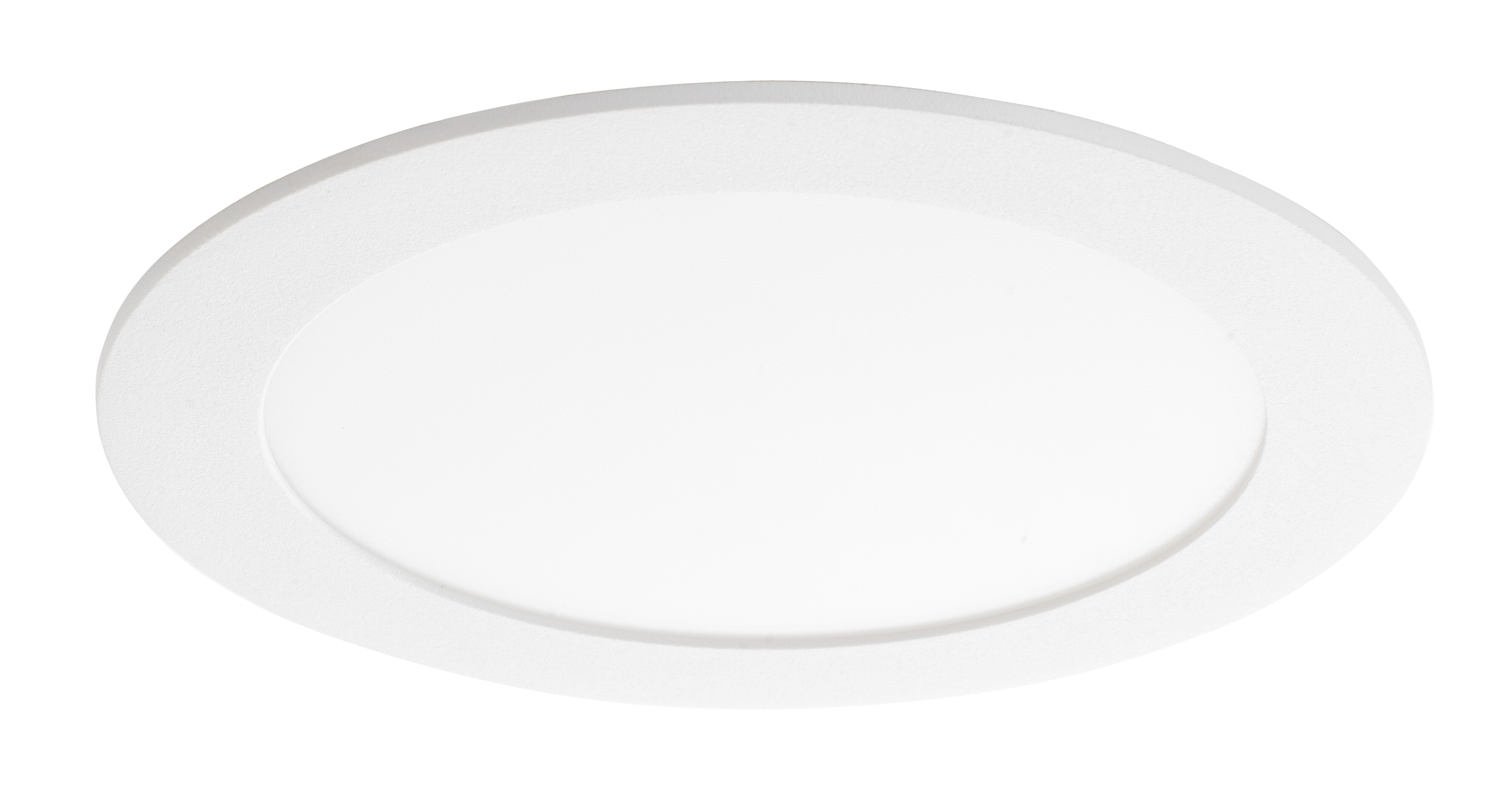

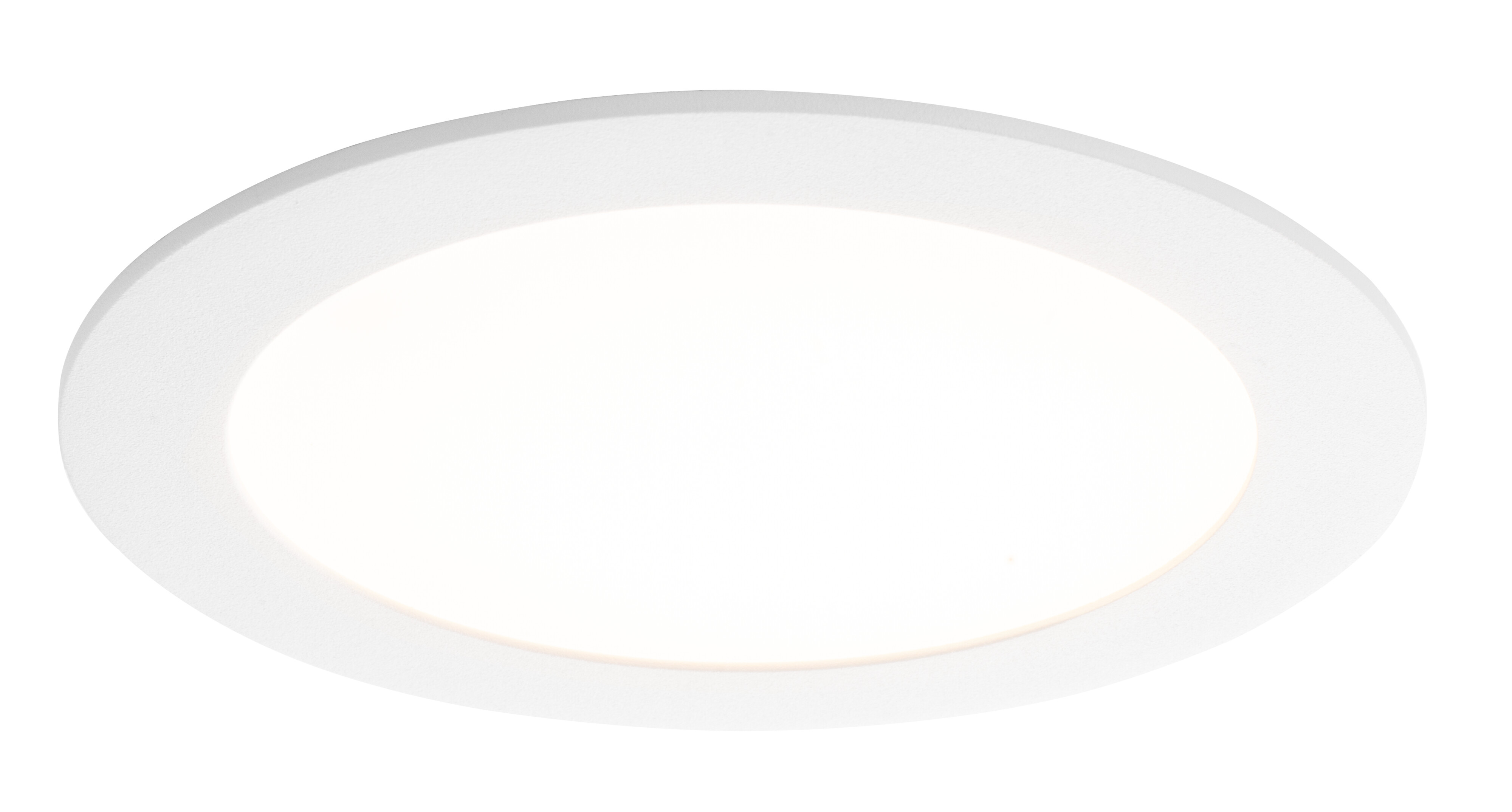

Flat R Duo

The Flat R Duo downlight with changeable colour temperature can be mounted in a low ceiling structure. Made of high-quality materials and with a good looking finish, this luminaire is versatile as a general luminaire for the home. While IP44 rated, this luminaire is also particularly suitable for bathrooms and other wet spaces. The luminaire has a matt body in structured aluminum and a diffuser in opal acrylic. All models are dimmable. The luminaire can also be linked.

Aluminium body and opal acrylic diffuser.
White, RAL 9003.
Protection class II.

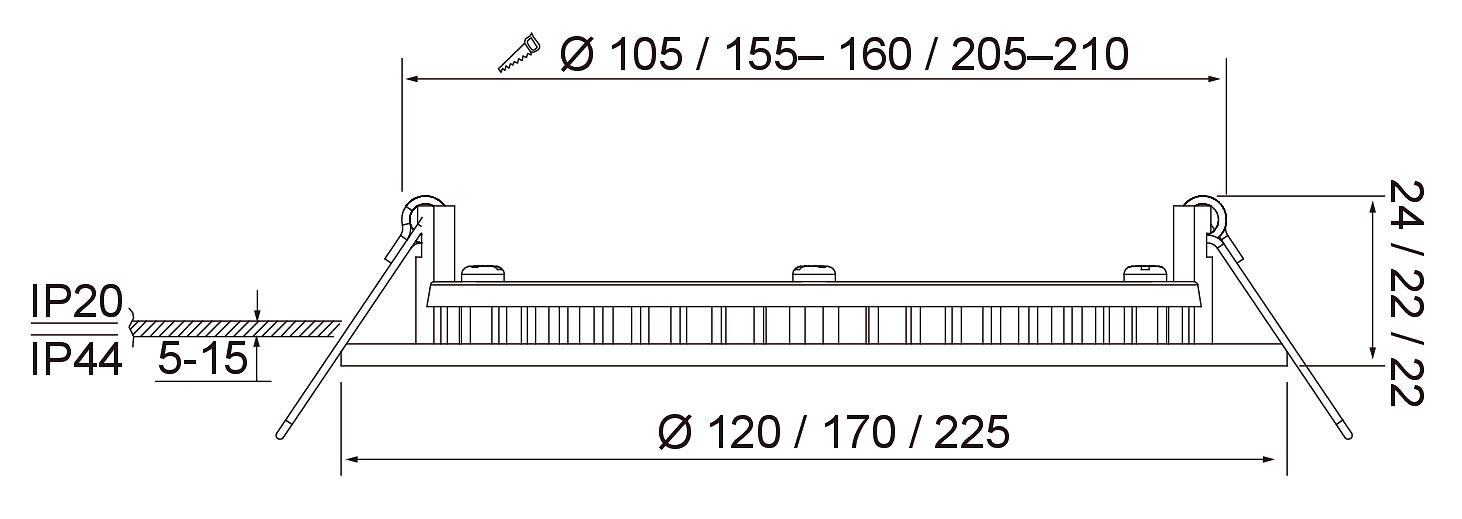

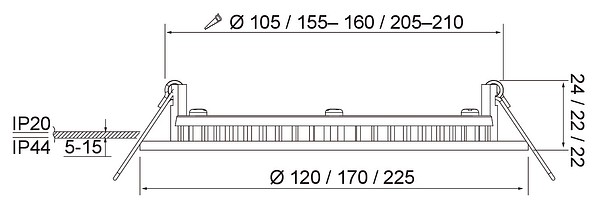

Recessed mounting on a ceiling.
Linkable: Dimmable and Casambi models max 3 x 2,5 mm2. Dali-2 models maks. 5 x 2,5 mm2.

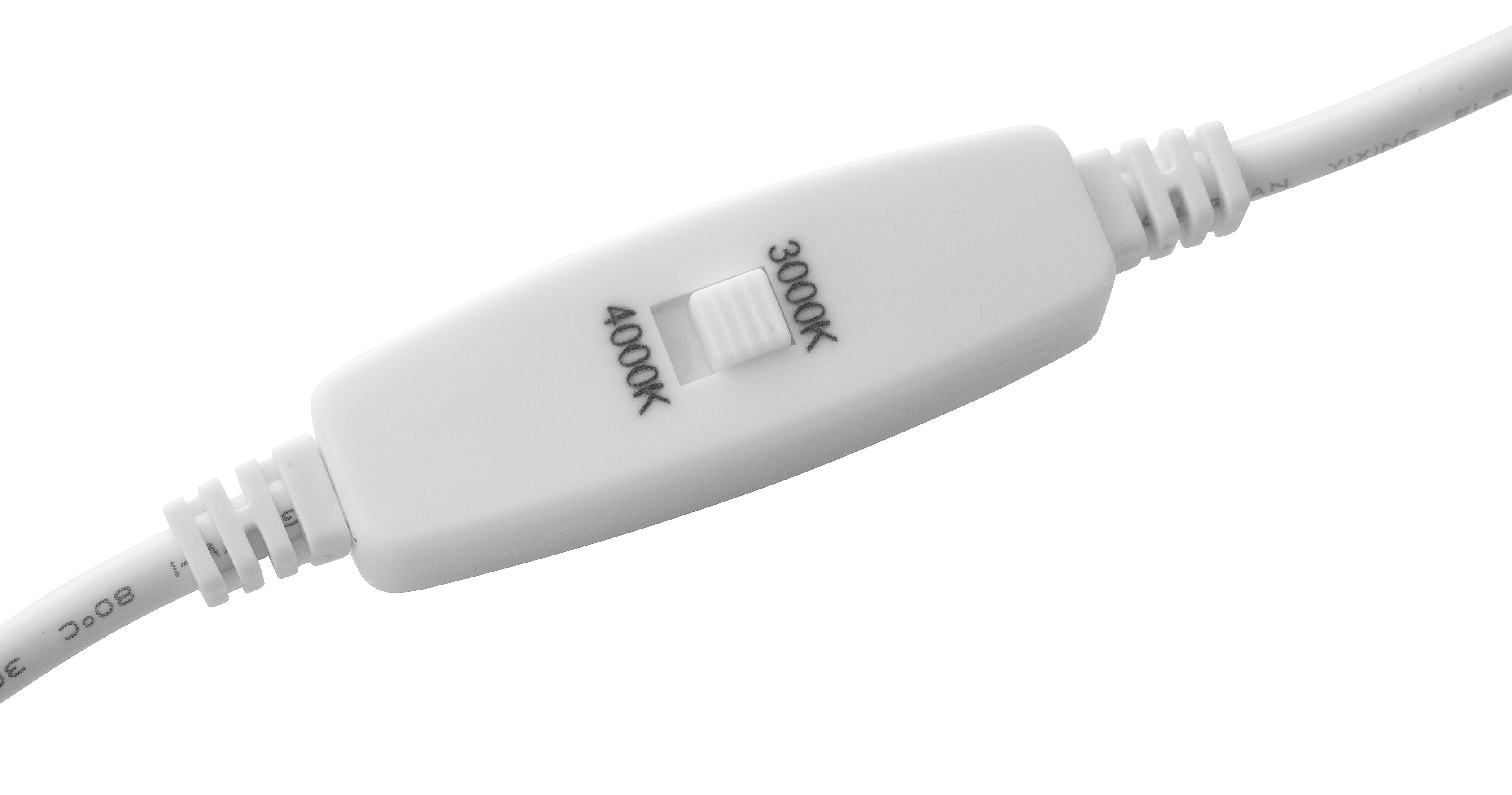

Colour temperature: 3000/4000 K, adjustable on the luminaire. CRI > 80 / Ra > 80.
MacAdam 6 SDCM.
IP20/IP44.
IK03.
Fixed LED 8 W / 500 lm, 12 W / 1000 lm, 18 W / 1500 lm.
Dimming: rising- and trailing-edge control, Dali-2 with push-button control (230 V) and Casambi.
Ambient temperature range 0 … 25 °C.
Rated lifetime L70 80 000 h (Ta25°C).
Rated lifetime L80 50 000 h (Ta25°C).
Power source lifetime 50 000 h.
