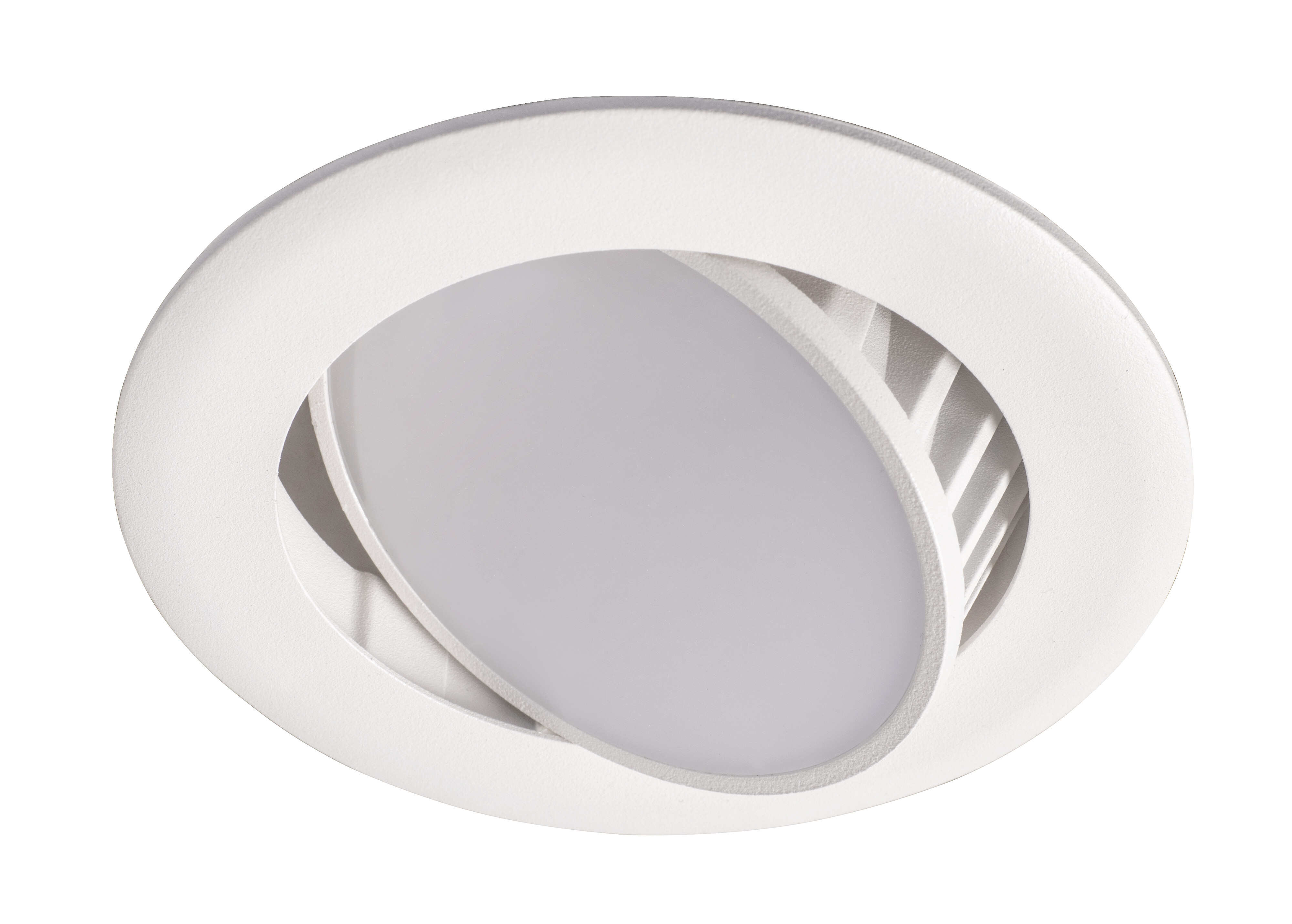

Slim Duo Tilt
The robust and adjustable Slim Duo Tilt is a downlight with a changeable colour temperature and good dimmer features, intended especially for renovation projects. With its opal diffuser, the Slim Duo solution discreetly blends in with a white ceiling. It is designed for use in toilet facilities, corridors and lobbies.
Die-cast aluminium housing and acrylic diffuser
White, RAL 9010.
Protection class II.
Recessed mounting on a ceiling.
Linkable: Dimmable and Casambi-models max 3 x 2,5 mm2. Dali-2 models max 5 x 2,5 mm2. Spring terminal blocks.
Installation height 2–4 m.
Colour temperatures 3000 K and 4000 K (changeable from the luminaire). CRI > 80 / Ra > 80.
MacAdam 5 SDCM.
IP20/IP44.
IK07.
Integrated LED 8 W: 3000 K, 600 lm / 4000 K, 650 lm.
Dimming: rising- and trailing-edge control, Dali-2 with push-button control (230 V); and Casambi.
Ambient temperature range: 0 … 25 °C.
Rated lifetime L70 100 000 h (Ta25°C).
Rated lifetime L80 100 000 h (Ta25°C).
Technical info
| Item description | Code | Electrical number (FIN) | Colour temperature | Luminous flux | Power | Dimensions | |||
|---|---|---|---|---|---|---|---|---|---|
| Slim Duo Tilt Dim | |||||||||
|
Slim Duo Tilt IP44 8W 830/840 DIM WH | 4245362 |
4245362 |
3000/4000K |
600-650lm |
8W |

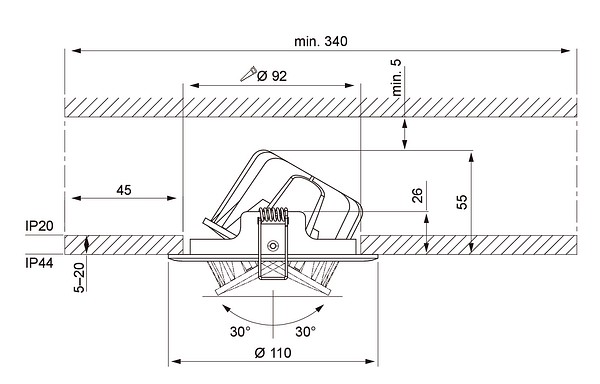

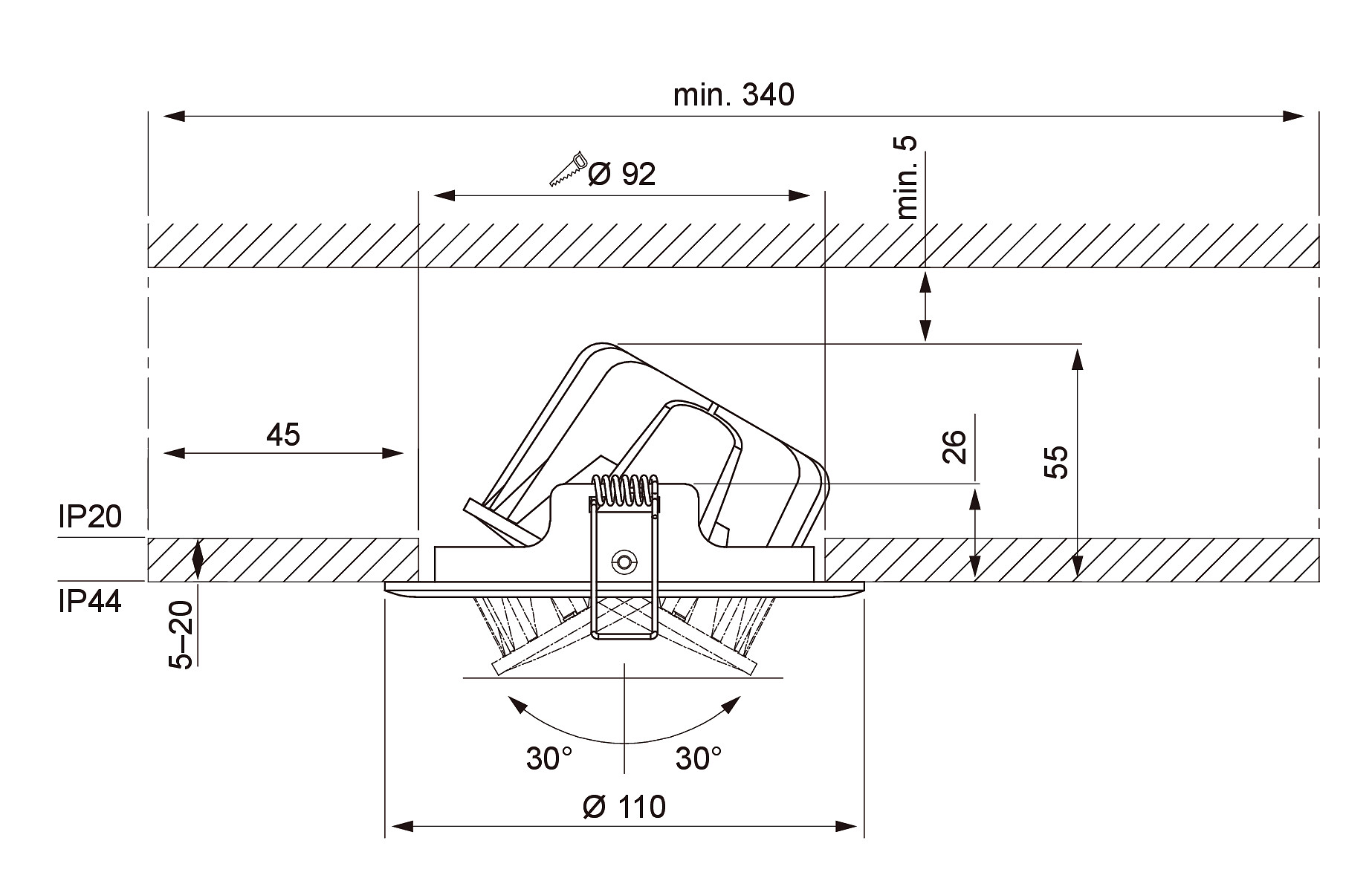

110x110x53mm |
||
| Item description | Code | Electrical number (FIN) | Colour temperature | Luminous flux | Power | Dimensions | |||
|---|---|---|---|---|---|---|---|---|---|
| Slim Duo Tilt Dali | |||||||||
|
Slim Duo Tilt IP44 8W 830/840 DA2 W | A2SLJB-DALI |
3000/4000K |
600-650lm |
8W |
110x110x53mm |
|||
| Item description | Code | Electrical number (FIN) | Colour temperature | Luminous flux | Power | Dimensions | |||
|---|---|---|---|---|---|---|---|---|---|
| Slim Duo Tilt Casambi | |||||||||
|
Slim Duo Tilt IP44 8W 830/840 CA WH | A2SLJB-CA |
3000/4000K |
600-650lm |
8W |
110x110x53mm |
|||
