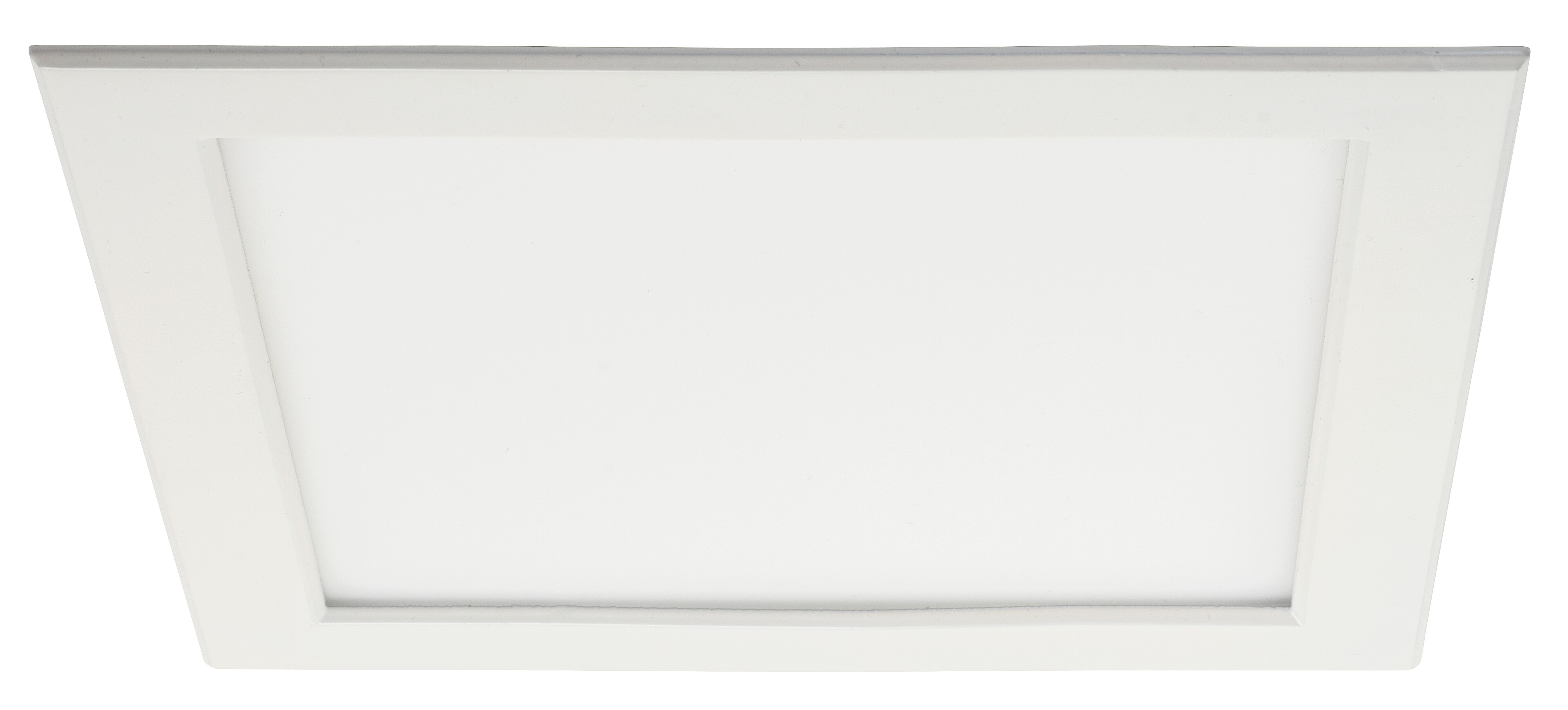

Flat Sq
Luminaires in the Flat Sq downlight range are suitable for mounting on a low ceiling structure. They are designed for use in bathrooms, corridors and lobbies. The luminaire is dimmable. Equipped with spring terminal blocks, these luminaire can also be linked.
Aluminium body and polycarbonate diffuser.
White, RAL 9003.
Protection class II.
Recessed mounting on a ceiling.
Linkable: Dimmable and Casambi models max 3 x 2,5 mm2. Dali-2 models maks. 5 x 2,5 mm2.
Colour temperatures 3000 K and 4000 K. CRI > 80 / Ra > 80.
MacAdam 4 SDCM.
IP20/IP44.
Fixed LED 9 W / 500 lm, 12 W / 900 lm, 15 W / 1300 lm.
Dimming: trailing-edge control, Dali-2 with push-button control (230 V) and Casambi.
Ambient temperature range 0 … 25 °C.
Rated lifetime L70 50 000 h (Ta25°C).
Power source lifetime 50 000 h.

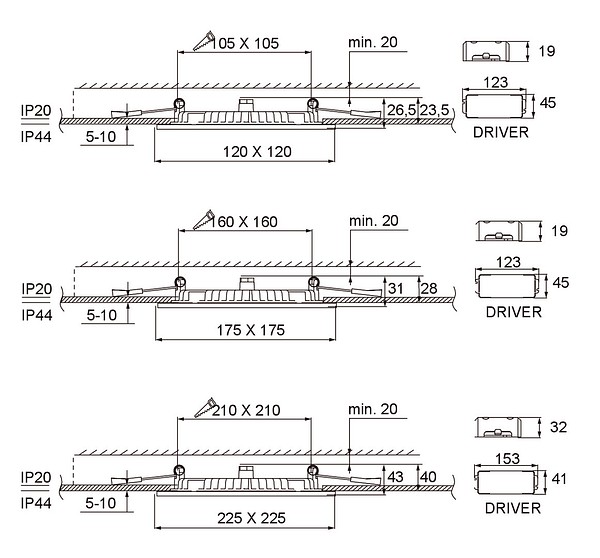

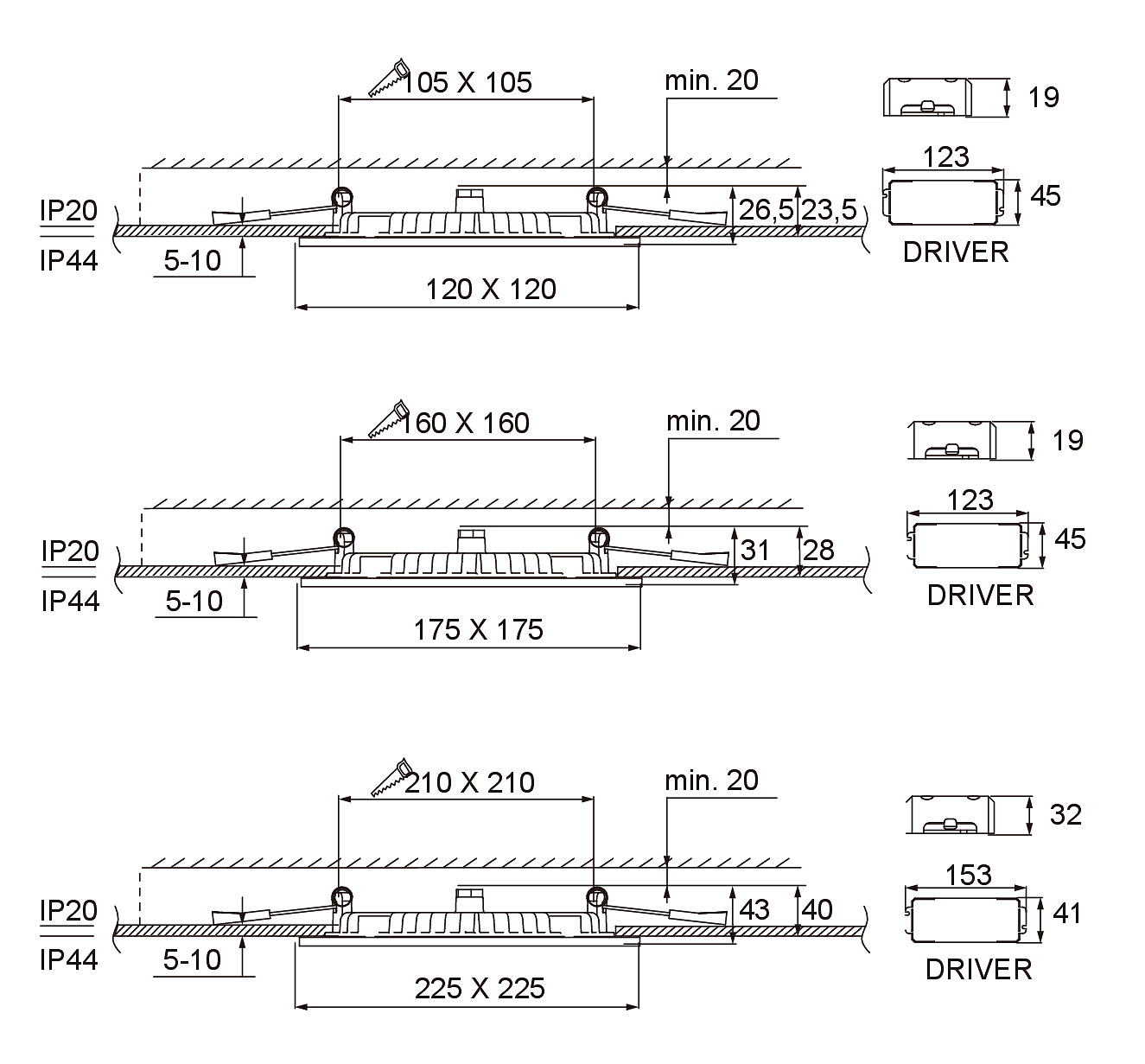

Technical info
| Item description | Code | Electrical number (FIN) | Colour temperature | Luminous flux | Power | Dimensions | |||
|---|---|---|---|---|---|---|---|---|---|
| Flat Sq Dim | |||||||||
|
Flat Sq 120 IP44 9W/830 DIM PCO WH | 4297885 |
4297885 |
3000K |
500lm |
9W |
120x120x26.5mm |
||
|
Flat Sq 120 IP44 9W/840 DIM PCO WH | 4297886 |
4297886 |
4000K |
500lm |
9W |
120x120x26.5mm |
||
|
Flat Sq 175 IP44 12W/830 DIM PCO WH | 4297887 |
4297887 |
3000K |
900lm |
12W |
175x175x31mm |
||
|
Flat Sq 175 IP44 12W/840 DIM PCO WH | 4297888 |
4297888 |
4000K |
900lm |
12W |
175x175x31mm |
||
|
Flat Sq 225 IP44 15W/830 DIM PCO WH | 4297889 |
4297889 |
3000K |
1300lm |
15W |
225x225x43mm |
||
|
Flat Sq 225 IP44 15W/840 DIM PCO WH | 4297890 |
4297890 |
4000K |
1300lm |
15W |
225x225x43mm |
||
| Item description | Code | Electrical number (FIN) | Colour temperature | Luminous flux | Power | Dimensions | |||
|---|---|---|---|---|---|---|---|---|---|
| Flat Sq Dali | |||||||||
|
Flat Sq 120 IP44 9W/830 DA2 PCO WH | A2FLGG-DALI |
3000K |
500lm |
9W |
120x120x26.5mm |
|||
|
Flat Sq 120 IP44 9W/840 DA2 PCO WH | A2FLGH-DALI |
4000K |
500lm |
9W |
120x120x26.5mm |
|||
|
Flat Sq 175 IP44 12W/830 DA2 PCO WH | A2FLGI-DALI |
3000K |
900lm |
12W |
175x175x31mm |
|||
|
Flat Sq 175 IP44 12W/840 DA2 PCO WH | A2FLGJ-DALI |
4000K |
900lm |
12W |
175x175x31mm |
|||
|
Flat Sq 225 IP44 15W/830 DA2 PCO WH | A2FLGK-DALI |
3000K |
1300lm |
15W |
225x225x43mm |
|||
|
Flat Sq 225 IP44 15W/840 DA2 PCO WH | A2FLGL-DALI |
4000K |
1300lm |
15W |
225x225x43mm |
|||
| Item description | Code | Electrical number (FIN) | Colour temperature | Luminous flux | Power | Dimensions | |||
|---|---|---|---|---|---|---|---|---|---|
| Flat Sq Casambi | |||||||||
|
Flat Sq 120 IP44 9W/830 CA PCO WH | A2FLGG-CA |
3000K |
500lm |
9W |
120x120x26.5mm |
|||
|
Flat Sq 120 IP44 9W/840 CA PCO WH | A2FLGH-CA |
4000K |
500lm |
9W |
120x120x26.5mm |
|||
|
Flat Sq 175 IP44 12W/830 CA PCO WH | A2FLGI-CA |
3000K |
900lm |
12W |
175x175x31mm |
|||
|
Flat Sq 175 IP44 12W/840 CA PCO WH | A2FLGJ-CA |
4000K |
900lm |
12W |
175x175x31mm |
|||
|
Flat Sq 225 IP44 15W/830 CA PCO WH | A2FLGK-CA |
3000K |
1300lm |
15W |
225x225x43mm |
|||
|
Flat Sq 225 IP44 15W/840 CA PCO WH | A2FLGL-CA |
4000K |
1300lm |
15W |
225x225x43mm |
|||
