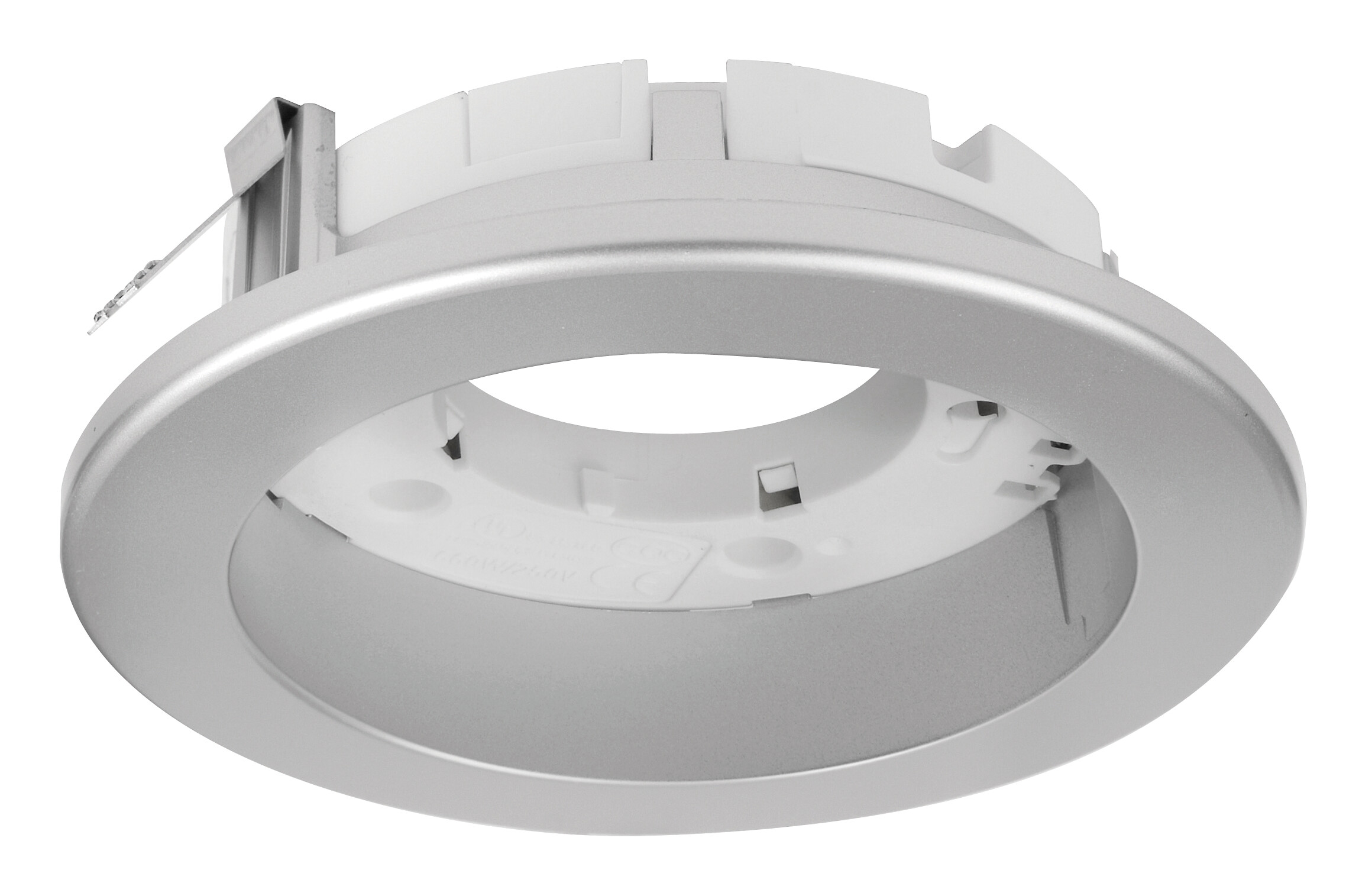

Planex
Low heat dissipation and a very low and light structure enable the Planex to be used in different types of ceiling structures and furnitures. The luminaire is easy to install and chain. It is available with or without an LED bulb. Dimmable bulbs and bulbs of different colour temperatures are separately available for it.
Polycarbonate body.
White.
Protection class II.
Recessed mounting.
Linkable, spring terminal blocks 3 x 2.5 mm2.
MacAdam 6 SDCM.
IP23.
Integrated LED GX53 5 W/480 lm.
On/off.
Ambient temperature range 0 °C to 25 °C.
Rated lifetime L70 15 000 h (Ta25°C).
Recommended led lamps: 4713758 PRO LED GX53, 4713759 PRO LED GX53 DIM, 4713760 PRO LED GX53 DIM.
Technical info
| Item description | Code | Electrical number (FIN) | Colour temperature | Luminous flux | Power | Dimensions | |||
|---|---|---|---|---|---|---|---|---|---|
| Planex | |||||||||
|
Planex IP23 GX53 LED 5W/830 WH | 4107124 |
4107124 |
3000K |
480lm |
5W |
104x104x39mm |
||
| Item description | Code | Electrical number (FIN) | Colour temperature | Luminous flux | Power | Dimensions | |||
|---|---|---|---|---|---|---|---|---|---|
| Planex body | |||||||||
|
Planex Housing IP23 GX53 max 6W WH | 4107114 |
4107114 |
6W |
104x104x39mm |
||||
