Cosy Tilt
With the Cosy Tilt downlights, you can create a lighting solution that does not generate glare. The luminaire’s inner ring eliminates glare and reflections effectively. Typical applications include museums, restaurants, galleries, hotels, residential properties and any other spaces where excellent colour rendition properties are required. All models are dimmable.
Die-cast aluminium housing and acrylic diffuser
Reflector 36D, high gloss aluminium.
White, RAL 9010.
Protection class II.
Recessed mounting on a ceiling, cut out Ø 81–83 mm.
Linkable, max 3 x 1,5 mm2, Dali-2-models 5 x 2,5 mm2.
Installation height 2–6 m
Colour temperatures 3000 K and 4000, CRI > 90 / Ra > 90.
MacAdam 3 SDCM.
IP20/IP44.
Integrated LED 7 W: 3000 K 530 lm, 4000 K 580 lm.

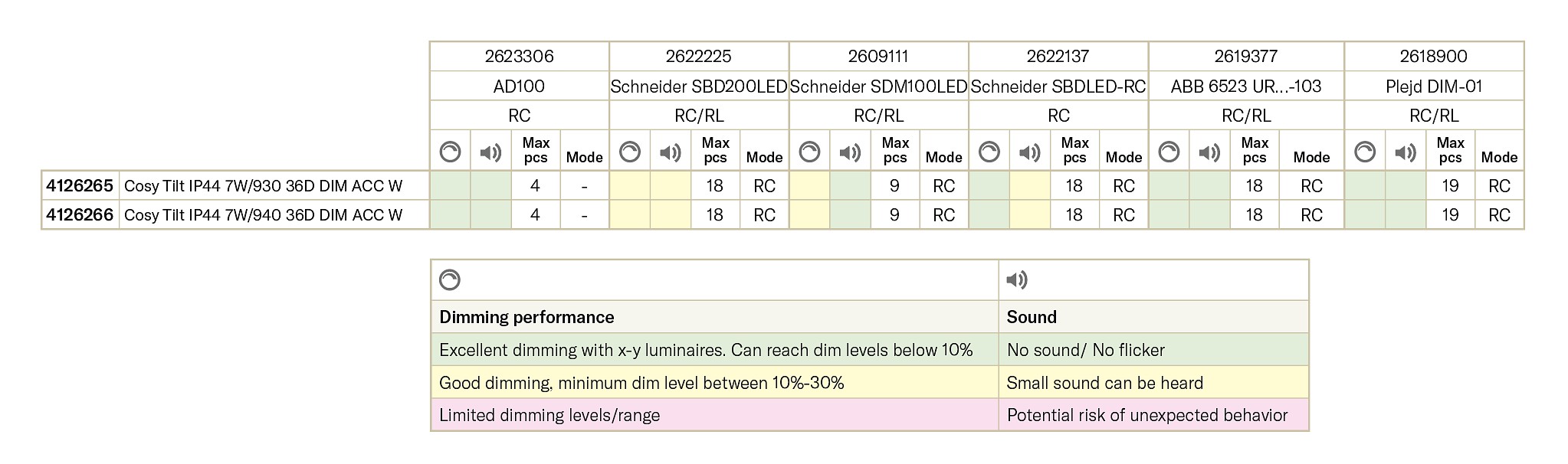

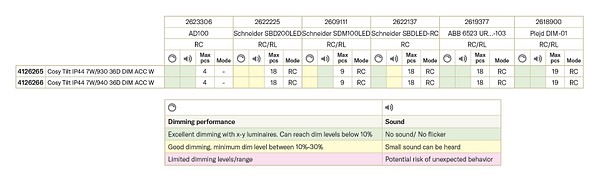

Dimming: rising- and trailing-edge control, Dali-2 with push-button control (230 V) and Casambi.
Ambient temperature range 0 … 25 °C.
Rated lifetime L70 90 000 h (Ta25°C).
Rated lifetime L80 60 000 h (Ta25°C).
Technical info
| Item description | Code | Electrical number (FIN) | Colour temperature | Luminous flux | Power | Dimensions | |||
|---|---|---|---|---|---|---|---|---|---|
| Cosy Tilt Dim | |||||||||
|
|
Cosy Tilt IP44 7W/930 36D DIM ACC WH | 4126265 |
4126265 |
3000K |
530lm |
7W |
95x95x76mm |
||
|
|
Cosy Tilt IP44 7W/940 36D DIM ACC WH | 4126266 |
4126266 |
4000K |
580lm |
7W |
95x95x76mm |
||
| Item description | Code | Electrical number (FIN) | Colour temperature | Luminous flux | Power | Dimensions | |||
|---|---|---|---|---|---|---|---|---|---|
| Cosy Tilt Dali | |||||||||
|
|
Cosy Tilt IP44 7W/930 36D DA2 ACC WH | A1COEC-DALI |
3000K |
530lm |
7W |
95x95x76mm |
|||
|
|
Cosy Tilt IP44 7W/940 36D DA2 ACC WH | A1COED-DALI |
4000K |
580lm |
7W |
95x95x76mm |
|||
| Item description | Code | Electrical number (FIN) | Colour temperature | Luminous flux | Power | Dimensions | |||
|---|---|---|---|---|---|---|---|---|---|
| Cosy Tilt Casambi | |||||||||
|
|
Cosy Tilt IP44 7W/930 36D CA ACC WH | A1COEC-CA |
3000K |
530lm |
7W |
95x95x76mm |
|||
|
|
Cosy Tilt IP44 7W/940 36D CA ACC WH | A1COED-CA |
4000K |
580lm |
7W |
95x95x76mm |
|||
