Norma 12V IP65 12V 9W/m 830 5m

Name: Norma 12V IP65 12V 9W/m 830 5m
SKU: 4209550

Norma 12V LED-light rail 45W 9W/m wh 3000K 700lm/m IP65; Protection cl. III; L70B50 50000h; LED not exchangeable; CRI>80; SDCM5; Ending; 2x0.3mm²

See product details

The damp-proof and compact Norma LED strip comes into its own as a source of indirect light for facades and wet spaces. Suitable applications include offices, residential properties, hotels and building facades. With the Norma-strip, you can create a continuous line of light. A separate dimmer unit offers two control options: push button (Push dim) and Dali dimming control. The strips are available in two colour temperatures. By special request, the luminaire is available with the Casambi control system, cut to measure and installed inside a profile, when necessary.

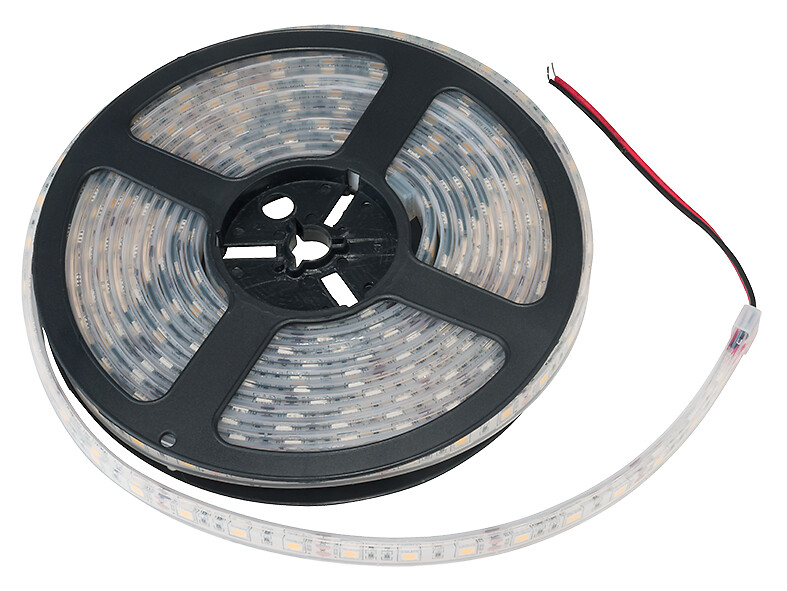

UV-protected silicone-coated LED strip, 12 V.
Protection class III.
Length 5 m.
The maximum length of the continuous line of light 5 m.
Connecting cable 1.5 m.
Norma installation profiles are recommended for outdoor use. The product comes with a self-adhesive and a separate silicone fixture for surface mounting.
Colour temperatures 3,000 K and 4,000 K.
MacAdam 4 SDCM.
IP65.
45 W / 5 m reel: 9 W, 700 lm/m.
On/off, push dim and Dali.
Ambient temperature range -20 … 25 °C.
Rated life time L70 50,000 h (Ta25°C).
Also available with the Casambi control system on a project-specific basis. Can also be cut to measure and installed in a profile, when necessary.

Code: 4209550

Technical info

Structure

Model: Tape
Lamp type: LED not exchangeable
Number of LEDs per metre: 60
Number of nodes per foot: 19
Type of power supply: Mains power supply
Exchangeable control gear: Yes
Energy efficiency class of light source according to EU regulation 2019/2015: G

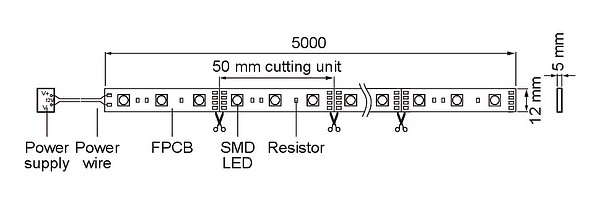

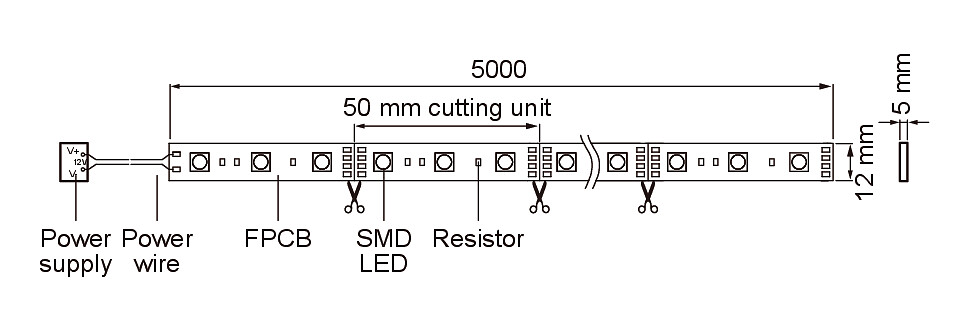

Length of particular segments (mm): 50 mm
With end piece: Yes
With connection set: No
With protective cover: Yes
Self-adhesive: Yes

Mounting

Mounting method: Surface mounted
Degree of protection (IP): IP65
Lowest bending radius (mm): 30 mm
Type of wiring: Ending
Number of poles: 2
Conductor cross section (mm²): 0.3 mm²
Connectable conductor cross section (min) (mm²): 1.5 mm²
Connectable conductor cross section (max) (mm²): 2.5 mm²
Connection type: Soldering connection

Electrotechnical data

Lamp power per meter (W): 9 W
Lamp power per foot (W): 2.74 W
Luminaire efficacy (lm/W): 78 lm/W
Voltage type: DC
Lamp voltage (min) (V): 12 V
Lamp voltage (max) (V): 12 V
Type of control gear: LED operating device voltage-controlled
Protection class according to IEC 61140: III
Maximum system power (W): 45 W
Power factor: 1

Photometric data

Luminous flux per meter (lm): 700 lm
Radiation angle (°): 120 °
Colour of light (alphanumeric): White
Colour temperature (min) (K): 3000 K
Colour temperature (max) (K): 3000 K
Colour rendering index (CRI/Ra): 80-89
Colour temperature switchable: No
Lumen setting adjustable: No
Beam angle adjustable: No

ETIM

Suitable for dimmer: No

Lifetime and capacity

Rated life time L70/B50 at 25 °C (h): 50000 h
Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) (%): 70 %
Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) (%): 10 %
