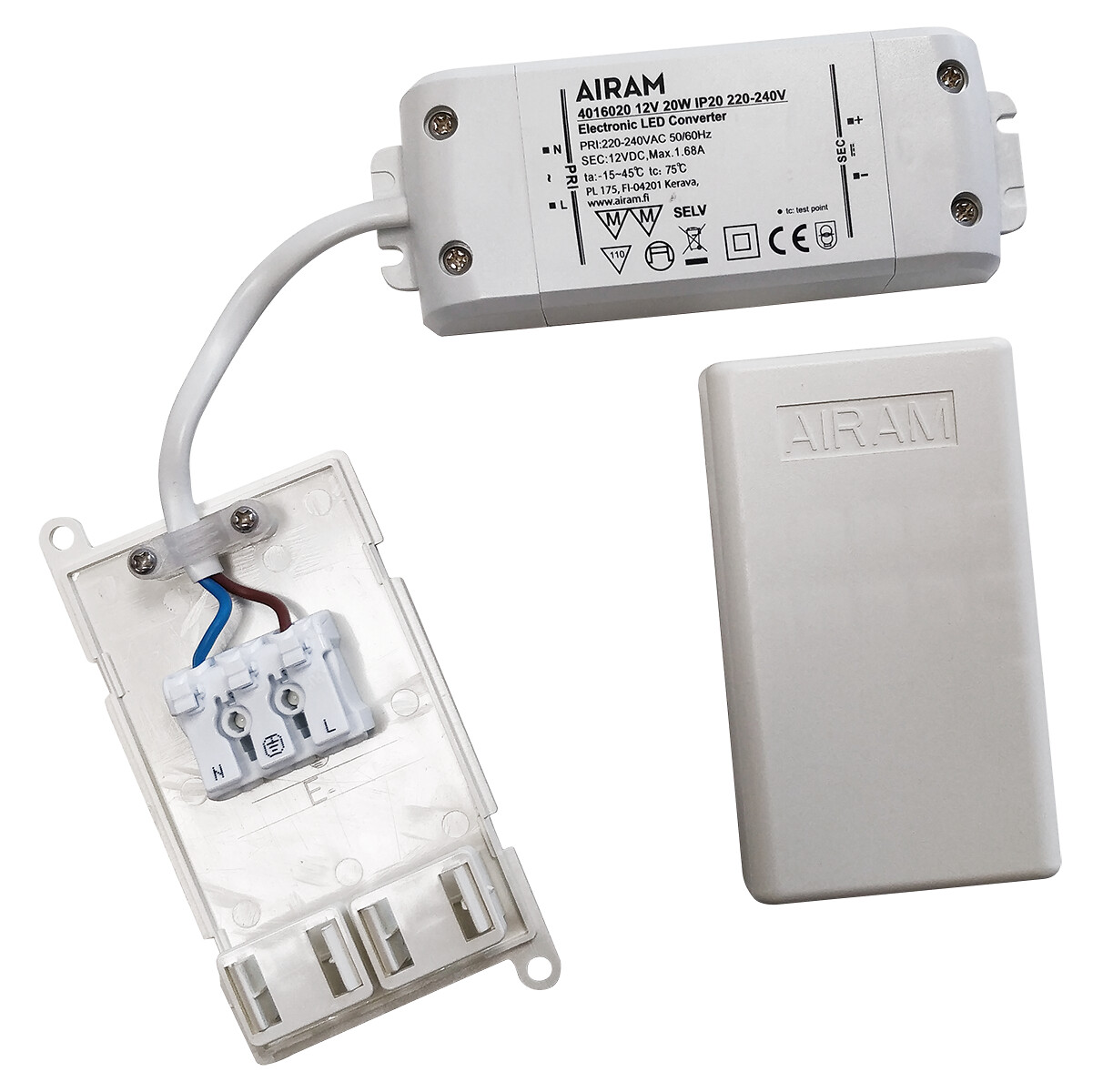

CV-DRIVER 12V 20W IP20 220-240V
LED driver for Apus 12V and Norma 12V LED strips.
- Code
- 4016020
Technical info
- Electrical number (FIN)
- 4016020
- Electrical number (SWE)
- 7981767
- GTIN
- 6435200244857
- Airam code
- A0LEAD
- Code
- 4016020
- Compatible with Apple HomeKit
- No
- Dimming 1-10 V
- No
- Output voltage (max) (V)
- 12
- Compatible with Google Assistant
- No
- Dimming DSI
- No
- Suitable for outdoor use
- No
- Ambient temperature (max) (°C)
- 25
- Constant luminous flux control
- No
- Dimming trailing edge
- No
- Output power (min) (W)
- 1
- Output current (max) (mA)
- 1680
- No dimming function
- Yes
- Width (mm)
- 45
- Bluetooth operated
- No
- Input voltage (max) (V)
- 240
- Dimming DMX
- No
- Compatible with Casambi
- No
- Dimming programmable
- No
- IFTTT support available
- No
- Dimming mains voltage modulation
- No
- Dimming RF
- No
- Output voltage (min) (V)
- 12
- Frequency input voltage (max) (Hz)
- 60
- Dimming 0-10 V
- No
- Dimming D4i
- No
- Length (mm)
- 118
- Dimming Touch and Dim
- No
- Model
- Static
- Dimming potentiometer (integrated)
- No
- Dimming Sine Wave Reduction
- No
- Suitable for constant voltage
- Yes
- Dimming leading edge
- No
- Dimming DALI-2
- No
- Height (mm)
- 19
- Dimming with push-button
- No
- Emergency power supply system
- None
- Protection class according to IEC 61140
- II
- Output power (max) (W)
- 20
- Dimming Zigbee
- No
- Dimming DALI
- No
- Input voltage (min) (V)
- 220
- Driver lifetime (h)
- 50000
- Dimming LineSwitch
- No
- Compatible with Amazon Alexa
- No
- Dimmable
- No
- Housing
- Plastic housing
- Suitable for DC-voltage (primary side)
- No
- Frequency input voltage (min) (Hz)
- 50
- Suitable for constant current
- No
- Dimming manufacturer's proprietary system
- No
- Degree of protection (IP)
- IP20
- Output current (min) (mA)
- 1680
- Ambient temperature (min) (°C)
- 0
Product versions
| Item description | Code | |
|---|---|---|
| CV-DRIVER 12V 20W IP20 220-240V | 4016020 |
|
| CV-DRIVER 12V 30W IP20 220-240V | 4016019 |
|
| CV-DRIVER 12V 60W IP20 220-240V | 4016018 |
|
| CV-DRIVER 12V 100W IP20 220-240V | 4016001 |
|
| LED DRIVER 60W OTP | 4289780 |
