Futura Rst 1600 6200lm/840 DA2
Futura RST Sealed industrial luminaire 45W 4000K 6200lm Dim DALI-2; Dim programmable; IP65; IK10; Protection cl. I; L70B50 100000h; LED not exchangeable; Lamp included; CRI>80; SDCM3; Through-wired; 5x2.5mm²; Housing st; Colour st; Cover Glass matt/satinized; C16 max. 26

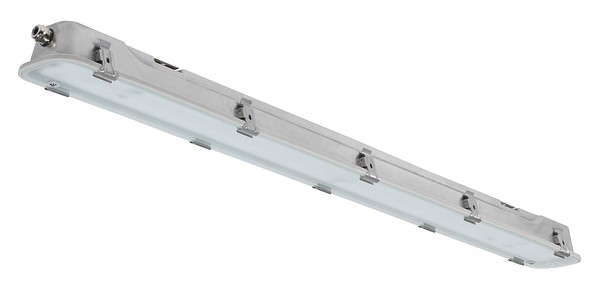

Futura RST is a reliable industrial luminaire for challenging applications where extra durability is required from the lighting solution. Its applications include warehouses, industrial facilities, shelters, agricultural production premises and other spaces without explosion hazards. The luminaire is made of impact- and chemical-resistant materials. It is equipped with a stainless steel housing and heat-treated hardened glass diffuser.
Stainless steel housing and hardened glass diffuser
Steel, white reflector RAL 9003.
Protection class I.
Surface mounting on a wall or ceiling, suspension mounting possible with a wire available by special order.
Throughwired 5 × 2.5 mm2.
Installation height 2–6 m.
Integrated LED:
1300 mm 27 W 3500 lm / 38 W 5000 lm.
1600 mm 33 W 4300 lm / 45 W 6200 lm.
Colour temperature 4,000 K. CRI > 80 / Ra > 80.
MacAdam 3 SDCM.
IP65.
IK10.
The standard range includes on/off and Dali-2 models with the CLO function.
Ambient temperature range -25 … 35 °C
Rated lifetime L70 100 000 h (Ta25°C).
Rated lifetime L80 80 000 h (Ta25°C).
Rated lifetime L90 50 000 h (Ta25°C).
Also available 680 mm models 1100–1800 lm, 1290 mm models 2000–5100 lm and 1600 mm models 2500–6400 lm. The 1,290 mm and 1,600 mm models are also available as a safety lighting version with 1 h or 3 h batteries. The Dali versions are available as 1- and 3-phase through-wired versions. Color temperatures by order: (CRI > 80:) 3000 K, 5000 K and 6500 K, (CRI > 90:) 3000 K and 4000 K. Also available with a protective film on the diffuser.
- Code
- 4338516
Downloads
Technical info
- Electrical number (FIN)
- 4338516
- GTIN
- 6435200281692
- Airam code
- A3FRSB
- Code
- 4338516
- Compatible with Apple HomeKit
- No
- Beam angle adjustable
- No
- Dimming 1-10 V
- No
- With light sensor
- No
- Connectable conductor cross section (min) (mm²)
- 1.5
- With air slots
- No
- Compatible with Google Assistant
- No
- Luminaire efficacy (max) (lm/W)
- 138
- Light sharing
- Symmetric
- Beam angle
- Open beam
- Fit for workplace acc. EN 12464-1
- No
- Impact strength
- IK10
- Stroboscope effect value SVM
- 0.4
- With presence indicator
- No
- Dimming DSI
- No
- Rated luminous flux according to IEC 62722-2- 1 (max) (lm)
- 6200
- Effective luminous flux (lm)
- 6200
- Constant luminous flux control
- Yes
- Dimming trailing edge
- No
- Light source included
- Yes
- Rated luminous flux according to IEC 62722-2- 1 (min) (lm)
- 6200
- No dimming function
- No
- Max. number of luminaires per miniature circuit breaker B16
- 16
- Housing material
- Stainless steel
- Width (mm)
- 120
- Suitable for suspended mounting
- Yes
- Type of grid
- None
- Luminaire may be covered with thermally insulating material
- -
- Flickering value Pst LM
- 1
- Bluetooth operated
- No
- Colour temperature switchable
- No
- Dimming DMX
- No
- Compatible with Casambi
- No
- Lamp holder
- Other
- Type of control gear
- LED operating device current-controlled
- Suitable for lamp power (min) (W)
- 45
- Dimming programmable
- Yes
- With movement sensor
- No
- IFTTT support available
- No
- Dimming mains voltage modulation
- No
- Light distributor
- Reflector
- Dimming RF
- No
- Emergency function monitoring system
- None
- Luminaire efficacy (lm/W)
- 138
- Dimming 0-10 V
- No
- Total harmonic distortion (THD) (%)
- 10
- Height/depth (mm)
- 67
- Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 5
- Exchangeable control gear
- Yes
- Voltage type
- AC
- Length (mm)
- 1600
- Dimming Touch and Dim
- No
- Photobiological safety according to EN 62471
- RG0
- Dimming potentiometer (integrated)
- No
- Filament test according to IEC 60695-2-11
- 960 °C - 30 s
- Suitable for wall mounting
- Yes
- Nominal current (min) (mA)
- 186
- With mounting material
- Yes
- Suitable for surface mounting
- Yes
- Colour of light (alphanumeric)
- White
- Colour temperature (max) (K)
- 4000
- Rated life time L70/B50 at 25 °C (h)
- 100000
- Dimming Sine Wave Reduction
- No
- Colour rendering index (CRI/Ra)
- 80-89
- Colour consistency (McAdam ellipse)
- SDCM3
- Nominal voltage (min) (V)
- 220
- Connectable conductor cross section (max) (mm²)
- 2.5
- Dimming leading edge
- No
- Failure rate at median useful life of 75,000 hrs at 25 °C ambient (tq) (%)
- 10
- Dimming DALI-2
- Yes
- Suitable for recessed mounting
- No
- Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
- 5
- Max. number of luminaires per miniature circuit breaker C16
- 26
- Rated life time L80/B50 at 25 °C
- 80000
- Containing product according to 2019/2020/EU
- Yes
- Control gear included
- Yes
- Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24
- No
- Lumen maintenance at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
- 95
- Degree of protection (IP), front side
- IP65
- Type of wiring
- Through-wired
- Dimming with push-button
- No
- Emergency power supply system
- None
- Protection class according to IEC 61140
- I
- Degree of protection (IP), rear side
- IP65
- Power factor
- 0.9
- Dimming Zigbee
- No
- Dimming DALI
- Yes
- Max. number of luminaires per miniature circuit breaker C10 (MCB)
- 16
- Suitable for clamp-mounting
- Yes
- Unified Glare Rating (UGR)
- 24
- Compatible with Amazon Alexa
- No
- Dimmable
- Yes
- Dimming LineSwitch
- No
- Cover material
- Glass matt/satinized
- With switch
- No
- Total harmonic distortion
- 10
- Conductor cross section (mm²)
- 2.5
- Rated ambient temperature acc. IEC62722-2-1 (min) (°C)
- -25
- Suitable for lamp power (max) (W)
- 45
- Nominal voltage (max) (V)
- 240
- Colour temperature (min) (K)
- 4000
- Luminaire efficacy (min) (lm/W)
- 138
- Suitable for light line configuration
- No
- Energy efficiency class of light source according to EU regulation 2019/2015
- D
- Housing colour
- Stainless steel
- Number of poles
- 5
- Suitable for emergency lighting
- No
- Rated ambient temperature acc. IEC62722-2-1 (max) (°C)
- 35
- Suitable for number of lamps
- 1
- Dimming manufacturer's proprietary system
- No
- Lumen maintenance at median useful life of 75,000 hrs at 25 °C ambient (tq) (%)
- 80
- Light outlet
- Direct
- Housing surface protection
- Untreated
- Suitable for ceiling mounting
- Yes
- Lamp type
- LED not exchangeable
- Nominal current (max) (mA)
- 205
- Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 90
- Connection type
- Screwless terminal
- Emergency power supply integrated
- No
- Degree of protection (IP)
- IP65
- Maximum system power (W)
- 45
- Lumen setting adjustable
- No
Product versions
Futura RST
| Item description | Code | |
|---|---|---|
| Futura Rst 1290 3500lm/840 | A3FRSE |
|
| Futura Rst 1290 5000lm/840 | A3FRSG |
|
| Futura Rst 1600 4300lm/840 | 4338517 |
|
| Futura Rst 1600 6200lm/840 | 4338515 |
Futura RST Dali
| Item description | Code | |
|---|---|---|
| Futura Rst 1290 3500lm/840 DA2 | A3FRSF |
|
| Futura Rst 1290 5000lm/840 DA2 | A3FRSH |
|
| Futura Rst 1600 4300lm/840 DA2 | 4338518 |
|
| Futura Rst 1600 6200lm/840 DA2 | 4338516 |
