  5. FLY D/I 77W/830 SI DA
Public spaces, Offices

Fly

FLY D/I 77W/830 SI DA

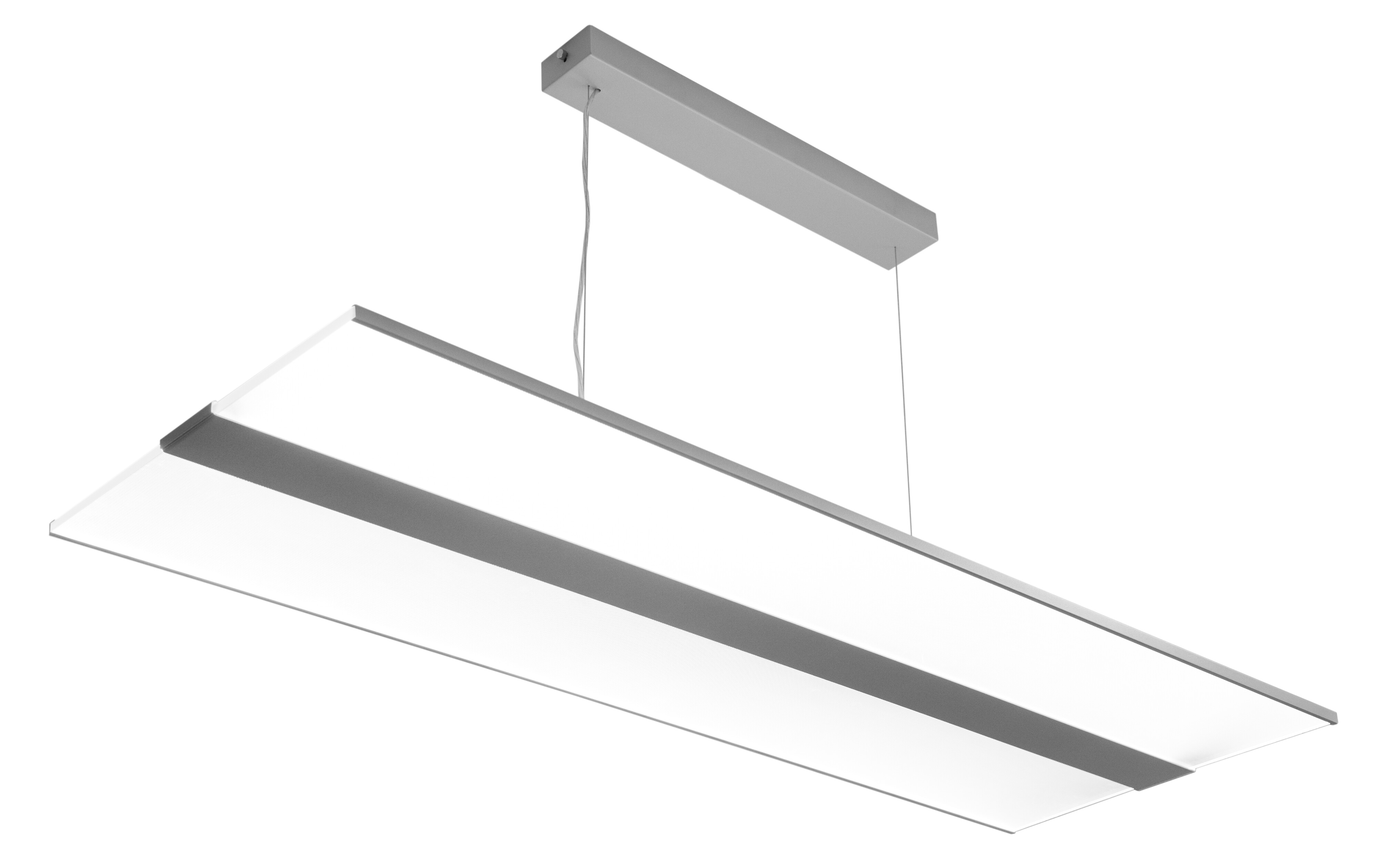

Fly Suspension luminaire 77W 3000K 7100lm Dim DALI-2; IP20; Protection cl. I; L70B50 100000h; LED not exchangeable; CRI>80; SDCM3; Suitable for through wiring; 5x2.5mm²; Housing Steel; Colour sil; Cover Plastic, transparent

See product details
Code
4209593

Technical info

Mounting

Suitable for light line configuration
No
Fit for workplace acc. EN 12464-1
No
Max. number of luminaires per miniature circuit breaker B16
13
Max. number of luminaires per miniature circuit breaker C16
22
Degree of protection (IP)
IP20
Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24
No
Suitable for emergency lighting
No
Emergency function monitoring system
None
Type of wiring
Suitable for through wiring
Connectable conductor cross section (min) (mm²)
1.5 mm²
Connectable conductor cross section (max) (mm²)
2.5 mm²
Number of poles
5
Conductor cross section (mm²)
2.5 mm²
Connection type
Screwless terminal

Structure

Lamp type
LED not exchangeable
Light source included
Yes
Suitable for number of lamps
1
Lamp holder
Other
Housing material
Steel
Housing colour
Silver
Cover material
Plastic, transparent
Control gear included
Yes
Exchangeable control gear
Yes
Energy efficiency class of light source according to EU regulation 2019/2015
C
Containing product according to 2019/2020/EU
Yes
Emergency power supply integrated
No
Emergency power supply system
None
Suspension supplied with the product
Yes
Pendant length (min) (mm)
1.5 mm
Pendant length (max) (mm)
1.5 mm

Electrotechnical data

Voltage type
AC
Nominal voltage (min) (V)
220 V
Nominal voltage (max) (V)
240 V
Type of control gear
LED operating device current-controlled
Protection class according to IEC 61140
I
Luminaire efficacy (min) (lm/W)
92 lm/W
Luminaire efficacy (max) (lm/W)
92 lm/W
Suitable for lamp power (min) (W)
77 W
Suitable for lamp power (max) (W)
77 W
Maximum system power (W)
77 W
Luminaire efficacy (lm/W)
92 lm/W

Dimming and control

Dimmable
Yes
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
Yes
Dimming DALI-2
Yes
Dimming DMX
No
Dimming DSI
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming leading edge
No
Dimming potentiometer (integrated)
No
Dimming programmable
No
Dimming RF
No
Dimming LineSwitch
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
No dimming function
No
With movement sensor
No
With presence indicator
No
With light sensor
No
Constant luminous flux control
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Compatible with Casambi
No
IFTTT support available
No
Bluetooth operated
No

Photometric data

Light sharing
Symmetric
Colour consistency (McAdam ellipse)
SDCM3
Light outlet
Direct/indirect
Rated luminous flux according to IEC 62722-2- 1 (min) (lm)
7100 lm
Rated luminous flux according to IEC 62722-2- 1 (max) (lm)
7100 lm
Effective luminous flux (lm)
7100 lm
Colour of light (alphanumeric)
White
Colour temperature (min) (K)
3000 K
Colour temperature (max) (K)
3000 K
Colour rendering index (CRI/Ra)
80-89
Colour temperature switchable
No
Lumen setting adjustable
No
Beam angle adjustable
No

Lifetime and capacity

Rated life time L70/B50 at 25 °C (h)
100000 h

Measurements

Width (mm)
445 mm
Height/depth (mm)
10 mm
Length (mm)
1220 mm
