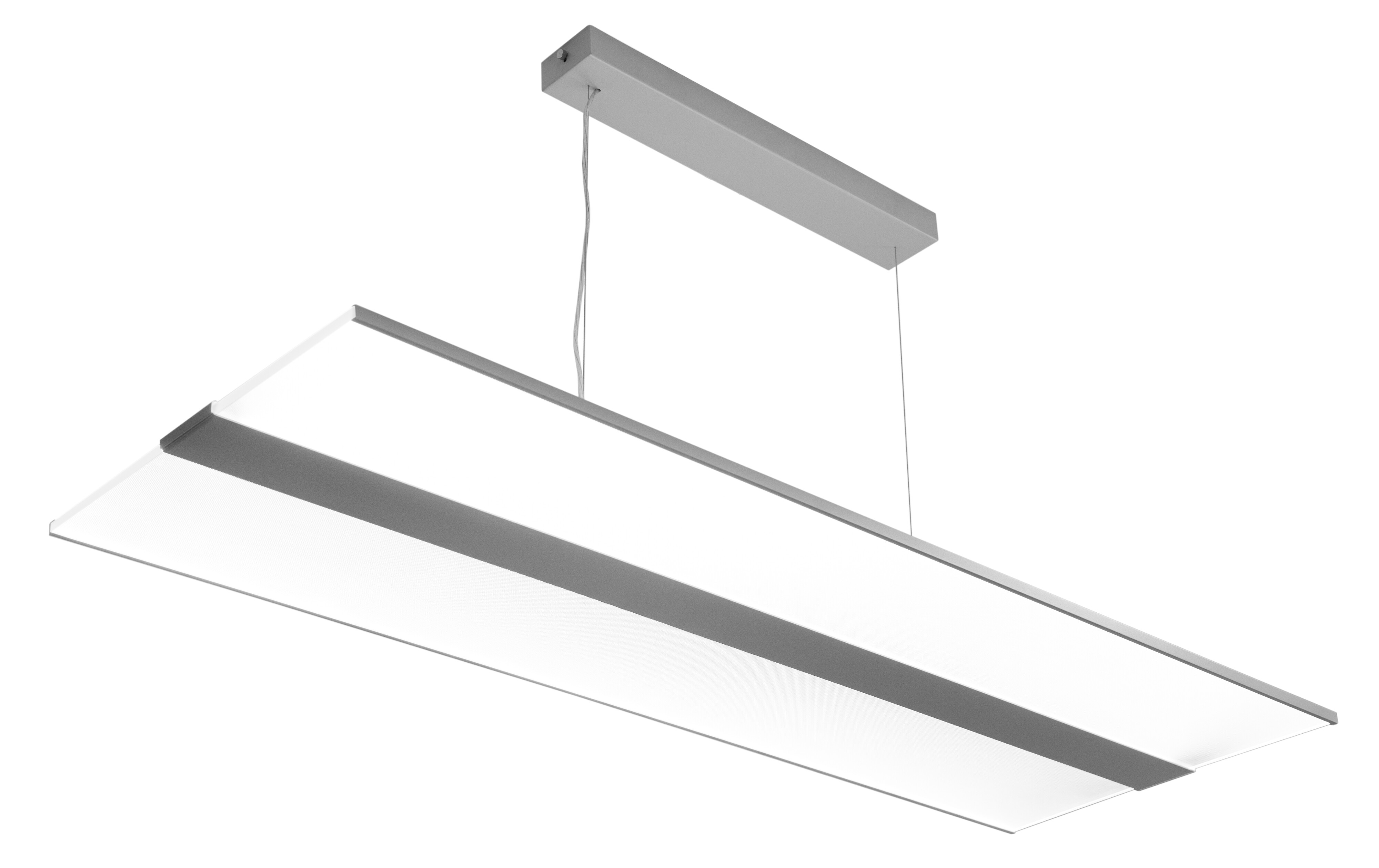

FLY D/I 77W/830 SI
Fly Suspension luminaire 77W 3000K 7100lm No dim; IP20; Protection cl. I; L70B50 100000h; LED not exchangeable; CRI>80; SDCM3; Suitable for through wiring; 3x2.5mm²; Housing Steel; Colour sil; Cover Plastic, transparent
This elegant office luminaire is suitable for suspension mounting and provides evenness in up- and down-lighting. Light distribution is realised with the side panels on either side of the body. Integrated LED.
Steel housing, transparent acrylic side panels.
Silver, RAL 9006.
Protection class I.
Suspension mounting.
Linkable, 3/5 x 2.5 mm2.
Installation height 2–4 m.
Integrated LED 58–78 W / 6200–8000 lm.
Colour temperatures 3000 K and 4000 K. CRI > 80 / Ra > 80.
MacAdam 3 SDCM.
IP20.
The standard range includes on/off and Dali models.
Ambient temperature range 0 … 25 °C.
Rated lifetime L70 100 000 h (Ta25°C).
Rated lifetime L80 80 000 h (Ta25°C).
Power source service life 50 000 h.
SI = silver, DA = Dali.
Also available: Casambi, ActiveAhead, Philips SR, 1–10 V and Switch Dim solutions. CRI > 90 available for order. Also available with various connecting wire solutions.
- Code
- 4209591
Downloads
Technical info
- Electrical number (FIN)
- 4209591
- Electrical number (SWE)
- 7016046
- GTIN
- 6435200239556
- Airam code
- D2FYAE
- Code
- 4209591
- Length (mm)
- 1220
- Fit for workplace acc. EN 12464-1
- No
- Emergency function monitoring system
- None
- Luminaire efficacy (max) (lm/W)
- 92
- Colour of light (alphanumeric)
- White
- Lamp holder
- Other
- Dimming Zigbee
- No
- Colour temperature (max) (K)
- 3000
- Dimming leading edge
- No
- Number of poles
- 3
- Connectable conductor cross section (min) (mm²)
- 1.5
- Compatible with Google Assistant
- No
- Connectable conductor cross section (max) (mm²)
- 2.5
- Conductor cross section (mm²)
- 2.5
- Rated life time L70/B50 at 25 °C (h)
- 100000
- Dimming DMX
- No
- Containing product according to 2019/2020/EU
- Yes
- Suitable for emergency lighting
- No
- With light sensor
- No
- Suspension supplied with the product
- Yes
- Maximum system power (W)
- 77
- With presence indicator
- No
- Emergency power supply system
- None
- Dimmable
- Yes
- Exchangeable control gear
- Yes
- Rated luminous flux according to IEC 62722-2- 1 (max) (lm)
- 7100
- Dimming Sine Wave Reduction
- No
- Dimming programmable
- No
- Housing colour
- Silver
- Emergency power supply integrated
- No
- Compatible with Casambi
- No
- Beam angle adjustable
- No
- Suitable for number of lamps
- 1
- Control gear included
- Yes
- Dimming RF
- No
- Effective luminous flux (lm)
- 7100
- IFTTT support available
- No
- Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24
- No
- Dimming potentiometer (integrated)
- No
- Width (mm)
- 445
- Luminaire efficacy (lm/W)
- 92
- Dimming with push-button
- No
- Energy efficiency class of light source according to EU regulation 2019/2015
- C
- With movement sensor
- No
- Nominal voltage (max) (V)
- 240
- Type of wiring
- Suitable for through wiring
- Dimming 1-10 V
- No
- Colour rendering index (CRI/Ra)
- 80-89
- Dimming DSI
- No
- Light outlet
- Direct/indirect
- Suitable for lamp power (min) (W)
- 77
- No dimming function
- Yes
- Bluetooth operated
- No
- Dimming 0-10 V
- No
- Connection type
- Screwless terminal
- Light source included
- Yes
- Max. number of luminaires per miniature circuit breaker C16
- 22
- Lamp type
- LED not exchangeable
- Suitable for light line configuration
- No
- Dimming DALI-2
- No
- Nominal voltage (min) (V)
- 220
- Dimming manufacturer's proprietary system
- No
- Type of control gear
- LED operating device current-controlled
- Colour temperature (min) (K)
- 3000
- Degree of protection (IP)
- IP20
- Rated luminous flux according to IEC 62722-2- 1 (min) (lm)
- 7100
- Lumen setting adjustable
- No
- Suitable for lamp power (max) (W)
- 77
- Protection class according to IEC 61140
- I
- Dimming DALI
- No
- Light sharing
- Symmetric
- Luminaire efficacy (min) (lm/W)
- 92
- Voltage type
- AC
- Pendant length (max) (mm)
- 1.5
- Colour temperature switchable
- No
- Compatible with Apple HomeKit
- No
- Dimming LineSwitch
- No
- Housing material
- Steel
- Constant luminous flux control
- No
- Compatible with Amazon Alexa
- No
- Height/depth (mm)
- 10
- Colour consistency (McAdam ellipse)
- SDCM3
- Pendant length (min) (mm)
- 1.5
- Dimming trailing edge
- No
- Dimming Touch and Dim
- No
- Dimming mains voltage modulation
- No
- Cover material
- Plastic, transparent
- Max. number of luminaires per miniature circuit breaker B16
- 13
Product versions
Fly
| Item description | Code | |
|---|---|---|
| FLY D/I 63W/830 SI | 4209587 |
|
| FLY D/I 63W/840 SI | 4209588 |
|
| FLY D/I 77W/830 SI | 4209591 |
|
| FLY D/I 77W/840 SI | 4209592 |
Fly Dali
| Item description | Code | |
|---|---|---|
| FLY D/I 63W/830 SI DA | 4209589 |
|
| FLY D/I 63W/840 SI DA | 4209590 |
|
| FLY D/I 77W/830 SI DA | 4209593 |
|
| FLY D/I 77W/840 SI DA | 4209594 |
