Cio Multi Raising Frame 292 mm WH
Plastic raising frame for Cio Multi 16W, white

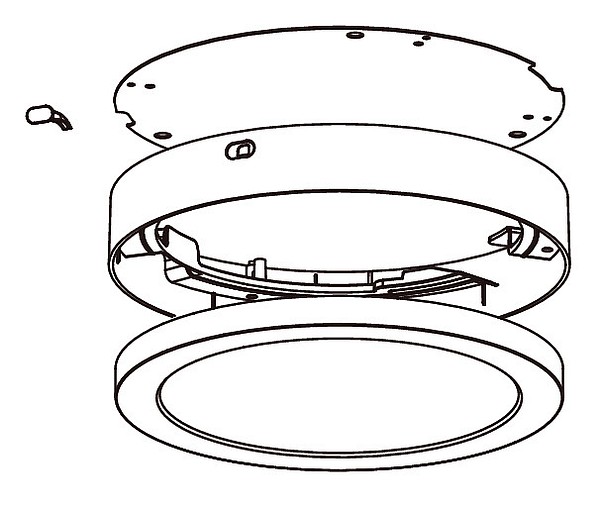

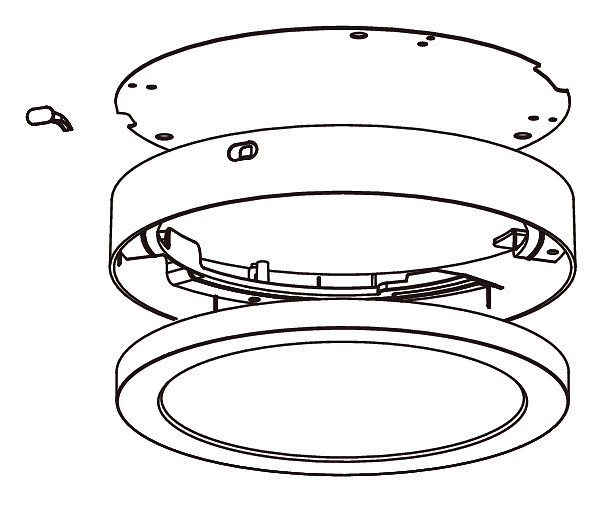

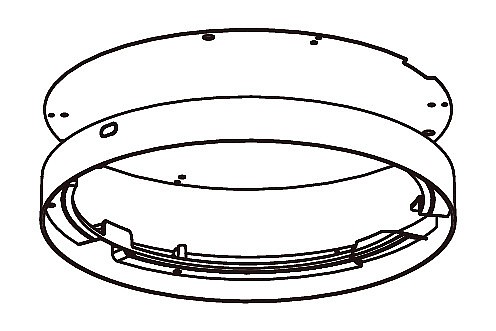

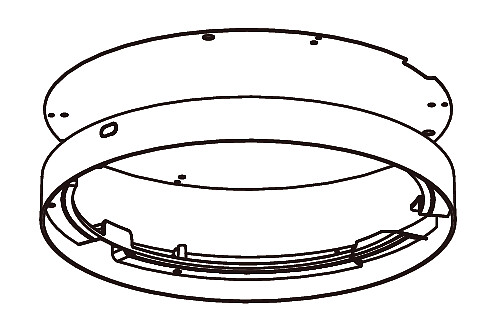

The Cio Multi raising frame permits the use of surface wiring in mounting of the luminaire. The frame has knock-outs on opposite sides, so the luminaires can be linked with connectors. The colour and surface texture match those of the luminaire, to ensure a neat appearance. Raising frames are available for all Cio Multi luminaires, including the PIR model. They are not suitable for use with decorative rings.
- Code
- 4146803
Technical info
Structure
- Type of accessory/spare part
- Installation frame
- Accessory
- Yes
- Spare part
- No
- Transparent
- No
- Colour
- White
- Material
- Plastic

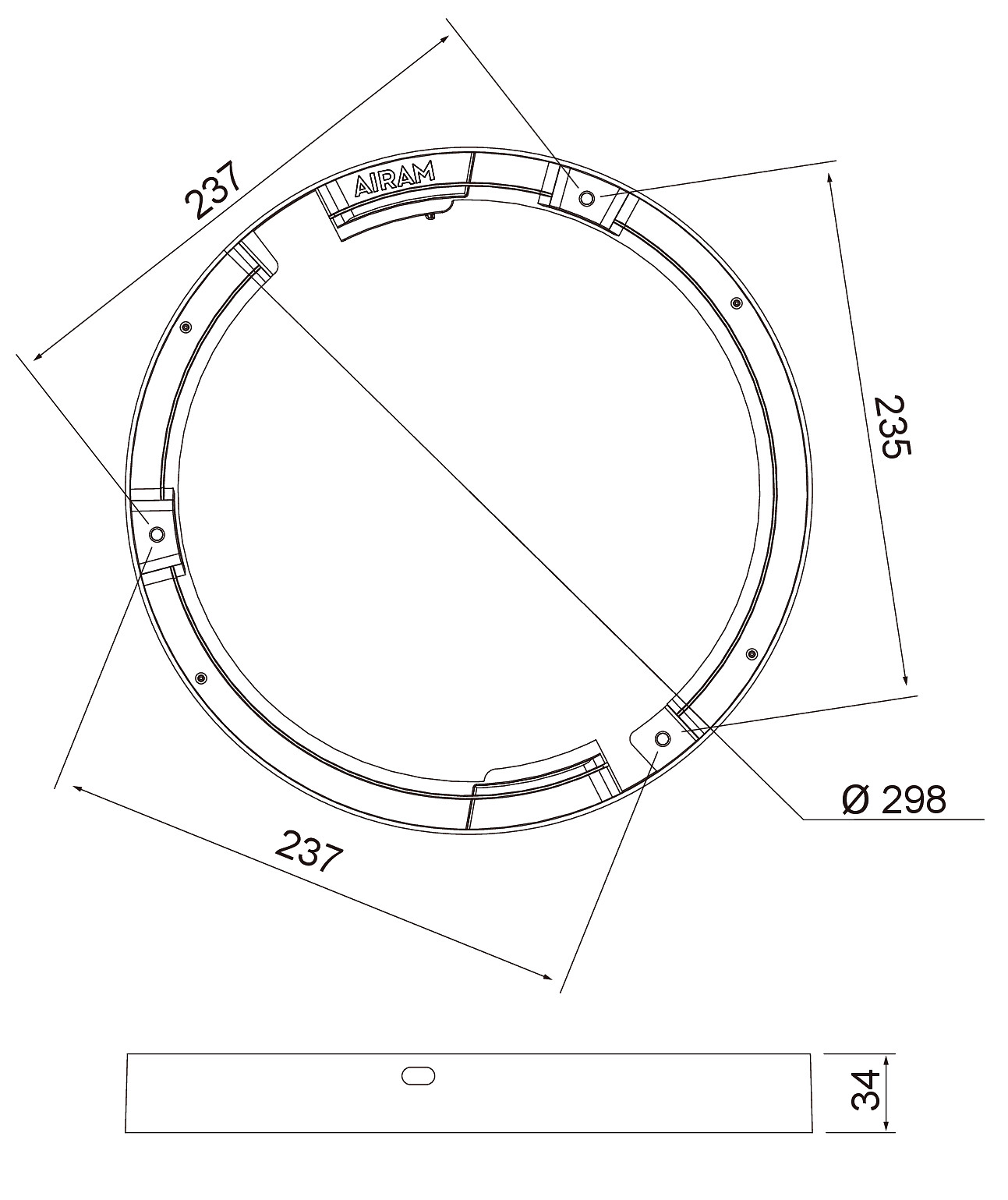

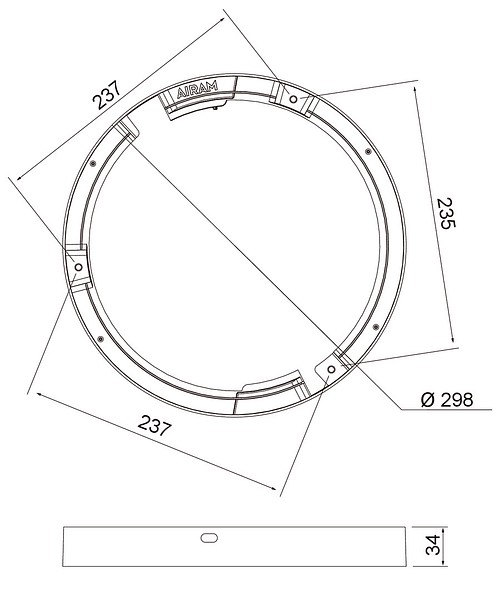

Measurements
- Length (mm)
- 298 mm
- Width (mm)
- 298 mm
- Height (mm)
- 34 mm
- Diameter (mm)
- 298 mm
| Item description | Code | Electrical number (FIN) | Colour temperature | Luminous flux | Power | Dimensions | ||
|---|---|---|---|---|---|---|---|---|
|
|
Cio Multi Decorative ring 164 mm BK | 4146662 |
4146662 |
166x166x16mm |
||||
|
|
Cio Multi Decorative ring 164 mm CR | 4146663 |
4146663 |
166x166x16mm |
||||
|
|
Cio Multi Decorative ring 217 mm BK | 4146664 |
4146664 |
219x219x16mm |
||||
|
|
Cio Multi Decorative ring 217 mm CR | 4146665 |
4146665 |
219x219x16mm |
||||
|
|
Cio Multi Decorative ring 292 mm BK | 4146666 |
4146666 |
294x294x16mm |
||||
|
|
Cio Multi Decorative ring 292 mm CR | 4146667 |
4146667 |
294x294x16mm |
||||
|
|
Cio Multi Raising Frame 164 mm WH | 4146801 |
4146801 |
171x171x34mm |
||||
|
|
Cio Multi Raising Frame 217 mm WH | 4146802 |
4146802 |
223x223x34mm |
||||
|
|
Cio Multi Raising Frame 292 mm WH | 4146803 |
4146803 |
298x298x34mm |
||||
|
|
Cio Multi Raising Frame 226 mm WH | 4146804 |
4146804 |
232x232x39mm |
Product codes
- Electrical number (FIN)
- 4146803
- Electrical number (SWE)
- 7475691
- Electrical number (NOR)
- 3235196
- GTIN
- 6435200292377
- Airam code
- A1CIOM
- Code
- 4146803
