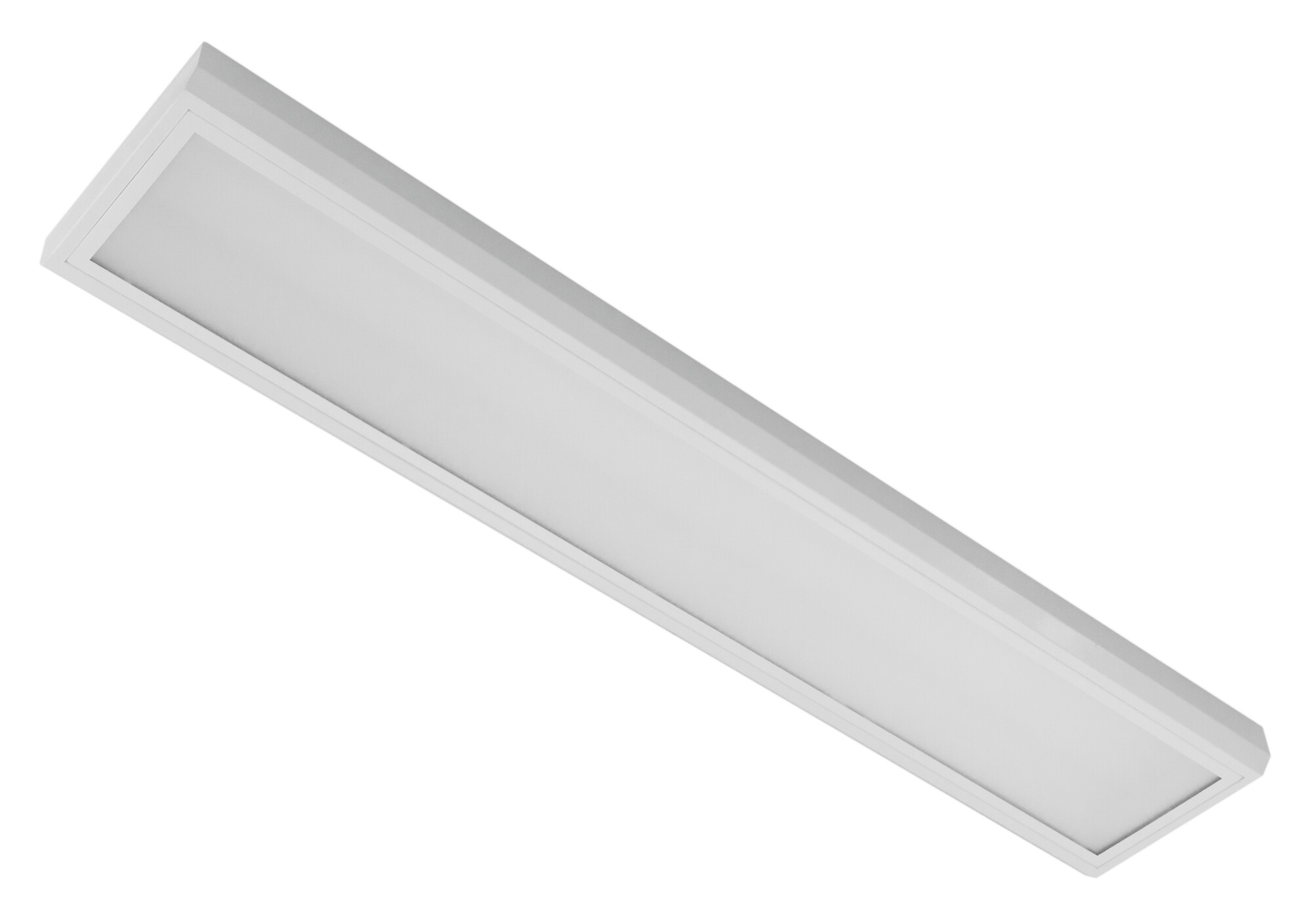

Tradi 1510 IP40 44W/830 ACO WH
Tradi Surface mnt./suspen. luminaire 44W 3000K 5000lm No dim; IP40; Protection cl. I; L70B50 100000h; LED not exchangeable; CRI>80; SDCM3; Suitable for through wiring; 3x2.5mm²; Housing Steel; Colour wh; Cover Plastic, opal; C16 max. 30
A luminaire range designed for offices and other public spaces. The wide frame allows the replacement of old T5 and T8 luminaires with Tradi luminaires that are similar in appearance. Available in two lengths. Surface mounting or wire suspension with a separate wire-suspension fixture.
Steel housing, acrylic (AC), opal (O) or micro-prismatic (MP) diffuser.
White RAL 9003.
Protection class I.
Surface or wire suspension mounting.
Linkable, 3/5 x 2.5 mm2
Installation height: 2–5 m.
Fixed LED: 26–63 W / 3300–7000 lm.
Colour temperatures: 3000 K and 4000 K. CRI > 80 / Ra > 80.
MacAdam 3 SDCM.
IP40.
The standard range includes on/off and Dali-2 models.
Ambient temperature range: 0 ... 25 °C.
Rated lifetime: L70 100 000 h (Ta 25 °C).
Rated lifetime: L80 65 000 h (Ta25°C).
Power source service life: 50 000 h.
Wire-suspension fixture 4146595 and 4107113 are available as an accessory.
WH = white, DA2 = Dali-2.
Also available as Casambi, 1–10 V and Switch Dim solutions. CRI > 90 available by special order. Also available with various connecting wire solutions.
- Code
- 4245281
Downloads
Technical info
- Electrical number (FIN)
- 4245281
- GTIN
- 6435200254474
- Airam code
- D2ESCA
- Code
- 4245281
- Length (mm)
- 1510
- Fit for workplace acc. EN 12464-1
- No
- Suitable for suspended mounting
- Yes
- Emergency function monitoring system
- None
- Luminaire efficacy (max) (lm/W)
- 114
- Colour of light (alphanumeric)
- White
- Lamp holder
- Other
- Suitable for clamp-mounting
- Yes
- Dimming Zigbee
- No
- Colour temperature (max) (K)
- 3000
- Dimming leading edge
- No
- Unified Glare Rating (UGR)
- 22
- Number of poles
- 3
- Stroboscope effect value SVM
- 0.4
- Connectable conductor cross section (min) (mm²)
- 1.5
- Total harmonic distortion
- 10
- Compatible with Google Assistant
- No
- Connectable conductor cross section (max) (mm²)
- 2.5
- Conductor cross section (mm²)
- 2.5
- Rated life time L70/B50 at 25 °C (h)
- 100000
- Dimming DMX
- No
- With switch
- No
- Containing product according to 2019/2020/EU
- Yes
- Suitable for emergency lighting
- No
- Photobiological safety according to EN 62471
- RG0
- Maximum system power (W)
- 44
- With presence indicator
- No
- Emergency power supply system
- None
- Dimmable
- No
- Suitable for ceiling mounting
- Yes
- Exchangeable control gear
- Yes
- Rated luminous flux according to IEC 62722-2- 1 (max) (lm)
- 5000
- Dimming Sine Wave Reduction
- No
- Dimming programmable
- No
- Housing colour
- White
- Emergency power supply integrated
- No
- Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 85
- Compatible with Casambi
- No
- Beam angle adjustable
- No
- Degree of protection (IP), rear side
- IP40
- Lumen maintenance at median useful life of 75,000 hrs at 25 °C ambient (tq) (%)
- 80
- Lumen maintenance at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
- 90
- Housing surface protection
- Powder coating
- With air slots
- No
- Suitable for number of lamps
- 1
- Control gear included
- Yes
- Dimming RF
- No
- Rated ambient temperature acc. IEC62722-2-1 (min) (°C)
- 0
- Effective luminous flux (lm)
- 5000
- Rated life time L80/B50 at 25 °C
- 65000
- IFTTT support available
- No
- Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 5
- Dimming potentiometer (integrated)
- No
- Max. number of luminaires per miniature circuit breaker C10 (MCB)
- 18
- Width (mm)
- 240
- Suitable for surface mounting
- Yes
- Luminaire efficacy (lm/W)
- 114
- Dimming with push-button
- No
- With movement sensor
- No
- Nominal voltage (max) (V)
- 240
- Nominal current (min) (mA)
- 350
- Type of wiring
- Suitable for through wiring
- Dimming 1-10 V
- No
- Colour rendering index (CRI/Ra)
- 80-89
- Dimming DSI
- No
- Light outlet
- Direct
- Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
- 5
- Suitable for lamp power (min) (W)
- 44
- No dimming function
- Yes
- Flickering value Pst LM
- 1
- Bluetooth operated
- No
- Dimming 0-10 V
- No
- Connection type
- Screwless terminal
- Light source included
- Yes
- Max. number of luminaires per miniature circuit breaker C16
- 30
- Failure rate at median useful life of 75,000 hrs at 25 °C ambient (tq) (%)
- 10
- Lamp type
- LED not exchangeable
- Type of grid
- None
- Light distributor
- Diffuser lens/optic/panel
- Total harmonic distortion (THD) (%)
- 10
- Filament test according to IEC 60695-2-11
- 650 °C - 30 s
- Suitable for light line configuration
- No
- Dimming DALI-2
- No
- Nominal voltage (min) (V)
- 220
- Suitable for recessed mounting
- No
- Energy efficiency class of light source according to EU regulation 2019/2015
- C
- Degree of protection (IP), front side
- IP40
- Dimming manufacturer's proprietary system
- No
- Type of control gear
- LED operating device current-controlled
- Colour temperature (min) (K)
- 3000
- Degree of protection (IP)
- IP40
- Dimming Touch and Dim
- No
- Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24
- No
- Power factor
- 0.9
- Beam angle
- Open beam
- Rated luminous flux according to IEC 62722-2- 1 (min) (lm)
- 5000
- Lumen setting adjustable
- No
- Suitable for lamp power (max) (W)
- 44
- Dimming DALI
- No
- With light sensor
- No
- Light sharing
- Symmetric
- Luminaire efficacy (min) (lm/W)
- 114
- Voltage type
- AC
- Colour temperature switchable
- No
- Compatible with Apple HomeKit
- No
- Dimming LineSwitch
- No
- Housing material
- Steel
- Dimming trailing edge
- No
- With mounting material
- Yes
- Constant luminous flux control
- No
- Compatible with Amazon Alexa
- No
- Height/depth (mm)
- 52
- Rated ambient temperature acc. IEC62722-2-1 (max) (°C)
- 25
- Colour consistency (McAdam ellipse)
- SDCM3
- Protection class according to IEC 61140
- I
- Suitable for wall mounting
- No
- Dimming mains voltage modulation
- No
- Nominal current (max) (mA)
- 350
- Cover material
- Plastic, opal
- Max. number of luminaires per miniature circuit breaker B16
- 18
Product versions
Tradi opal
| Item description | Code | |
|---|---|---|
| Tradi 1210 IP40 26W/830 ACO WH | 4245273 |
|
| Tradi 1210 IP40 26W/840 ACO WH | 4245274 |
|
| Tradi 1210 IP40 38W/830 ACO WH | 4245277 |
|
| Tradi 1210 IP40 38W/840 ACO WH | 4245278 |
|
| Tradi 1510 IP40 44W/830 ACO WH | 4245281 |
|
| Tradi 1510 IP40 44W/840 ACO WH | 4245282 |
|
| Tradi 1510 IP40 63W/830 ACO WH | 4245285 |
|
| Tradi 1510 IP40 63W/840 ACO WH | 4245286 |
Tradi microprismatic
| Item description | Code | |
|---|---|---|
| Tradi 1210 IP40 26W/830 ACMP WH | 4245289 |
|
| Tradi 1210 IP40 26W/840 ACMP WH | 4245290 |
|
| Tradi 1210 IP40 38W/830 ACMP WH | 4245293 |
|
| Tradi 1210 IP40 38W/840 ACMP WH | 4245294 |
|
| Tradi 1510 IP40 44W/830 ACMP WH | 4245297 |
|
| Tradi 1510 IP40 44W/840 ACMP WH | 4245298 |
|
| Tradi 1510 IP40 63W/830 ACMP WH | 4245301 |
|
| Tradi 1510 IP40 63W/840 ACMP WH | 4245302 |
Tradi Dali opal
| Item description | Code | |
|---|---|---|
| Tradi 1210 IP40 26W/830 DA2 ACO WH | 4245275 |
|
| Tradi 1210 IP40 26W/840 DA2 ACO WH | 4245276 |
|
| Tradi 1210 IP40 38W/830 DA2 ACO WH | 4245279 |
|
| Tradi 1210 IP40 38W/840 DA2 ACO WH | 4245280 |
|
| Tradi 1510 IP40 44W/830 DA2 ACO WH | 4245283 |
|
| Tradi 1510 IP40 44W/840 DA2 ACO WH | 4245284 |
|
| Tradi 1510 IP40 63W/830 DA2 ACO WH | 4245287 |
|
| Tradi 1510 IP40 63W/840 DA2 ACO WH | 4245288 |
Tradi Dali microprismatic
| Item description | Code | |
|---|---|---|
| Tradi 1210 IP40 26W/830 DA2 ACMP WH | 4245291 |
|
| Tradi 1210 IP40 26W/840 DA2 ACMP WH | 4245292 |
|
| Tradi 1210 IP40 38W/830 DA2 ACMP WH | 4245295 |
|
| Tradi 1210 IP40 38W/840 DA2 ACMP WH | 4245296 |
|
| Tradi 1510 IP40 44W/830 DA2 ACMP WH | 4245299 |
|
| Tradi 1510 IP40 44W/840 DA2 ACMP WH | 4245300 |
|
| Tradi 1510 IP40 63W/830 DA2 ACMP WH | 4245303 |
|
| Tradi 1510 IP40 63W/840 DA2 ACMP WH | 4245304 |
