Puck 400 IP20 28W/830 DA ACO WH
Puck Surface mnt./suspen. luminaire 28W 3000K 3300lm Dim DALI-2; IP20; Protection cl. I; L70B50 100000h; LED not exchangeable; CRI>80; Suitable for through wiring; 5x2.5mm²; Housing Aluminium; Colour wh; Cover Plastic, opal

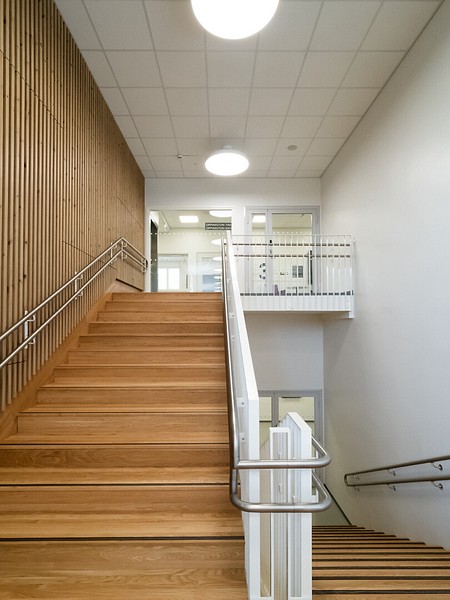

A stylish and eye-catching luminaire range for public spaces. This luminaire, which is available in three sizes and two colour temperatures, is ideal for offices and lobbies. Suspension or surface mounting. A wire-suspension fixture is available as an accessory.
Aluminium housing and opal acrylic diffuser.
White, RAL 9003.
Protection class I.
Suspension or surface mounting.
Linkable, 3/5 × 2.5 mm2.
Installation height 2–6 m
Integrated LED 28–78 W / 3,300–8,000 lm.
Colour temperatures 3000 K and 4000 K. CRI > 80 / Ra > 80.
MacAdam 3 SDCM.
IP20.
The standard range includes on/off and Dali models.
Ambient temperature range 0 … 25 °C.
Rated lifetime L70 100 000 h (Ta25°C).
Rated lifetime L80 80 000 h (Ta25°C).
Power source service life 50 000 h.
WH = white, DA = Dali.
Also available as Casambi, 1–10 V and Switch Dim solutions. Opal prismatic diffuser available by special order. Project-specific luminous flux packages available on request. CRI > 90 available by special order. Also available with various connecting wire solutions and in different RAL colors.
- Code
- 4245259
Downloads
Technical info
- Electrical number (FIN)
- 4245259
- Electrical number (SWE)
- 7019161
- GTIN
- 6435200254252
- Airam code
- D2EXBA
- Code
- 4245259
- Length (mm)
- 400
- Fit for workplace acc. EN 12464-1
- No
- Suitable for suspended mounting
- Yes
- Emergency function monitoring system
- None
- Luminaire efficacy (max) (lm/W)
- 118
- Colour of light (alphanumeric)
- White
- Lamp holder
- Other
- Suitable for clamp-mounting
- Yes
- Dimming Zigbee
- No
- Colour temperature (max) (K)
- 3000
- Dimming leading edge
- No
- Number of poles
- 5
- Stroboscope effect value SVM
- 0.4
- Connectable conductor cross section (min) (mm²)
- 1.5
- Total harmonic distortion
- 10
- Compatible with Google Assistant
- No
- Connectable conductor cross section (max) (mm²)
- 2.5
- Conductor cross section (mm²)
- 2.5
- Rated life time L70/B50 at 25 °C (h)
- 100000
- Dimming DMX
- No
- With switch
- No
- Containing product according to 2019/2020/EU
- Yes
- Suitable for emergency lighting
- No
- With light sensor
- No
- Photobiological safety according to EN 62471
- RG0
- Maximum system power (W)
- 28
- With presence indicator
- No
- Emergency power supply system
- None
- Dimmable
- Yes
- Suitable for ceiling mounting
- Yes
- Exchangeable control gear
- Yes
- Rated luminous flux according to IEC 62722-2- 1 (max) (lm)
- 3300
- Dimming Sine Wave Reduction
- No
- Dimming programmable
- Yes
- Housing colour
- White
- Emergency power supply integrated
- No
- Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 85
- Compatible with Casambi
- No
- Beam angle adjustable
- No
- Degree of protection (IP), rear side
- IP20
- Lumen maintenance at median useful life of 75,000 hrs at 25 °C ambient (tq) (%)
- 80
- Filament test according to IEC 60695-2-11
- 650 °C - 30 s
- Lumen maintenance at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
- 90
- Housing surface protection
- Powder coating
- With air slots
- No
- Suitable for number of lamps
- 1
- Control gear included
- Yes
- Dimming RF
- No
- Rated ambient temperature acc. IEC62722-2-1 (min) (°C)
- 0
- Effective luminous flux (lm)
- 3300
- Rated life time L80/B50 at 25 °C
- 80000
- IFTTT support available
- No
- Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) (%)
- 5
- Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24
- No
- Dimming potentiometer (integrated)
- No
- Impact strength
- IK02
- Max. number of luminaires per miniature circuit breaker C10 (MCB)
- 20
- Width (mm)
- 400
- Suitable for surface mounting
- Yes
- Luminaire efficacy (lm/W)
- 118
- Dimming with push-button
- No
- Energy efficiency class of light source according to EU regulation 2019/2015
- D
- With movement sensor
- No
- Nominal voltage (max) (V)
- 240
- Type of wiring
- Suitable for through wiring
- Dimming 1-10 V
- No
- Colour rendering index (CRI/Ra)
- 80-89
- Dimming DSI
- No
- Light outlet
- Direct
- Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) (%)
- 5
- Suitable for lamp power (min) (W)
- 28
- No dimming function
- No
- Degree of protection (IP), front side
- IP20
- Flickering value Pst LM
- 1
- Bluetooth operated
- No
- Dimming 0-10 V
- No
- Connection type
- Screwless terminal
- Light source included
- Yes
- Max. number of luminaires per miniature circuit breaker C16
- 34
- Failure rate at median useful life of 75,000 hrs at 25 °C ambient (tq) (%)
- 10
- Lamp type
- LED not exchangeable
- Type of grid
- None
- Light distributor
- Diffuser lens/optic/panel
- Total harmonic distortion (THD) (%)
- 10
- Suitable for light line configuration
- No
- Dimming DALI-2
- Yes
- Nominal voltage (min) (V)
- 220
- Suitable for recessed mounting
- No
- Dimming manufacturer's proprietary system
- No
- Type of control gear
- LED operating device current-controlled
- Colour temperature (min) (K)
- 3000
- Degree of protection (IP)
- IP20
- Power factor
- 0.9
- Beam angle
- Open beam
- Rated luminous flux according to IEC 62722-2- 1 (min) (lm)
- 3300
- Lumen setting adjustable
- No
- Suitable for lamp power (max) (W)
- 28
- Protection class according to IEC 61140
- I
- Dimming DALI
- Yes
- Light sharing
- Symmetric
- Luminaire efficacy (min) (lm/W)
- 118
- Voltage type
- AC
- Colour temperature switchable
- No
- Compatible with Apple HomeKit
- No
- Dimming LineSwitch
- No
- Housing material
- Aluminium
- With mounting material
- Yes
- Constant luminous flux control
- No
- Compatible with Amazon Alexa
- No
- Height/depth (mm)
- 72
- Rated ambient temperature acc. IEC62722-2-1 (max) (°C)
- 25
- Colour consistency (McAdam ellipse)
- SDCM3
- Dimming trailing edge
- No
- Suitable for wall mounting
- No
- Dimming Touch and Dim
- No
- Dimming mains voltage modulation
- No
- Cover material
- Plastic, opal
- Max. number of luminaires per miniature circuit breaker B16
- 20
Product versions
Puck
| Item description | Code | |
|---|---|---|
| Puck 400 IP20 28W/840 ACO WH | 4245258 |
|
| Puck 400 IP20 28W/830 ACO WH | 4245257 |
|
| Puck 400 IP20 41W/840 ACO WH | 4245262 |
|
| Puck 400 IP20 41W/830 ACO WH | 4245261 |
|
| Puck 610 IP20 48W/840 ACO WH | 4146553 |
|
| Puck 610 IP20 48W/830 ACO WH | 4146554 |
|
| Puck 800 IP20 78W/840 ACO WH | 4245266 |
|
| Puck 800 IP20 78W/830 ACO WH | 4245265 |
Puck Dali
| Item description | Code | |
|---|---|---|
| Puck 400 IP20 28W/840 DA ACO WH | 4245260 |
|
| Puck 400 IP20 28W/830 DA ACO WH | 4245259 |
|
| Puck 400 IP20 41W/840 DA ACO WH | 4245264 |
|
| Puck 400 IP20 41W/830 DA ACO WH | 4245263 |
|
| Puck 610 IP20 48W/840 DA ACO WH | 4146555 |
|
| Puck 610 IP20 48W/830 DA ACO WH | 4146556 |
|
| Puck 800 IP20 78W/840 DA ACO WH | 4245268 |
|
| Puck 800 IP20 78W/830 DA ACO WH | 4245267 |
